Overview

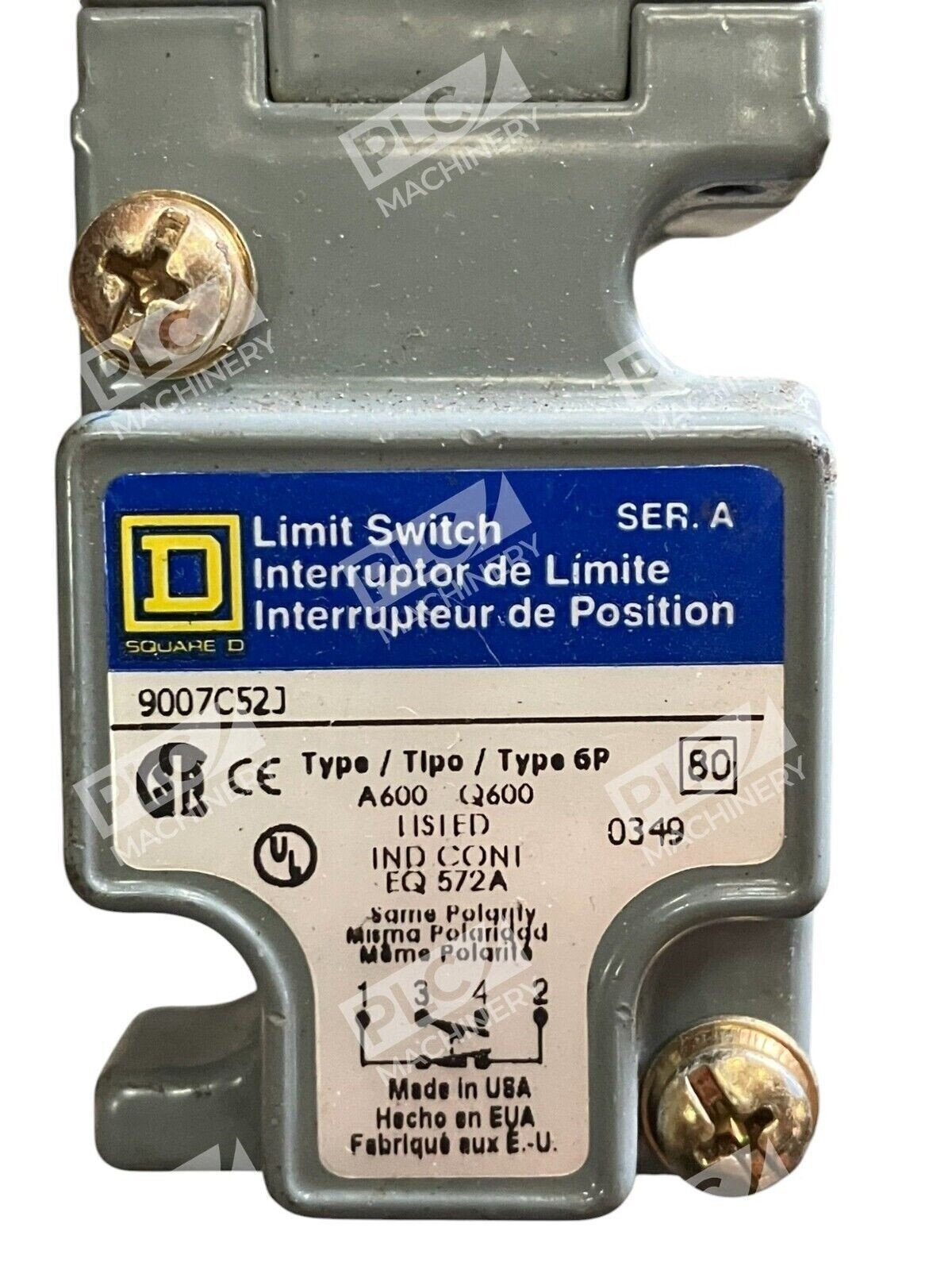

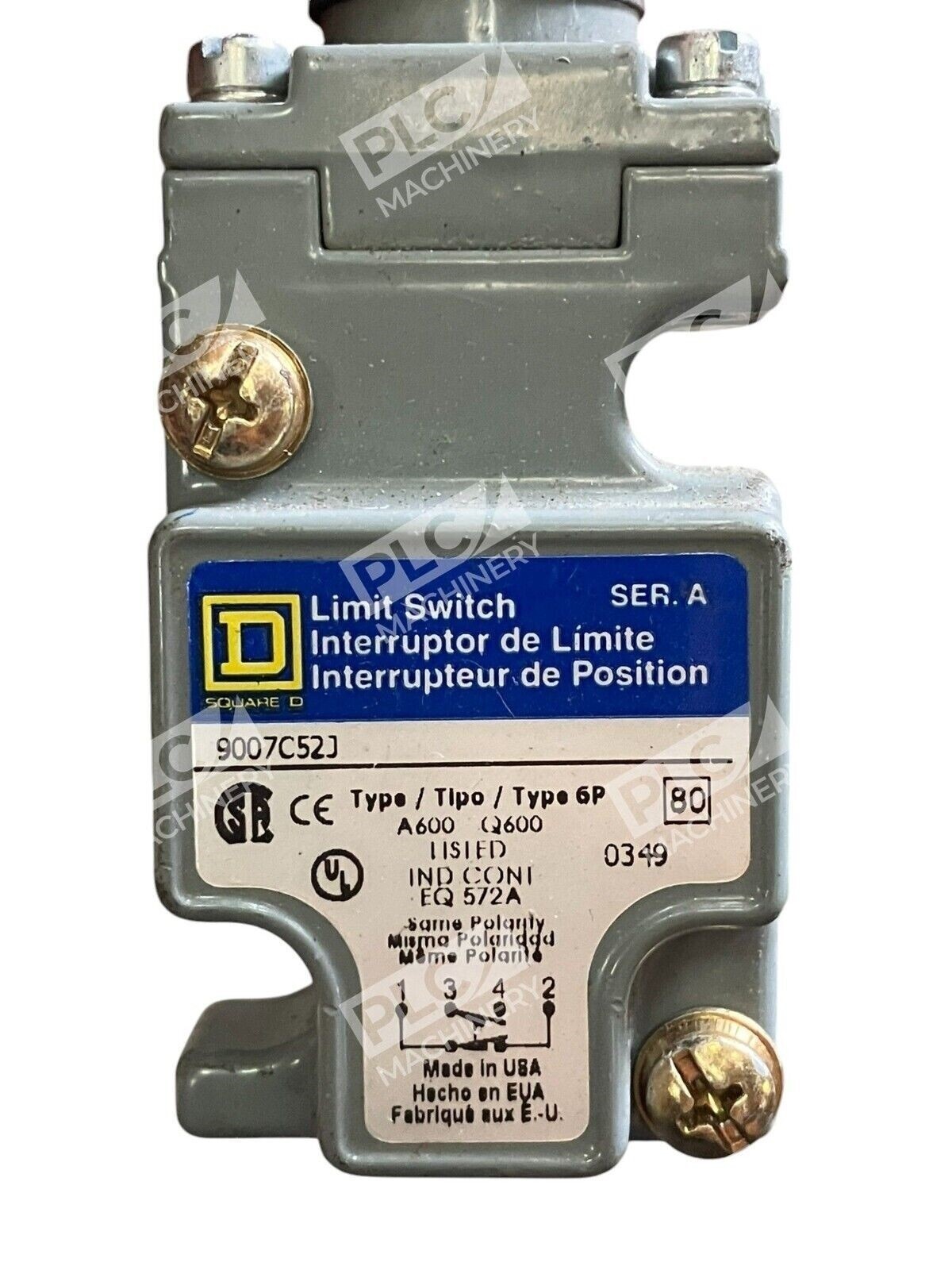

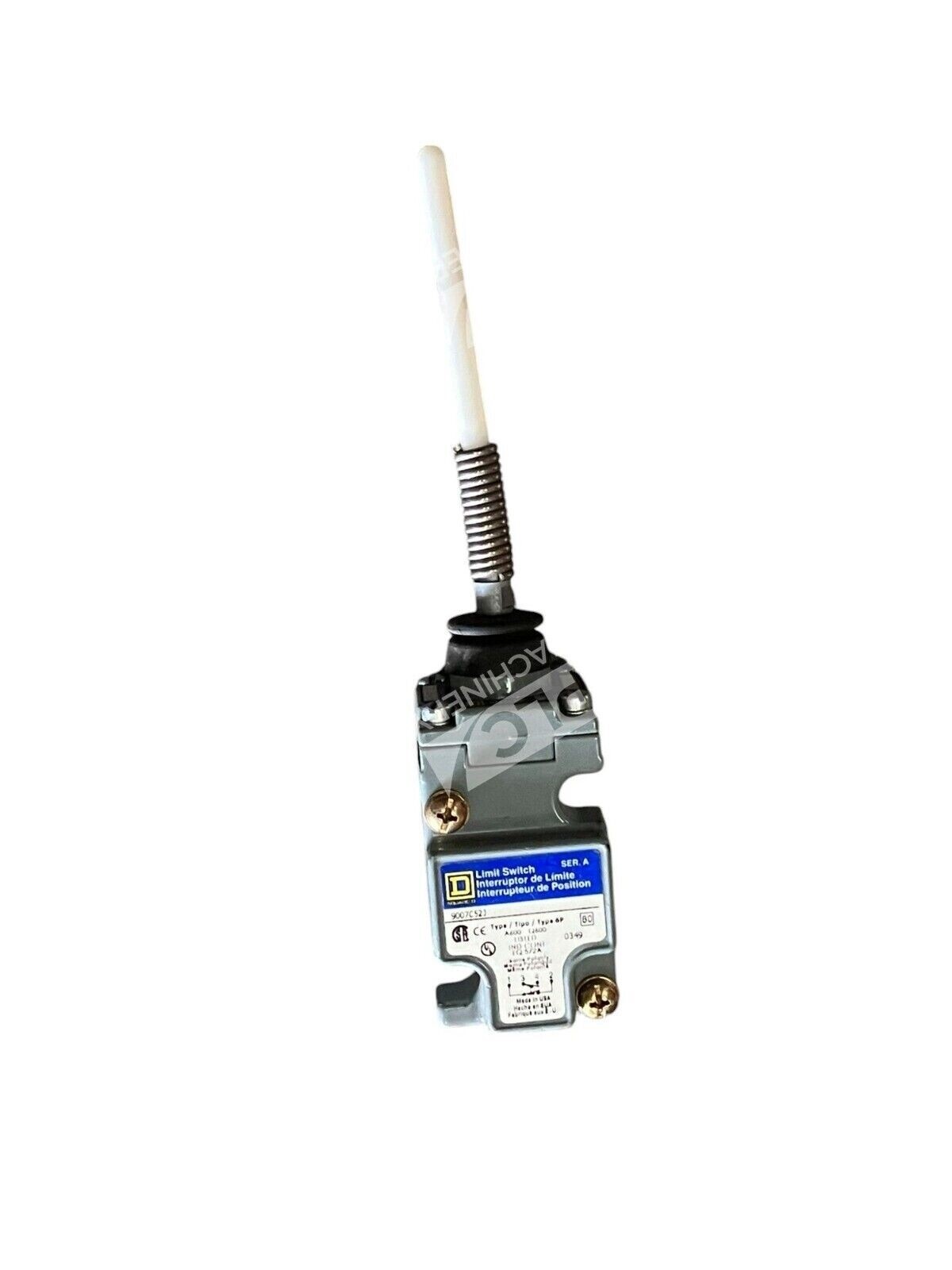

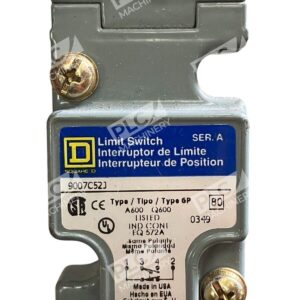

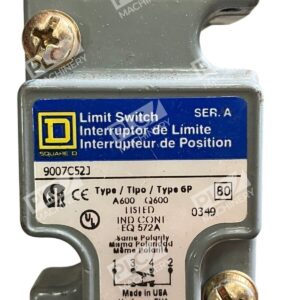

The Square D 9007C52J is a Class 9007 industrial limit switch engineered for heavy-duty applications in manufacturing, conveyor systems, and machinery control. This model features a zinc die-cast housing with a plastic wobble stick actuator and spring return mechanism, making it ideal for detecting equipment position in any direction of approach.
Key Features
- Zinc die-cast housing for durability in harsh industrial environments
- Plastic wobble stick actuator responsive in all directions
- Spring return mechanism for reliable reset
- 10 amp continuous current rating at rated voltage
- UL listed and CSA certified for safety compliance
- Compact semi-modular design for flexible mounting
Technical Specifications
- Part Number: 9007C52J
- Manufacturer: Square D (Schneider Electric)
- Series: Class 9007 Heavy Duty
- Housing Material: Zinc die-cast
- Actuator Type: Plastic wobble stick
- AC Voltage Rating: 120/240/480/600 Vac, 10 amp
- DC Voltage Rating: 125/250/600 Vdc, 10 amp
- Operating Force: 3 lb-inch
- Operating Temperature Range: 0°F to 185°F (-18°C to 85°C)
- Certifications: UL listed, CSA certified
- Contact Type: Silver snap action
Typical Applications
- Conveyor systems and material handling equipment
- Press and stamping machine position detection
- Hoist and lifting device control
- Industrial machinery end-of-stroke sensing
- Assembly line automation and sequencing
- Door and gate position monitoring
Compatibility & Replacements
Compatible With
- Square D / Schneider Electric control systems
- Industrial machinery with standard limit switch mounting provisions
- 24 VDC to 600 VAC control circuits
- Pneumatic and hydraulic equipment controls
- Conveyor and material handling systems
Replaces / Drop-In Replacement For
- Other 9007C Series limit switches with compatible actuator styles
- Verify specific model compatibility with your system integrator before ordering
Works With
- Square D industrial control panels
- Standard industrial wiring and conduit installations
- Snap action contact mechanisms with silver alloy contacts
- Both AC and DC control circuits within rated specifications
