Overview

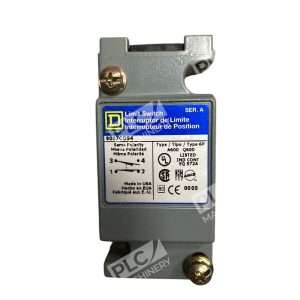

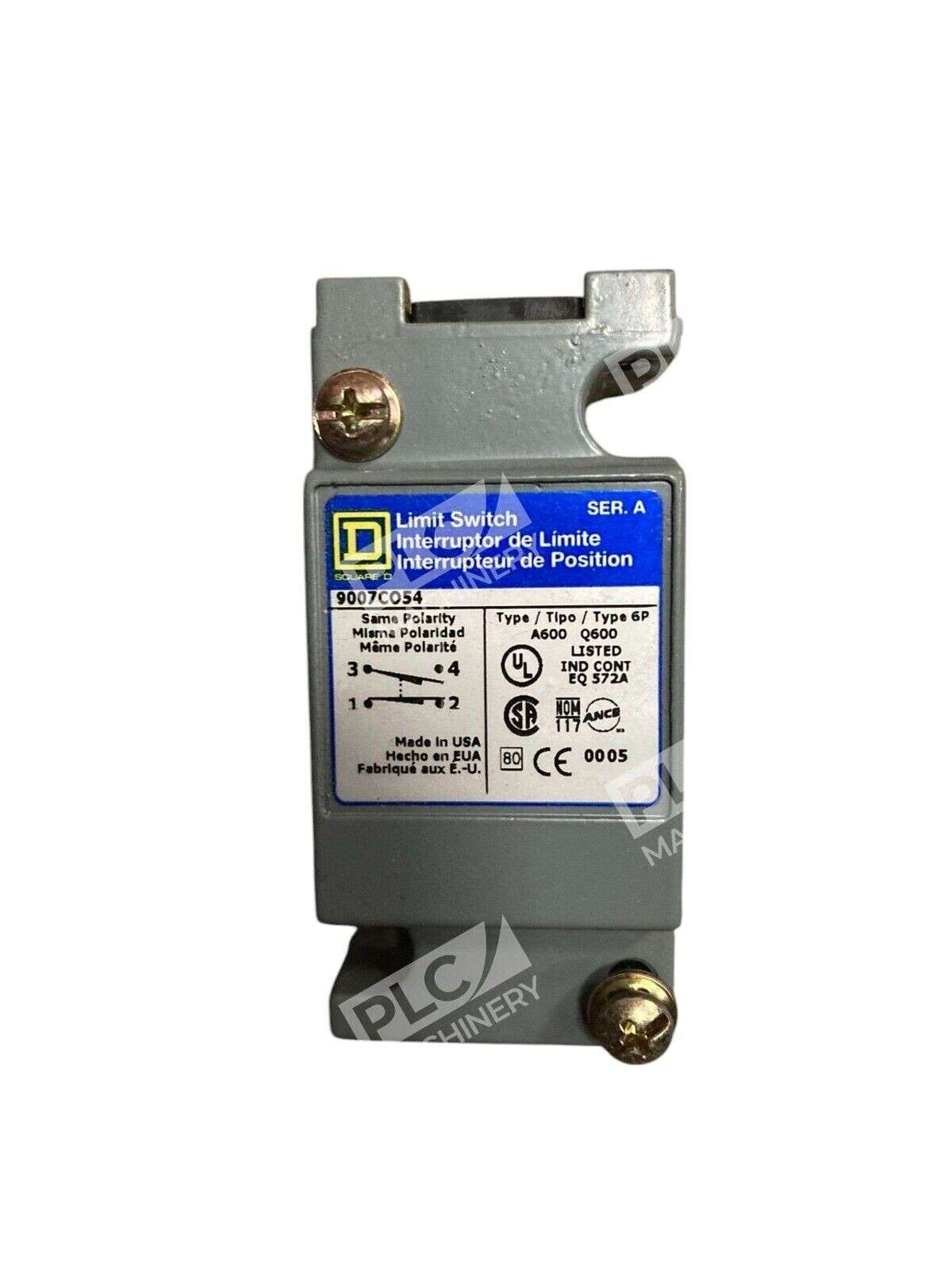

The Square D 9007CO54 is a compact standard limit switch body that serves as a critical component in industrial automation systems. Engineered by Schneider Electric for heavy-duty plug-in applications, this unit pairs with 9007C series actuator heads to create complete limit switch assemblies. The zinc alloy die-cast housing delivers robust performance in demanding manufacturing and material handling environments.
Key Features
- Heavy-duty plug-in design with die-cast zinc alloy body for superior durability
- 1NO/1NC contact configuration with snap-action operation for reliable signal switching
- Silver alloy contacts rated NEMA A600/Q600 for extended mechanical life
- Compact form factor with IP 65/66/67 protection ratings
- NEMA Type 1/2/4/6/6P/12/13 enclosure compatibility
- UL, CSA, and CE approved for global industrial use
Technical Specifications
- Contact Rating: 600VAC 10A / 600VDC 2.5A
- Contact Configuration: 1 Normally Open / 1 Normally Closed (1NO-1NC)
- Contact Operation: Snap Action
- Contact Material: Silver Alloy
- Body Material: Zinc Alloy (Die-cast)
- Electrical Connection: Plug-in Receptacle
- Operating Temperature: –20°F to +185°F (–29°C to +85°C)
- IP Rating: 65, 66, 67
- NEMA Rating: 1, 2, 4, 6, 6P, 12, 13
- Certifications: UL, CSA, CE
- Duty Class: Heavy Duty Plug-In
Typical Applications
The 9007CO54 is commonly deployed in automated production systems requiring position sensing and machine safety interlocks. Common applications include conveyor systems, packaging equipment, press machinery, material handling systems, and gate/door position monitoring. The wide temperature range and IP rating make it suitable for both indoor industrial environments and outdoor installations.
Compatibility & Replacements
Compatible With
- 9007C Series limit switch heads and operators
- Square D Osiswich family limit switches
- Plug-in limit switch enclosure systems using 9007 receptacles
- Industrial control panels rated for 600VAC/VDC operation
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering.
Works With
- 9007C Series actuator heads (lever, roller, spring return styles)
- Manual and automatic control circuits
- PLCs and motion control systems via relay logic
- NEMA-rated enclosure frames and manifold assemblies
