Overview

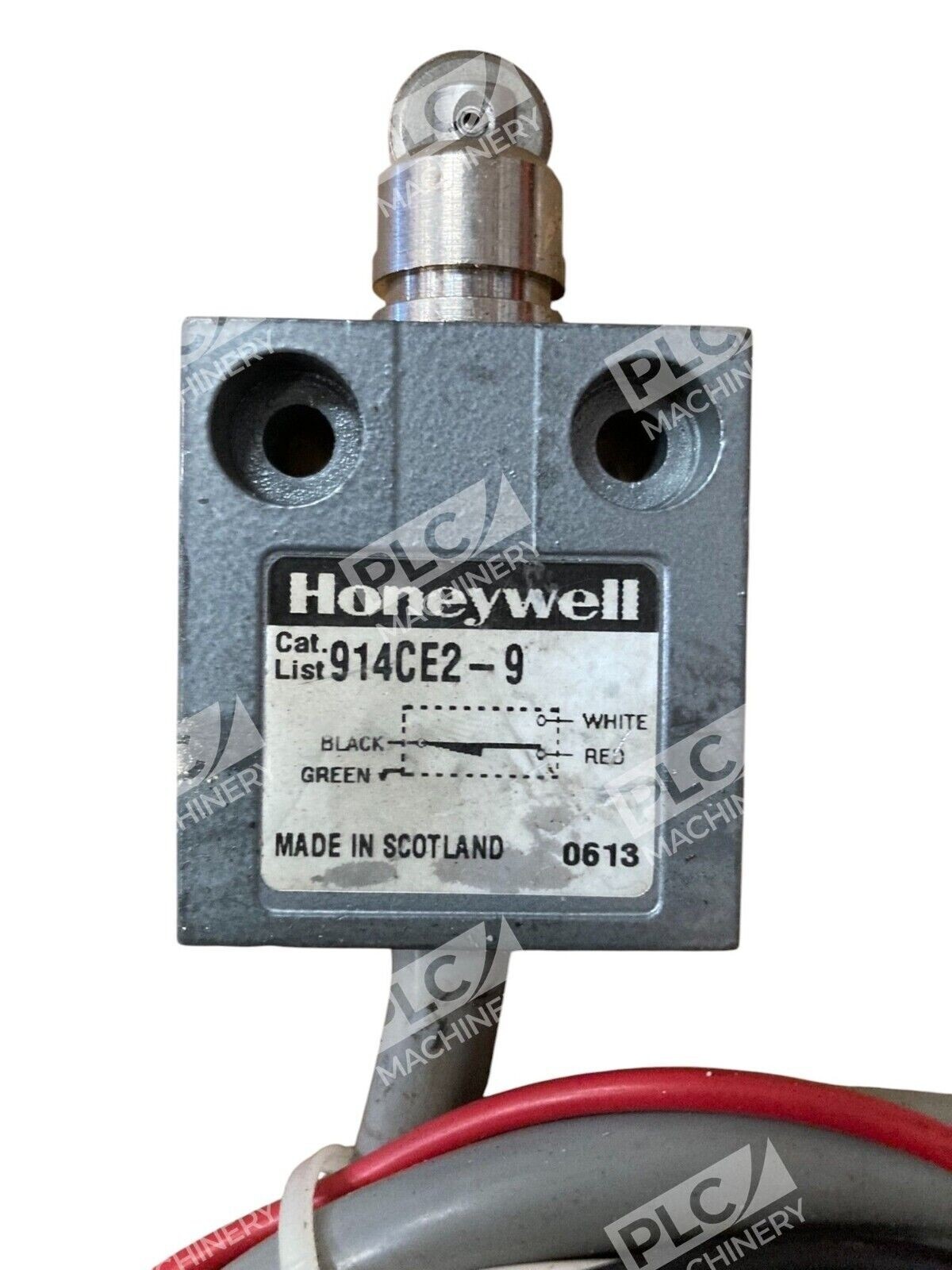

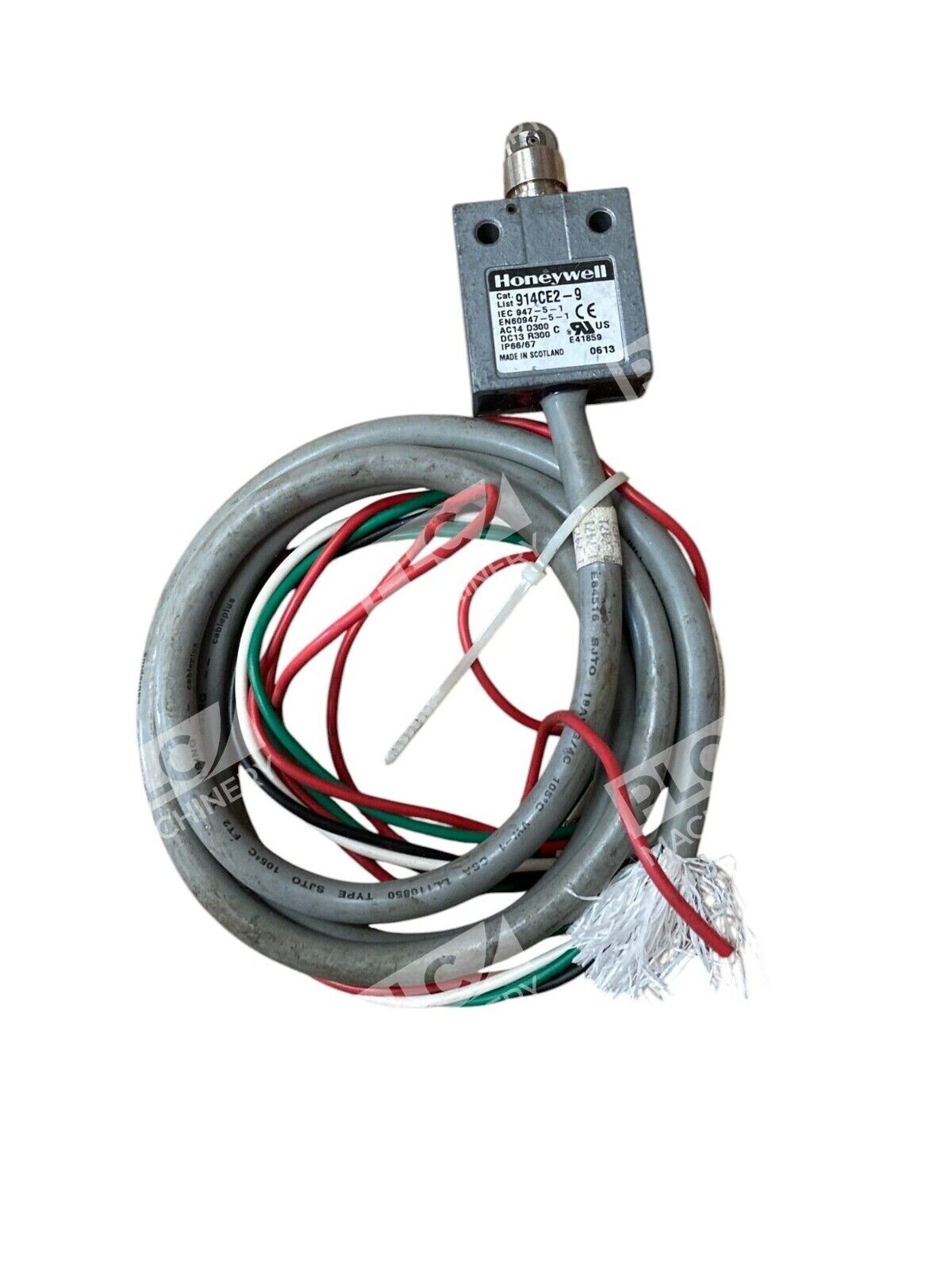

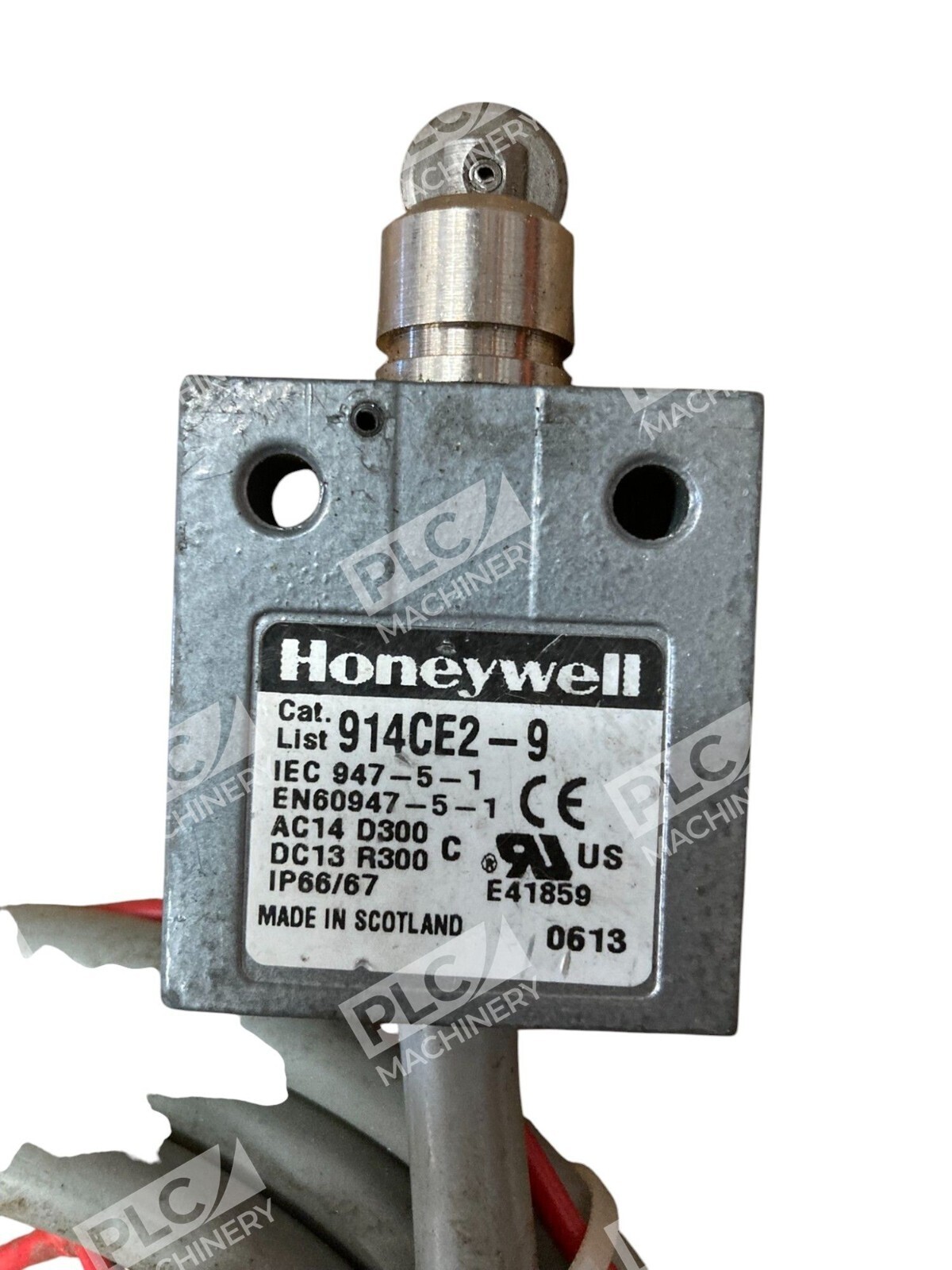

The Honeywell 914CE2-9 is a compact SPDT miniature limit switch designed for precision machinery control and industrial automation. Part of the MICRO SWITCH 914CE Series, this switch incorporates fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13, as well as IP66, IP67, and IP68 requirements. The compact design allows for minimal space on equipment to be occupied when installed. This is a used, tested unit in fully functional condition.
Key Features
- Top plunger, 1NC 1NO SPDT snap action configuration for precise actuation
- Fluorocarbon diaphragm sealing provides reliable protection to a high standard
- Switch terminals enclosed in epoxy sealant offering increased durability and robustness in harsh industrial environments
- Well-suited for a 10,000,000 actuation life cycle
- 25 mm mounting centers with IP65/66/67 sealing
- Meets North American cURus standards, as well as European CE and United Kingdom UKC requirements
Technical Specifications
Key electrical and mechanical parameters for the 914CE2-9:
Typical Applications
The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. Common uses include:
- Position sensing and limit control on hydraulic/pneumatic machinery
- Safety interlocks and end-of-stroke detection
- Door and gate position monitoring
- Equipment travel limit protection
- Automation and conveyor system control
Compatibility & Replacements
Compatible With
- Standard 24 VDC and 120/240 VAC control circuits
- PLC discrete inputs (24 VDC logic)
- Relay-based control systems
- Industrial automation and machinery control panels
- Honeywell MICRO SWITCH legacy systems
Replaces / Drop-In Replacement For
The Honeywell 914CE2-9 is a direct replacement for existing 914CE2-9 installations. Verify cable length and plunger type match your application requirements before ordering.
Works With
- Standard 24 VDC input modules on Allen-Bradley CompactLogix, ControlLogix, and Siemens S7 controllers
- Conventional relay logic and contactor circuits
- NEMA-rated industrial control enclosures
- M12 connector variants (check configuration suffix)
