Overview

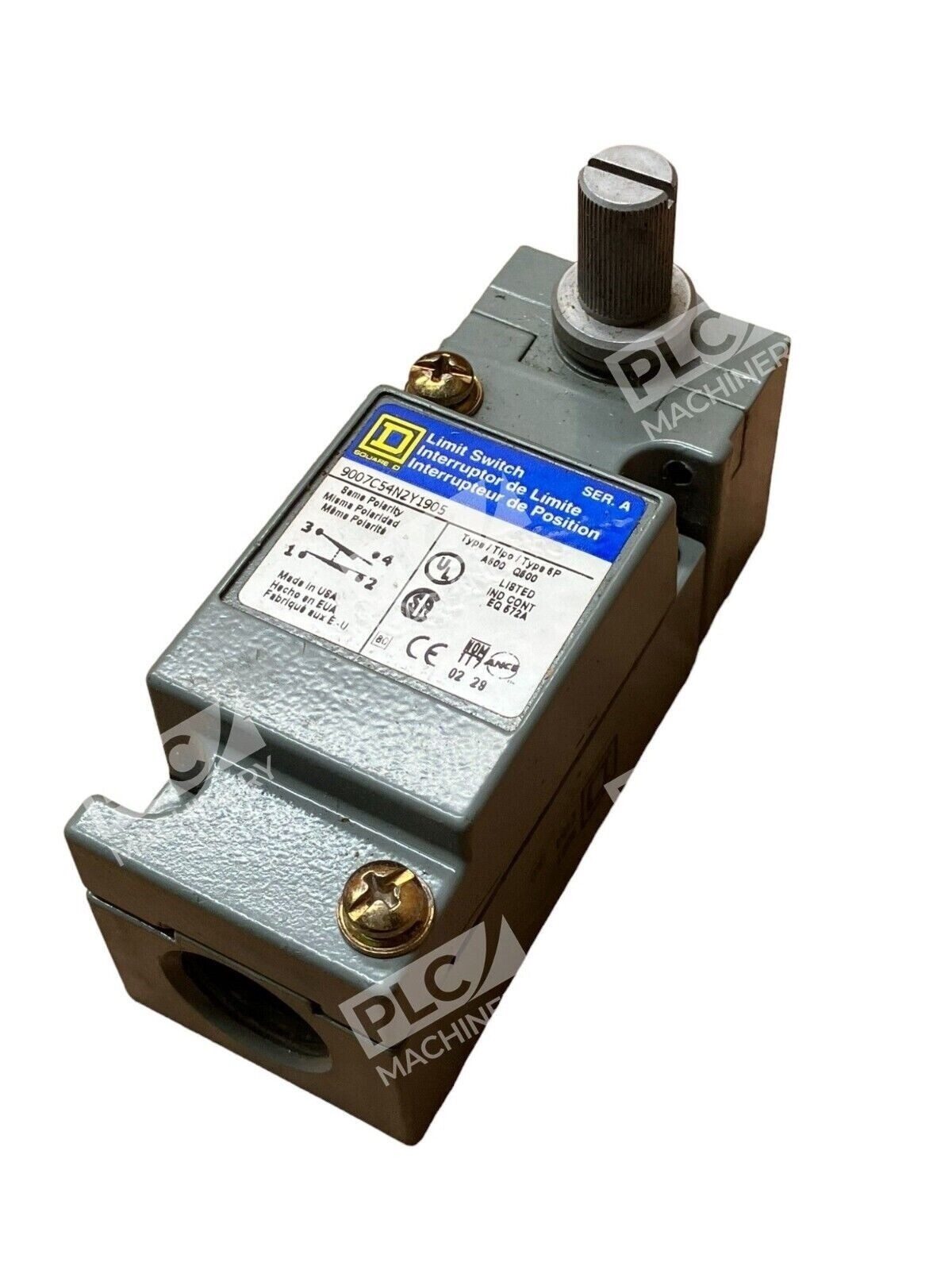

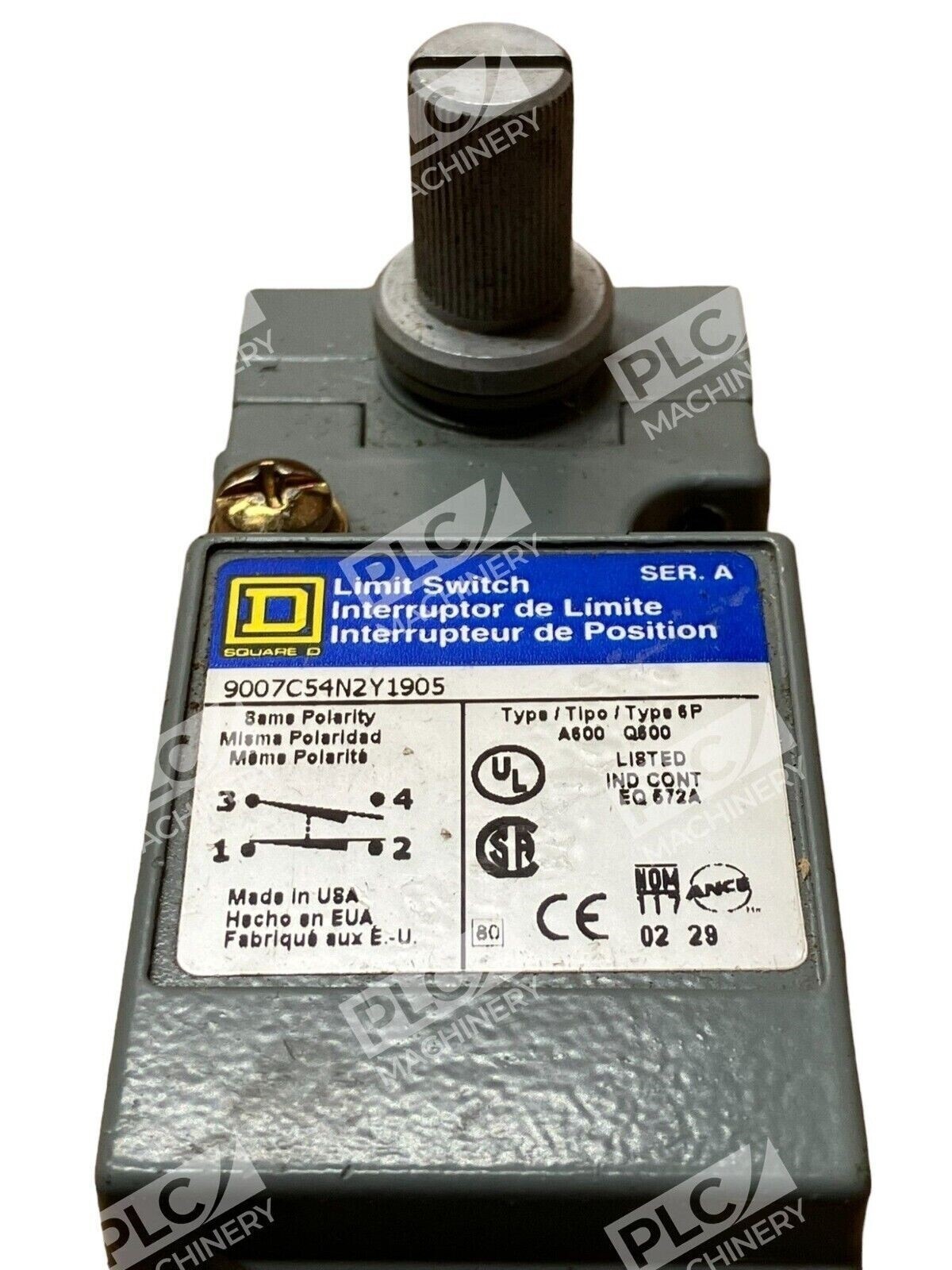

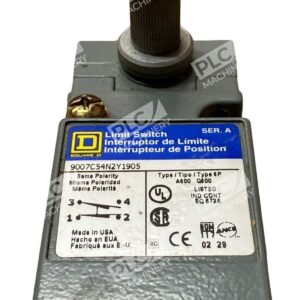

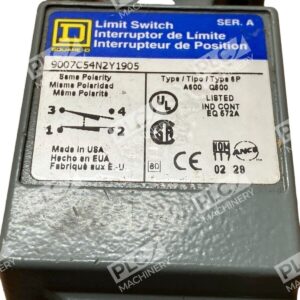

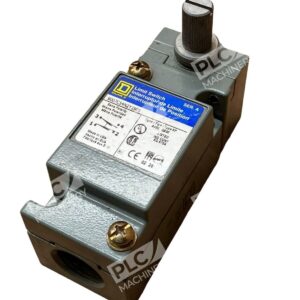

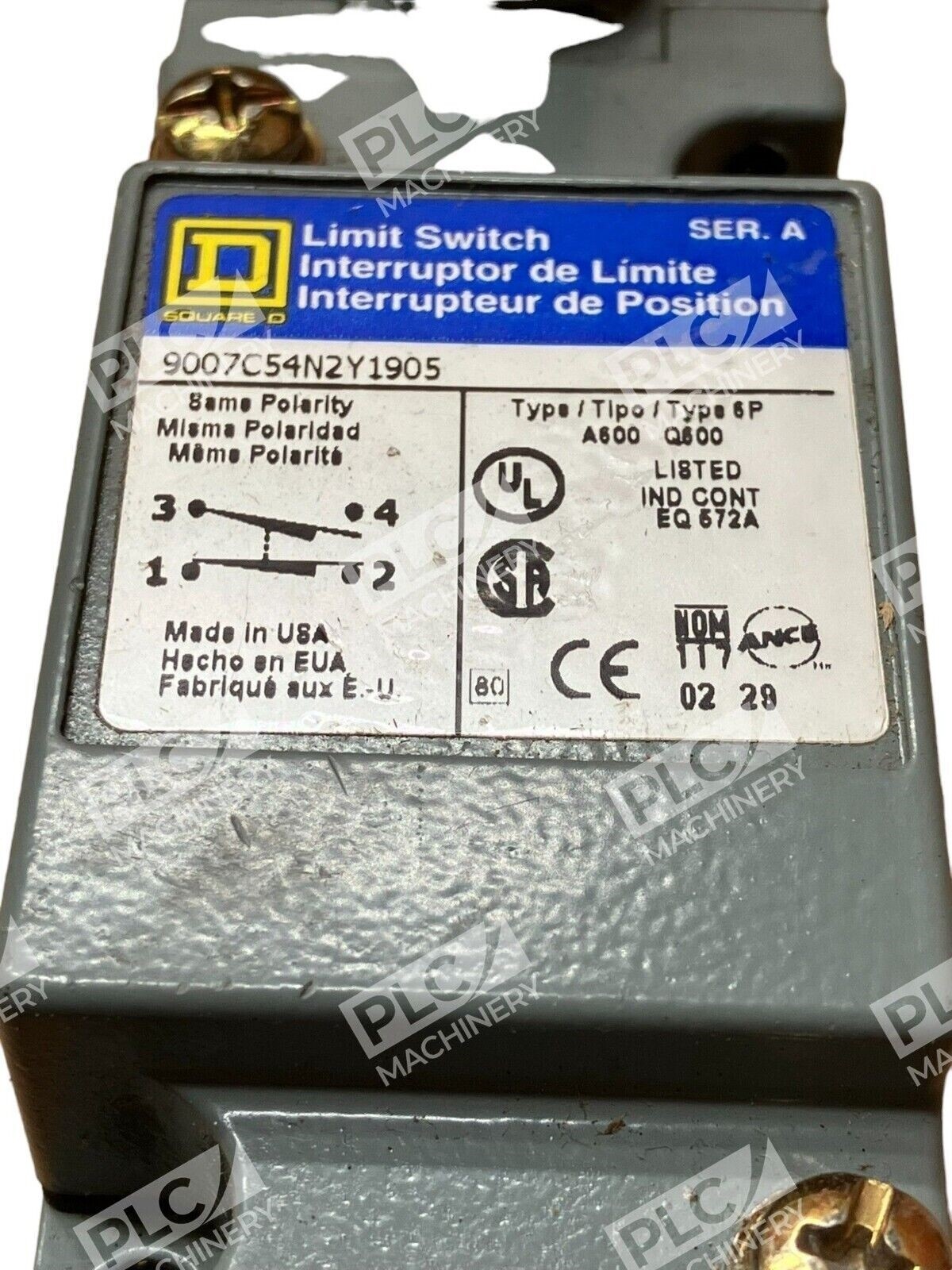

The Square D 9007C54N2Y1905 is a heavy-duty compact limit switch designed for demanding industrial control applications. Part of the Class 9007 series by Square D (Schneider Electric), this unit combines reliable snap-action contacts with a rotary spring-return operating mechanism. The N2 configuration indicates snap-action contacts, while the Y1905 suffix denotes factory-applied options specific to your application requirements.
Key Features
- Snap-Action Contacts: Ensures crisp, repeatable electrical transitions for fast switching response in control circuits
- 600V / 10A Rating: Rated for 600 VAC and 600 VDC at 10 amperes continuous current, suitable for most industrial control voltages
- Heavy-Duty Metal Housing: Zinc diecast construction (39mm body) provides durability in manufacturing, packaging, and material-handling equipment
- Rotary Spring-Return Design: Mechanical spring return to neutral position enables fail-safe operation
- SPDT Contact Form: One normally open (NO) and one normally closed (NC) contact for flexible control logic
- Compact Semi-Modular Construction: Allows field replacement of heads and actuators to extend product life
Technical Specifications
| Specification | Value |
| Manufacturer | Square D / Schneider Electric |
| Model / Part Number | 9007C54N2Y1905 |
| Class | 9007 Heavy Duty |
| Contact Form | SPDT (1NO-1NC) |
| Voltage Rating | 600 VAC / 600 VDC |
| Current Rating | 10 Amperes |
| Contact Type | Snap Action |

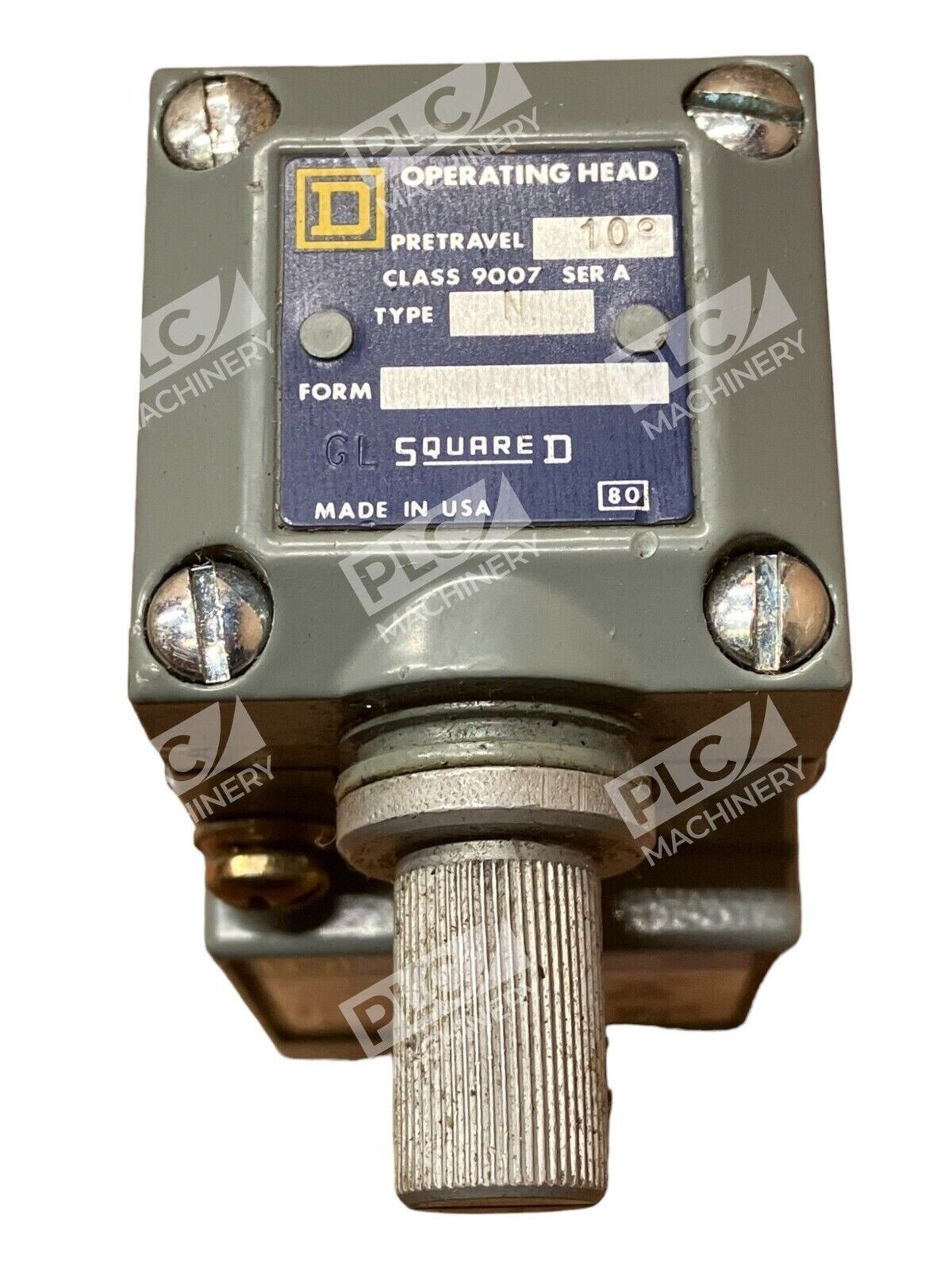

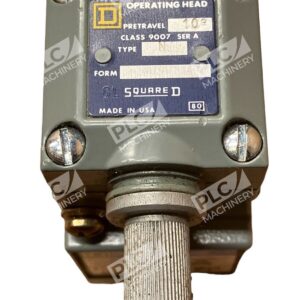

| Actuator Type | Rotary Head, Spring Return |
| Body Material | Zinc Diecast (39mm) |
| Operating Temperature Range | –17.8°C to +85°C |
| Enclosure Type | Oil-Tight, Dust-Tight, Water-Tight, Drip-Tight (NEMA 2, 4, 13) |
| Condition | New – No Box |
Typical Applications
- Conveyor and material-handling equipment position detection
- Manufacturing machinery end-of-travel limit monitoring
- Elevator and lift gate safety interlocks
- Automated door and gate position sensing
- Industrial packaging and labeling machinery
- Process control and emergency stop circuits in automation systems
Compatibility & Replacements
Compatible With
- Square D / Schneider Electric PLC and relay control systems
- Industrial DC and AC control circuits (600V nominal)
- Allen-Bradley, Siemens, and other industrial controllers accepting standard 24V–600V control signals
- Machinery equipped with 9007 series limit switch sockets and manifolds
Replaces / Drop-In Replacement For
- Square D 9007C54 base models with matching actuator and contact configuration
- Other 9007C series heavy-duty limit switches with SPDT snap-action contacts
- Verify exact head type and factory options with your system integrator before ordering
Works With
- Square D manifold mounting plates and baseplate assemblies
- Standard industrial control relays and contactor coils
- 24 VDC and 120/240 VAC pilot circuits
- Flexible mounting: screw clamp, panel mount, and conduit seal options
