Overview

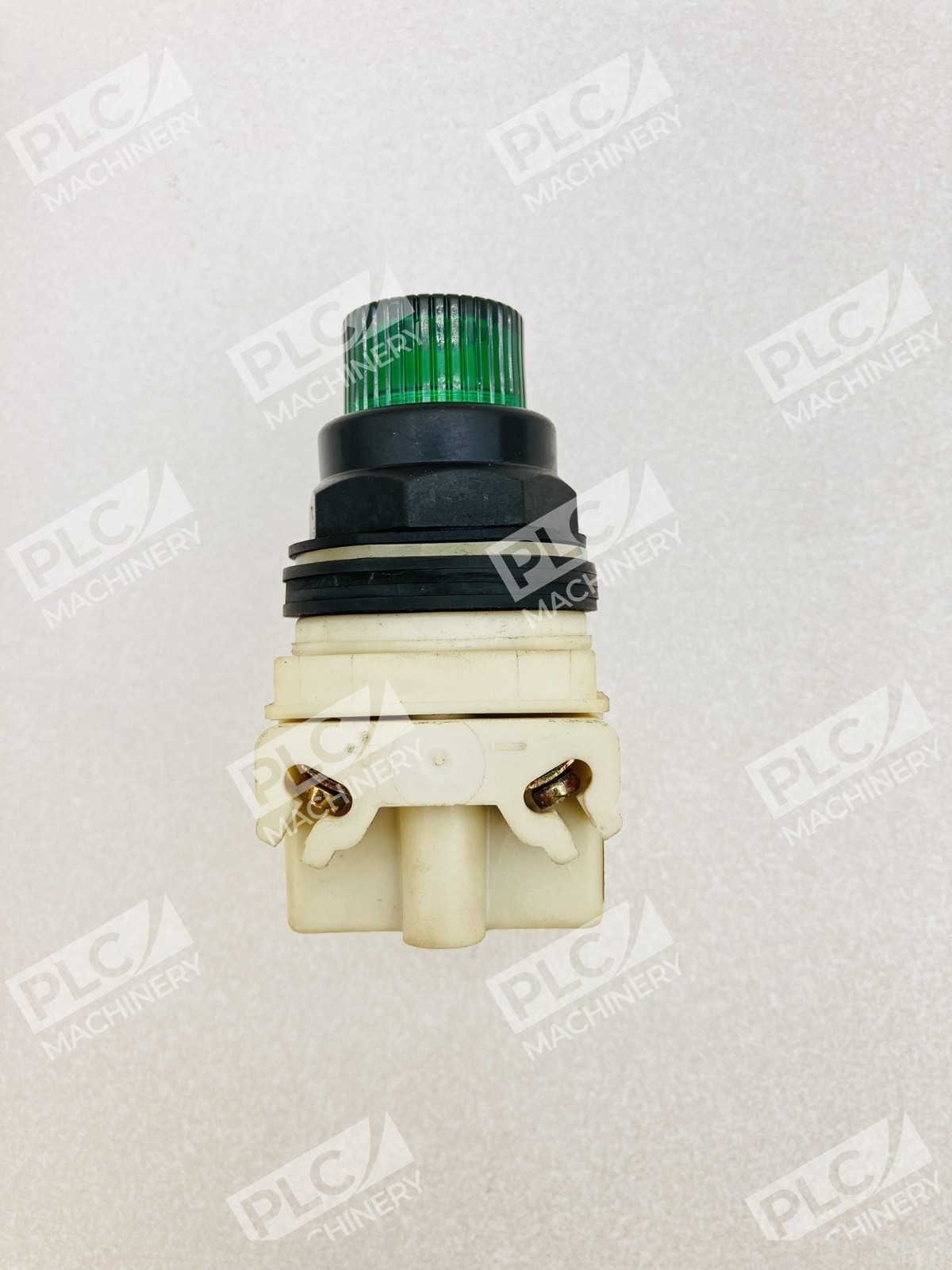

The Square D 9001SK2L1G is a 30mm illuminated pushbutton operator engineered for heavy-duty industrial control applications. This illuminated pushbutton features a bright green lens for clear visual indication and easy operator identification. The 9001SK2L1G uses a durable plastic bezel for superior corrosion resistance, making it ideal for washdown environments, chemical exposure, and outdoor installations where metal components may degrade.
Key Features
- 30mm modular pushbutton design with 2CO (changeover) contact configuration
- Illuminated green lens for high-visibility status indication
- Plastic bezel construction for corrosion and chemical resistance
- IP66 rated for dusttight, oiltight, and watertight operation
- Automatic self-grounding design (no additional ground wires required)
- Momentary contact operation with spring return
- ABS certified for industrial reliability
- Compatible with Series H and earlier Harmony 9001 modular systems
Technical Specifications
- Contact Configuration: 2CO (2 Changeover contacts)
- Button Size: 30mm
- Bezel Material: Black plastic (corrosion-resistant)
- Lens Color: Green
- Lens Type: Illuminated
- Contact Rating: 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC
- Operation: Momentary, spring return
- Enclosure Rating: IP66, NEMA 4, 4X, 13
- Mounting: Panel mount with screw terminals
- Self-Grounding: Yes (no external ground wiring needed)
- Certifications: ABS, UL, CSA, CE marked to EN/IEC standards
Typical Applications
- Factory floor control panels and industrial machinery
- Washdown and chemical processing equipment
- Food and beverage production lines
- Crane and hoist control systems
- Mining and mineral processing operations
- Pulp and paper manufacturing
- Water treatment and wastewater facilities
- Outdoor and harsh environment installations
Compatibility & Replacements
Compatible With
- Square D Harmony 9001 series modular systems
- Standard industrial control panels with 30mm operator cutouts
- NEMA 4, 4X, and 13 rated enclosures
- Modular contact blocks and light modules within the 9001 family
Replaces / Drop-In Replacement For
- Square D 9001SK2L1 (earlier revision)
- Other Square D 9001SK green illuminated 30mm pushbuttons with 2CO contact configuration
Works With
- Interchangeable 9001 series contact blocks
- 9001 series light modules and LED/incandescent lamp options
- Standard panel-mount electrical hardware
- Modular color caps and lens assemblies for the Harmony 9001 range
