Overview

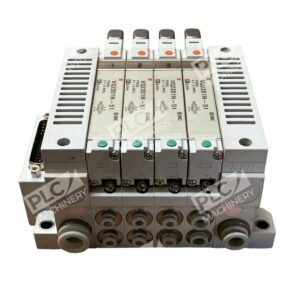

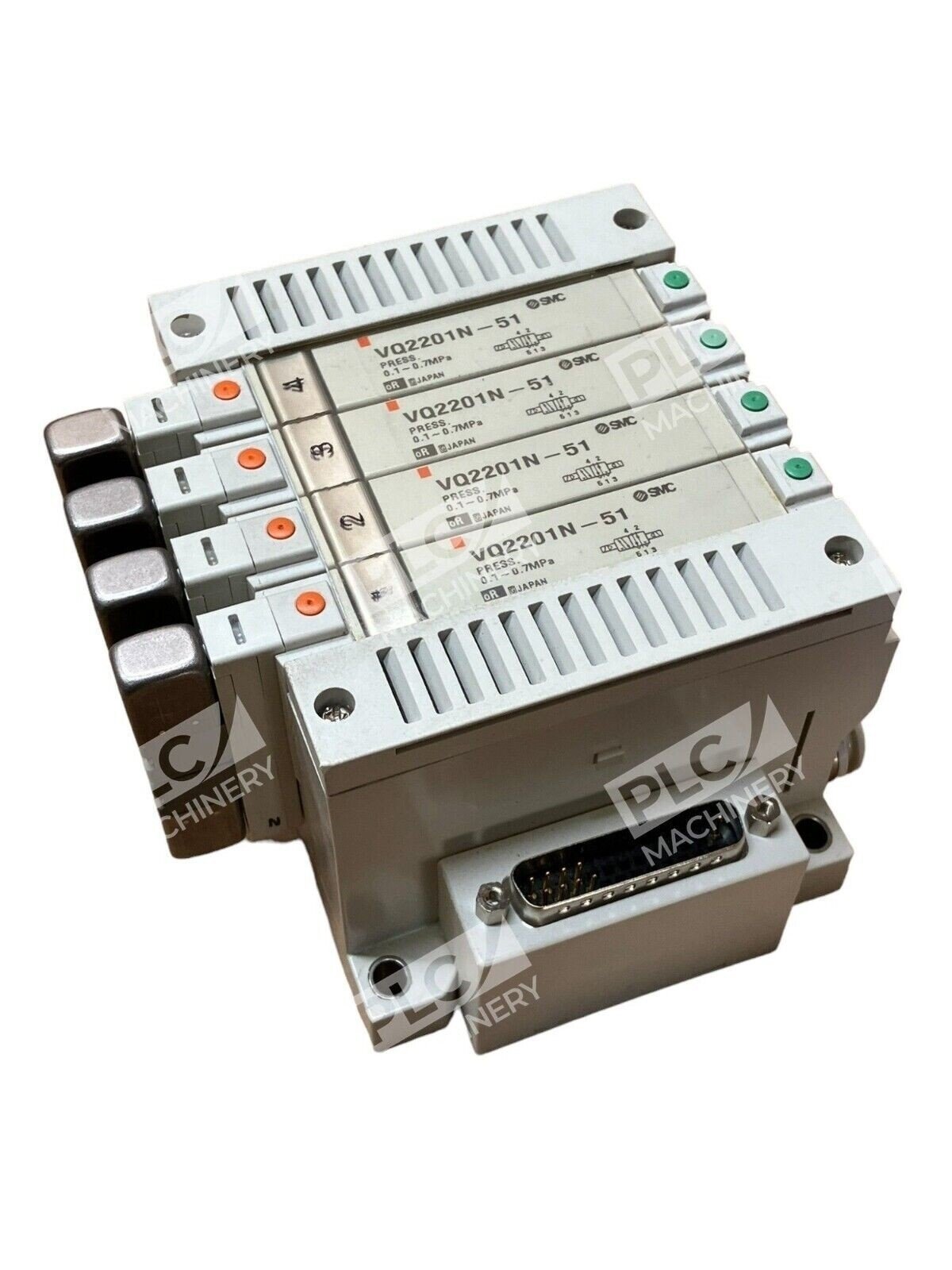

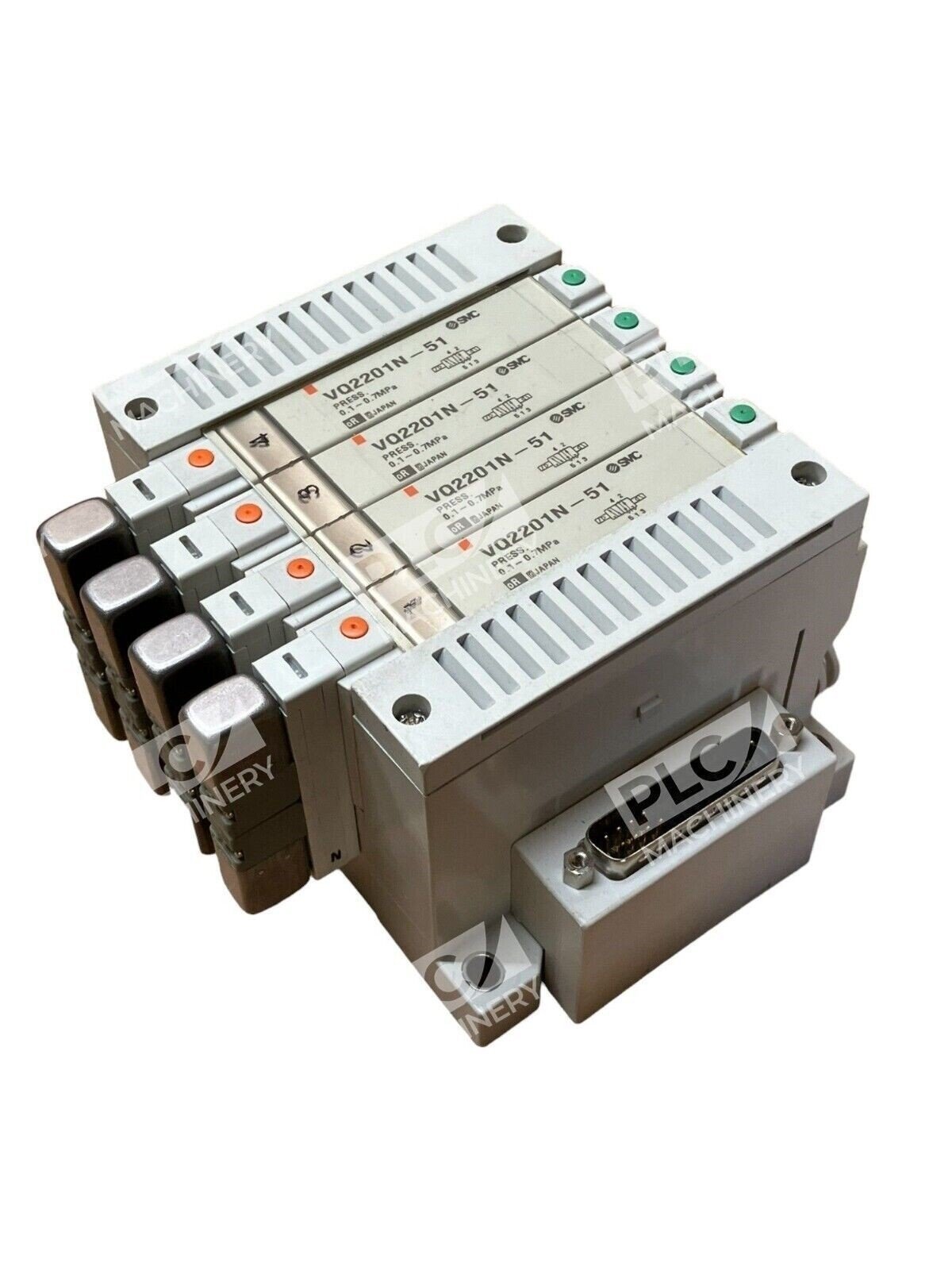

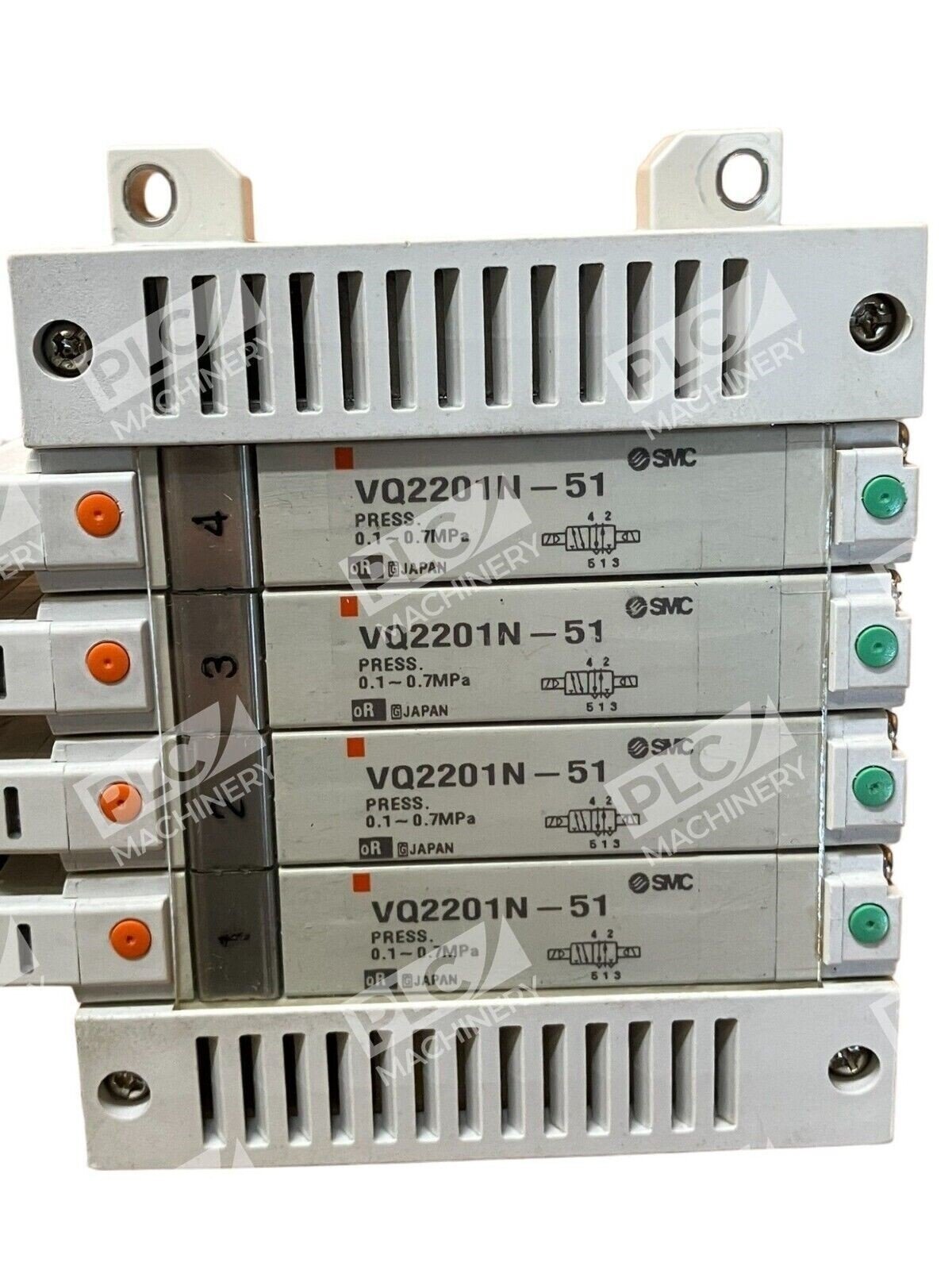

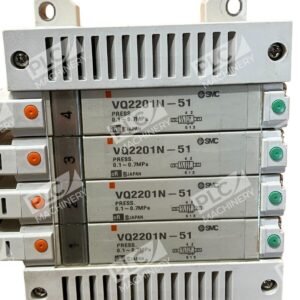

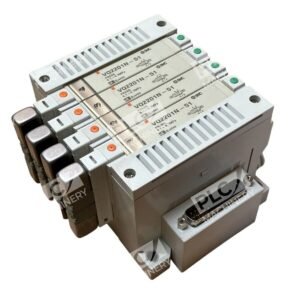

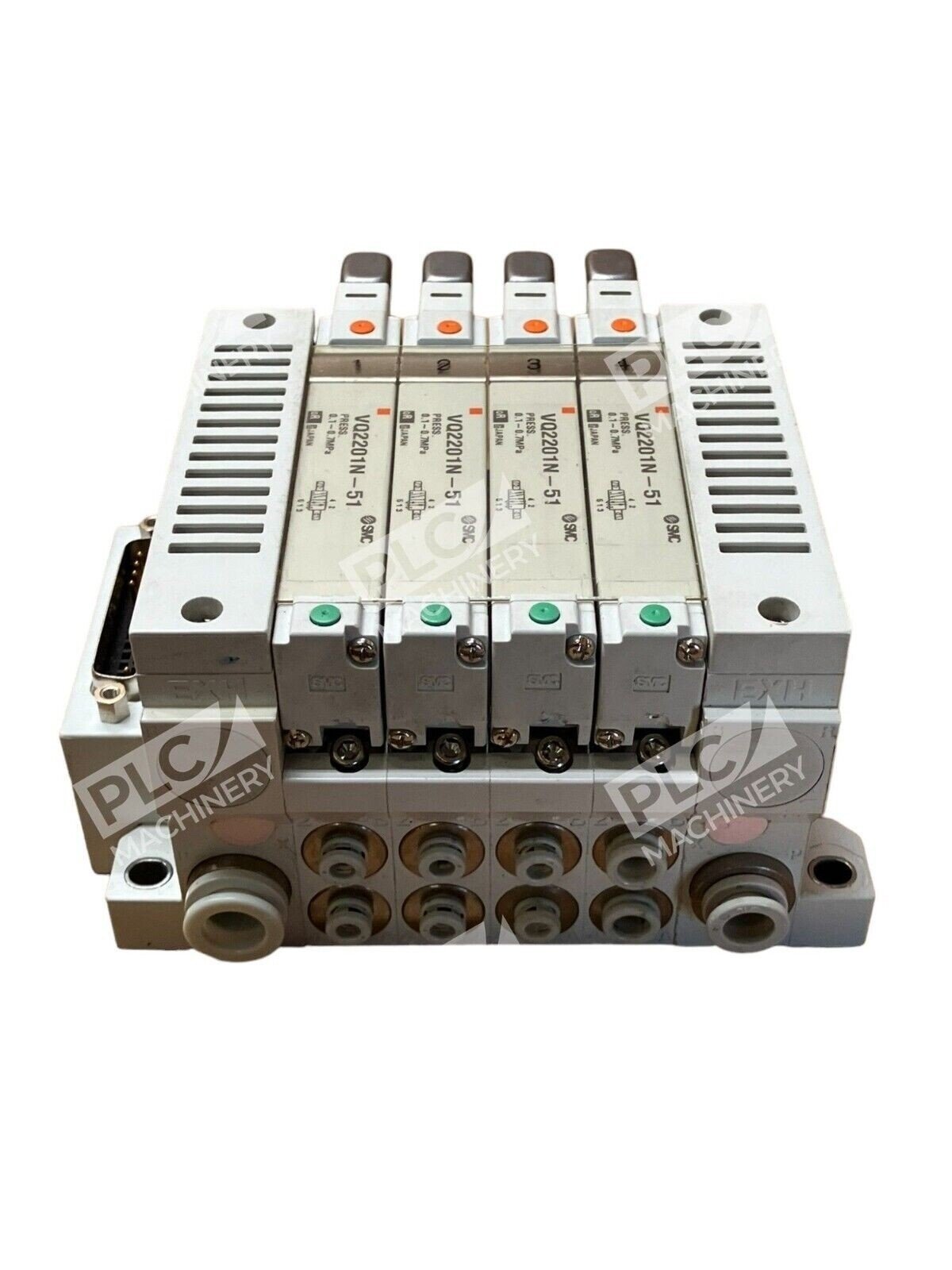

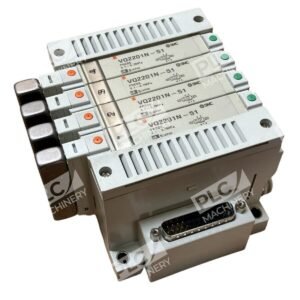

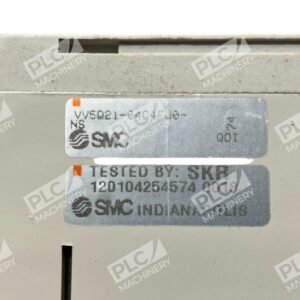

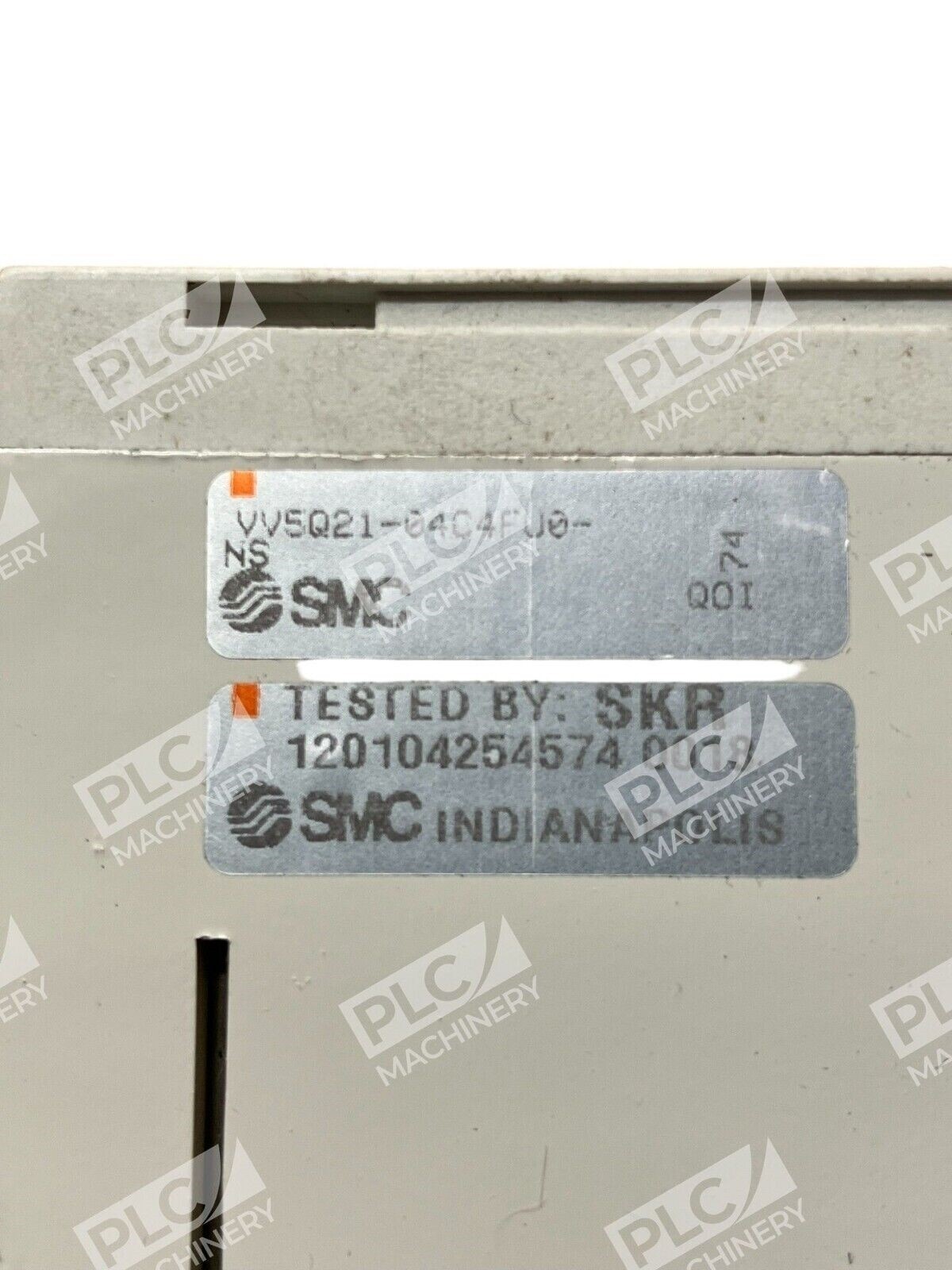

The SMC VV5Q21-04C4FU0-NS manifold is a proven 4-station base-mounted pneumatic valve platform designed for VQ2000-series solenoid valves. This used unit delivers reliable control over multiple independent pneumatic circuits in a compact footprint, making it ideal for industrial automation systems, packaging machinery, and assembly equipment. The plug-in architecture enables rapid valve replacement without full manifold disassembly, reducing maintenance downtime.
Key Features
- 4-station base-mounted configuration for multiple solenoid valves
- Plug-in design allows valve changes without manifold removal
- D-sub electrical connector (25-pin standard) for straightforward wiring integration
- One-touch fittings (4 mm ports on this model) for quick pneumatic connections
- Space-saving design with side-mounted solenoids and fittings
- Compatible with SMC VQ2000-series 3-port, 2-position control valves
Technical Specifications
- Manifold Type: Base-mounted, plug-in unit
- Valve Series: VQ2000 (accommodates VQ2201N-51 and equivalent models)
- Station Count: 4
- Port Size: 4 mm one-touch fittings
- Electrical Interface: 25-pin D-sub connector
- Electrical Entry: Side entry with 3 m cable (standard)
- Piping Direction: Side ported
- Mounting: Base mounted (DIN rail mounting available as option)
- Operating Pressure: Refer to embedded valve specifications (typically 0.5–1.0 MPa)
- Condition: Used, fully functional
Typical Applications
- Packaging and labeling machinery requiring multi-circuit pneumatic control
- Industrial assembly equipment with sequential cylinder actuation
- Material handling systems with pneumatic clamping and positioning
- Automotive production lines requiring coordinated valve switching
- Food and beverage processing equipment with synchronized pneumatic circuits
Compatibility & Replacements
Compatible With
- SMC VQ2000-series 3-port, 2-position solenoid control valves (e.g., VQ2201N-51)
- Standard industrial DC/AC solenoid valve coils compatible with VQ series
- PLC and motion controller I/O with standard 24 VDC/AC logic signals
- Pneumatic systems operating in the 0.5–1.0 MPa pressure range
Replaces / Drop-In Replacement For
This specific unit (VV5Q21-04C4FU0-NS) is a direct replacement for identical OEM configurations. For alternative 4-station manifold models from SMC, verify port size, electrical connector type, and mounting method before substitution. Similar models in the VV5Q21 series with different configurations (e.g., 6 mm ports, 15-pin connector, DIN rail mount) are not drop-in replacements.
Works With
- SMC solenoid valve coil kits (24 VDC/AC standard)
- Pneumatic cylinders (SAK, C95/C96, CJ2, and equivalent)
- One-touch pneumatic fittings and push-to-connect tubing
- Standard 25-pin D-sub cabling and connectors
- Industrial automation software and I/O modules supporting parallel valve control logic
