Overview

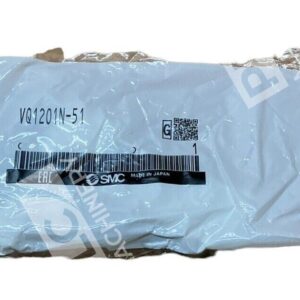

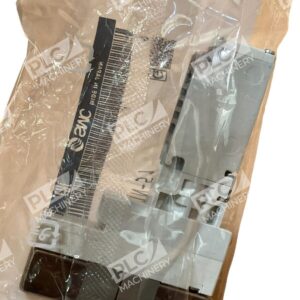

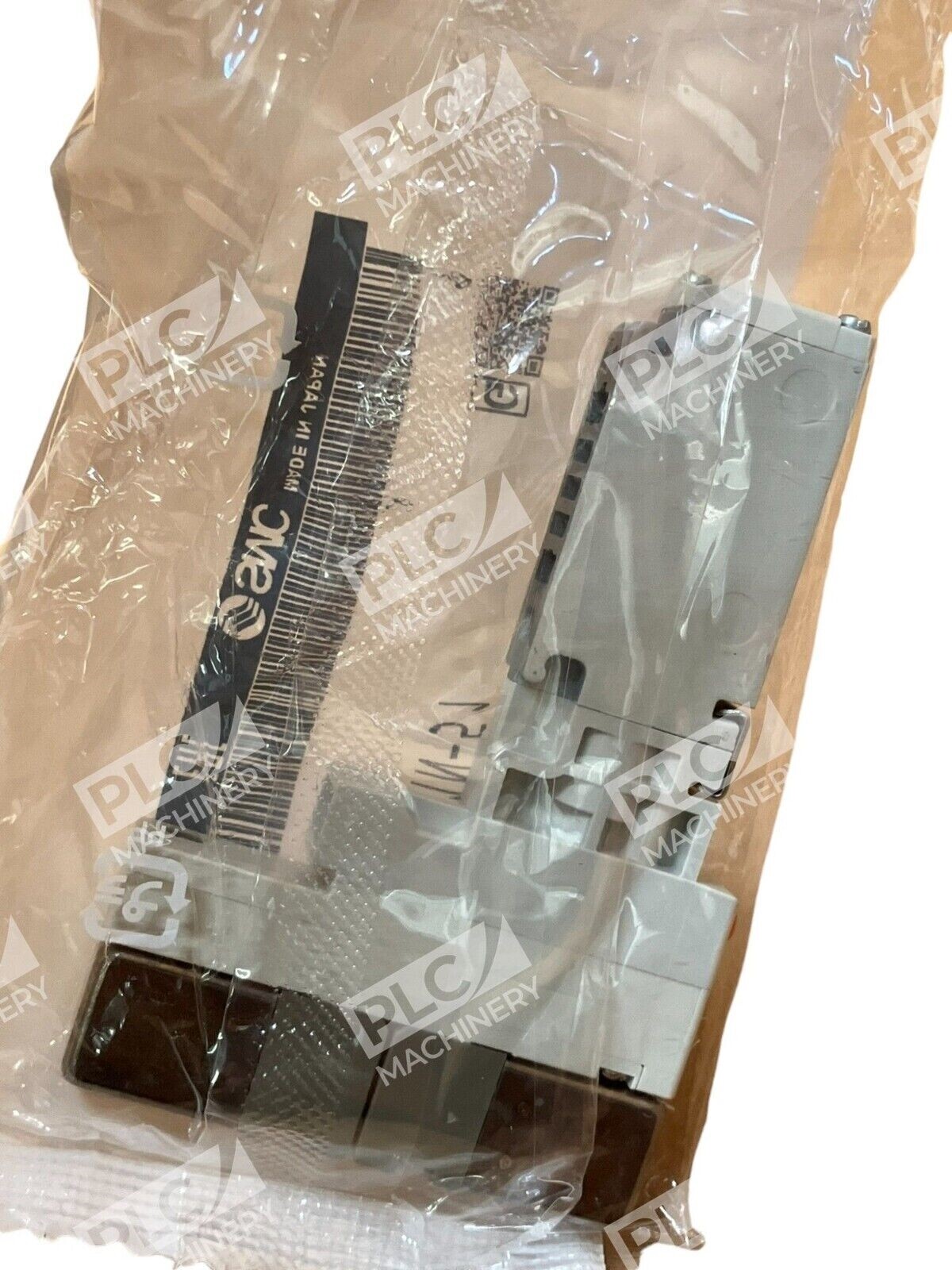

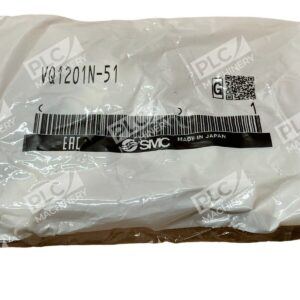

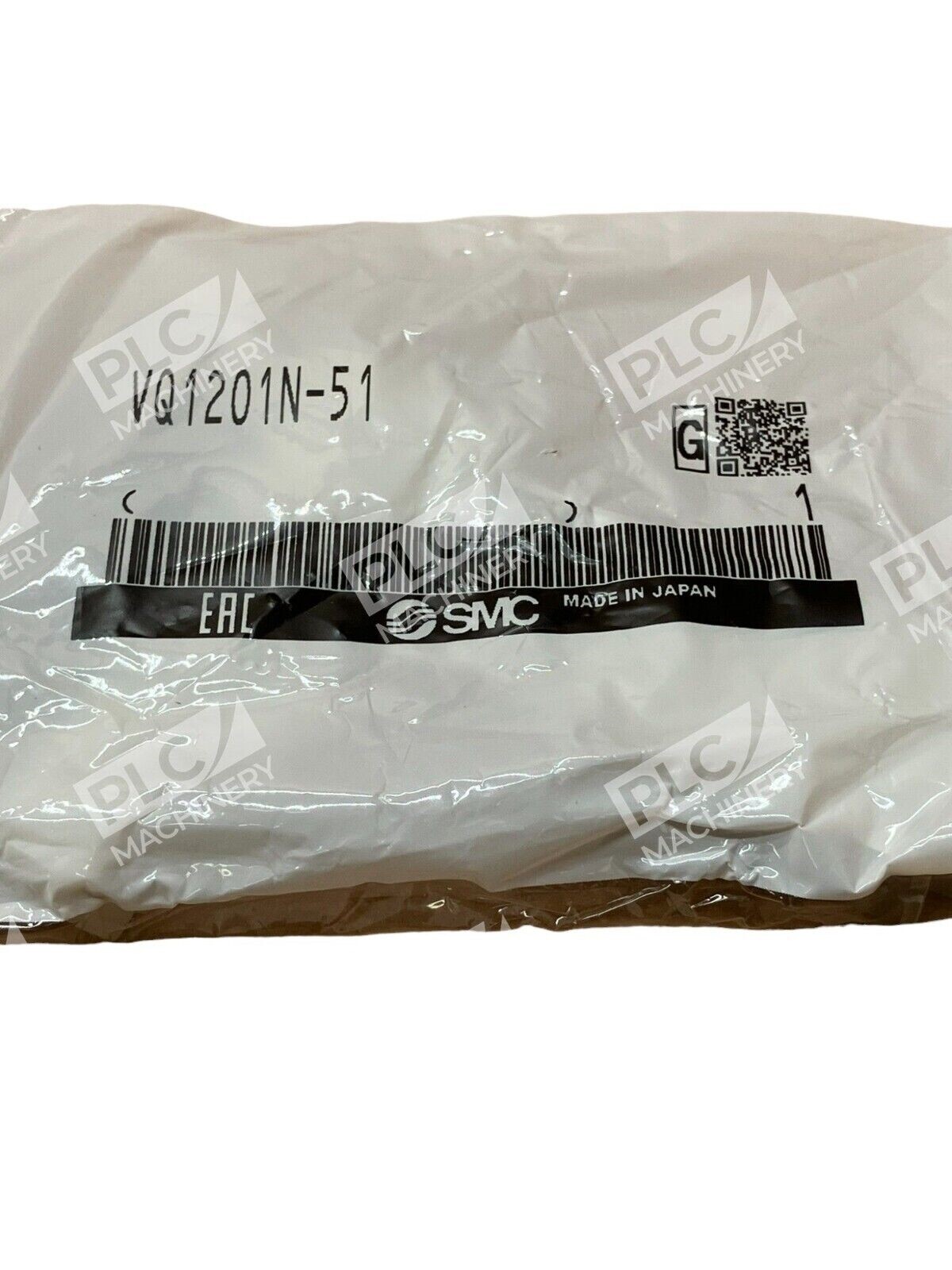

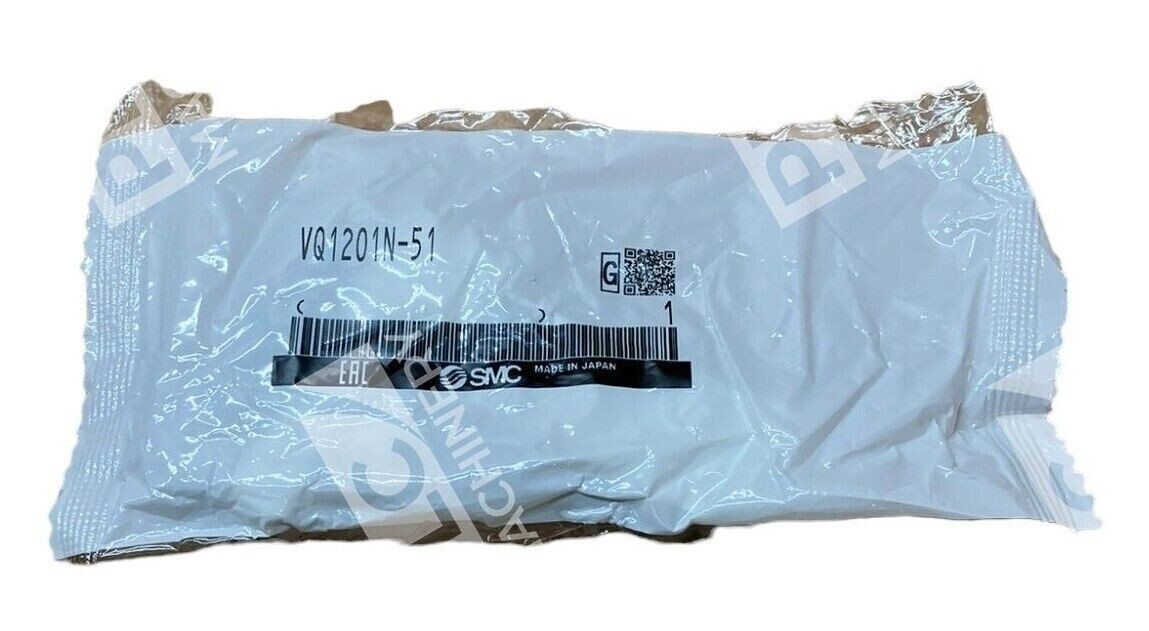

The SMC VQ1201N-51 is a compact, 5-port pneumatic solenoid valve engineered for reliable, high-speed automation. This VQ1000 series valve features 5/2 configuration with solenoid/solenoid actuation and 24V DC coil voltage, making it ideal for industrial pneumatic control applications. The valve handles air or inert gas with an operating pressure range of 0.1–0.7 MPa (standard type), and its plug-in base-mount design simplifies system integration and component replacement.
Key Features
- Dual solenoid actuation with 2-position, double-acting configuration for reliable directional control
- Built-in one-touch fittings that save piping time and labour
- Innovative mounting methods allow valves to be changed without entirely disassembling the manifold
- Response time of 34 ms or less (rubber seal) ensures fast, consistent actuation
- Space-saving side-mounted solenoid and fittings for three-directional flexible installation
- No-screw, single-clamp assembly reduces reconfiguration labor
Technical Specifications
The SMC VQ1201N-51 integrates proven pneumatic control technology with straightforward installation:
- Minimum operating pressure: 100 kPa (0.1 MPa)
- Maximum operating pressure: 0.7 MPa
- Coil voltage options: 12, 24 VDC; 100, 110, 200, 220 VAC
- Solenoid power consumption: 1 W standard
- Operating temperature range: –10 to +50 °C
- Port type: Plug, one-touch fitting, elbow fitting; M5 thread connection
- Dimensions: 123 mm length, 93.5 mm height
- Seal material: Rubber
- Valve function: 5/2 (5 ports, 2 positions)
Typical Applications
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Common uses include:
- Pneumatic automation control systems
- Manufacturing machinery actuator control
- Industrial process automation
- Mobile and off-highway equipment hydraulic/pneumatic circuits
- High-cycle production equipment requiring fast response
Compatibility & Replacements
Compatible With
- SMC VQ1000 series manifold systems
- Standard ISO pneumatic circuit designs
- M5 thread port connections
- One-touch fitting pneumatic tubing (6 mm, 8 mm, 10 mm standard)
- 24 VDC, 12 VDC, and multi-voltage AC supply systems (100–220 VAC)
Replaces / Drop-In Replacement For
- Compatible with VQ1000 series VV5Q11 and VV5Q21 manifold configurations
- Other VQ1201N base-mount plug-in units with compatible coil voltage
- Verify manifold model compatibility before ordering
Works With
- SMC pneumatic actuator controls
- Pneumatic circuit design software and 3D CAD libraries
- ISO 1219-1 and ISO 1219-2 pneumatic schematic standards
- Optional SMC accessory parts: back-pressure check valves, dual flow fittings, coil voltage variants
