Overview

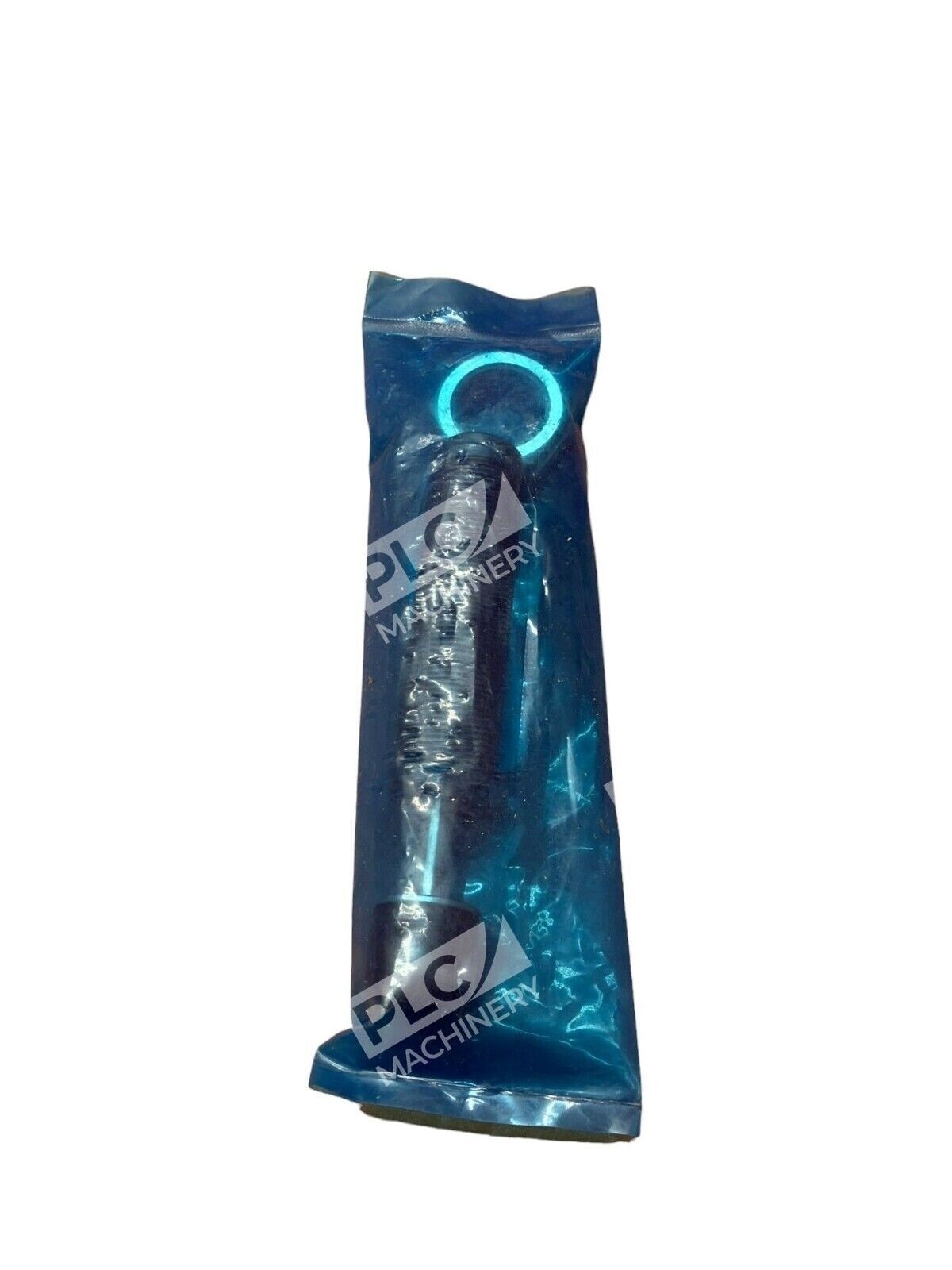

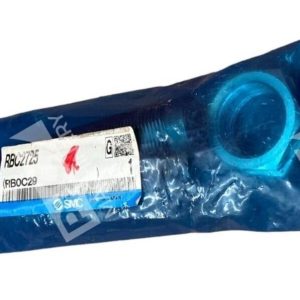

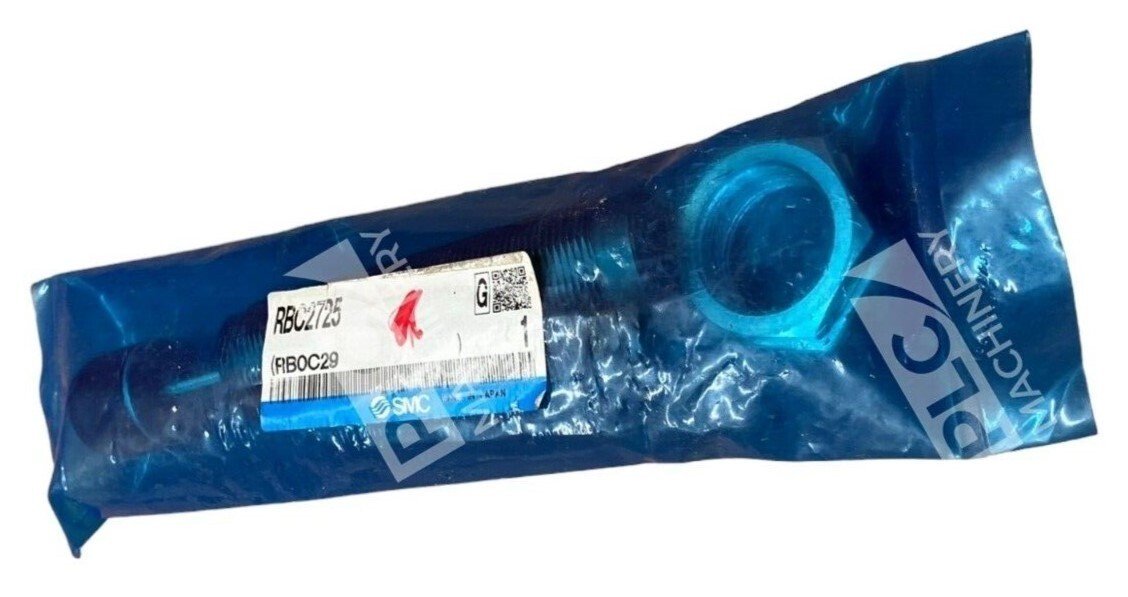

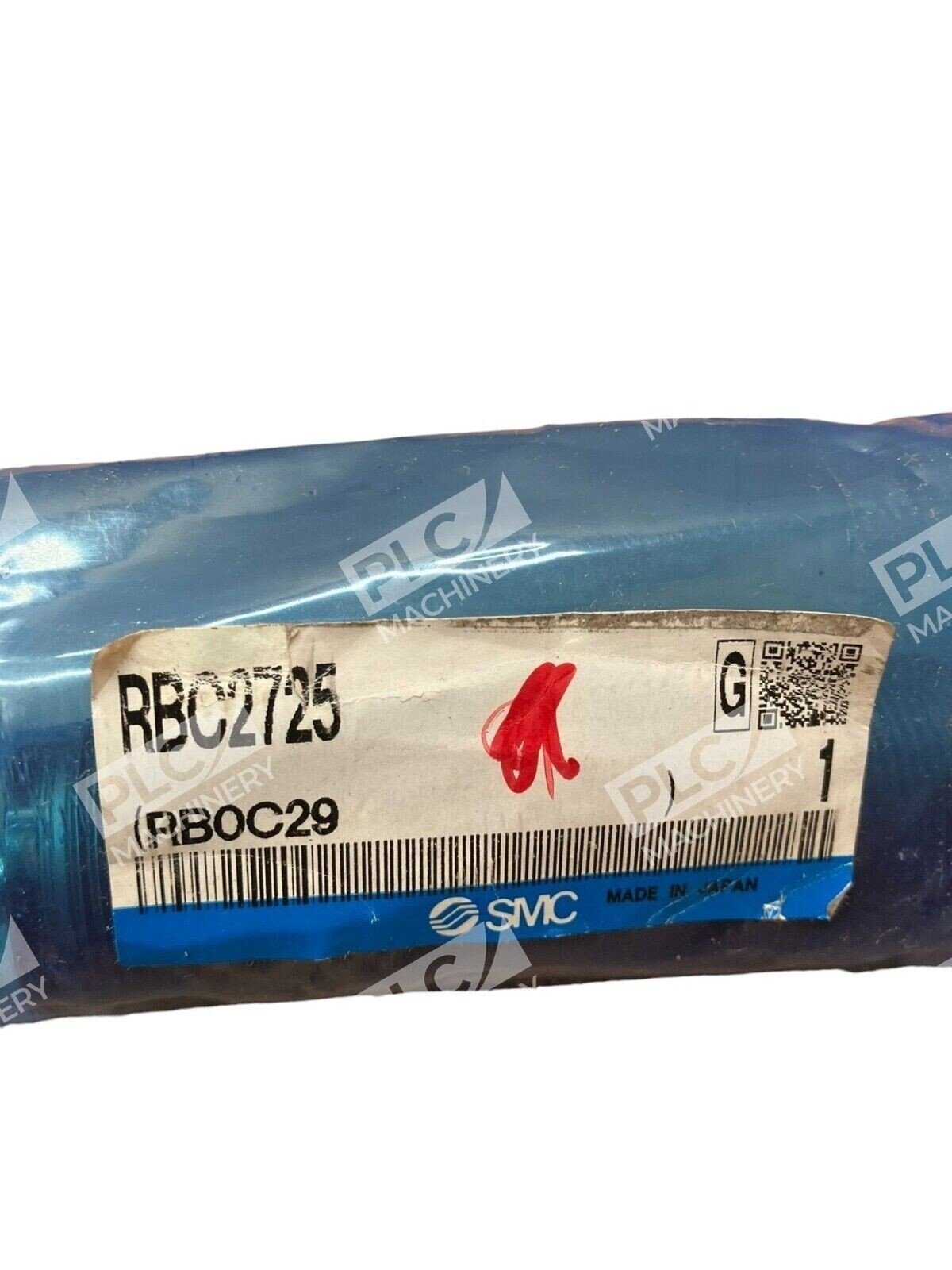

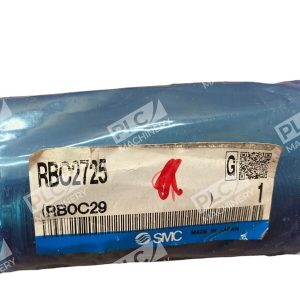

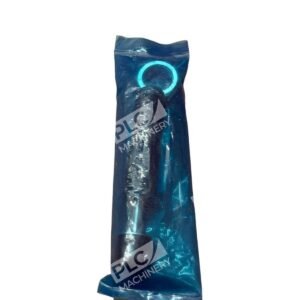

The SMC RBC2725 shock absorber is a precision-engineered accessory for RB Series pneumatic systems. This with-cap variant delivers reliable impact absorption and noise reduction in automated machinery, with a 25 mm stroke and M27 x 1.5 port configuration. Designed for high-energy applications, the RBC2725 automatically adjusts to optimal performance across a range of impact speeds (0.05–5.0 m/s).
Key Features
- High Energy Absorption: 147 J capacity handles serious impact loads with maximum allowable thrust of 2,942 N
- Compact Design: Shortened lengthwise profile simplifies integration into tight spaces
- Automatic Performance Adjustment: Self-regulating damping optimizes absorption across varying impact speeds
- Cap Protection: Durable cap shields the absorber piston and extends service life
- Wide Deviation Tolerance: Allows up to 5° mounting angle without performance loss
- Robust Construction: Can be mounted directly without external stoppers
Technical Specifications
- Max. Energy Absorption: 147 J
- Port Size: M27 x 1.5
- Stroke: 25 mm
- Max. Allowable Thrust: 2,942 N
- Max. Operating Frequency: 10 Hz
- Spring Force (Extended): 8.83 N
- Spring Force (Compressed): 20.01 N
- Impact Speed Range: 0.05–5.0 m/s
- Operating Temperature: –10 to +80°C (no freezing)
- Weight: 360 g (0.360 kg)
- Type: With Cap
- Series: RB Series
Typical Applications
The SMC RBC2725 is ideal for:
- Large-bore pneumatic cylinders requiring heavy-duty impact protection
- Automated assembly and material handling machinery
- Press and punch systems with high-energy end-of-stroke impacts
- Industrial automation systems requiring rotational energy absorption
- Machinery operating in temperature ranges from –10°C to +80°C
Compatibility & Replacements
Compatible With
- SMC RB Series pneumatic cylinders with M27 x 1.5 ports
- Pneumatic automation systems using 25 mm stroke absorber specifications
- Industrial end-of-stroke damping applications
- Machinery requiring M27 threaded port connections
Replaces / Drop-In Replacement For
- RB2725 (basic type without cap) – upgrade to capped version for extended durability
- Earlier RBC2725 units requiring cap replacement or full unit upgrade
Works With
- SMC RB Series pneumatic cylinder rod attachments
- Standard pneumatic control systems and PLC-driven automation
- Industrial pneumatic networks (no proprietary protocol required)
