Overview

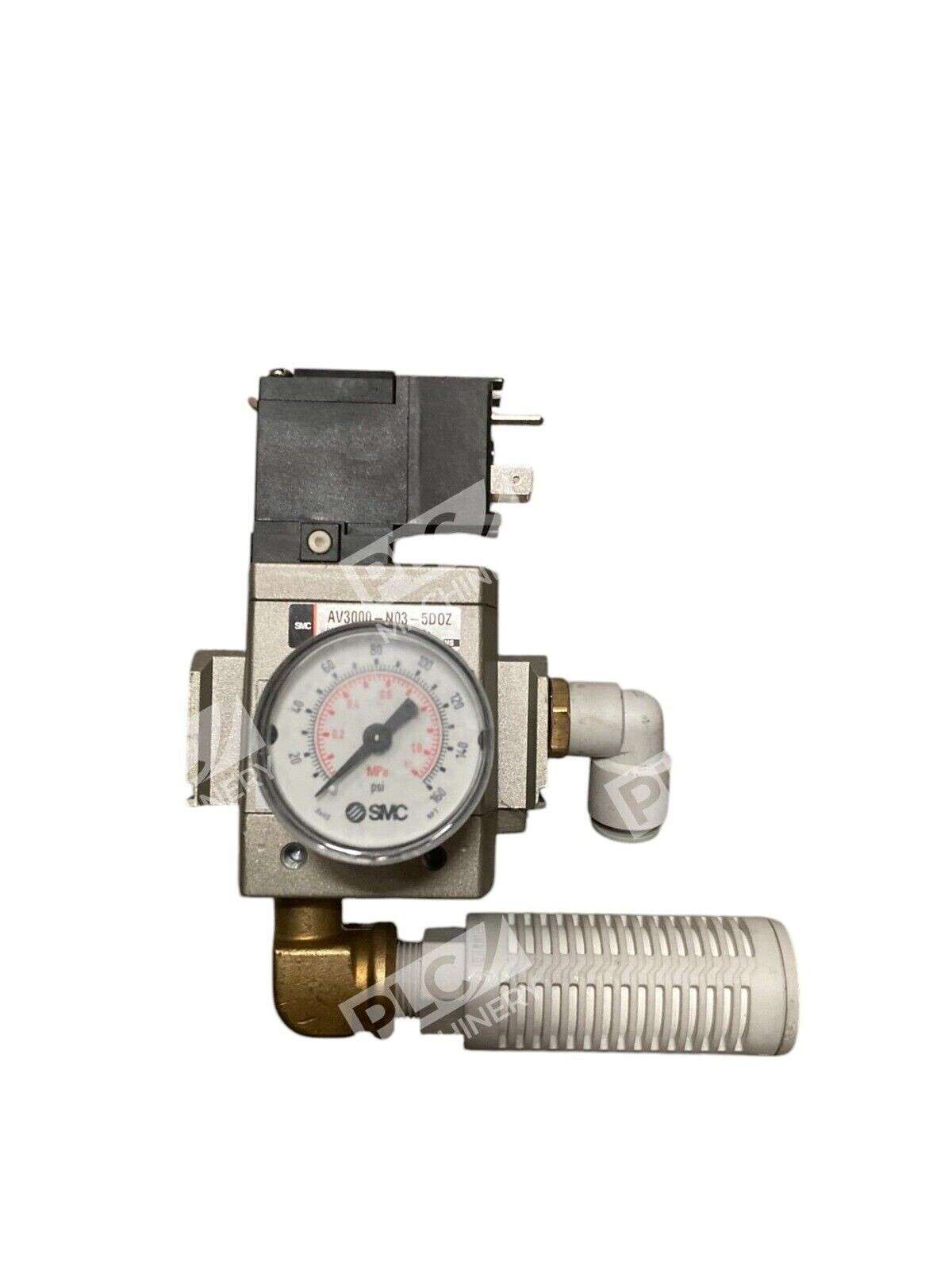

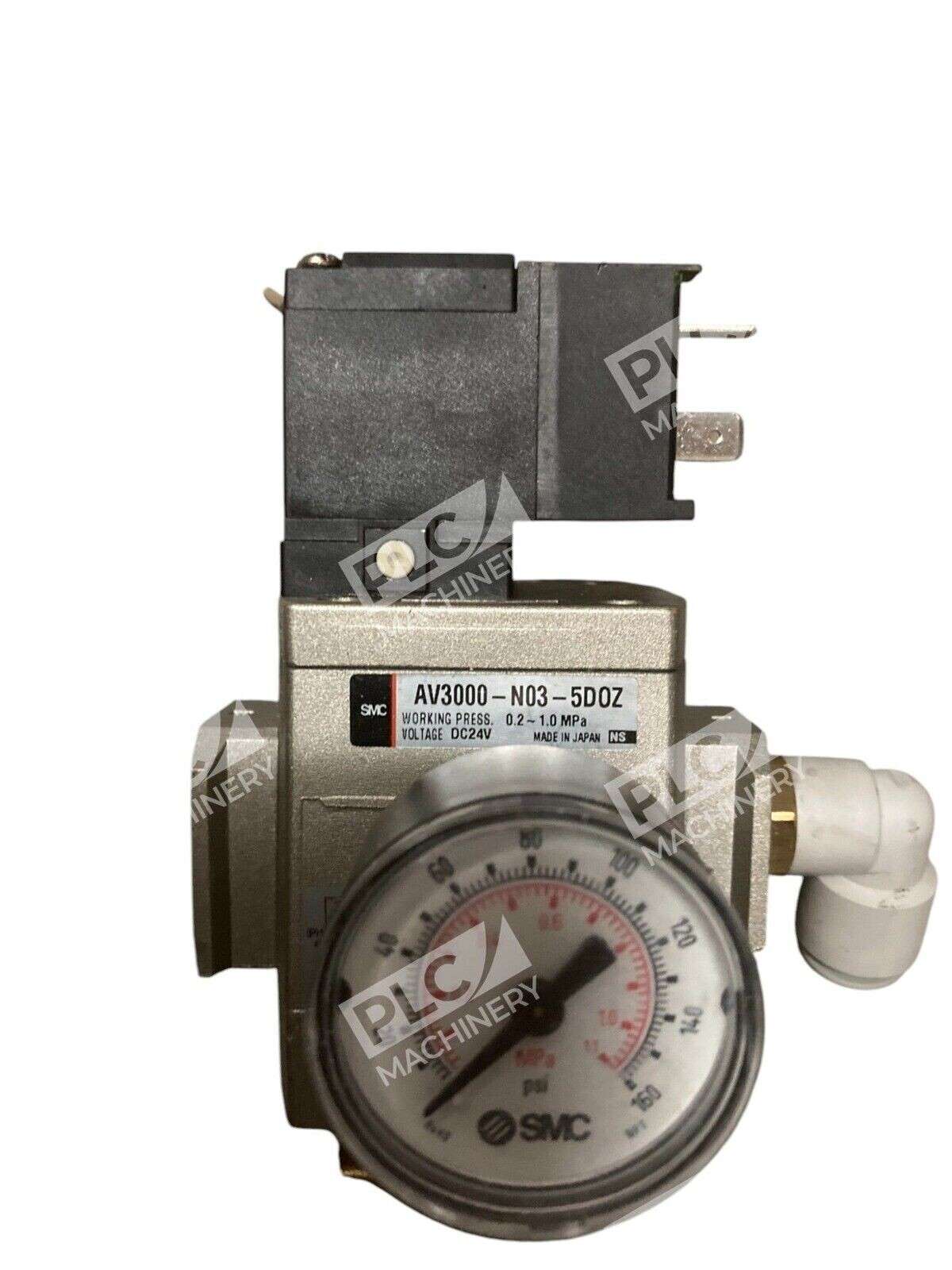

The SMC AV3000-N03-5DZ solenoid valve is a soft start-up valve engineered for controlled system initialization and safe equipment servicing. When deactivated, the valve quickly exhausts the system to allow safe servicing without applying full pneumatic pressure. This modular design integrates seamlessly with SMC FRL (filter-regulator-lubricator) components and pneumatic automation systems across industries including manufacturing, automotive, and packaging.
Key Features
- Soft Start-up Function: Gradually applies pressure during system initialization, reducing shock and wear on downstream components.
- 24VDC Solenoid: Direct electrical control with DIN connector terminal and integrated surge voltage suppressor for coil protection.
- Indicator Light: Built-in status indicator for quick solenoid activation verification.
- Modular Connectivity: Body-ported design compatible with SMC manifold systems and FRL components.
- 3/8″ NPT Port: Standard industrial threading for easy integration into existing pneumatic networks.
Technical Specifications
Below are the key operating parameters for the AV3000-N03-5DZ:
- Operating Pressure: 1 MPa (10 bar, 145 psi)
- Proof Pressure: 1.5 MPa (15 bar)
- Port Size: 3/8″ NPT
- Voltage: 24 VDC
- Solenoid Terminal: Type D DIN connector with indicator light and surge suppressor
- Body Size: 30
- Mounting Style: Base-mounted, modular design
- Configuration: NAV series, soft start-up valve
Typical Applications
Soft start-up solenoid valves like the AV3000-N03-5DZ are used to control initial pressure application in compressed air systems. Common applications include:
- Industrial automation and assembly line equipment
- Pneumatic press and clamp systems
- Material handling and conveyor systems
- Safety interlock and equipment shutdown circuits
- Slow-start pressure conditioning for sensitive actuators
Compatibility & Replacements
Compatible With
- SMC FRL (Filter-Regulator-Lubricator) manifold systems
- Standard compressed air networks operating at 1 MPa or lower
- Pneumatic control systems requiring 24VDC solenoid control
- DIN connector-based pneumatic control panels
Replaces / Drop-In Replacement For
- AV3000-N03-5DZ — direct match for this specification
- Other AV3000 series soft start valves with matching port and voltage (verify connector type before ordering)
Works With
- SMC pneumatic automation products and manifolds
- Standard PLC/PAC systems with 24VDC output capability
- Pneumatic control relay logic circuits
- Industrial safety and interlocking systems
