Overview

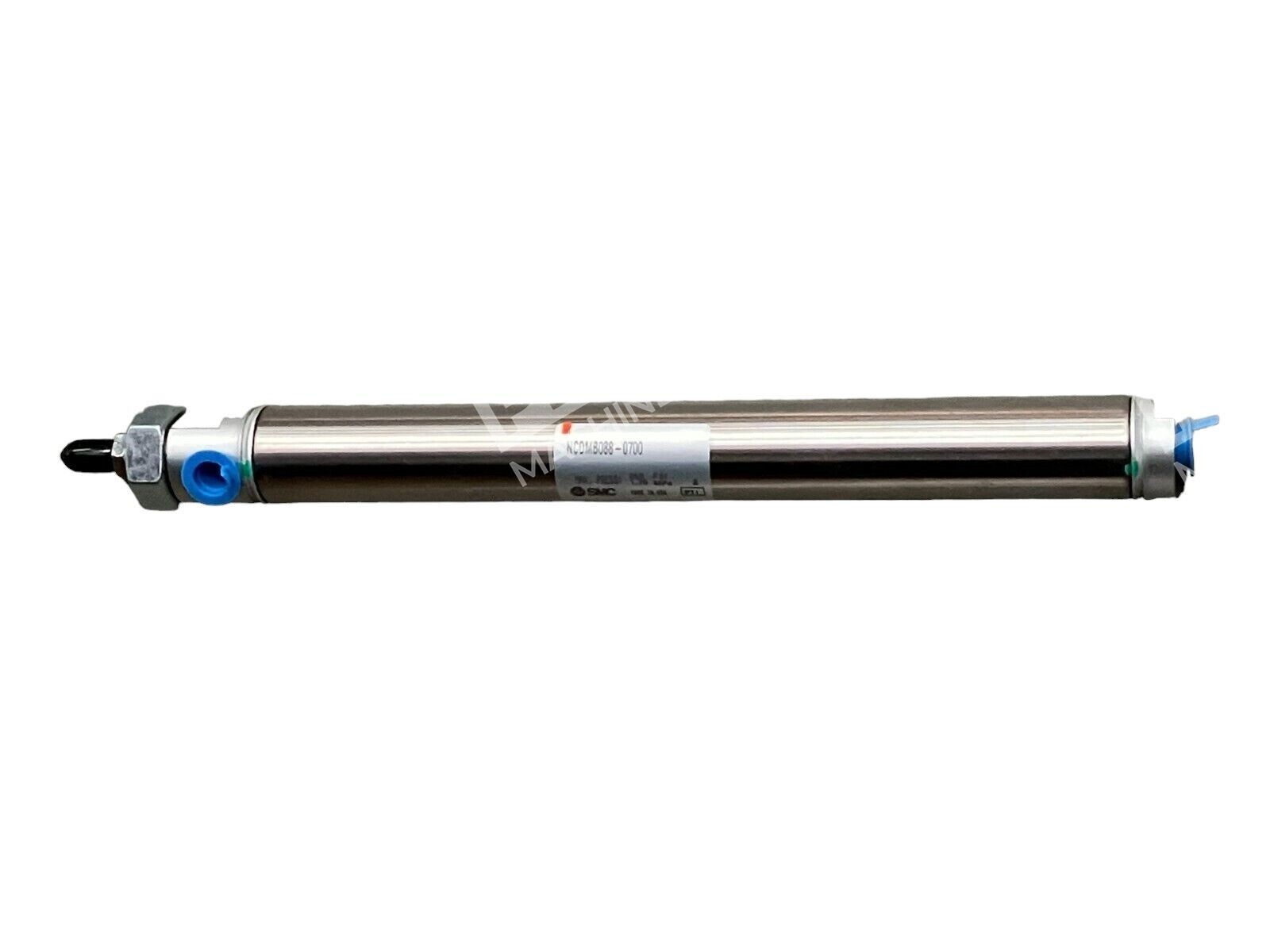

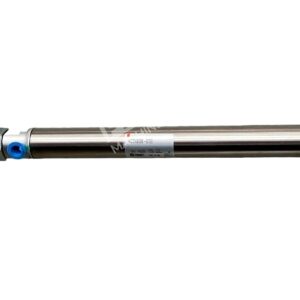

The SMC NCDMB088-0700 is a round-body, double acting pneumatic cylinder designed for general industrial automation applications. This unit features a 7/8″ bore diameter with a 7″ stroke length, delivering reliable linear motion control across manufacturing, material handling, and assembly processes. With a maximum operating pressure of 250 PSI (1.70 MPa), it provides consistent performance in standard pneumatic systems.
Key Features
- Double acting design for controlled extension and retraction
- 7/8 inch bore with 7 inch stroke for compact, efficient operation
- Single rod configuration for balanced force distribution
- Maximum operating pressure: 250 PSI (1.70 MPa)
- Multiple mounting styles available (front nose, double end, rear pivot)
- Auto-switch capable without dimensional changes
Technical Specifications
| Model Number | NCDMB088-0700 |
| Bore Size | 7/8 inch (22.2 mm) |
| Stroke Length | 7 inches (700 mm) |
| Cylinder Type | Double Acting, Single Rod |

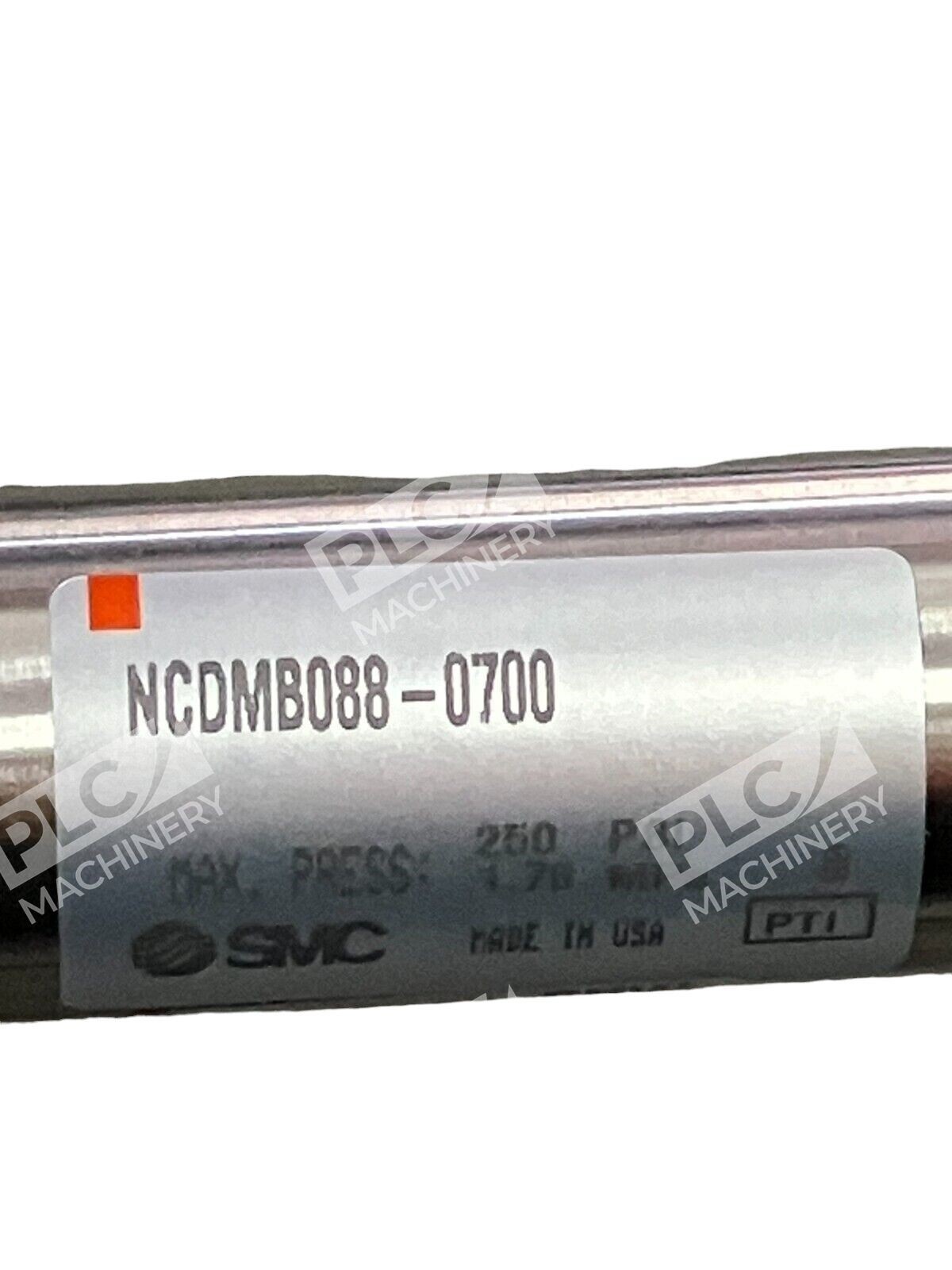

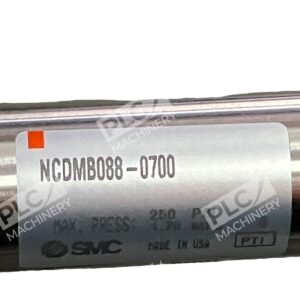

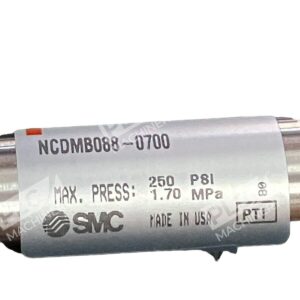

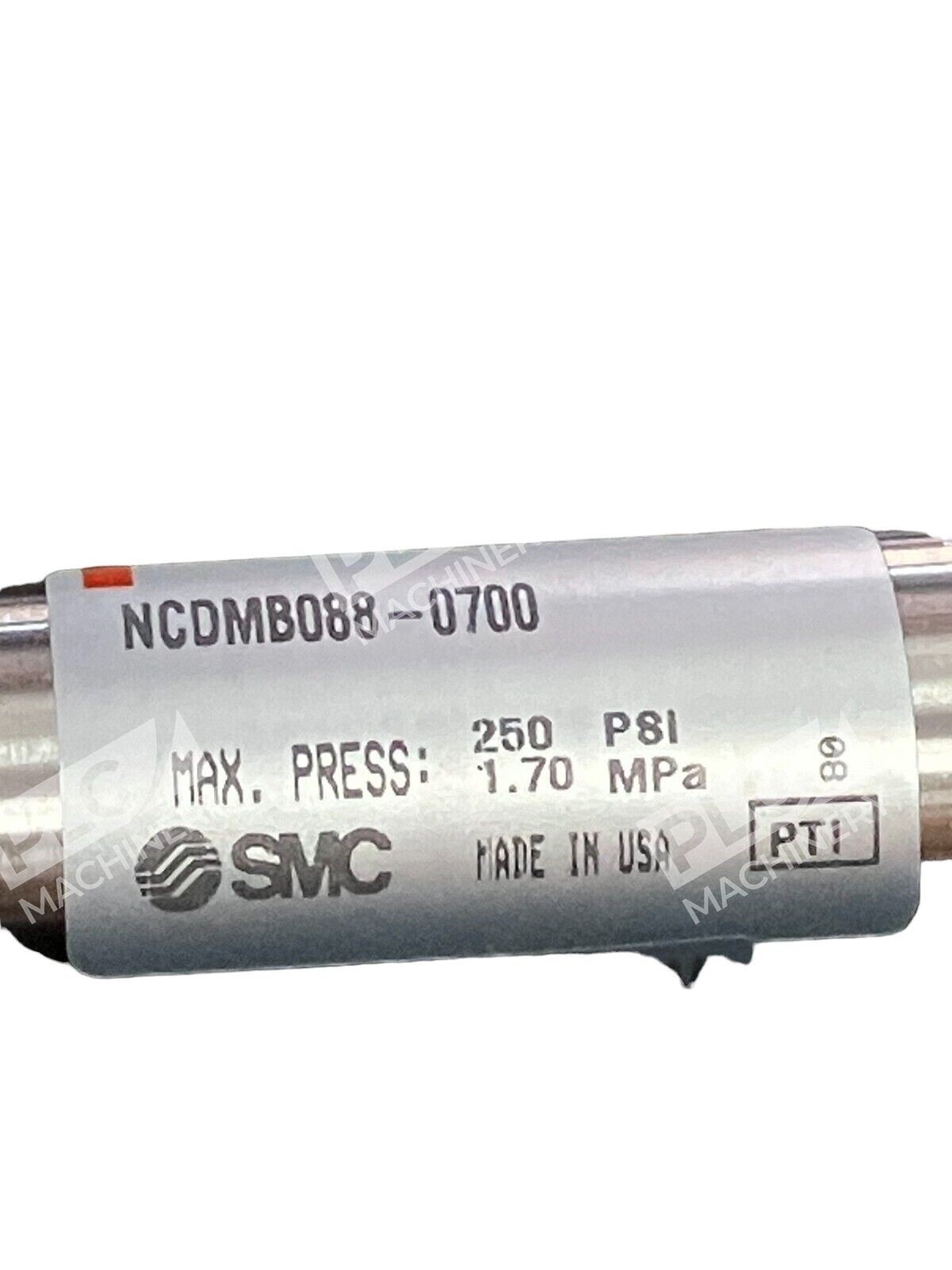

| Maximum Pressure | 250 PSI (1.70 MPa) |
| Body Style | Round Body |
| Mounting Options | Front Nose, Double End, Rear Pivot |
| Auto Switch Compatible | Yes (without dimensional change) |
| Condition | New – No Box |
| Manufacturer | SMC Pneumatics |
Typical Applications
- Industrial automation and machine tooling
- Material handling and conveyor systems
- Assembly line actuators and press operations
- Fixture clamping and workholding
- Packaging and labeling equipment
- Robotic and transfer line applications
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems rated for 250 PSI max
- ISO 4401 cavity mounting systems
- Directional control valves (4/3, 4/2, 5/3 spool designs)
- Flow control regulators and lubricators
- Pneumatic air compressors (fixed and variable displacement)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The NCDMB088-0700 may interchange with other 7/8″ bore, 7″ stroke SMC cylinders in the NCDM series, depending on your specific mounting and control interface requirements.
Works With
- Pneumatic directional control valves (all major brands)
- Solenoid valve assemblies
- Manual pilot-operated controls
- Electronic auto-switch modules (when equipped)
- Speed controllers and pressure regulators
- All standard ISO pneumatic porting configurations
