Overview

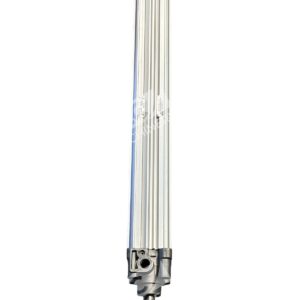

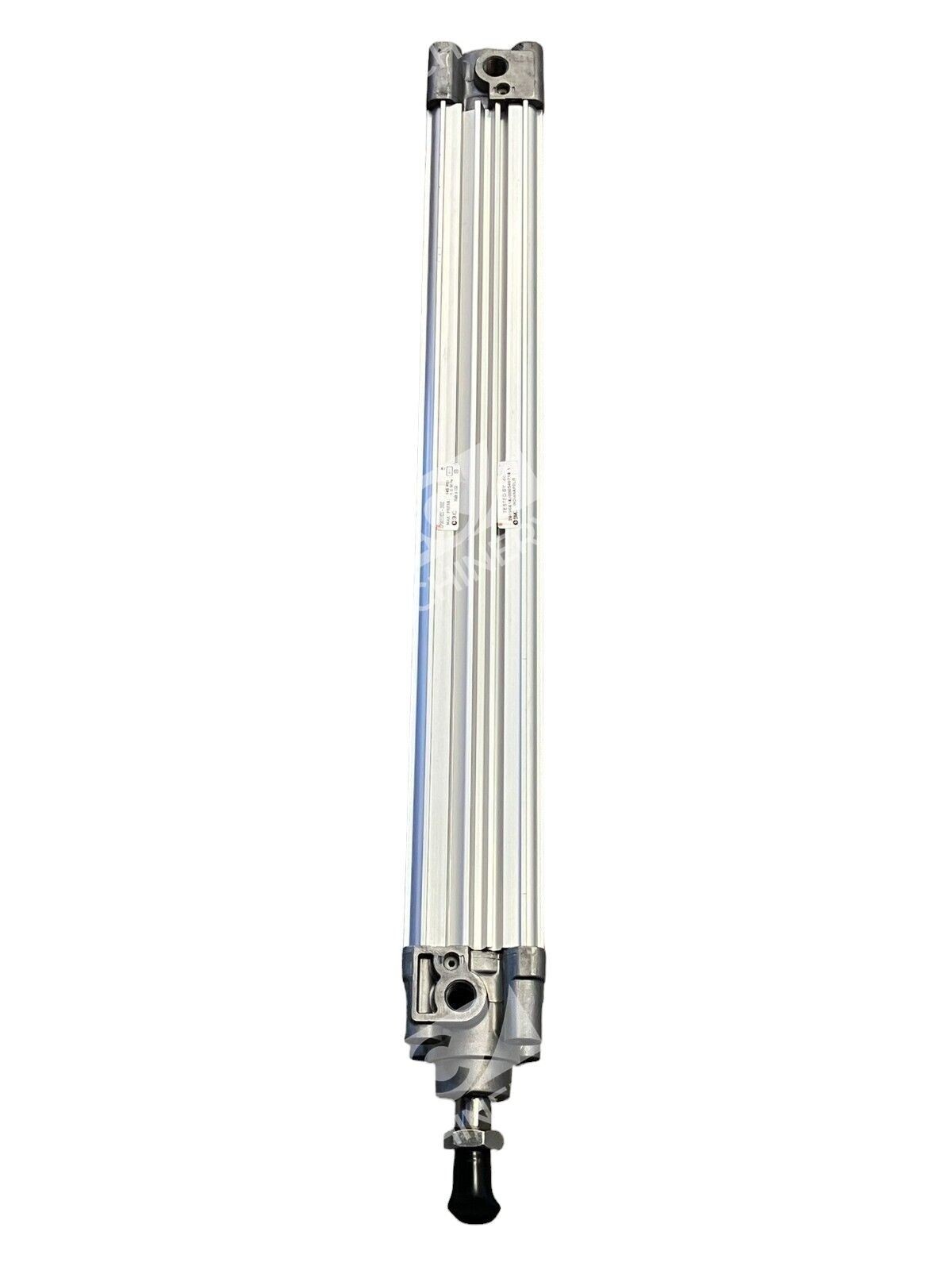

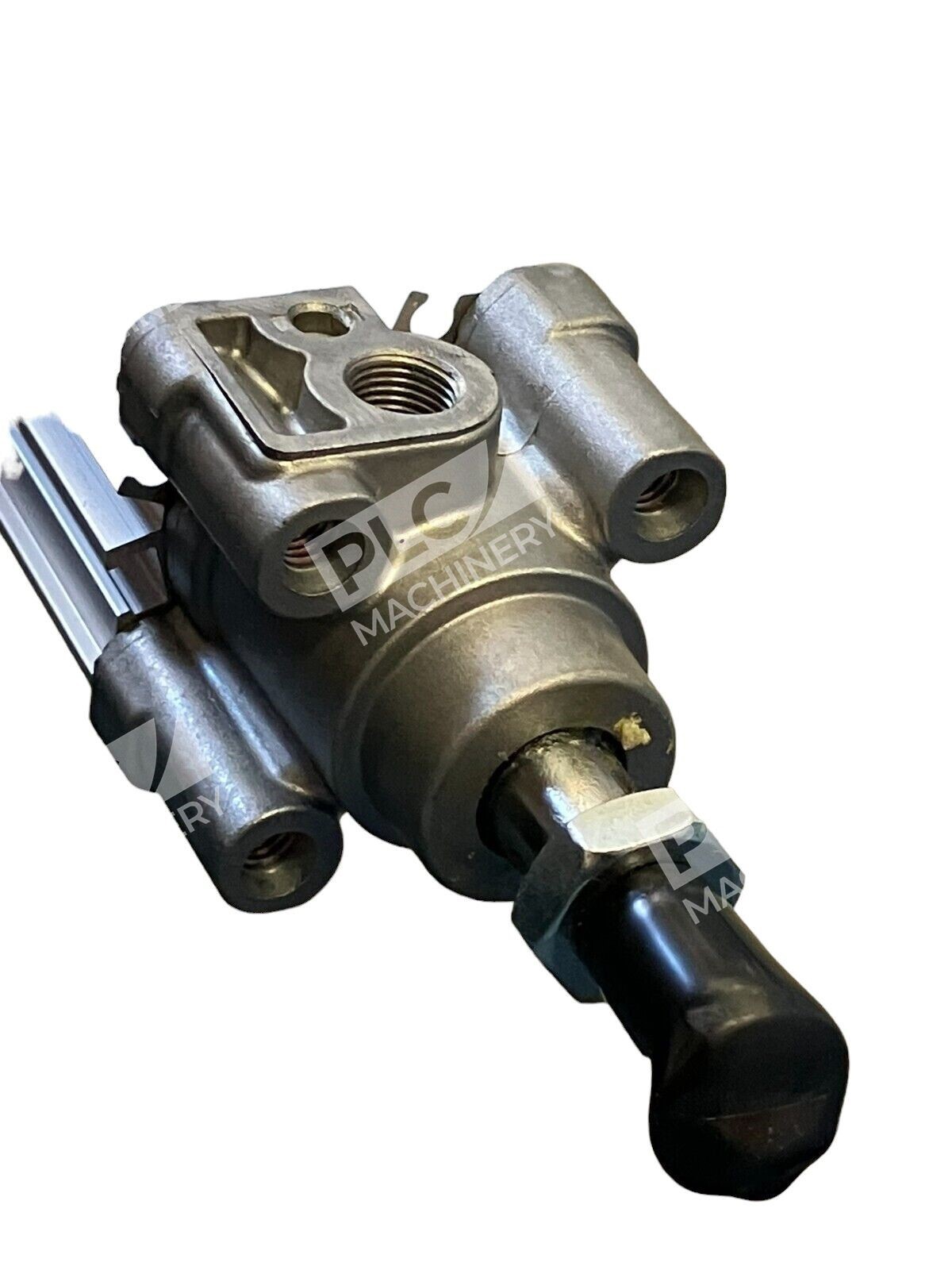

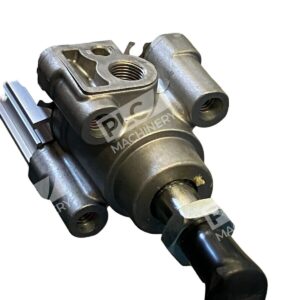

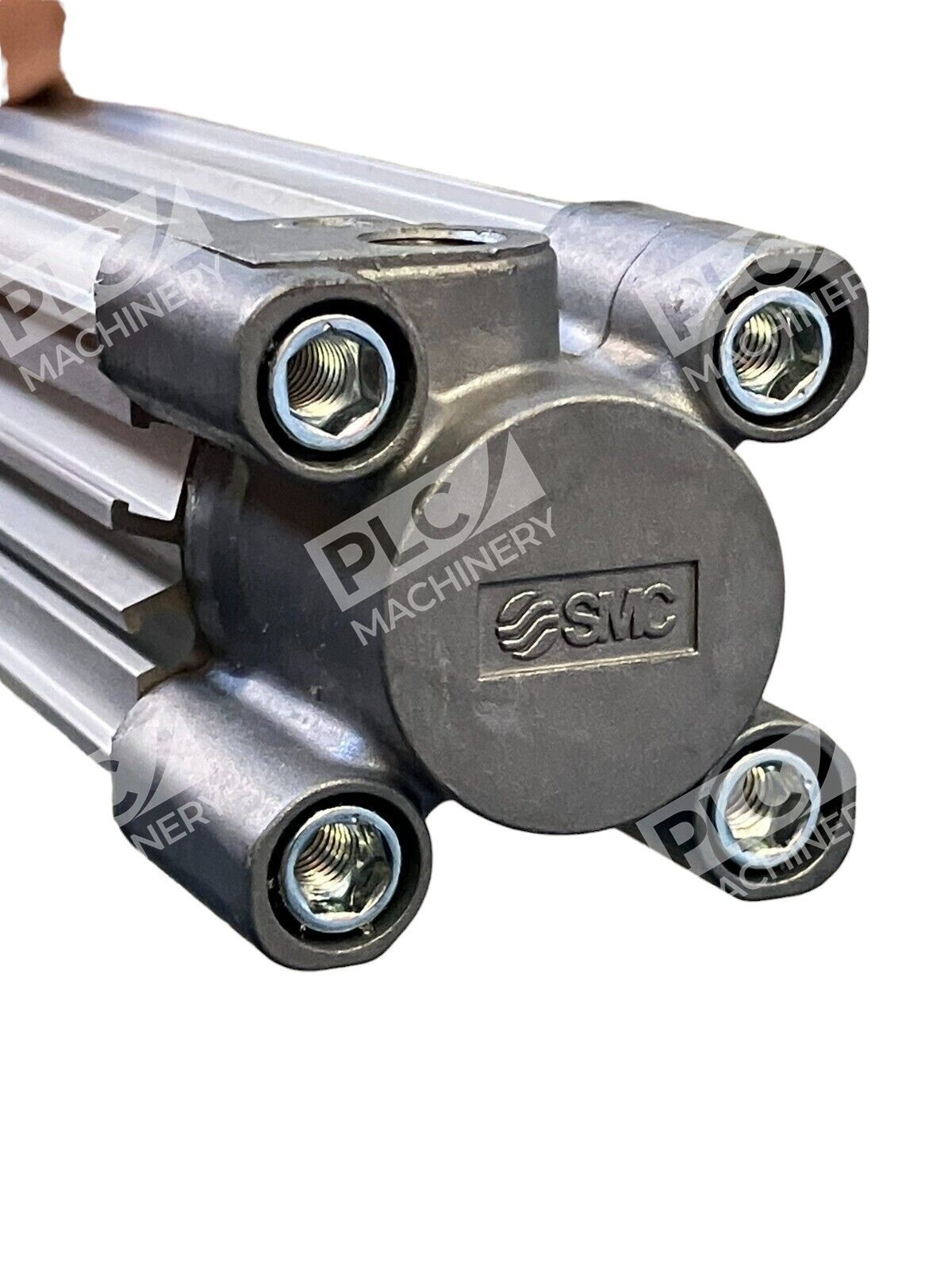

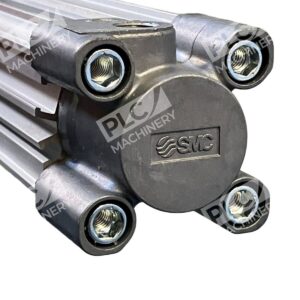

The SMC CP96SDB32-300C pneumatic cylinder is an ISO 15552 compliant double-acting actuator designed for industrial automation and linear motion control. This compact profile cylinder delivers reciprocating force through a single rod arrangement with 32mm bore and 300mm stroke, making it ideal for positioning, clamping, and material handling applications where reliable push–pull operation is essential.
Key Features
- Combined cushioning system: Air and bumper cushioning reduces the length of the cushion stroke, reducing cycle time and noise at the end of stroke
- Compact profile design: Cylinder body is grooved on four sides to allow easy fitting of CNOMO or SMC M9 and A9 position sensors
- High-speed operation: Maximum piston speed of 1000 mm/s supports high-cycle operation
- Secure rod mounting: M10 x 1.25 male piston rod thread simplifies secure mounting
- Durable construction: Aluminium alloy and steel construction balances weight and strength
Technical Specifications
- Bore diameter: 32mm
- Stroke length: 300mm
- Action type: Double-acting (single rod)

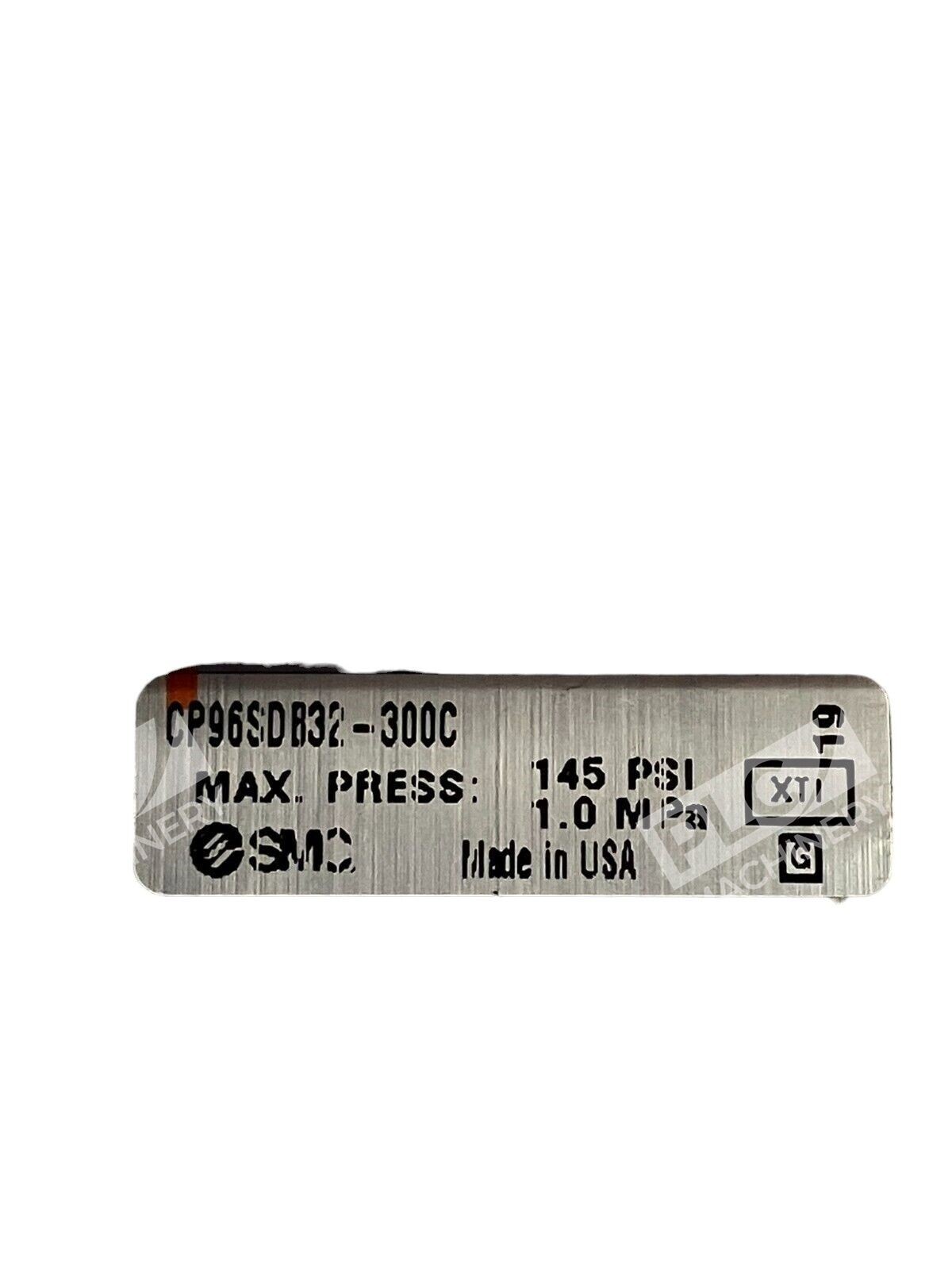

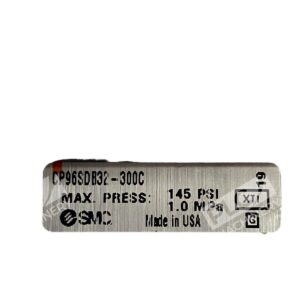

- Maximum operating pressure: 1 MPa
- Absolute maximum pressure: 1.5 MPa
- Port connection: G 1/8
- Cushioning type: Air with bumper cushion
- Operating temperature range: -20°C to +70°C
- Dimensions: 446 x 47 x 47mm (length x width x height)
- Weight: 1.6kg
- ISO standard: ISO 4414 (15552)
- Force output (7 bar): 484 N (IN), 563 N (OUT)
Typical Applications
- Pick-and-place and assembly line automation
- Press-fitting operations requiring controlled deceleration
- Valve automation and process control systems
- Material handling stops and positioning fixtures
- Robotics end-effectors and gripper mechanisms
- Industrial clamping and workholding systems
Compatibility & Replacements
Compatible With
- SMC air supply systems and circuit components
- Standard pneumatic solenoid valves (4/3 or 4/2 configurations)
- ISO 15552 compliant manifold systems
- SMC M9 and A9 position sensors and auto switches
- Industrial automation controllers and PLC systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is a CP96 series standard double-acting cylinder; confirm exact replacement requirements with your equipment manufacturer or automation specialist.
Works With
- SMC pneumatic components and ecosystem
- ISO 15552 manifold interfaces
- Standard compressed air systems (filtered and regulated)
- Industrial automation and process control networks
