<h2>Overview</h2>

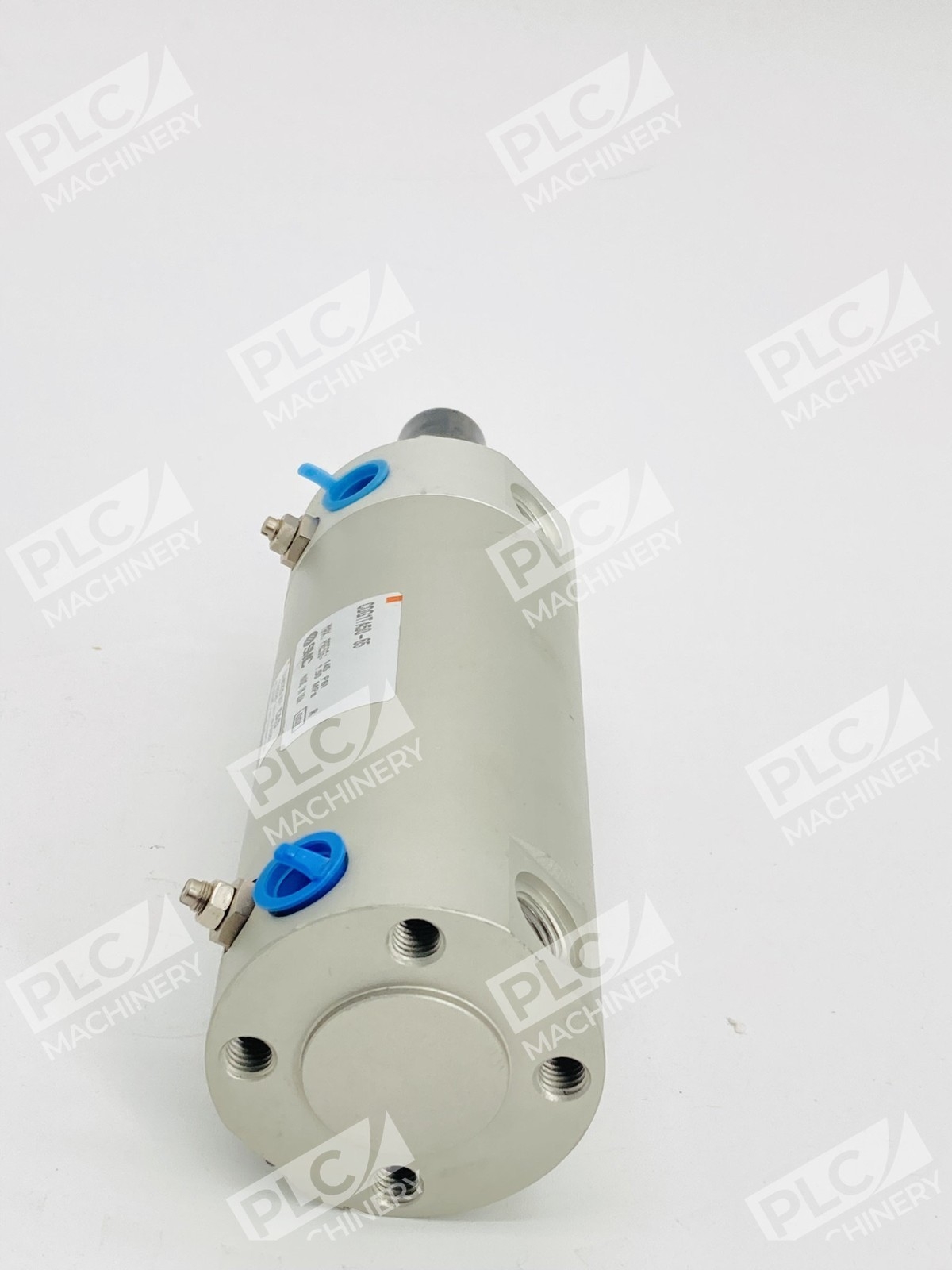

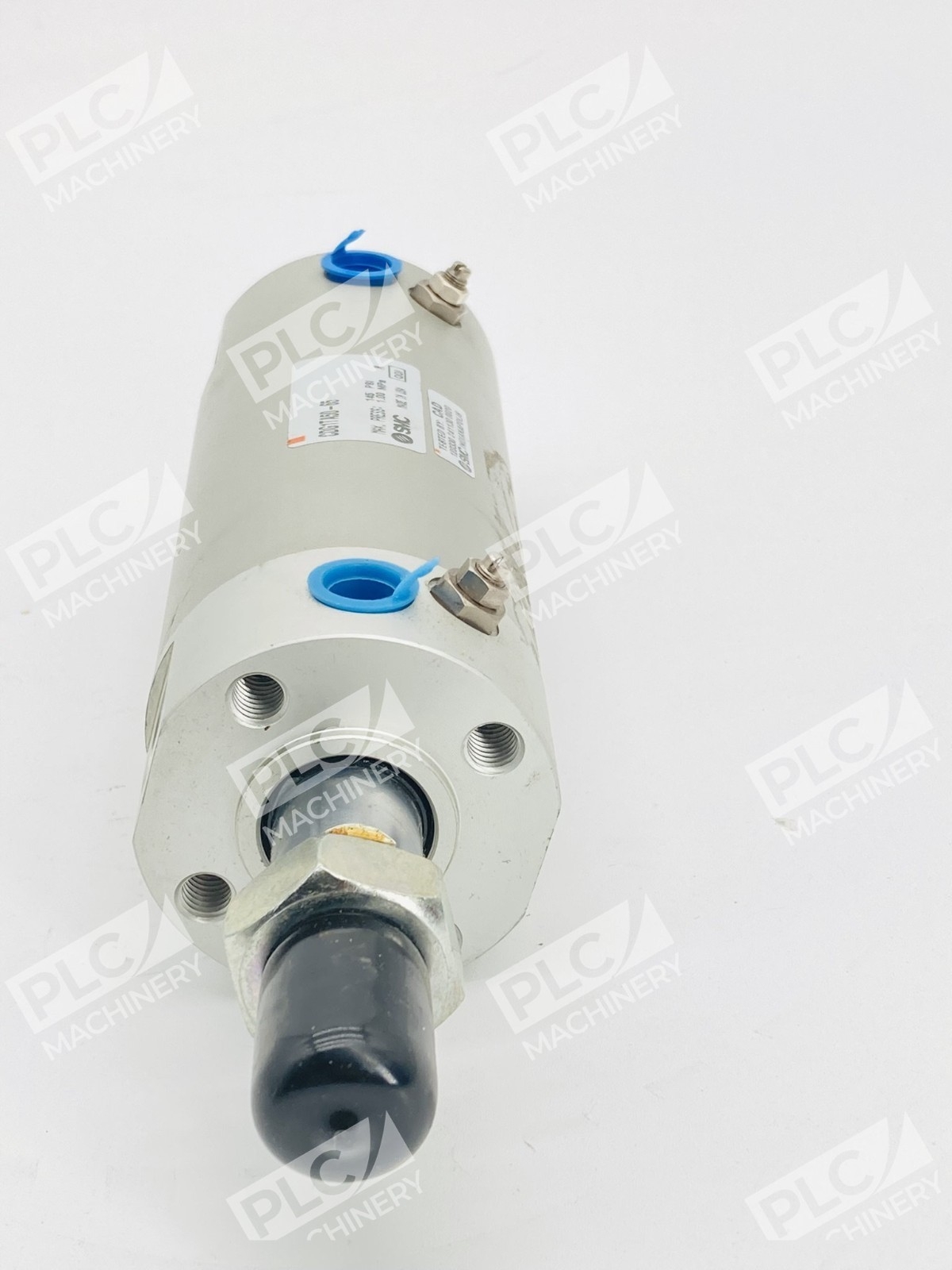

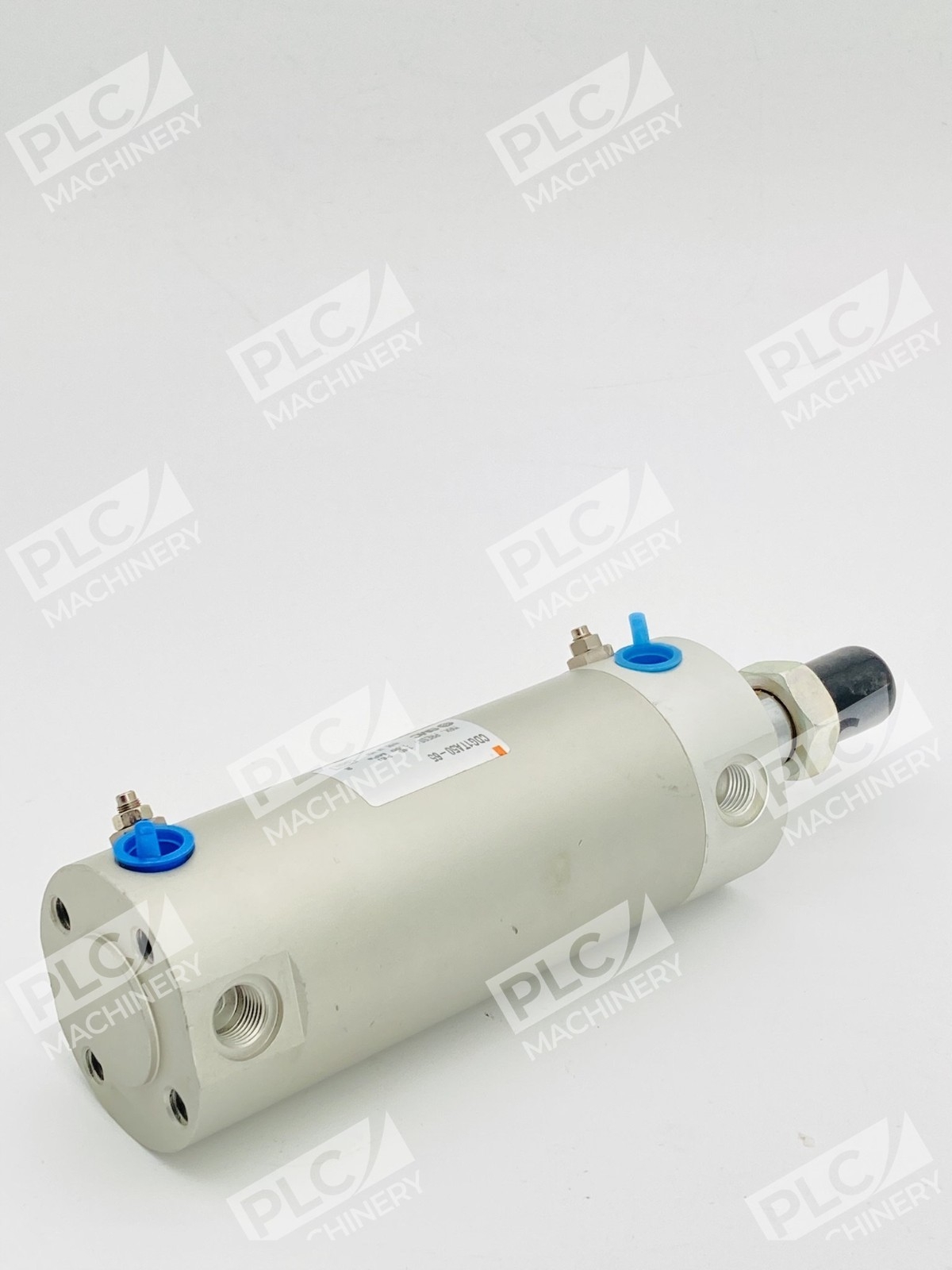

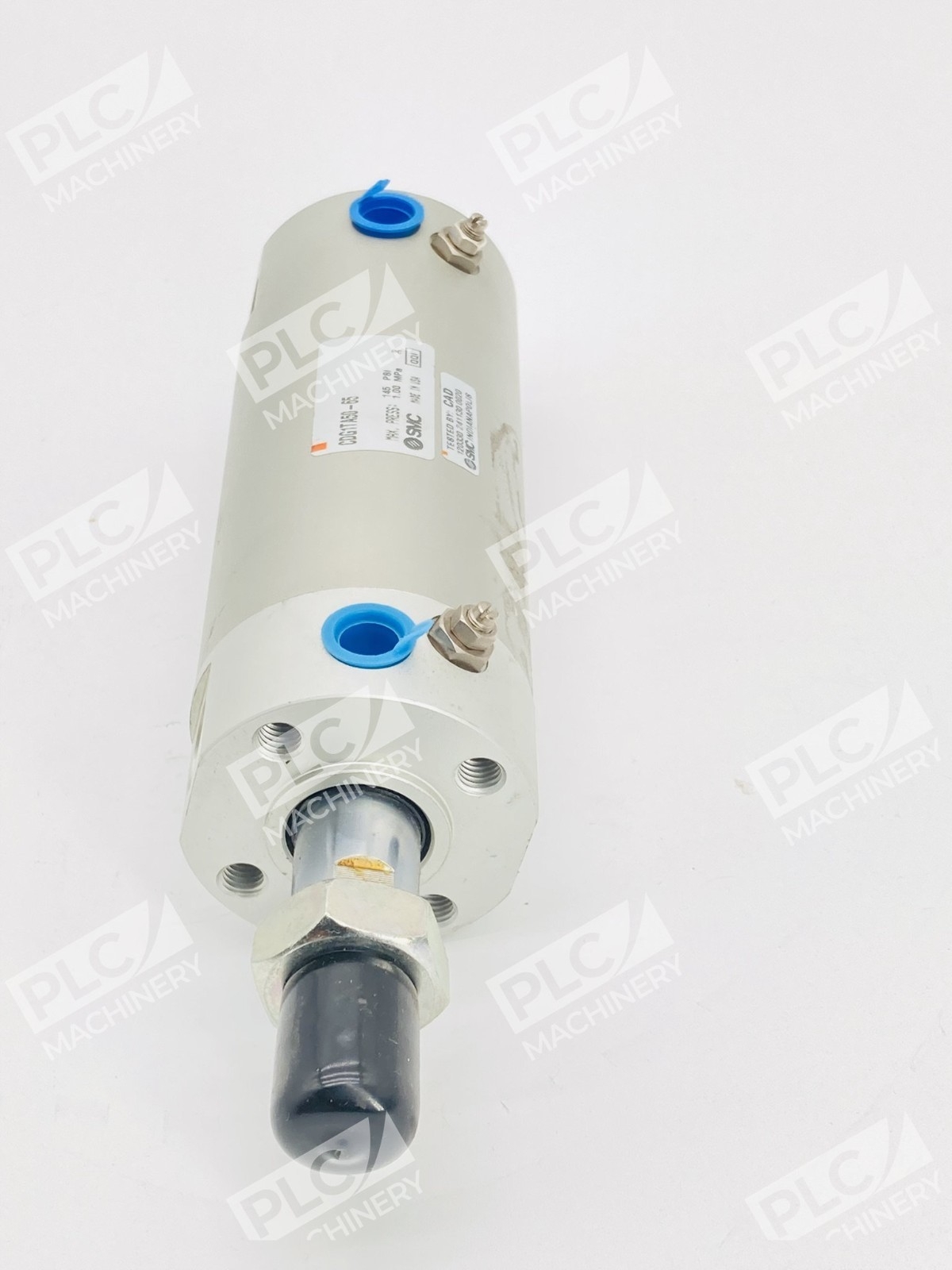

<p>The <strong>SMC CDG1TA50-65</strong> pneumatic cylinder is a compact, double-acting actuator with integrated auto switch capability. Engineered by SMC, the global leader in pneumatic automation, this cylinder delivers reliable linear motion with built-in magnetic position sensing for seamless integration into automated systems. With a 50mm bore and 65mm stroke, the CDG1TA50-65 operates at a maximum pressure of 145 PSI, making it suitable for a wide range of industrial positioning, clamping, and material-handling applications.</p>
<h2>Key Features</h2>
<ul>
<li>Double-acting design for bidirectional load control</li>
<li>Integrated auto switch with built-in magnet for position detection</li>
<li>Compact, lightweight construction reduces installation space</li>
<li>Standard rod with reduced deflection for improved accuracy</li>
<li>Compatible with multiple auto switch types and mounting brackets</li>
<li>Operating pressure range optimized for industrial automation</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Bore Size:</strong> 50 mm</li>
<li><strong>Stroke:</strong> 65 mm</li>
<li><strong>Type:</strong> Double-acting</li>
<li><strong>Auto Switch:</strong> Integral with magnet</li>

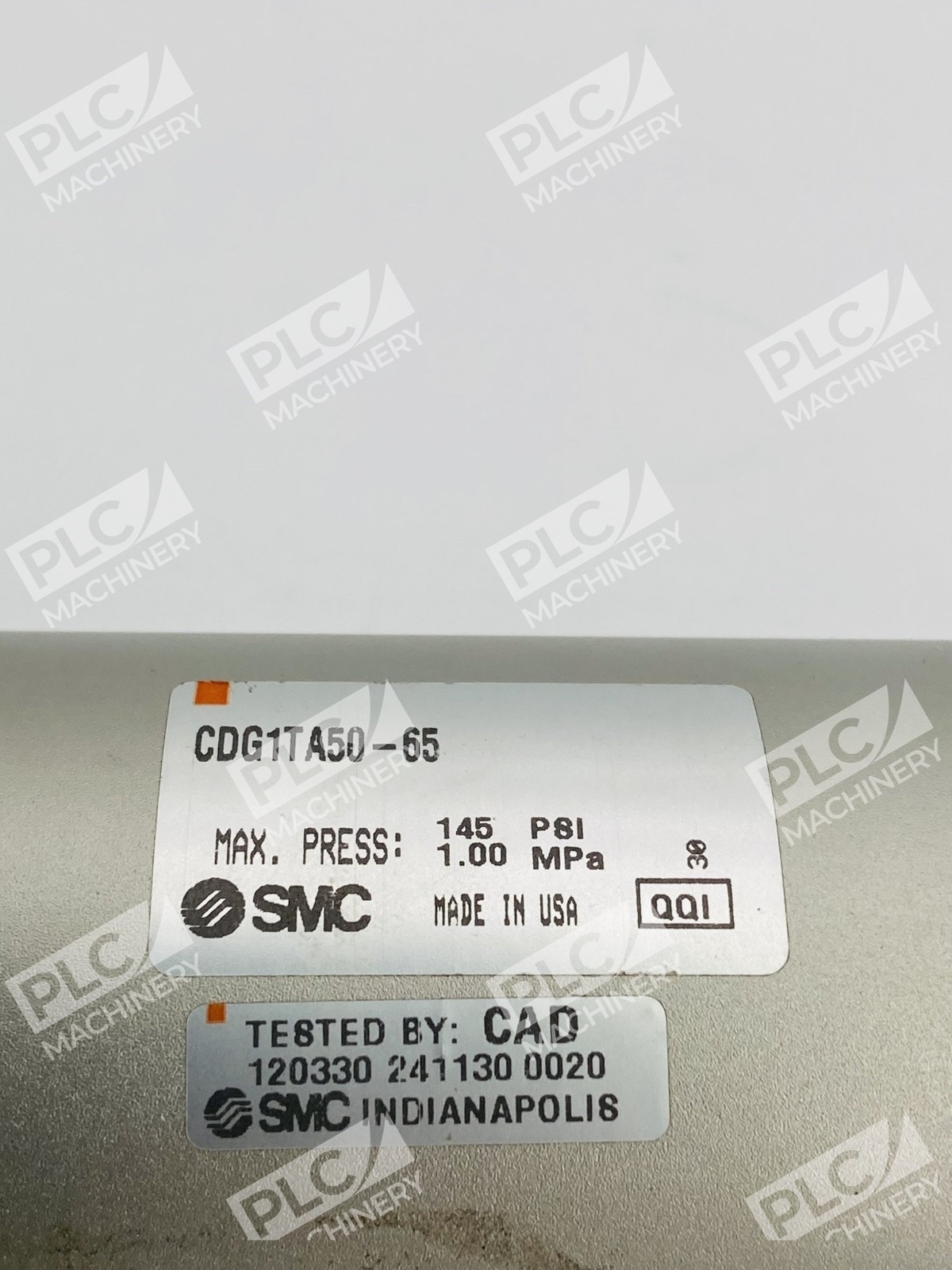

<li><strong>Maximum Operating Pressure:</strong> 145 PSI (1.0 MPa)</li>
<li><strong>Mounting Style:</strong> Basic or with accessory brackets</li>
<li><strong>Rod Type:</strong> Single rod, standard</li>
<li><strong>Operating Temperature Range:</strong> Verify with SMC technical documentation</li>
</ul>
<h2>Typical Applications</h2>
<p>The SMC CDG1TA50-65 is well-suited for:</p>
<ul>
<li>Automated assembly and positioning systems</li>
<li>Material handling and conveyor control</li>
<li>Press and clamping applications</li>
<li>Machine tool automation</li>
<li>Fixture control in manufacturing</li>
<li>Robotic system actuation</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>SMC solenoid valve systems and valve manifolds</li>
<li>Pneumatic control circuits rated for 145 PSI operation</li>
<li>Standard ISO mounting frameworks</li>
<li>SMC auto switch detection systems</li>
<li>Programmable logic controllers (PLCs) via electrical sensing</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator before ordering. SMC may offer functionally equivalent models; consult SMC documentation or our technical team for specific model cross-references.</p>
<h3>Works With</h3>
<ul>
<li>SMC solenoid directional control valves</li>
<li>Pneumatic speed controllers and flow regulators</li>
<li>Auto switch mounting brackets and sensors</li>
<li>Standard 1/4" and 3/8" pneumatic tubing/fittings</li>
<li>Industrial automation software platforms (PLC logic, SCADA)</li>
</ul>
