Overview

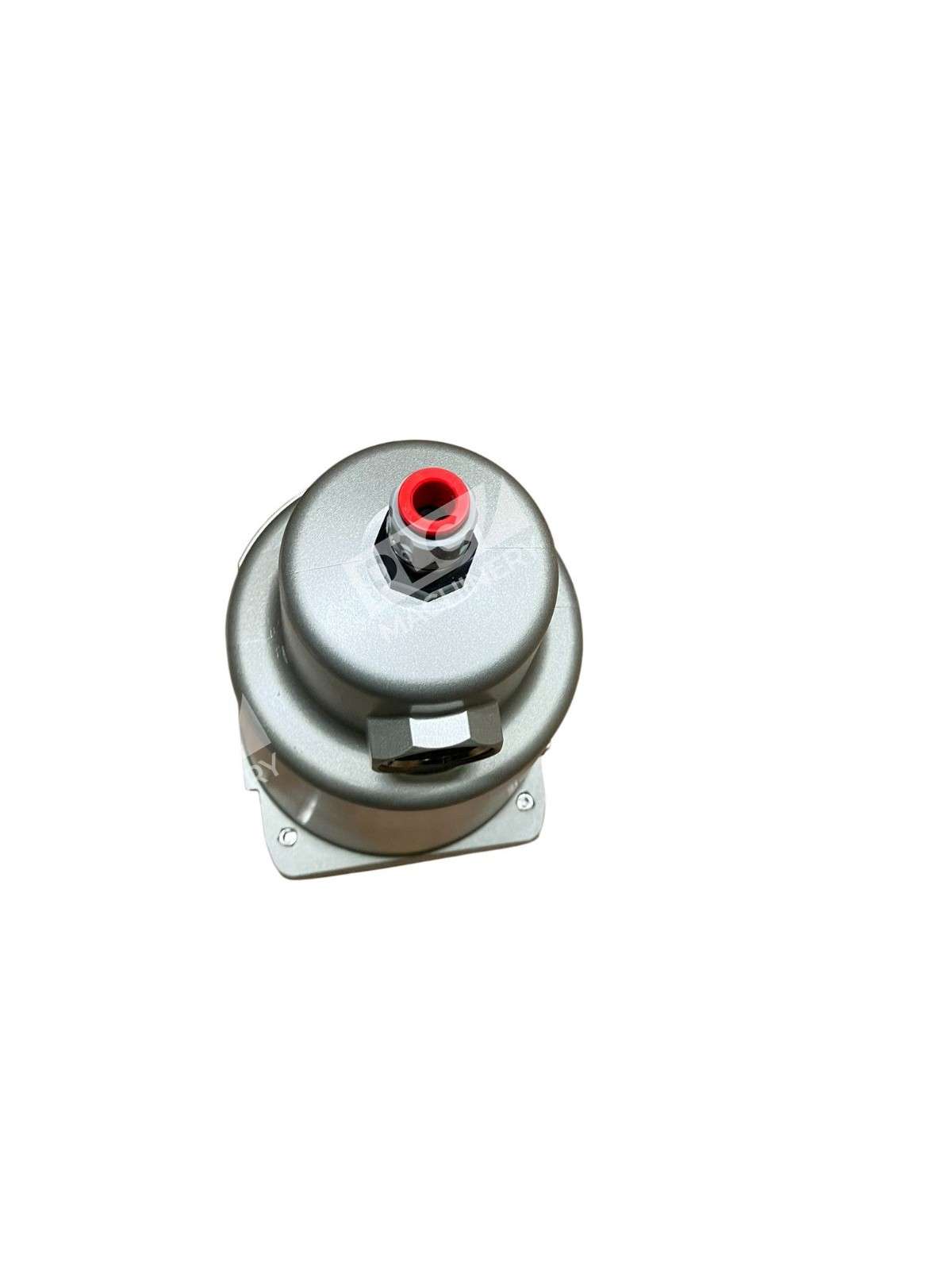

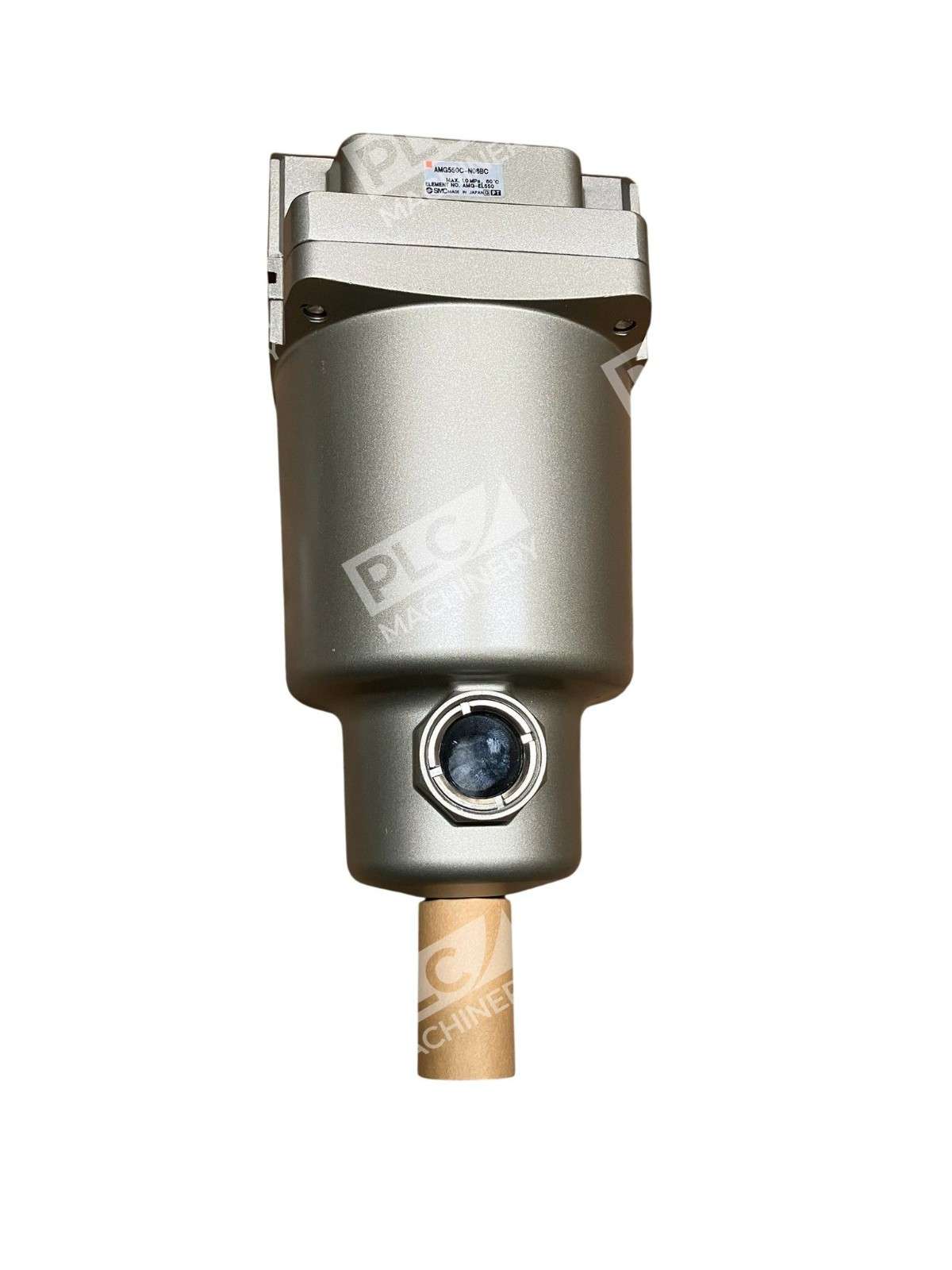

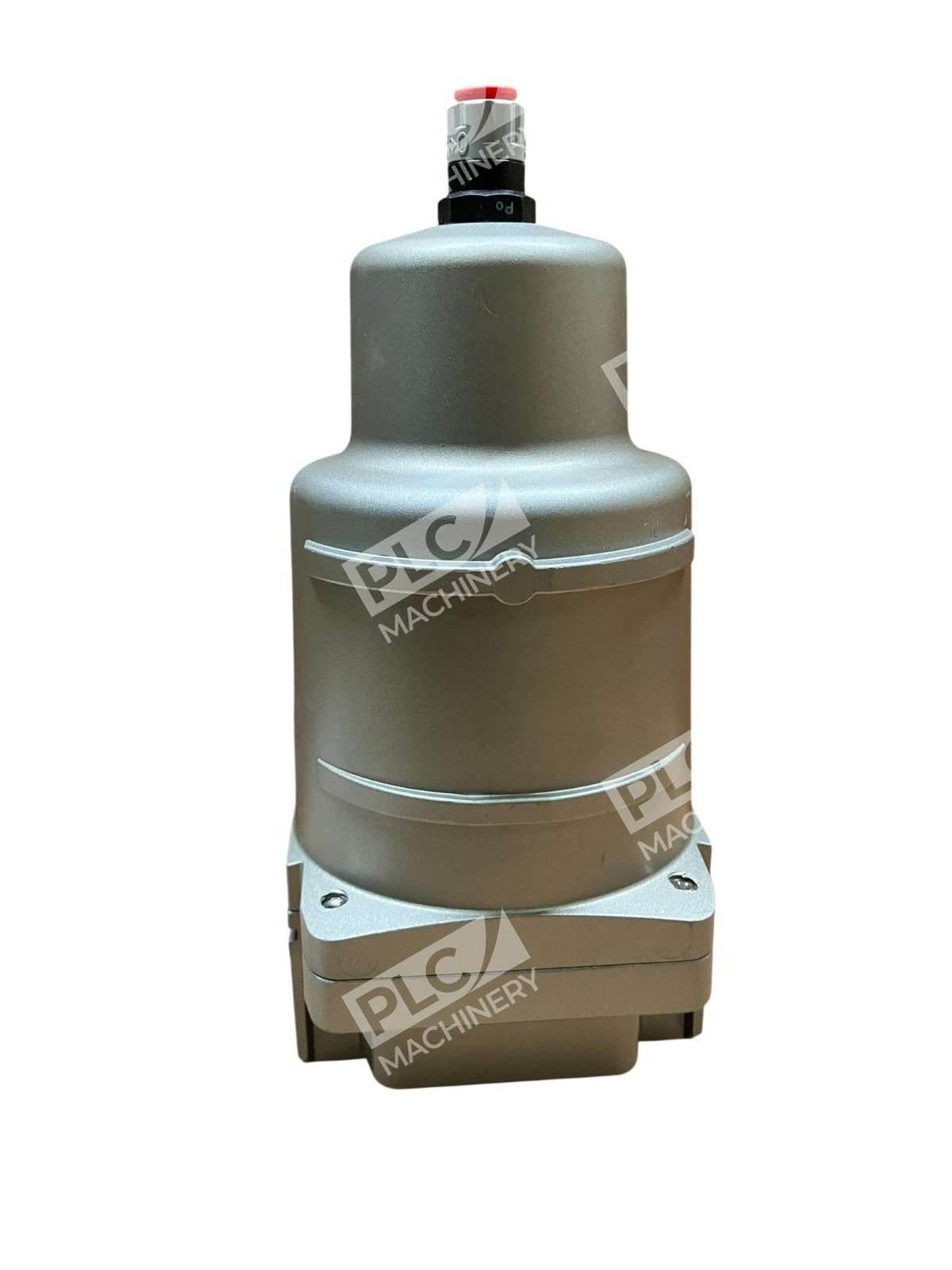

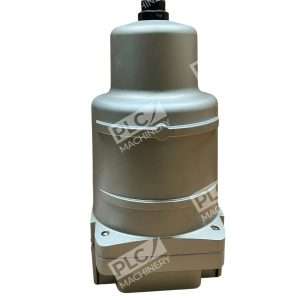

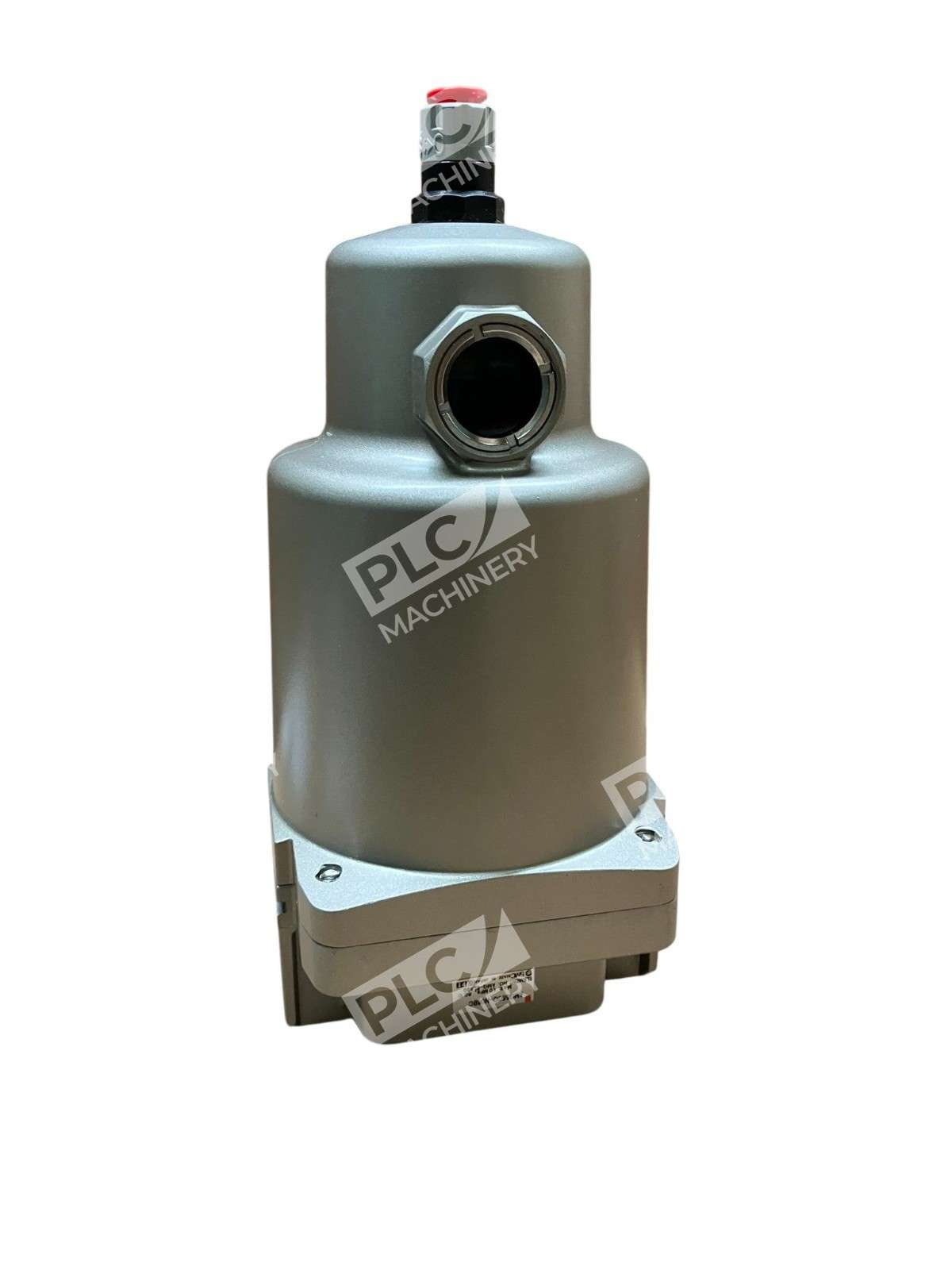

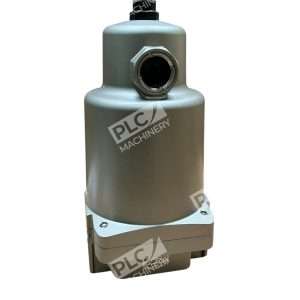

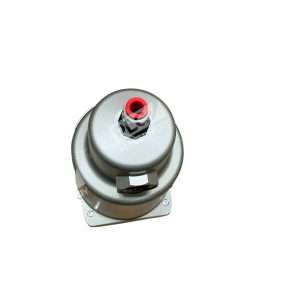

The SMC AMG550C-N06BC water separator is a compact, industrial-grade unit designed to remove water and moisture from compressed air systems. With a 3/4″ NPT port connection and rated for 145 PSI maximum operating pressure, this ambient dryer performs reliably in manufacturing plants, pneumatic tool stations, and compressed air distribution networks. The AMG550C-N06BC features an automatic drain valve that continuously expels separated water without interrupting air flow, making it ideal for continuous-duty applications where dry compressed air is critical.
Key Features
- High-efficiency water separation—99% removal ratio removes nearly all free water droplets from compressed air
- Automatic drain valve (Normally Open) continuously removes separated condensate without manual intervention
- 3/4″ NPT threaded connections for standard compressed air line integration
- Compact 550C body size fits easily into existing piping layouts with minimal footprint
- Rated for 145 PSI operation—compatible with standard industrial compressed air systems

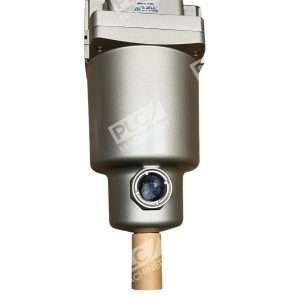

- Metal bowl construction with sight glass for visual condensate level monitoring
Technical Specifications
- Port Size: 3/4″ NPT
- Maximum Operating Pressure: 145 PSI
- Body Size: 550C
- Water Removal Efficiency: 99%
- Drain Type: Automatic (Normally Open)
- Bowl Material: Metal with sight glass
- Condition: New – Open Box
- Thread Standard: NPT (National Pipe Thread)
Typical Applications
- Manufacturing assembly lines requiring dry compressed air for precision pneumatic tools
- Compressed air distribution systems in industrial facilities
- Pneumatic tool stations—impact wrenches, air drills, grinders, nail guns
- Paint spray systems and abrasive blasting equipment sensitive to water contamination
- Food processing and pharmaceutical production where air purity is regulated
- Dental offices, hospitals, and laboratories using medical-grade compressed air
Compatibility & Replacements
Compatible With
- Standard industrial compressed air systems rated 145 PSI and below
- Pneumatic compressors and air receivers with 3/4″ NPT outlet ports
- Compressed air distribution networks and piping systems using NPT threaded connections
- Pneumatic tools and equipment requiring dry, clean compressed air
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The AMG550C-N06BC is part of the SMC AMG550C series and may directly replace earlier AMG550C models depending on drain configuration and connection type requirements.
Works With
- Compressed air filtration systems (typical multi-stage setup: filter → water separator → regulator)
- Pneumatic regulators and lubricators in modular air preparation units
- Automatic condensate collection and disposal systems
- Manual or electronic drain valve controls (compatible with auto-drain design)
