Overview

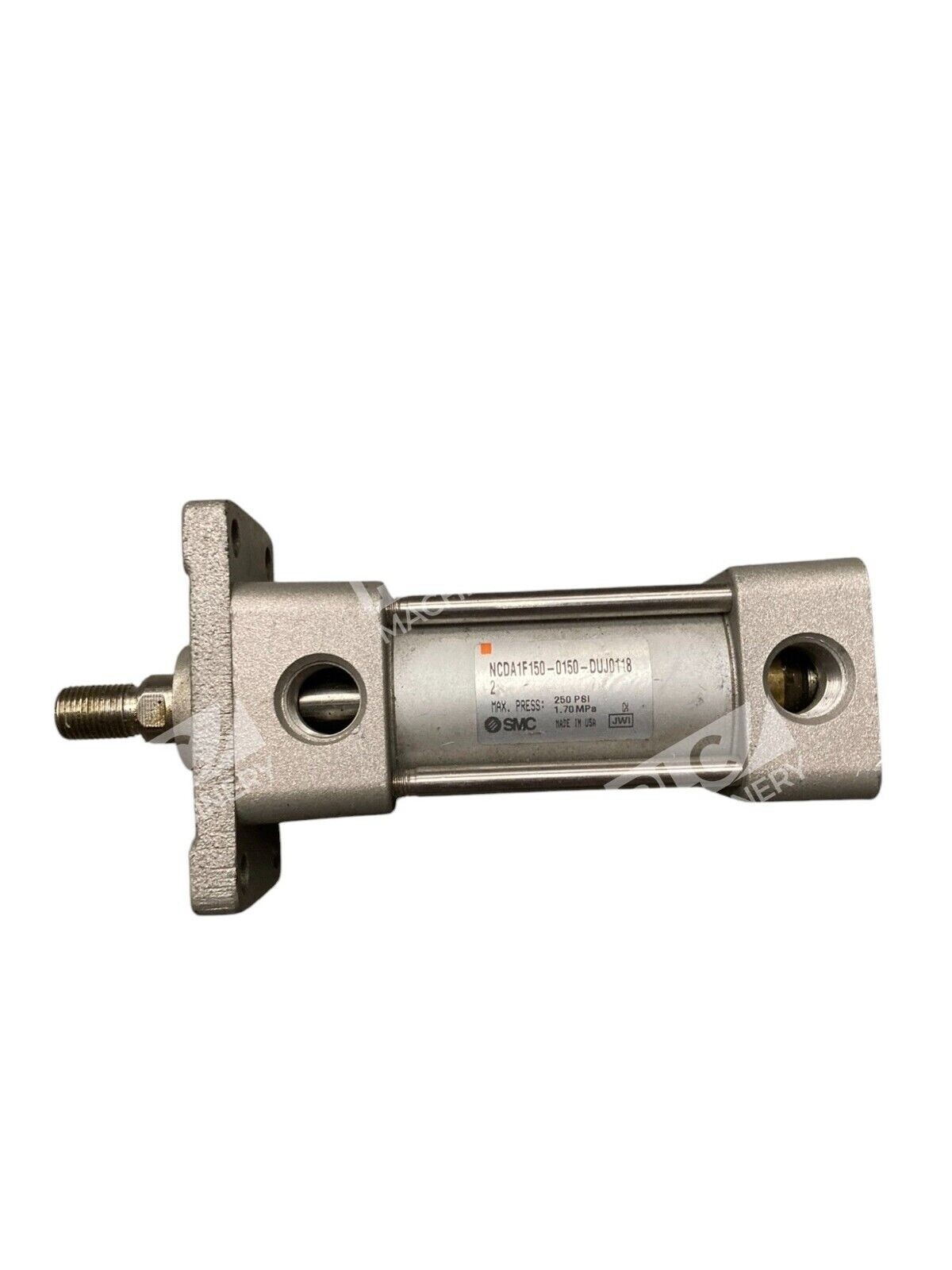

The SMC NCDA1F150-0150-DUJ-1182 is a medium-duty, double-acting tie-rod pneumatic cylinder designed for NFPA interchangeability. This model operates at 250 psi (1.70 MPa) and features a 1.5″ bore with 1.5″ stroke, making it suitable for compact automation applications where space and force are critical. The DUJ designation indicates factory-installed cushioning on both the head and rod ends, providing smooth deceleration and protecting against shock loads.
Key Features
- Double-acting design — extends and retracts under air pressure for bidirectional motion control
- Tie-rod construction — robust frame with external tie-rods for high side-load capacity and durability
- NFPA interchangeable — mounting footprints conform to NFPA standards, allowing simple substitution in existing systems
- Built-in cushioning — both cap and rod ends feature air cushion to reduce shock and noise
- 1.5″ bore, 1.5″ stroke — compact footprint ideal for confined spaces and rapid cycling
- Pre-lubricated — minimal maintenance, ready to connect
- Multiple mounting options — front flange (F designation) for rigid panel or manifold mounting
Technical Specifications
- Bore diameter: 1.5″ (38 mm)
- Stroke length: 1.5″ (38 mm)
- Maximum operating pressure: 250 psi (1.70 MPa)
- Rod diameter: 0.625″ (16 mm)
- Port type: NPTF 3/8″
- Piston speed range: 50–500 mm/s
- Cushion type: Adjustable air cushion (head and rod ends)
- Seal material: NBR (nitrile rubber)
- Mounting style: Front flange (MF2)
- Series: NCDA1 (NFPA interchangeable)
- Condition: New – No Box
Typical Applications
- Automation fixtures and clamping systems
- Assembly machine actuators
- Pneumatic presses and punch systems
- Material handling and transfer mechanisms
- Test stand equipment and hydraulic/pneumatic control systems
- Industrial packaging and labeling machines
Compatibility & Replacements
Compatible With
- SMC pneumatic valve manifolds and control blocks
- Standard NFPA-compatible cylinders and mounting systems
- Industrial compressed air systems rated for 250 psi operating pressure
- Pneumatic logic controllers and PLC-based automation systems
- FRL (Filter-Regulator-Lubricator) assemblies for air preparation
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The NCDA1F150-0150 designation matches SMC’s standard NFPA footprint, but specific port threads, cushion settings, and electrical sensor configurations (if any) should be confirmed with the original equipment OEM or SMC technical support.
Works With
- SMC pneumatic control valves and solenoid pilot-operated directional control valves
- Limit switches and inductive proximity sensors for position feedback
- Pneumatic speed controllers and flow regulators
- Standard compressed air lines and quick-couplers (ISO 4401/CETOP)
- Industrial process automation systems using standard pneumatic logic
