Overview

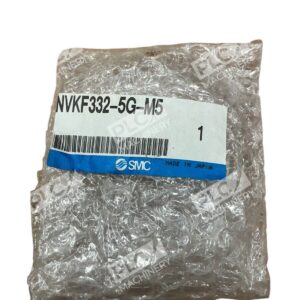

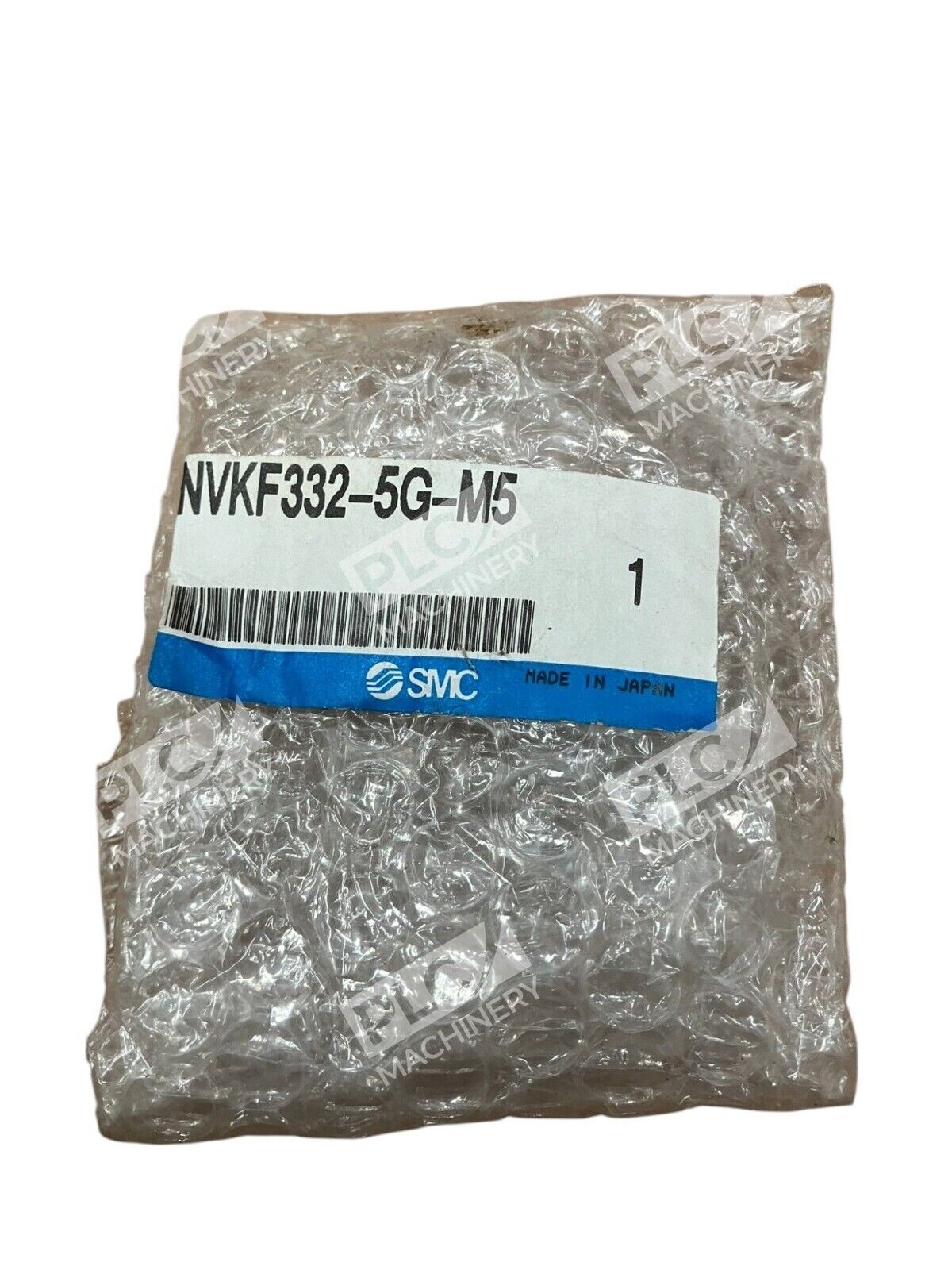

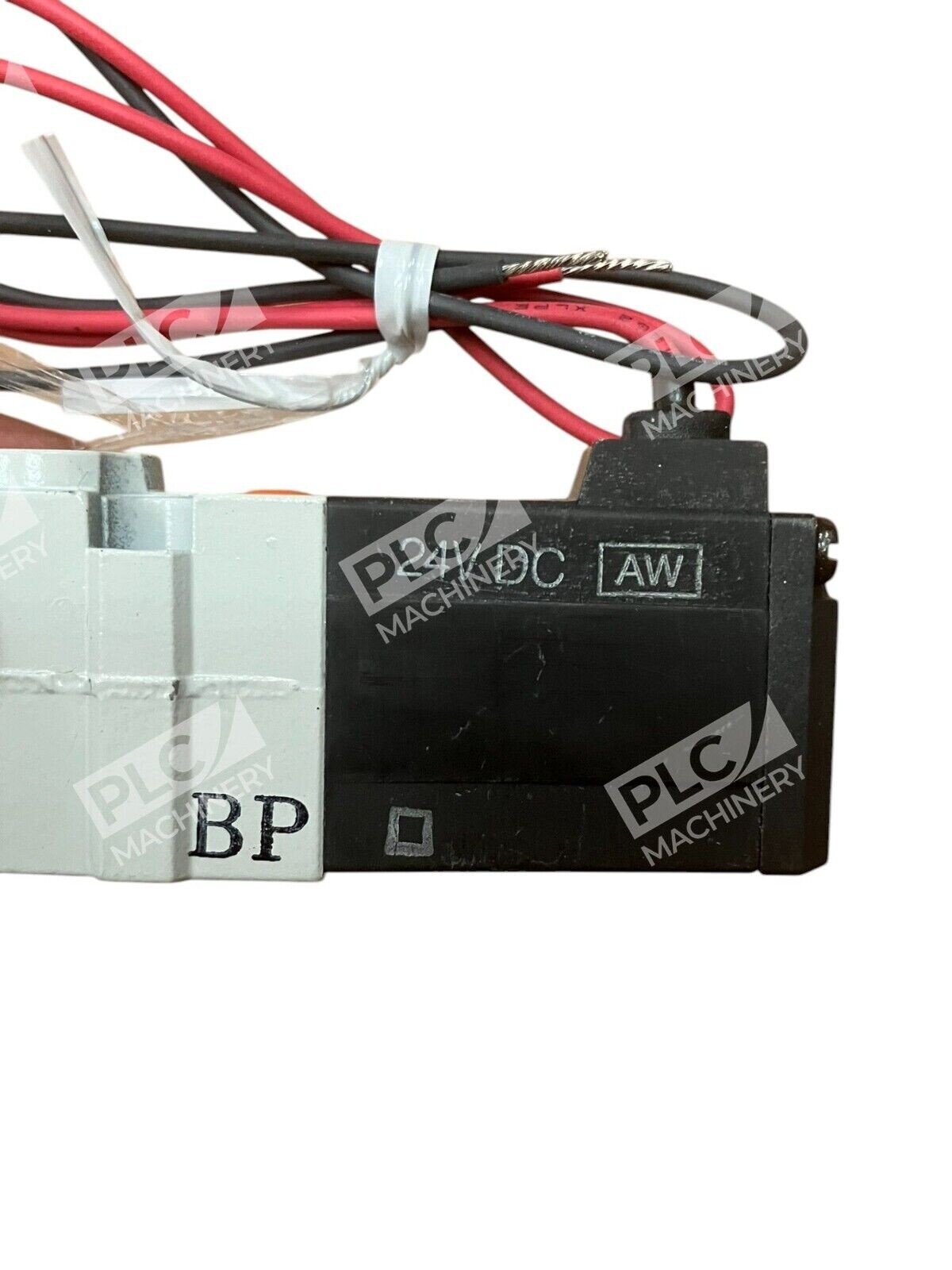

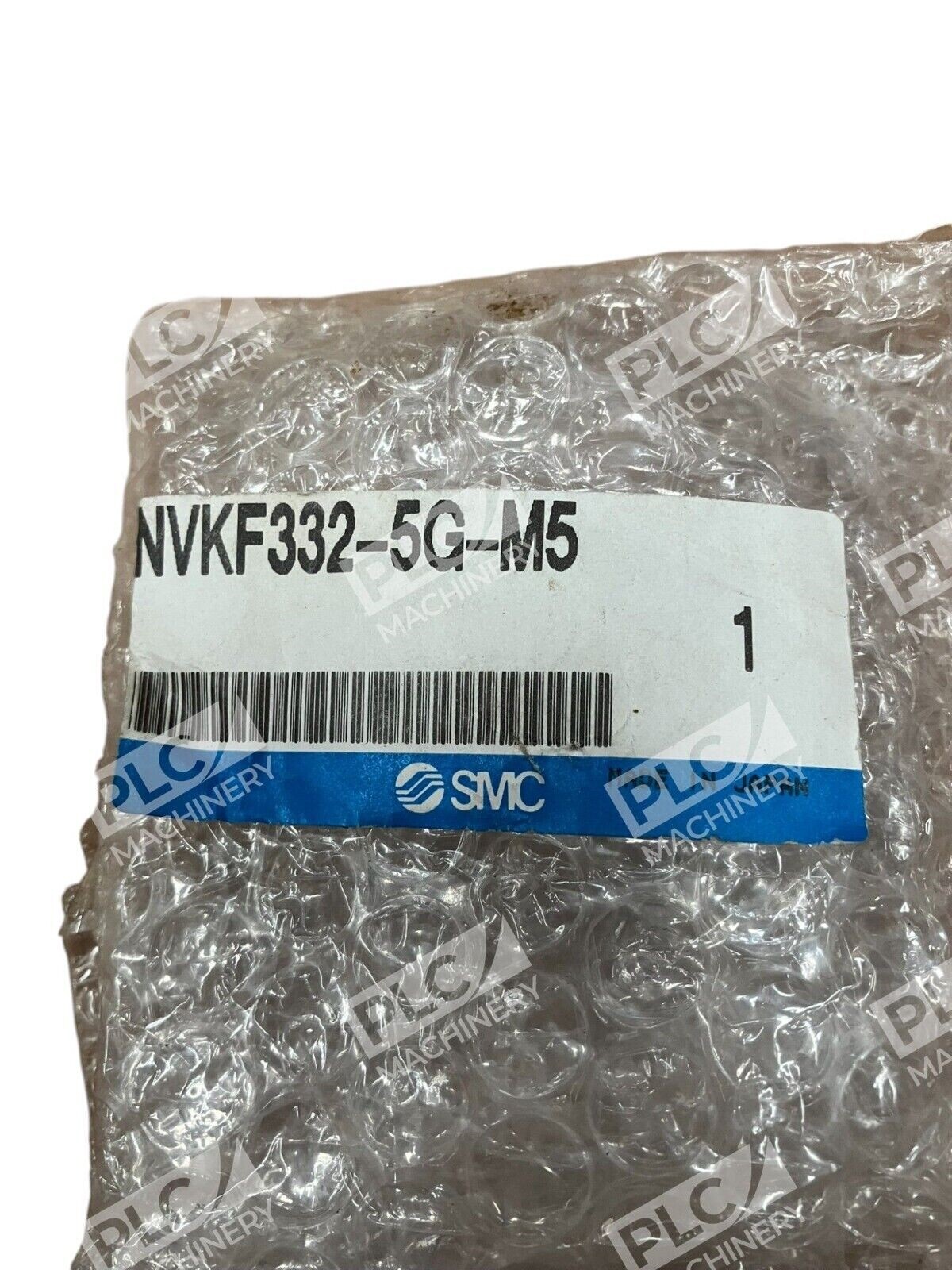

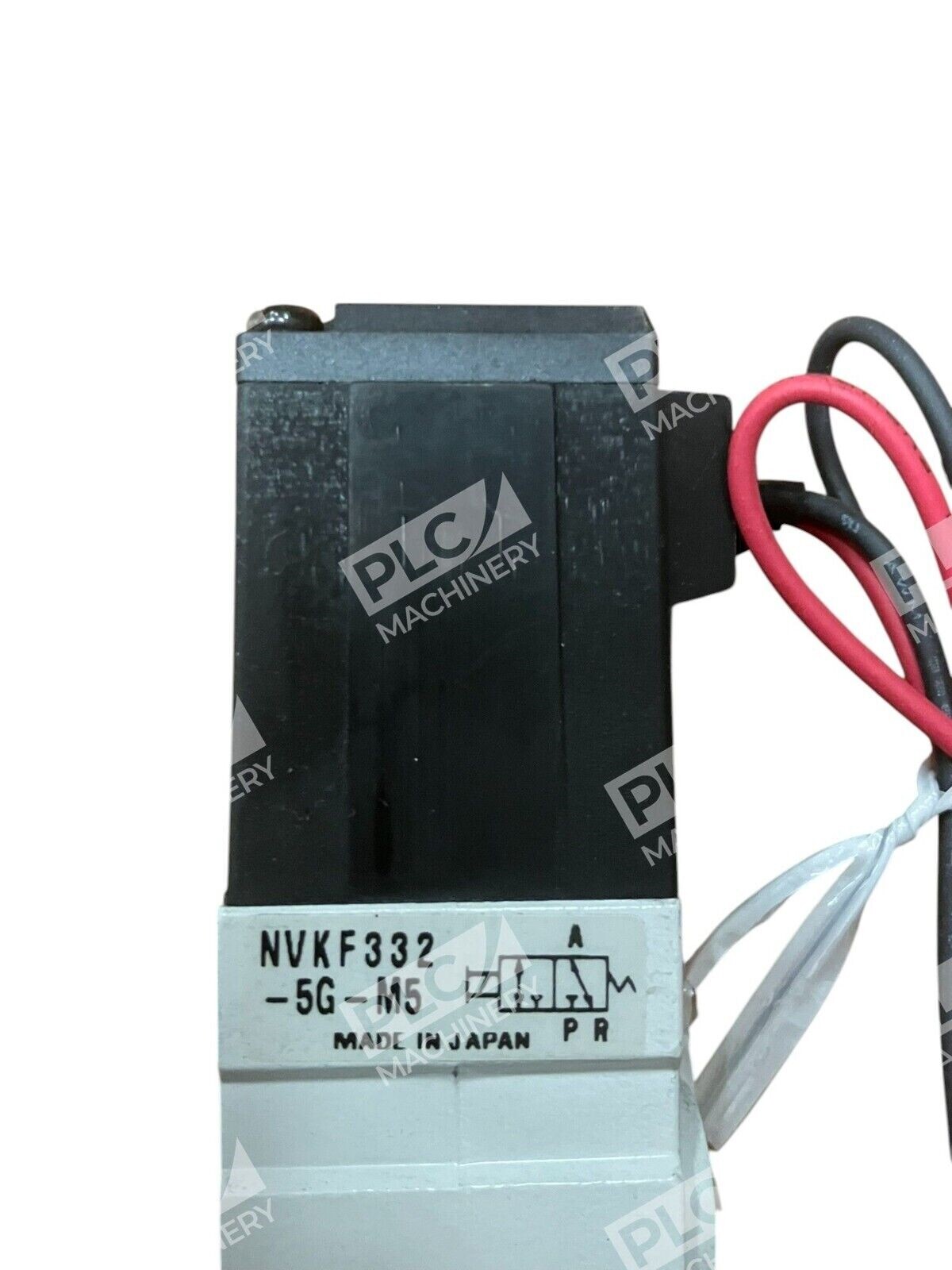

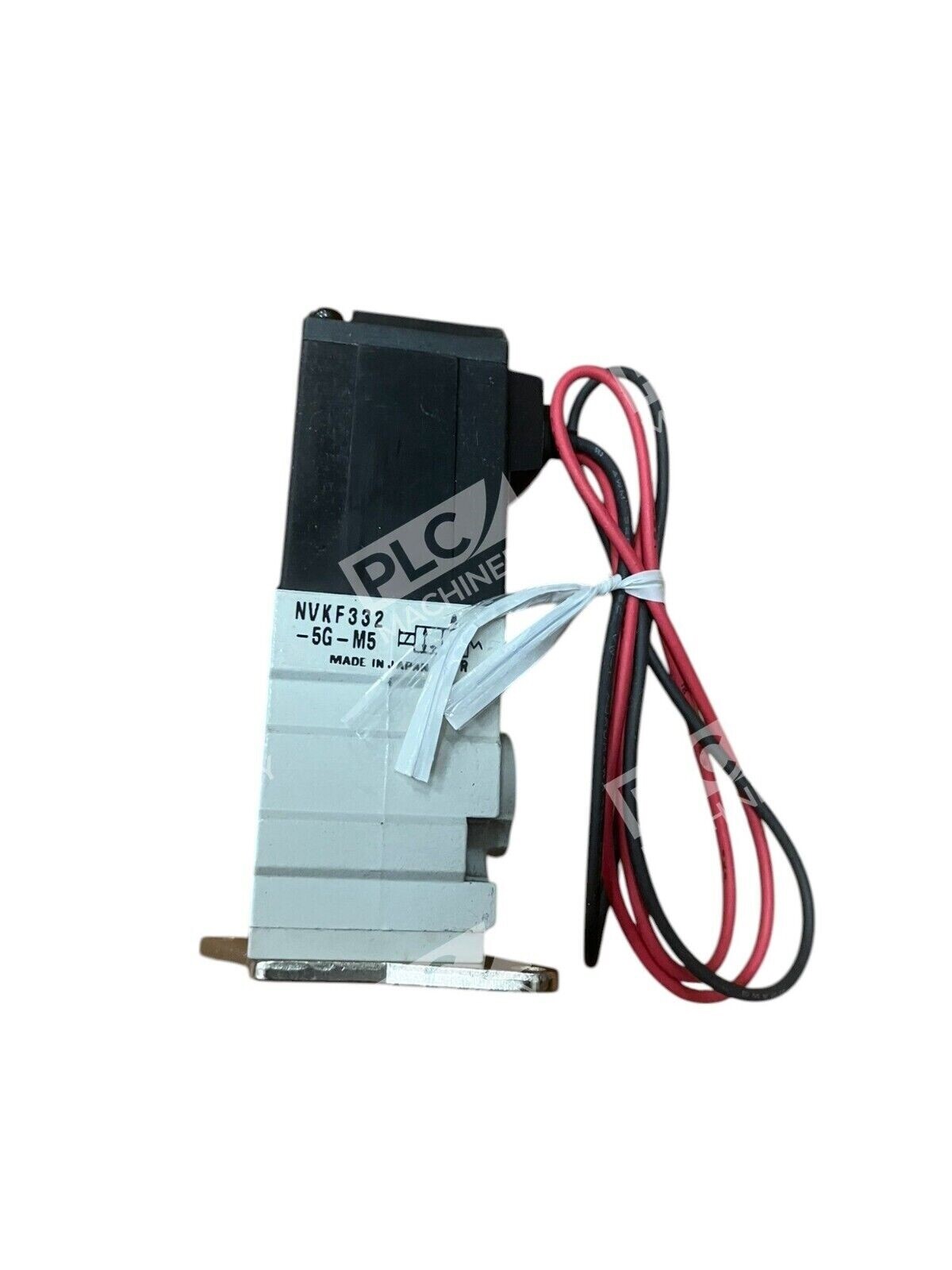

The SMC NVKF332-5G-M5 is a 24VDC solenoid valve from SMC’s pneumatic automation product line. This compact 3-port, direct operated poppet valve is engineered for precision control of compressed air and gases in industrial automation, process control, and equipment manufacturing environments. The unit arrives in new in box condition, ready for immediate installation.
Key Features
- Compact Design: Width 18 x length 68mm form factor fits tight mounting spaces while maintaining performance
- Direct Poppet Operation: 3 port solenoid, direct poppet, rubber seal valve design for reliable on/off control
- Copper-Free Construction: All parts in contact with fluids are made of non-copper materials, suitable for sensitive applications
- Manual Override: Easy manual operation for manual control when needed
- Vacuum Compatible: Can also be used for vacuum applications (-101.2 kPa)
- Universal Porting: Flexible manifold mounting options for system integration
Technical Specifications
| Part Number | NVKF332-5G-M5 |
| Brand | SMC Corporation |
| Valve Type | 3-Port Direct Operated Poppet Solenoid Valve |
| Electrical Supply | 24VDC |
| Solenoid Connection | M5 x 0.8 (metric thread) |
| Width | 18 mm |
| Length | 68 mm |
| Operating Pressure Range | 0 to 0.7 MPa |
| Seal Material | Rubber (FKM compatible) |
| Porting Style | Universal (body ported) |
| Condition | New in Box |
Typical Applications
- Pneumatic cylinder control and automation
- Compressed air distribution and switching
- Industrial process control systems
- Assembly and manufacturing equipment
- Vacuum system control (down to -101.2 kPa)
- OEM equipment integration and replacement
Compatibility & Replacements
Compatible With
- SMC pneumatic control systems and manifold assemblies
- Industrial PLC and automation controllers using 24VDC logic
- Standard compressed air networks (0–0.7 MPa)
- Vacuum or negative pressure applications
- Equipment requiring M5 x 0.8 metric solenoid connections
Replaces / Drop-In Replacement For
- SMC VK332-5G-M5 (similar VK series variant)
- Other SMC VK300/VKF300 series 3-port direct poppet valves with M5 solenoid connection
- Verify specific model interchange with your system integrator or SMC technical support before ordering
Works With
- 24VDC solenoid coil wiring and PLC digital outputs
- Standard pneumatic manifold systems and porting blocks
- ISO 4401 (CETOP-05) and ISO 1219 pneumatic symbols and schematics
- Manual override operation for emergency or maintenance procedures
