Overview

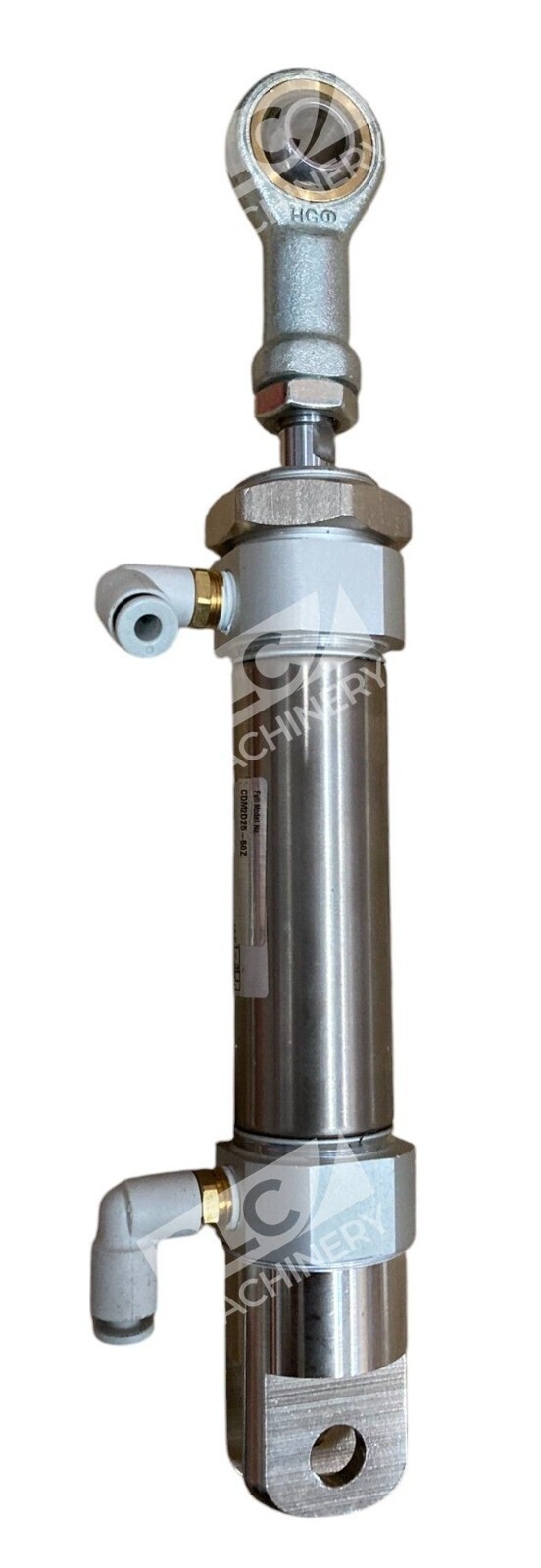

The SMC CDM2D25-50Z is a double-acting pneumatic cylinder engineered for precision automation and industrial control systems. Manufactured in Japan by SMC, a global leader in pneumatic automation products, this cylinder operates at a rated pressure of 1.0 MPa (approximately 145 psi) and features a 25 mm bore with a 50 mm stroke length. The CDM2D series delivers smooth, reliable operation with minimal sticking or slipping at low speeds, making it ideal for machinery requiring consistent force output across diverse industrial environments.
Key Features
- Double-acting configuration for both extend and retract control
- 1.0 MPa (145 psi) rated working pressure for consistent performance
- 25 mm bore diameter with 50 mm stroke length
- Low-speed capability with excellent dust and moisture resistance
- Compact, lightweight design for space-efficient installation
- Rod seal and scraper engineered for extended service life
Technical Specifications
The SMC CDM2D25-50Z meets ISO standards for pneumatic cylinder construction and is compatible with standard ported manifolds and control valve networks.
Typical Applications
- Machine tool automation and positioning
- Material handling and transfer systems
- Food processing and packaging equipment
- Assembly line automation
- Industrial clamping and fixturing
- Fluid power control in manufacturing environments
Compatibility & Replacements
Compatible With
- Standard ISO pneumatic control valve stations
- Manifold-mounted directional control systems
- Industrial air distribution networks rated 1.0 MPa and below
- Pressure regulators and solenoid-operated valves
- One-touch pneumatic fittings and standard porting
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CDM2D series may have variant models with different rod configurations or porting options. Consult SMC documentation or your controls engineer to confirm exact interchangeability with legacy equipment.
Works With
- ISO 6432 pneumatic cylinder standard
- Pneumatic pressure switches and solenoid valve controllers
- Manifold-based pilot control systems
- Flow control valves and meter-out configurations
- Standard 1/8″ and 1/4″ port pneumatic fittings
