Overview

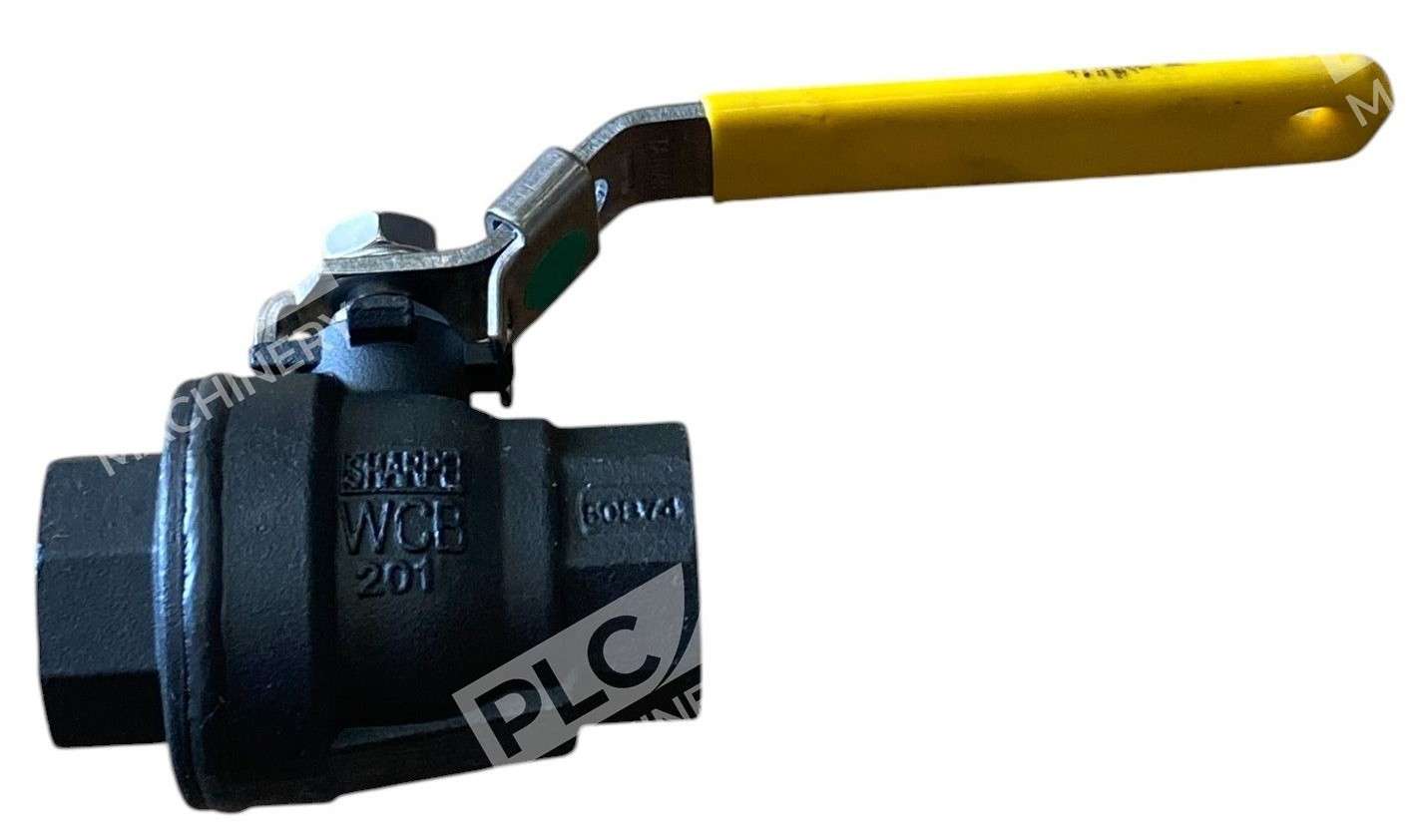

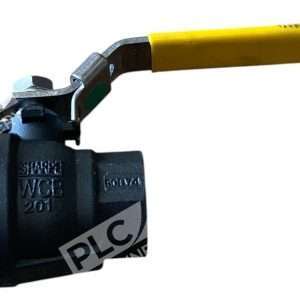

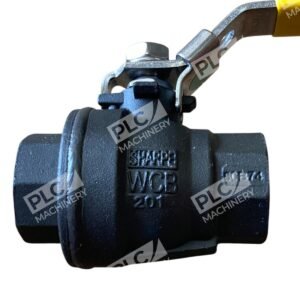

The Sharpe WCB 201 TS ball valve is a two-piece, full-port design engineered for demanding industrial flow control. Constructed from durable carbon steel, this valve ensures longevity and optimal performance in demanding environments. The 3/4″ threaded connection accommodates standard NPT pipe configurations, while the 2000 WOG pressure rating supports high-pressure hydraulic systems, gas distribution, and general industrial piping.
Key Features
- Two-Piece Body Design: Features a two-piece body with a standard port, facilitating efficient flow control.
- Blowout-Proof Stem: Equipped with a blowout-proof stem, enhancing safety and reliability during operation.

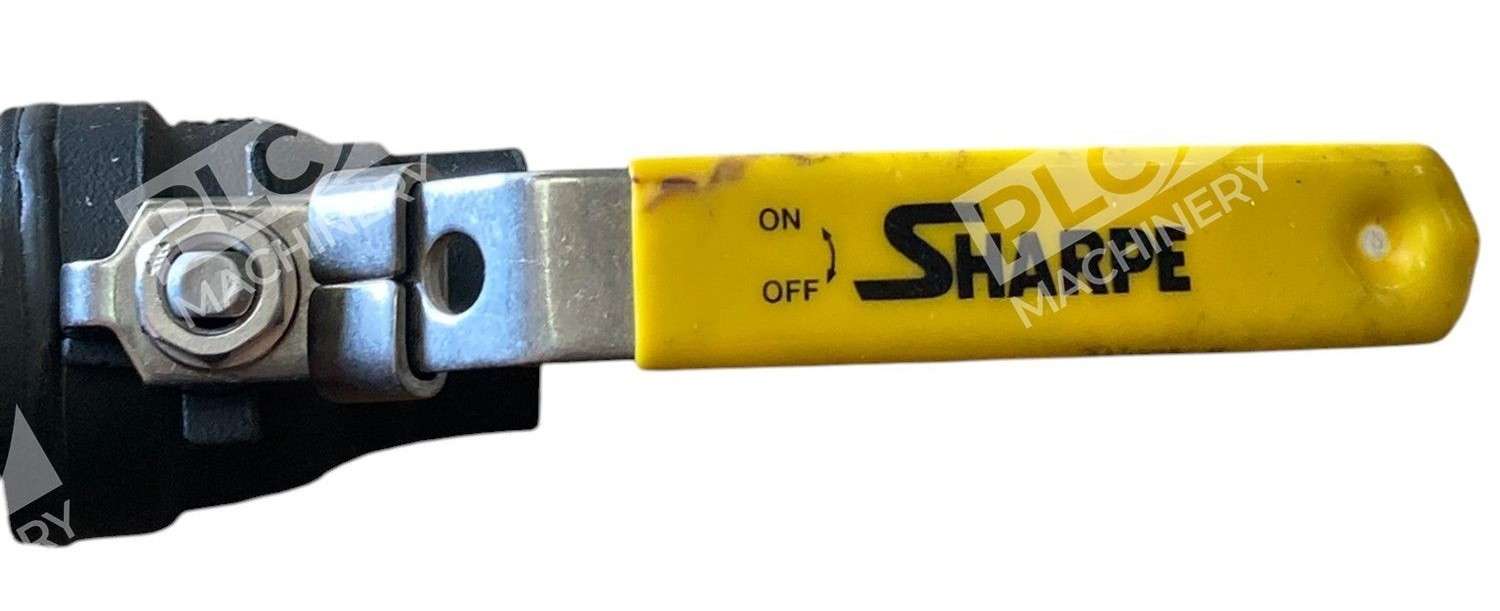

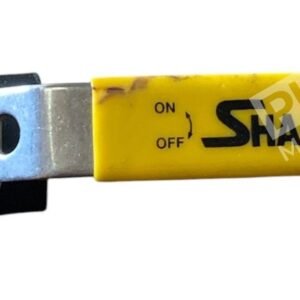

- Lockable Handle: Comes with a lockable handle, providing secure operation and preventing unauthorized use.
- RTFE Seat Material: Utilizes RTFE (Reinforced Teflon) seats, ensuring a tight seal and resistance to various chemicals.
- Manual Operation: Simple quarter-turn lever actuation for straightforward on/off control.
Technical Specifications
- Port Size: 3/4″
- End Connection: Threaded (NPT)
- Pressure Rating: 2000 WOG (Water, Oil, Gas)
- Body Material: Constructed from ASTM A216 carbon steel, offering excellent strength and durability.
- Ball Material: 316 Stainless Steel
- Stem Material: 316 Stainless Steel
- Seat Material: RTFE (Reinforced Teflon)
- Port Configuration: Standard Port (full flow)
- Handle Type: Lockable lever
- Operating Temperature: -20°F to +200°F (-29°C to +93°C) typical
- Series: WCB 201
Typical Applications
This ball valve is ideal for use in industries requiring reliable flow control under high-pressure conditions, including oil and gas, water treatment, and chemical processing. Common uses include hydraulic system isolation, compressed air/gas shutoff, process fluid regulation, steam condensate handling, and general industrial plumbing.
Compatibility & Replacements
Compatible With
- 3/4″ NPT (National Pipe Thread) piping systems
- Hydraulic and pneumatic circuits rated 2000 psi or lower
- Water, oil, and gas service applications
- Industrial manifolds with 3/4″ threaded ports
Replaces / Drop-In Replacement For
The Sharpe WCB 201 TS 3/4″ model is a standard industrial ball valve. Verify compatibility with your system integrator before ordering to ensure port size and pressure ratings match your requirements.
Works With
- Standard 3/4″ NPT female threaded ports
- Industrial pressure gauges and transducers (threaded ports)
- Hydraulic and pneumatic hose fittings with NPT adapters
- Manifold blocks with 3/4″ cavity ports
- Water, air, and gas distribution systems
