Overview

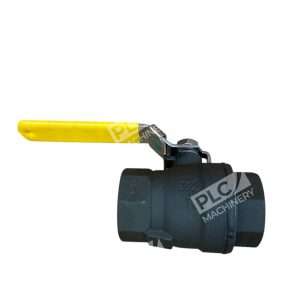

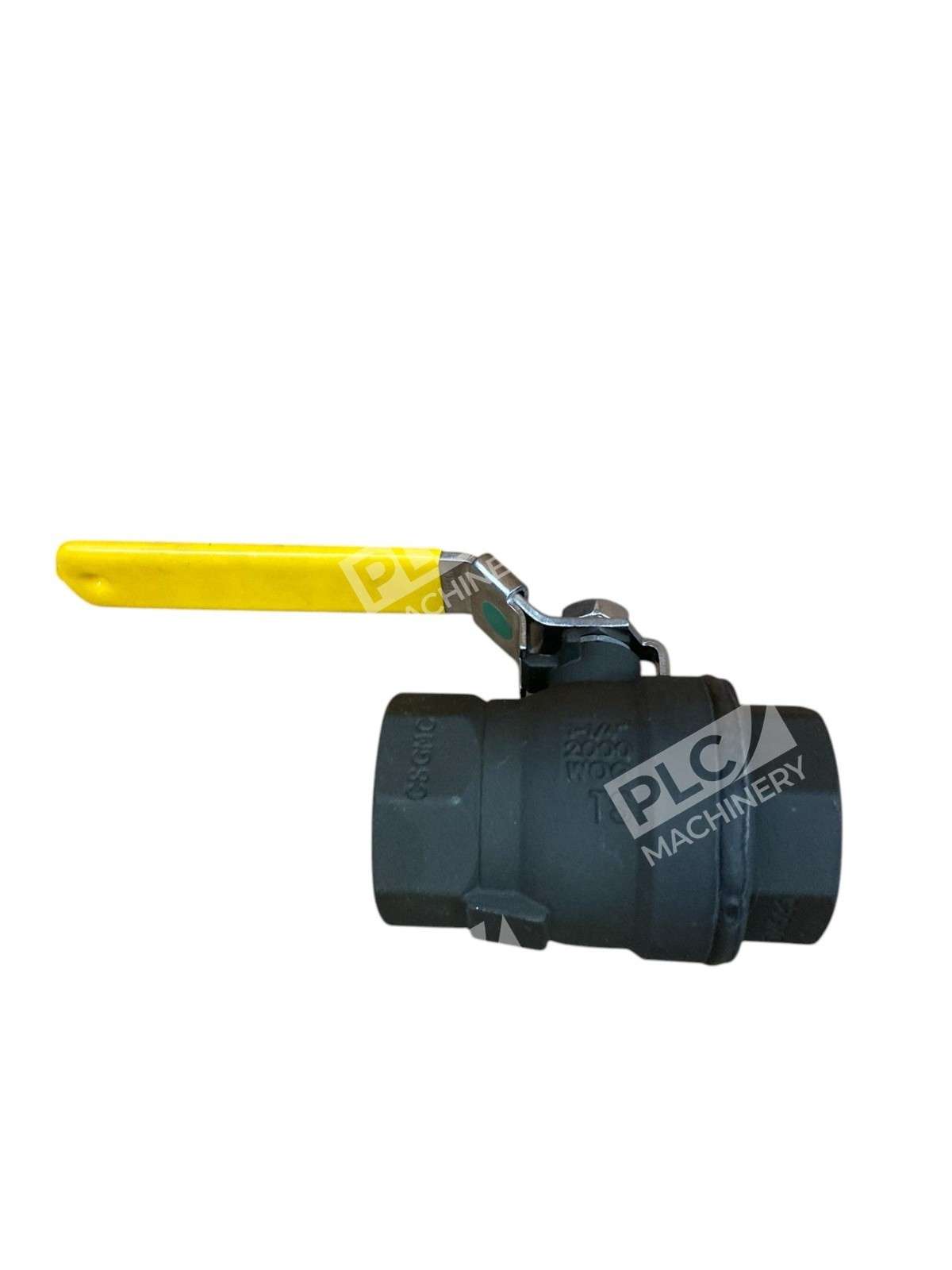

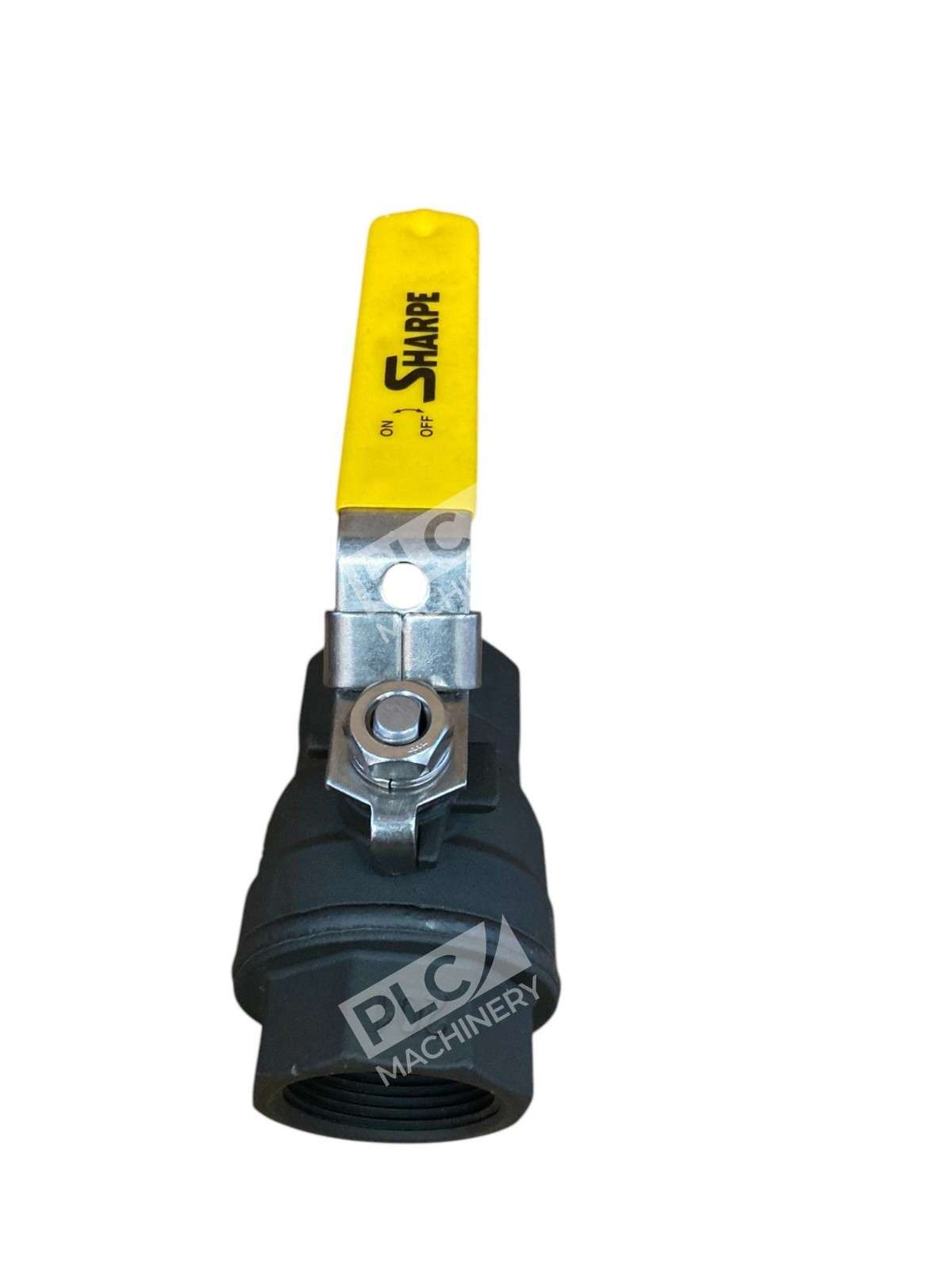

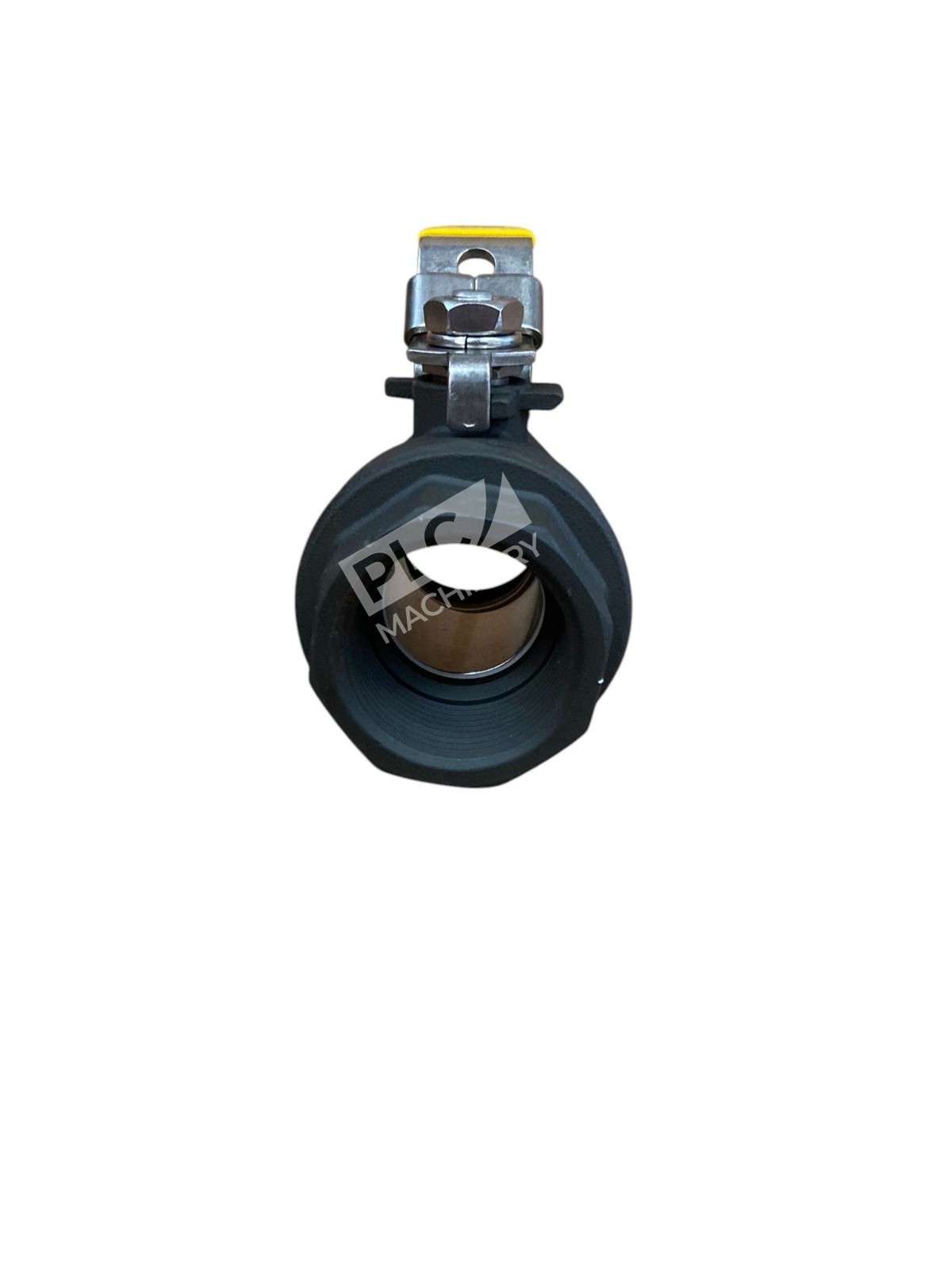

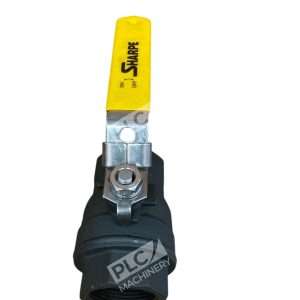

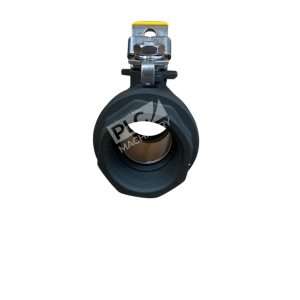

The Sharpe WOG 201 1-1/4″ ball valve delivers high-pressure flow control for demanding industrial piping systems. This two-piece carbon steel valve is engineered for reliable performance in hydraulics, pneumatics, water treatment, oil and gas, and chemical processing. With a 1500 WOG (Water, Oil, Gas) pressure rating at 1-1/4″ size, reinforced Teflon seats, and a blowout-proof stem, the WOG 201 meets the toughest operational requirements.
Key Features
- Two-Piece Body Design: Standard port configuration for efficient flow control and simplified maintenance.
- Blowout-Proof Stem: Enhanced safety during operation, preventing stem extrusion under pressure.

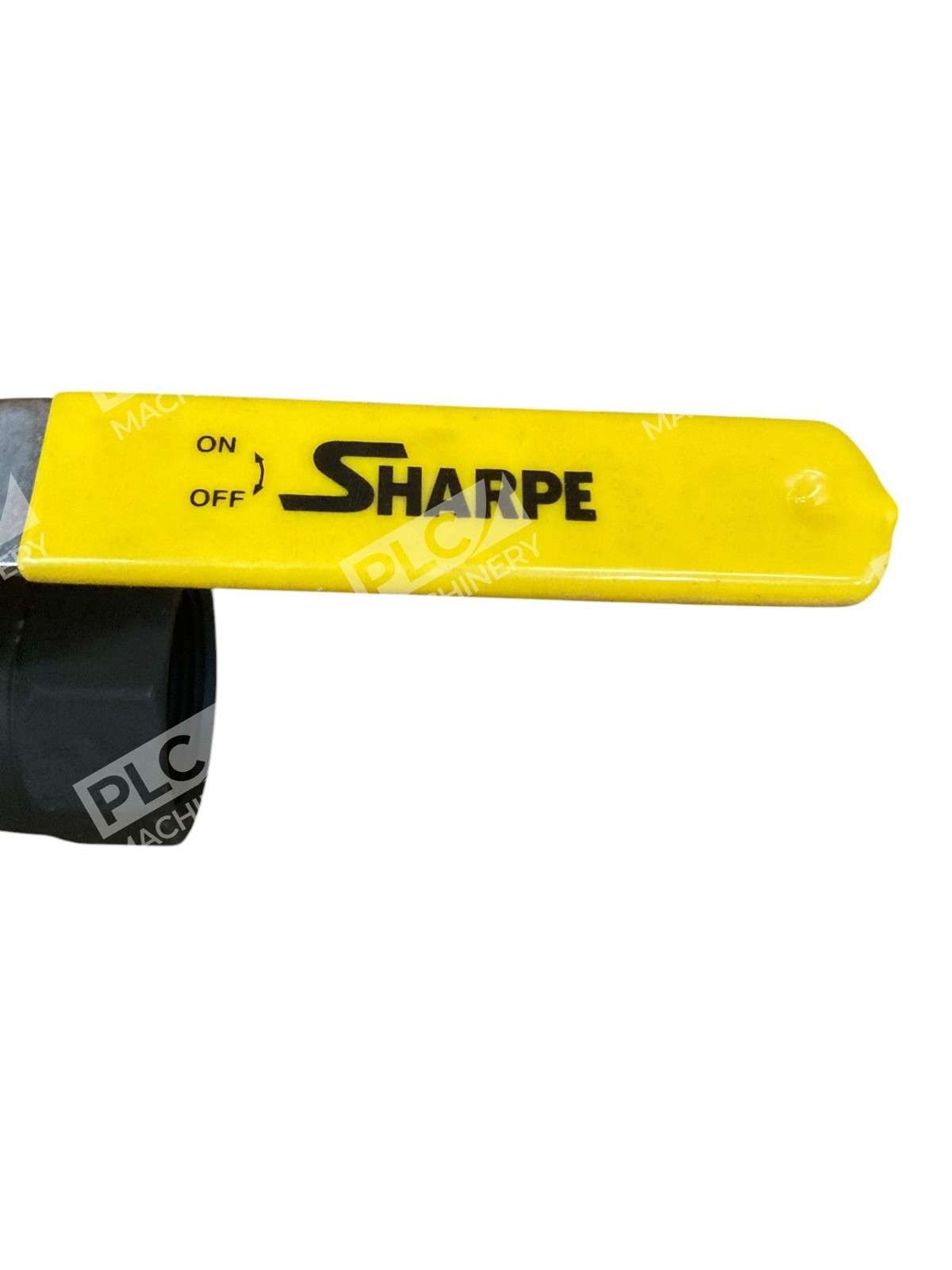

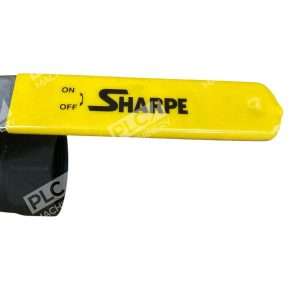

- Lockable Handle: Secures valve position with padlock capability to prevent unauthorized operation changes.
- RTFE Seat Material: Reinforced Teflon seats provide tight sealing and excellent chemical resistance across diverse fluid media.
- Carbon Steel Construction: ASTM A216 body material ensures durability in high-pressure, high-cycle applications.
- Steam Rated: Approved for 150 PSI saturated steam service with RTFE seats, expanding application versatility.
Technical Specifications
- Port Size: 1-1/4″ NPT
- Pressure Rating: 1500 WOG at 1-1/4″ size
- Body Material: Carbon Steel ASTM A216
- Body Type: Two-piece standard port
- Seat Material: RTFE (Reinforced Teflon)
- Stem Design: Blowout-proof
- Handle: Locking device with padlock capability
- Steam Rating: 150 PSI (saturated) with RTFE seats
- Connection: NPT threaded ends
- Applicable Standards: ASME B16.34
Typical Applications
The Sharpe WOG 201 serves critical roles in:
- Oil and gas production, distribution, and refining
- Water treatment and municipal supply systems
- Chemical processing and petrochemical plants
- Hydraulic fluid distribution networks
- Low-pressure steam systems (saturated steam)
- Pneumatic system isolation and control
- General industrial process piping
Compatibility & Replacements
Compatible With
- Standard NPT threaded piping systems (1-1/4″ port)
- Carbon steel, stainless steel, and plastic piping materials
- Water, oil, gas, and low-pressure steam media
- Hydraulic and pneumatic systems rated to 1500 WOG
- Industrial process control and isolation applications
Replaces / Drop-In Replacement For
The Sharpe WOG 201 is a direct replacement for equivalent Sharpe series ball valves in the same pressure class and port size. Verify part number compatibility (WOG 201 or equivalent series designations) with your original equipment documentation before ordering.
Works With
- Standard NPT thread adapters and fittings
- Lockable valve accessories (padlocks, chain wheels)
- Pressure gauges and isolation manifolds
- Flow measurement and regulation devices
- Industrial automation and process control systems
