Overview

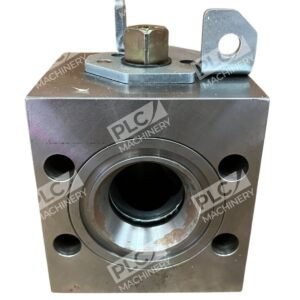

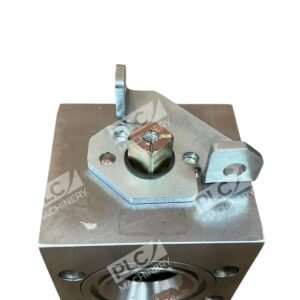

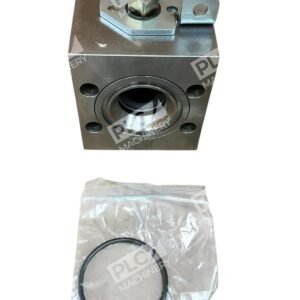

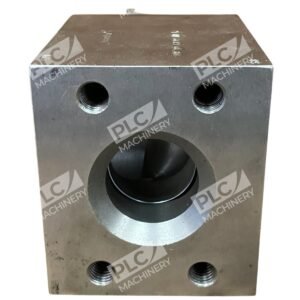

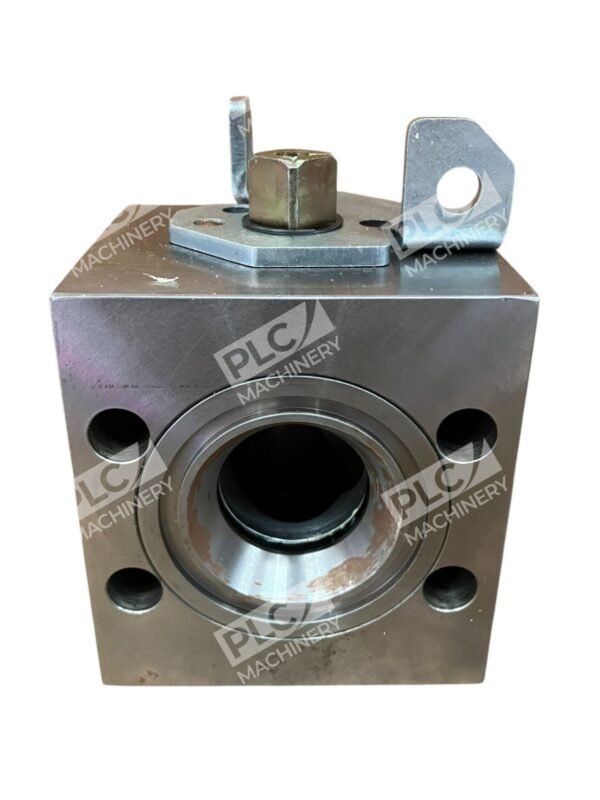

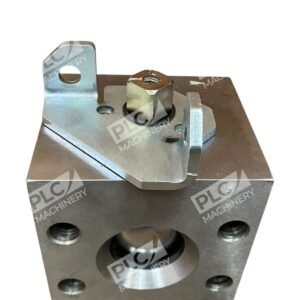

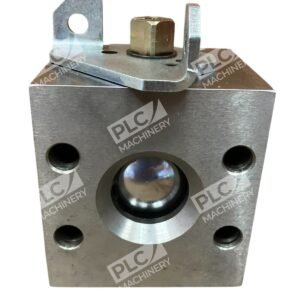

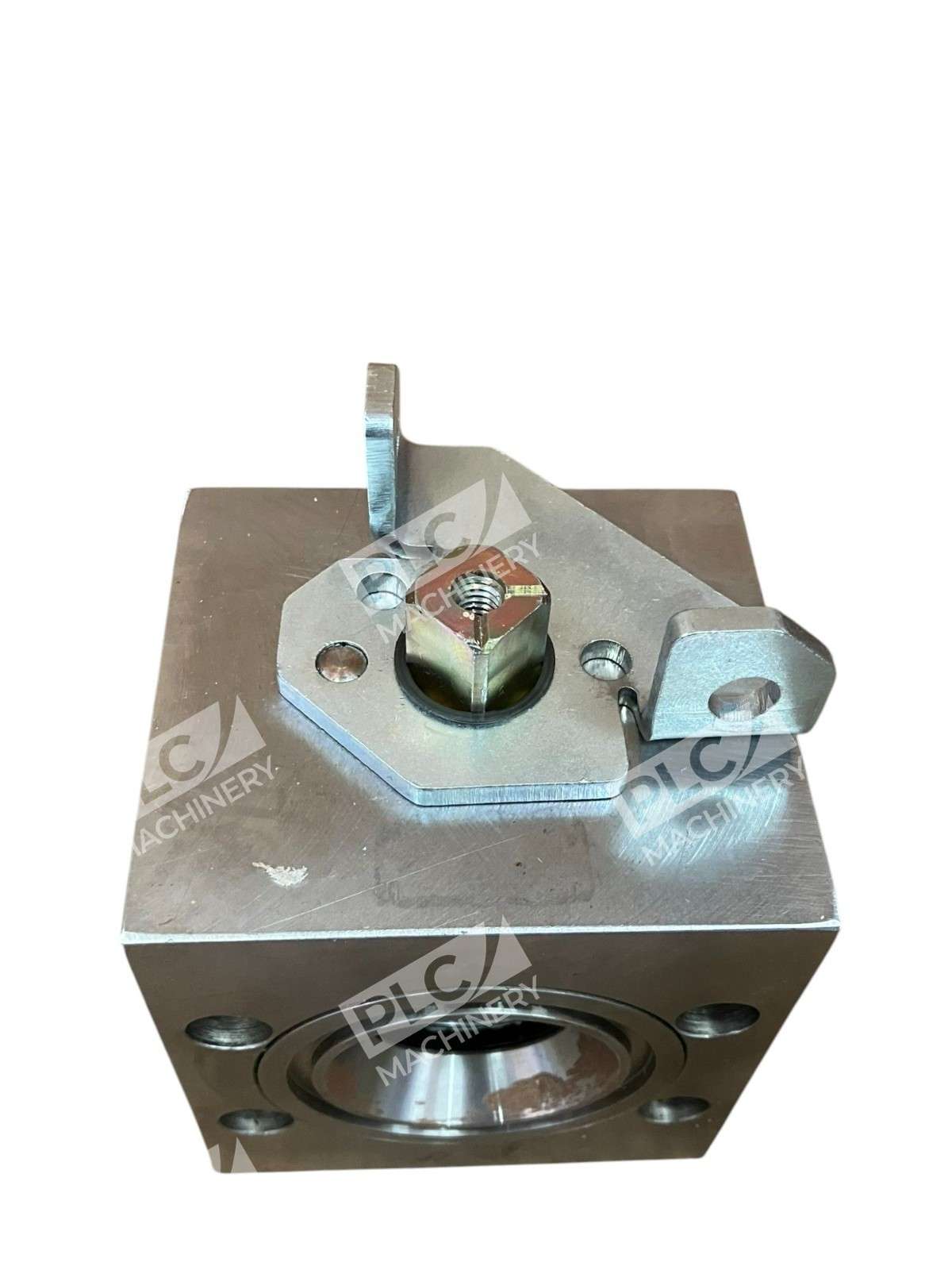

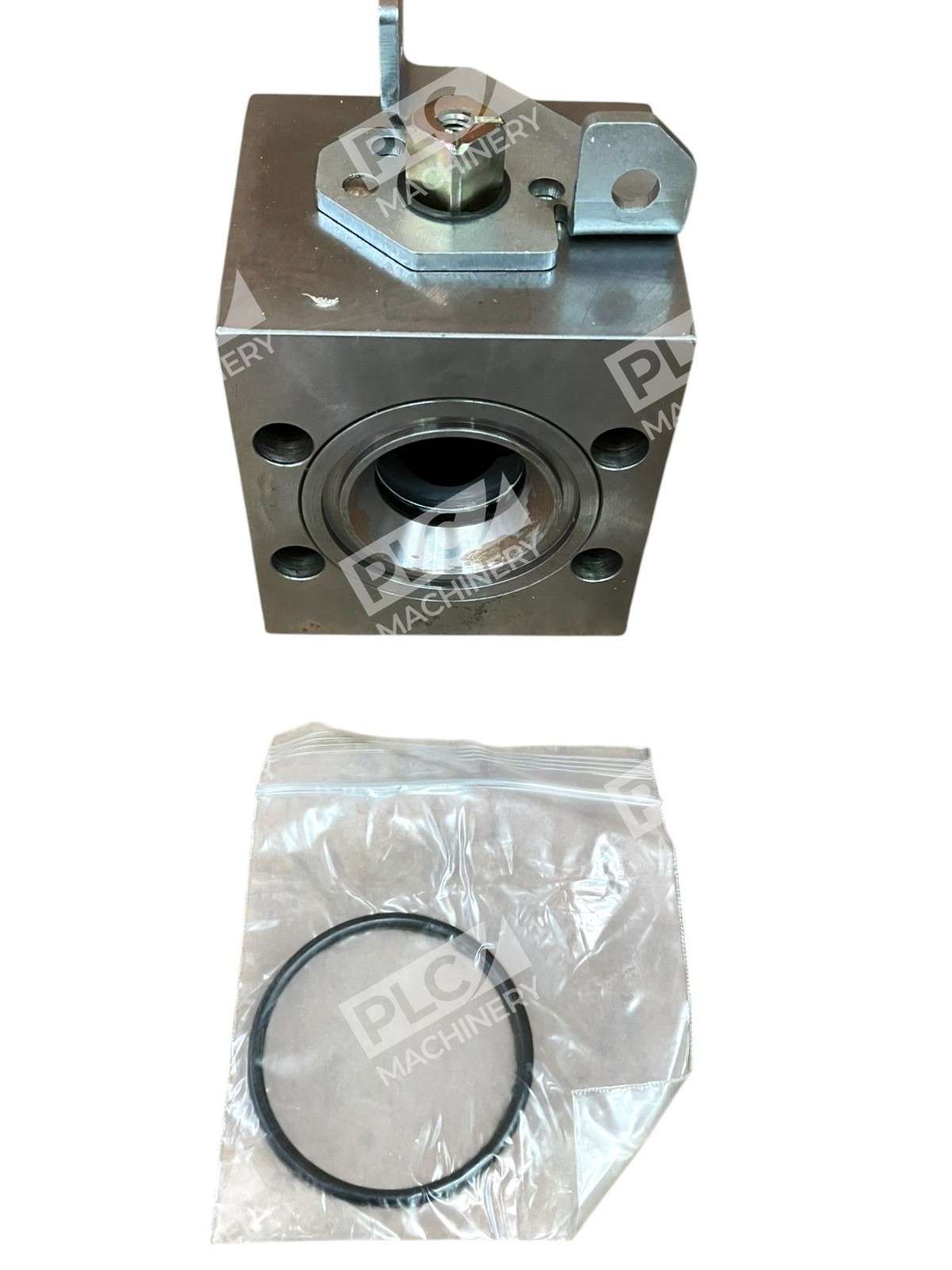

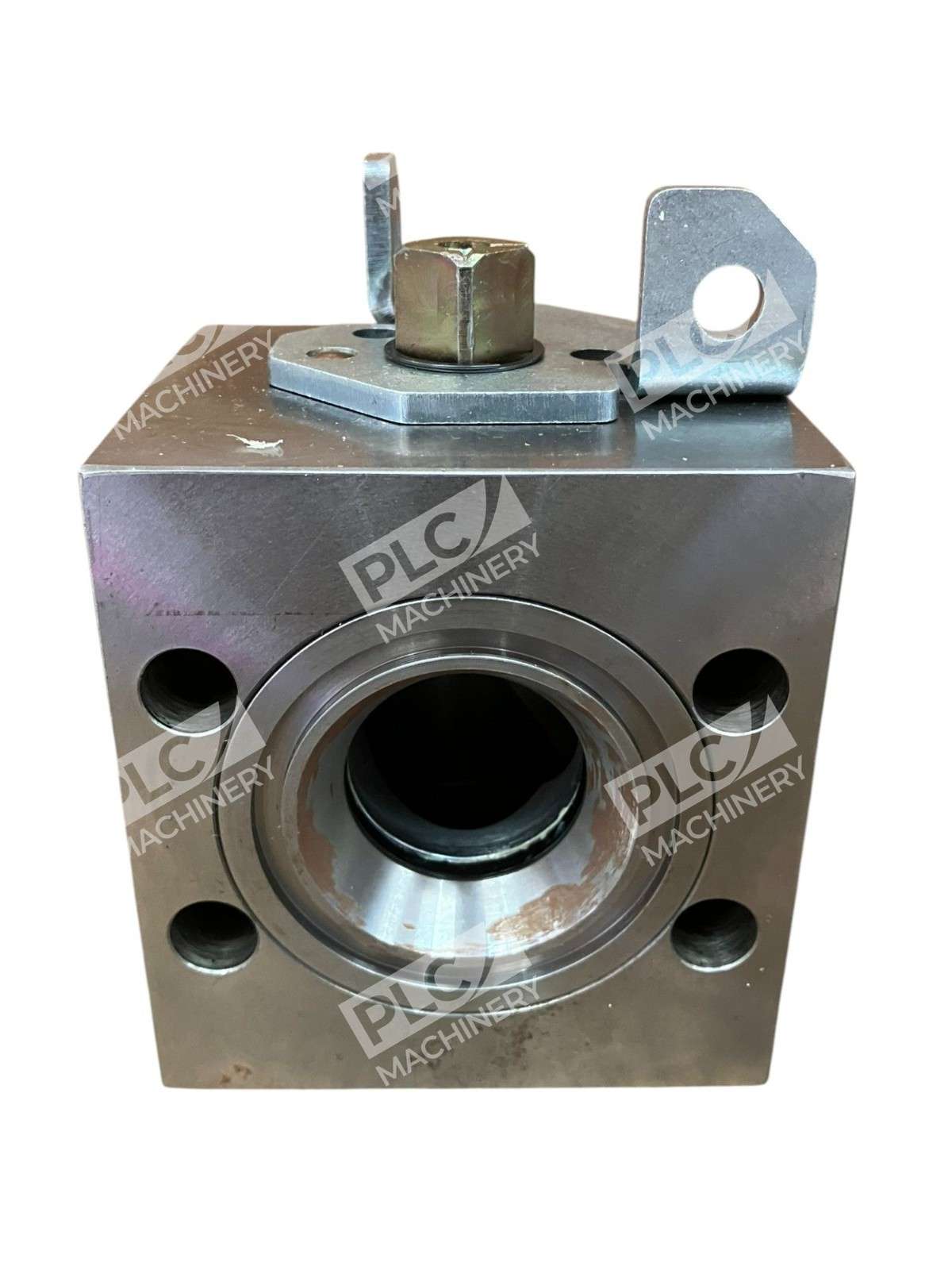

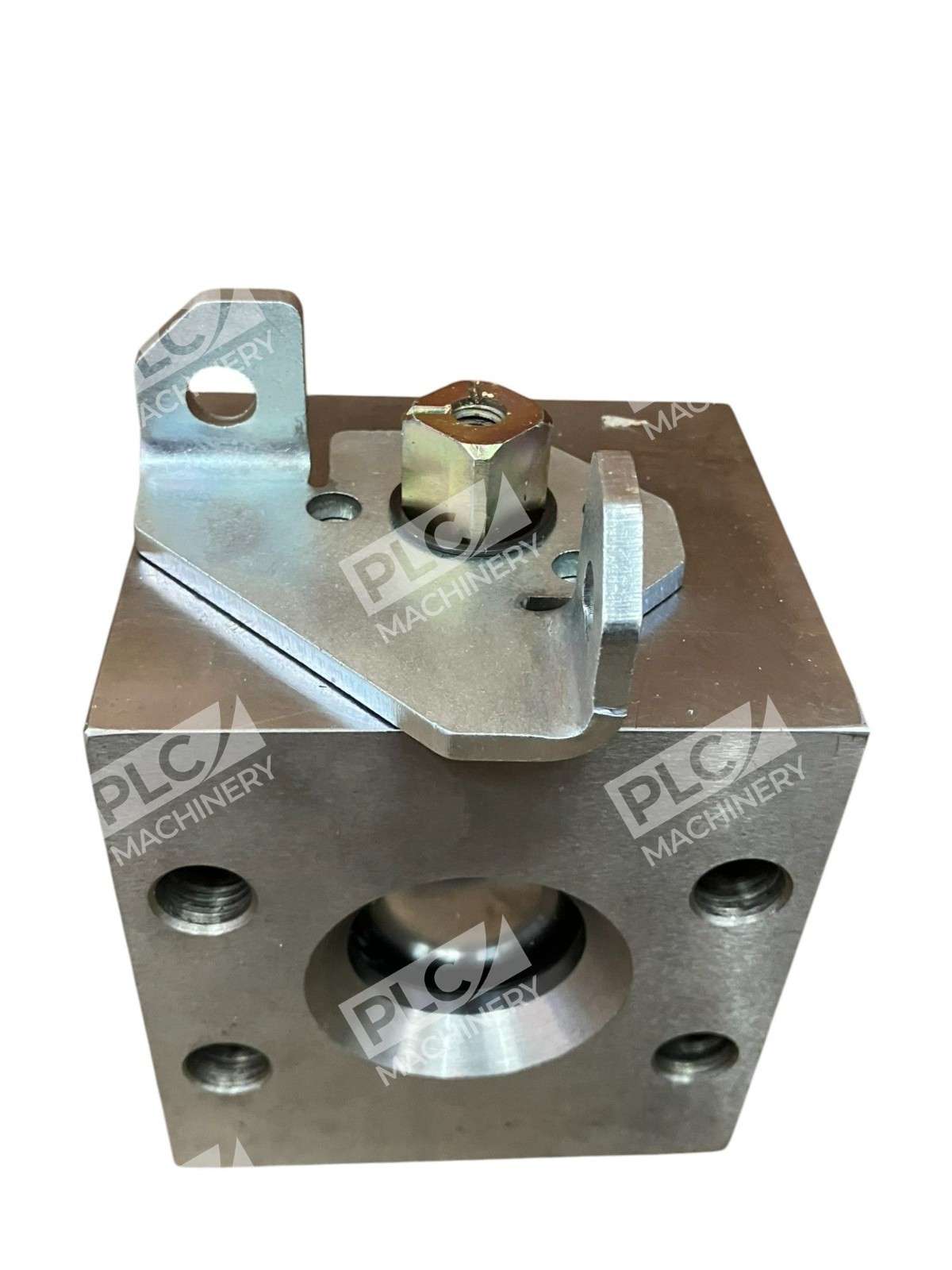

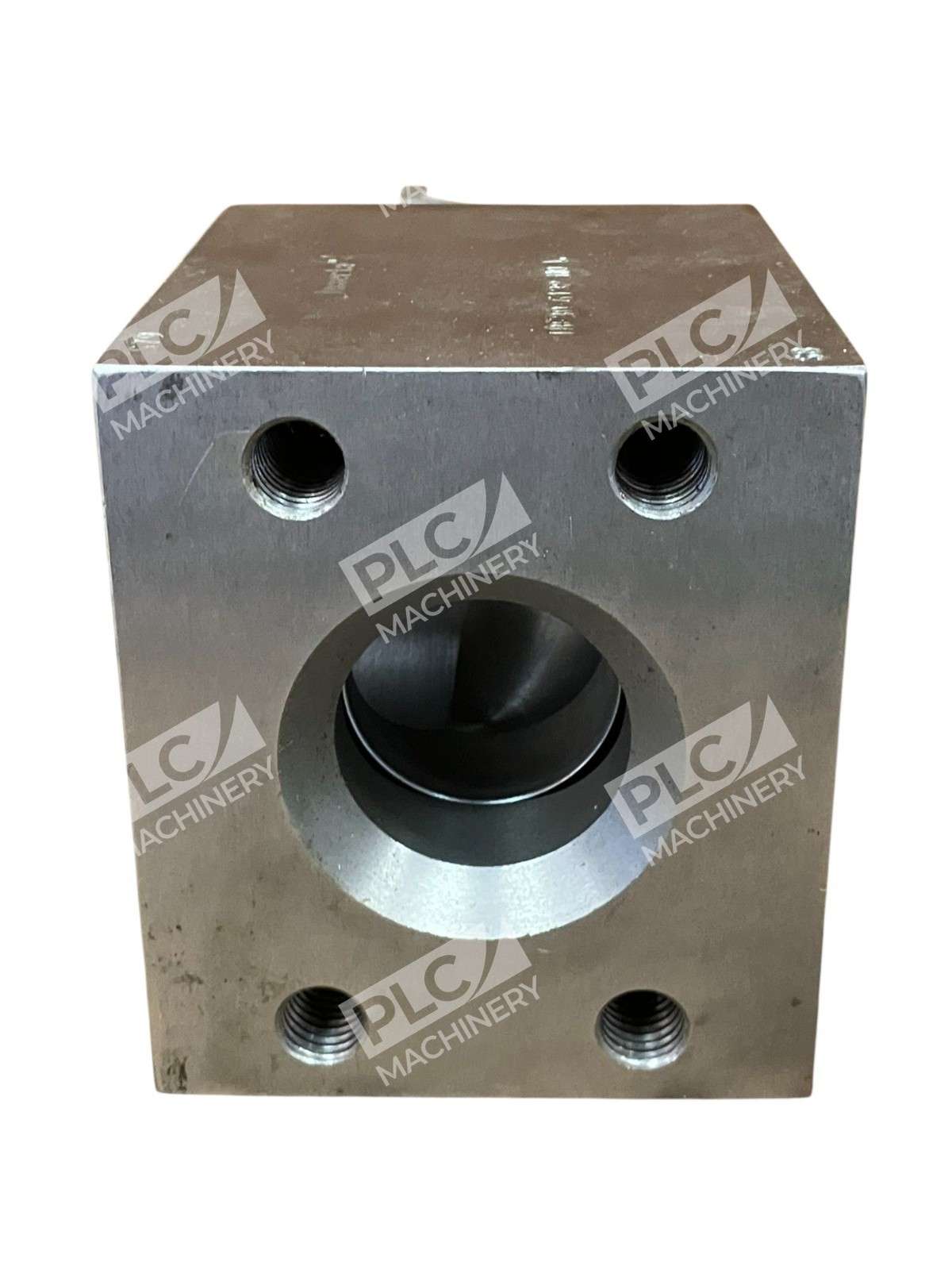

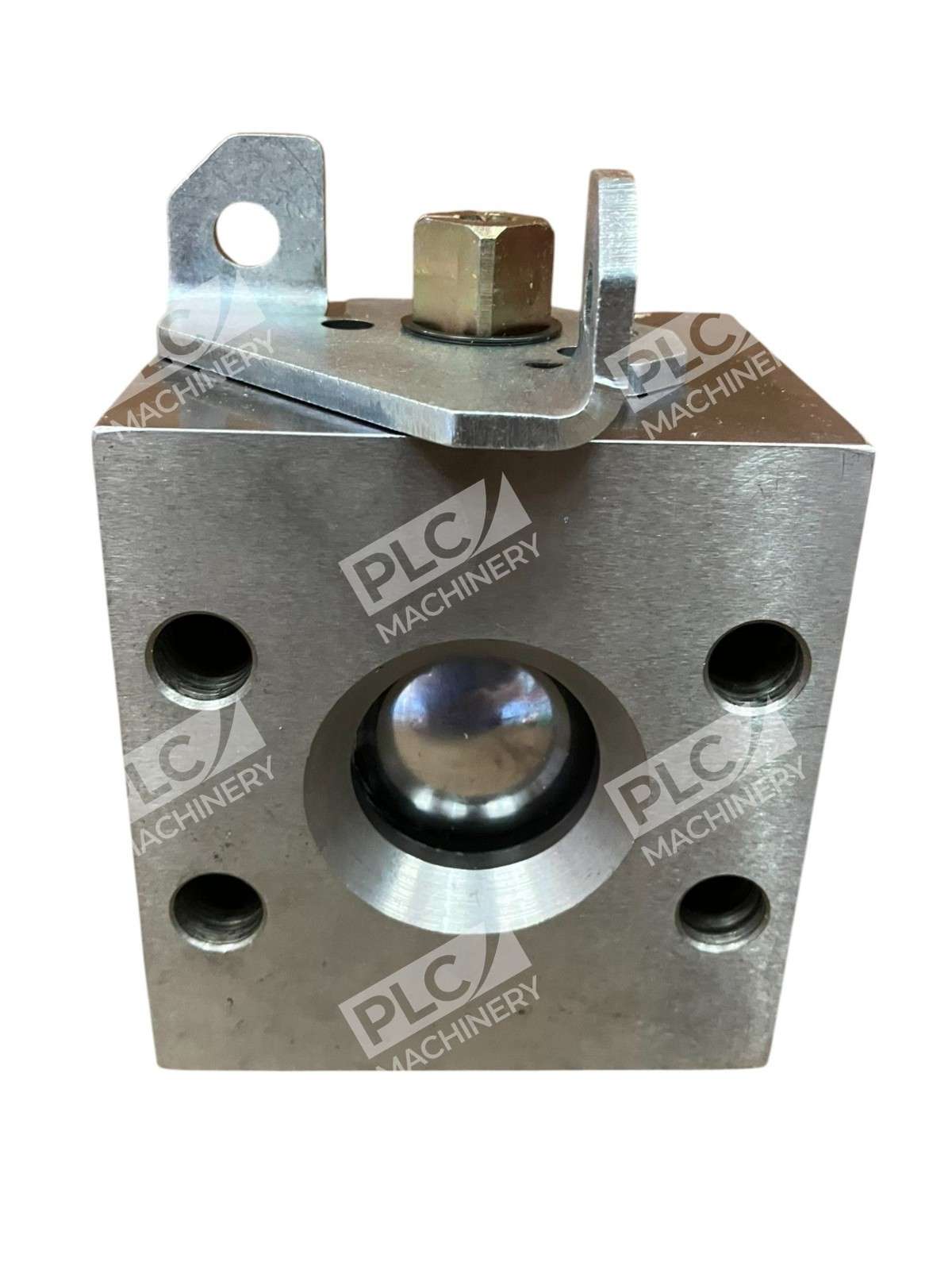

The Inserta IBF3D A6132 NDL 3-way ball valve is a precision-engineered diverter valve designed for direct installation in hydraulic circuits using SAE 4-bolt flange mounting patterns. This modular valve permits direct connection to hydraulic components and manifolds without the need for additional piping connections. The IBF3D series delivers reliable, repeatable flow control in industrial hydraulic systems.
Key Features
- 3-Port Diverter Configuration: Provides both 2 port directional control and 3 port diverter operation capability for flexible system design.
- Modular SAE 4-Bolt Flange Mounting: Eliminates custom piping; installs directly onto standard manifolds and hydraulic components.
- Proven Industrial Design: Manufactured by Inserta (Adaconn), a trusted supplier of modular hydraulic components.
- Drop-In Replacement: Fits standard SAE flange circuits designed for IBF3D series valves.
Technical Specifications
| Valve Type | 3-Port Diverter Ball Valve |

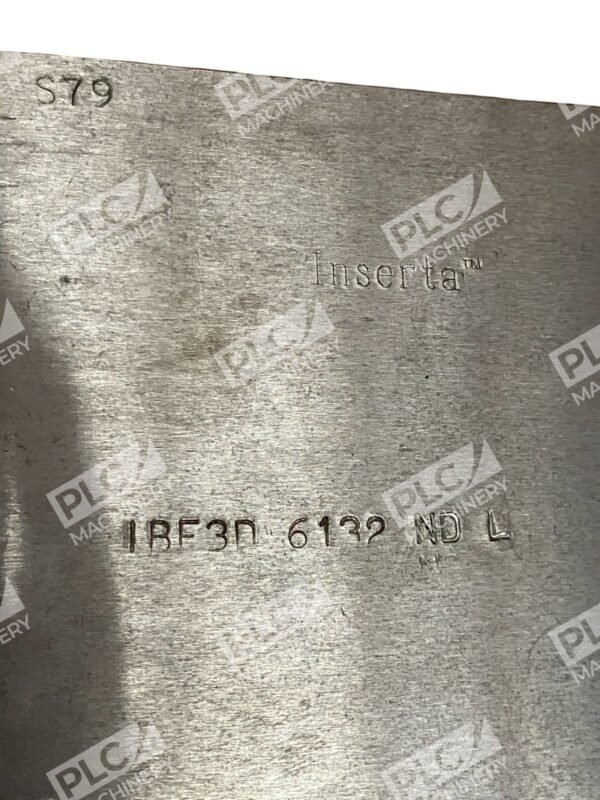

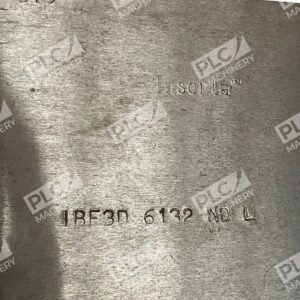

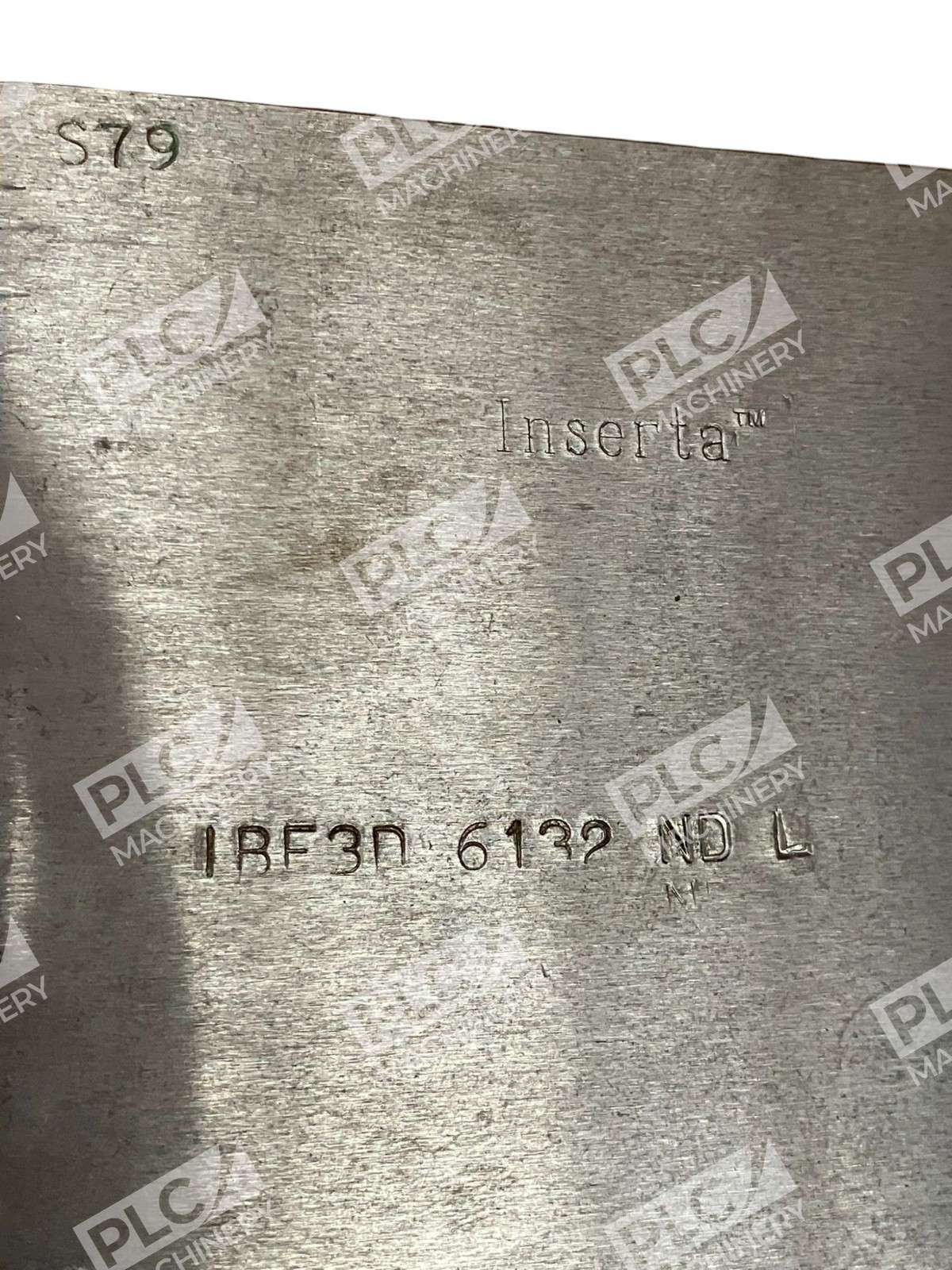

| Part Number | IBF3D A6132 NDL |
| Series | IBF3D |
| Manufacturer | Inserta (Adaconn) |
| Mounting Type | SAE 4-Bolt Flange |
| Port Configuration | 3-Way Diverter |
| Connection Style | Flange Ports |
| Actuator Type | Manual (Ball Handle) |
| Application | Hydraulic systems |
Typical Applications
- Industrial hydraulic manifold systems requiring flow diversion
- Directional control in mobile and stationary equipment
- Fluid power circuits where modular SAE flange mounting is required
- OEM hydraulic system integration
Compatibility & Replacements
Compatible With
- SAE Code 61 (2-bolt) and Code 62 (4-bolt) flange-mounted hydraulic manifolds
- Standard hydraulic fluid systems (mineral oil and synthetic fluids per ISO 4413)
- Direct manifold integration without additional adapter plates
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or equipment OEM before ordering.
Works With
- Inserta IBF3D series ball valves and modular manifold systems
- Adaconn modular connector and adapter products
- SAE 4-bolt flanged hydraulic components and subplates
