Overview
The Georg Fischer Type 343 ball valve is a manually operated 2″ DN50 ANSI ball valve designed for industrial and commercial flow control applications. Built with CPVC (chlorinated polyvinyl chloride) housing and equipped with EPDM seals, this valve delivers reliable shut-off and flow regulation across hydraulic, pneumatic, pump, and plumbing systems. Swiss-engineered and manufactured to ISO standards, the Type 343 combines durability with chemical resistance for demanding environments.
Key Features
- Manual lever operation for intuitive open/close control
- CPVC housing material provides superior chemical resistance and temperature stability
- EPDM seals ensure reliable performance across wide fluid compatibility ranges
- 2″ ANSI threaded connection for standard industrial piping integration
- Compact, space-efficient design suitable for retrofit and new installations
- Swiss precision manufacturing meets international quality standards
Technical Specifications
| Valve Type | Ball Valve – Manual, 2-Port |

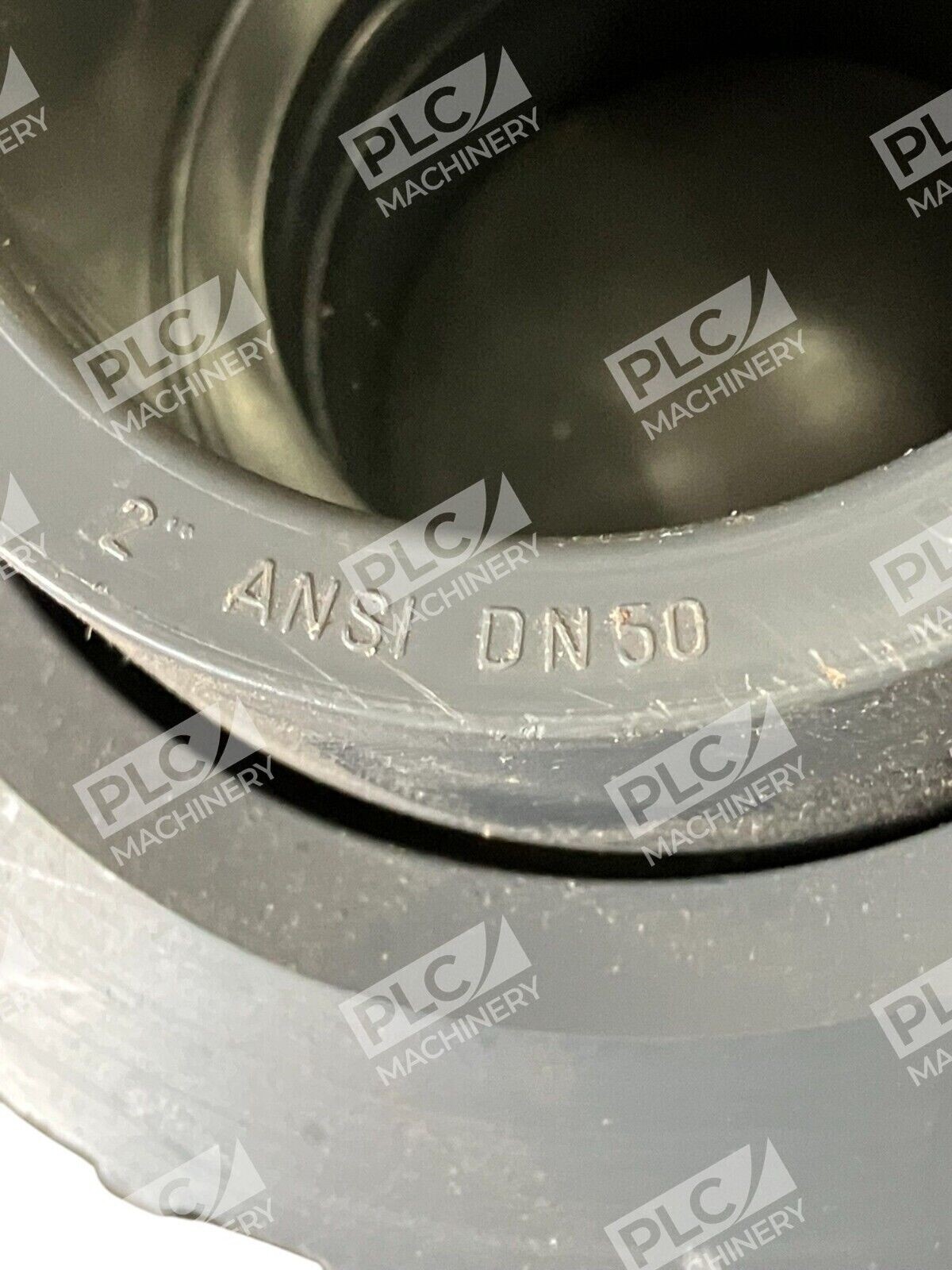

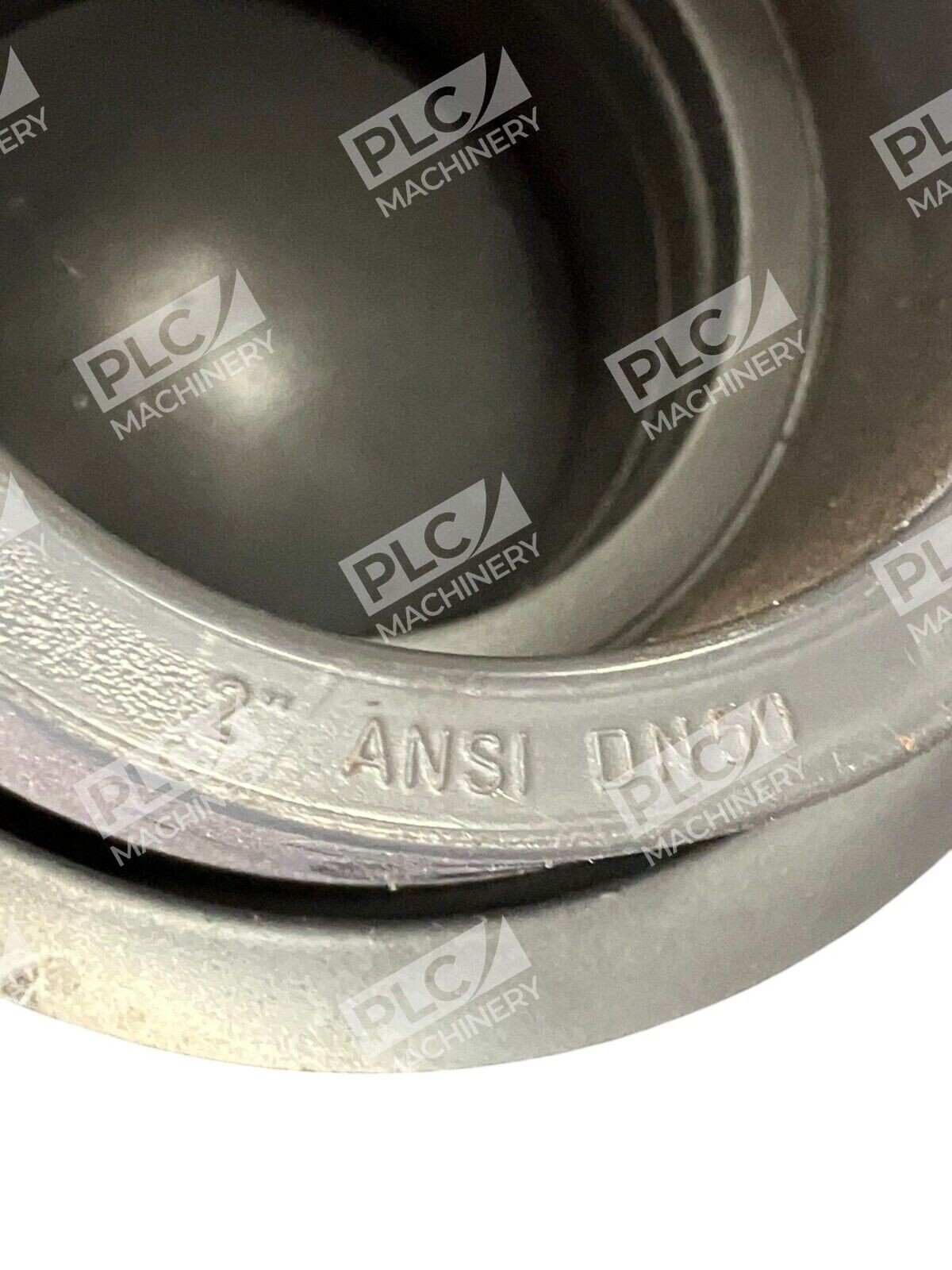

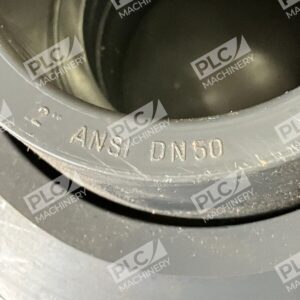

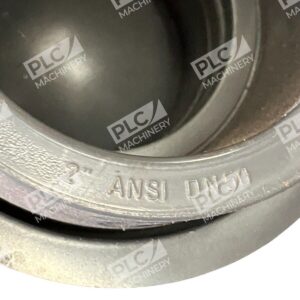

| Size | 2″ (DN50 metric) |
| Connection Type | ANSI Threaded Ports |
| Housing Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Seals | EPDM elastomer |
| Operation | Manual lever handle |

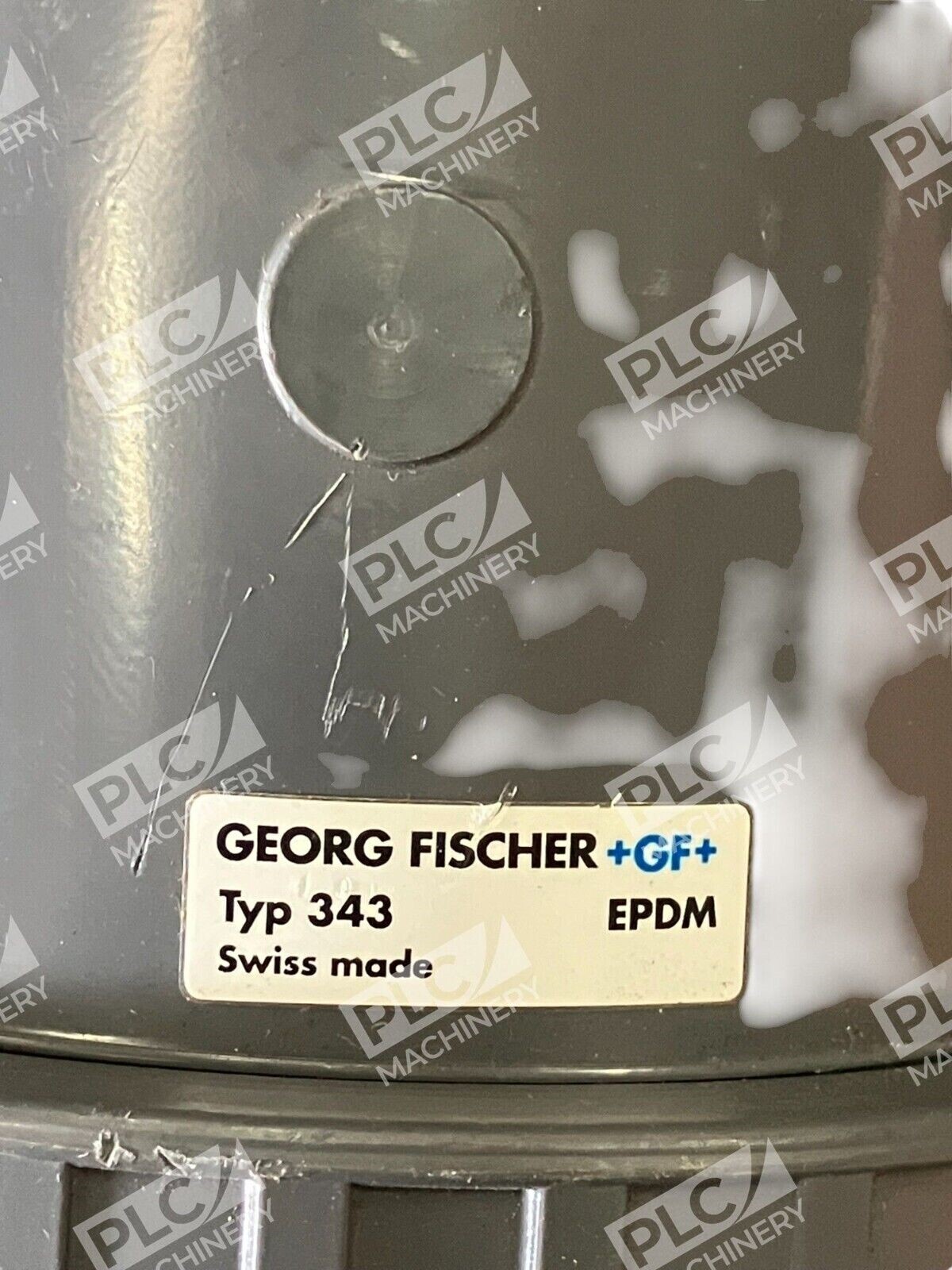

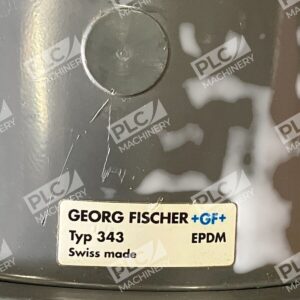

| Manufacturer | Georg Fischer +GF+ (Switzerland) |
| Port Configuration | Straight-through |
Typical Applications
- Hydraulic system isolation and flow control
- Pneumatic circuit shut-off valves
- Pump discharge and suction line control
- General plumbing and water distribution
- Chemical handling and corrosive fluid systems (CPVC compatibility)
- Industrial process automation flow regulation
Compatibility & Replacements
Compatible With
- Standard ANSI 2″ threaded piping systems
- Hydraulic and pneumatic circuit assemblies
- Pump and motor manifold blocks with 2″ ports
- Industrial flow control and shut-off applications
- Corrosive fluid systems compatible with CPVC
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for direct replacement applications. Georg Fischer Type 343 valves are often interchangeable within the same size and port configuration when replacing similar manual ball valve designs.
Works With
- ANSI standard industrial piping
- Hydraulic fluid systems (mineral and synthetic oil compatible)
- Pneumatic air circuits
- Water and mild chemical applications
- Manual actuator systems and automated pneumatic/solenoid valve coupling
