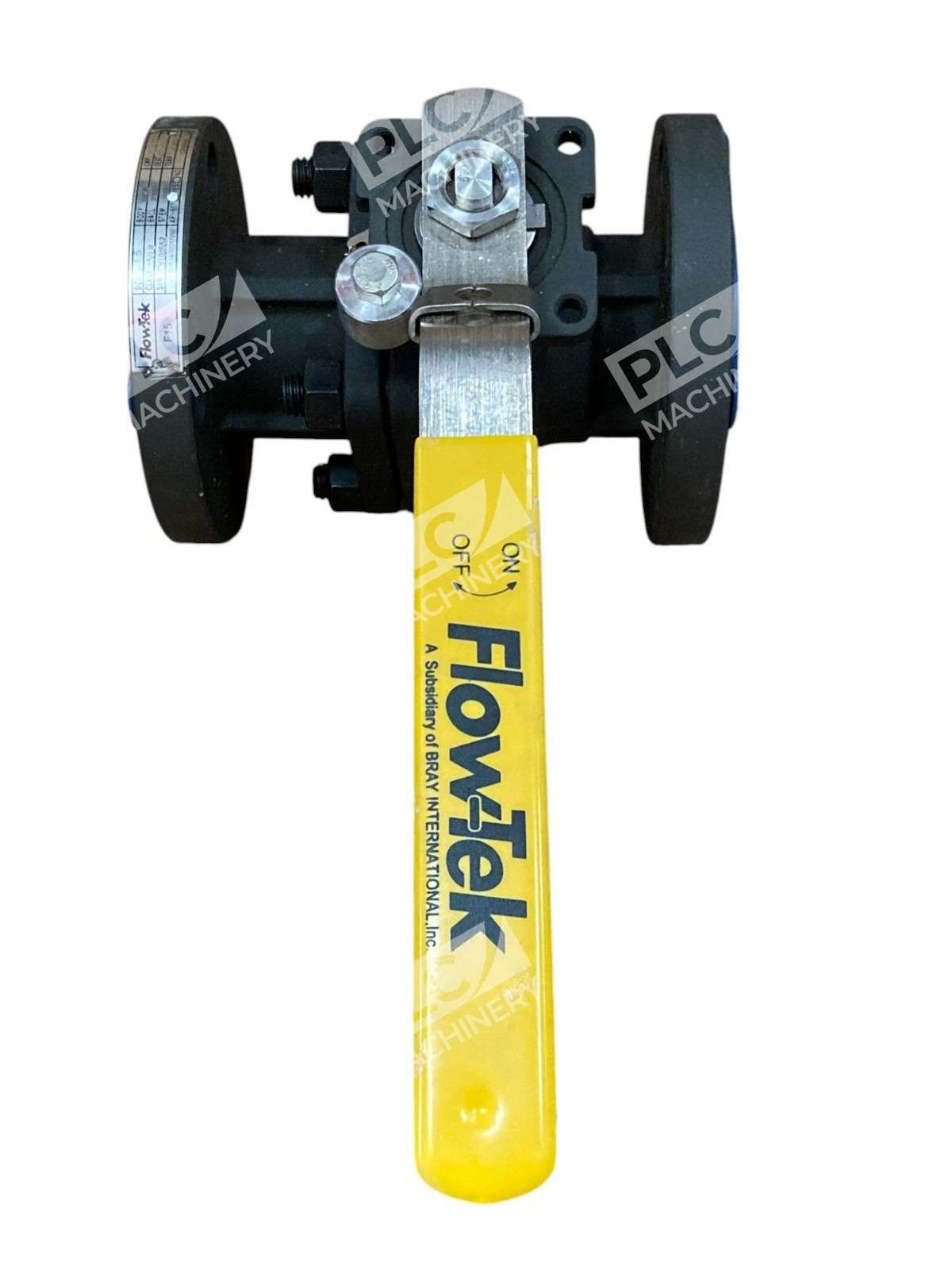

Overview

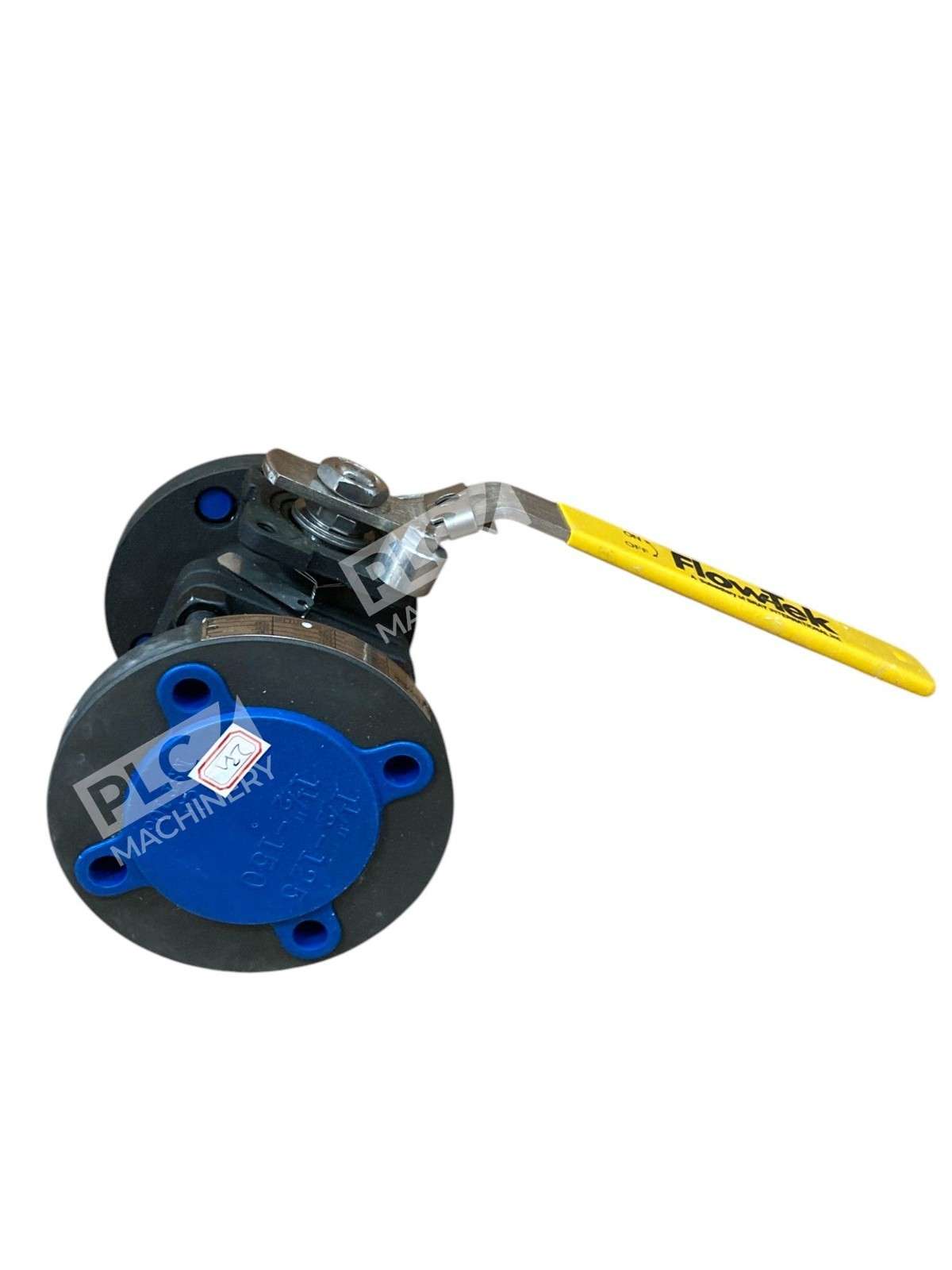

The Flow-Tek F15 Series flanged ball valve is an investment-cast, full-port ball valve engineered to ASME B16.34 Class 150 & Class 300 specifications. Available in sizes from ½” through 12″, this series combines durable stainless steel (CF8M) or carbon steel (WCB) construction with proven reliability in industrial fluid control applications. The F15 design prioritizes bubble-tight sealing and low operational torque, making it a dependable choice for systems requiring precision and long service life.
Key Features
- Floating ball design with low operating torque and extended cycle life
- Live-loaded, self-adjusting seals using Belleville washers for automatic compensation to temperature and wear
- Bubble-tight shutoff ensures zero leakage under static pressure
- Fire-safe certified to API 607 4th edition (graphite stem seals on fire-safe models)
- Trunnion-type ball support on larger sizes (2½”–12″) reduces operating torque
- ISO 5211 actuator pad integral to body for easy automation (½”–2″ sizes)

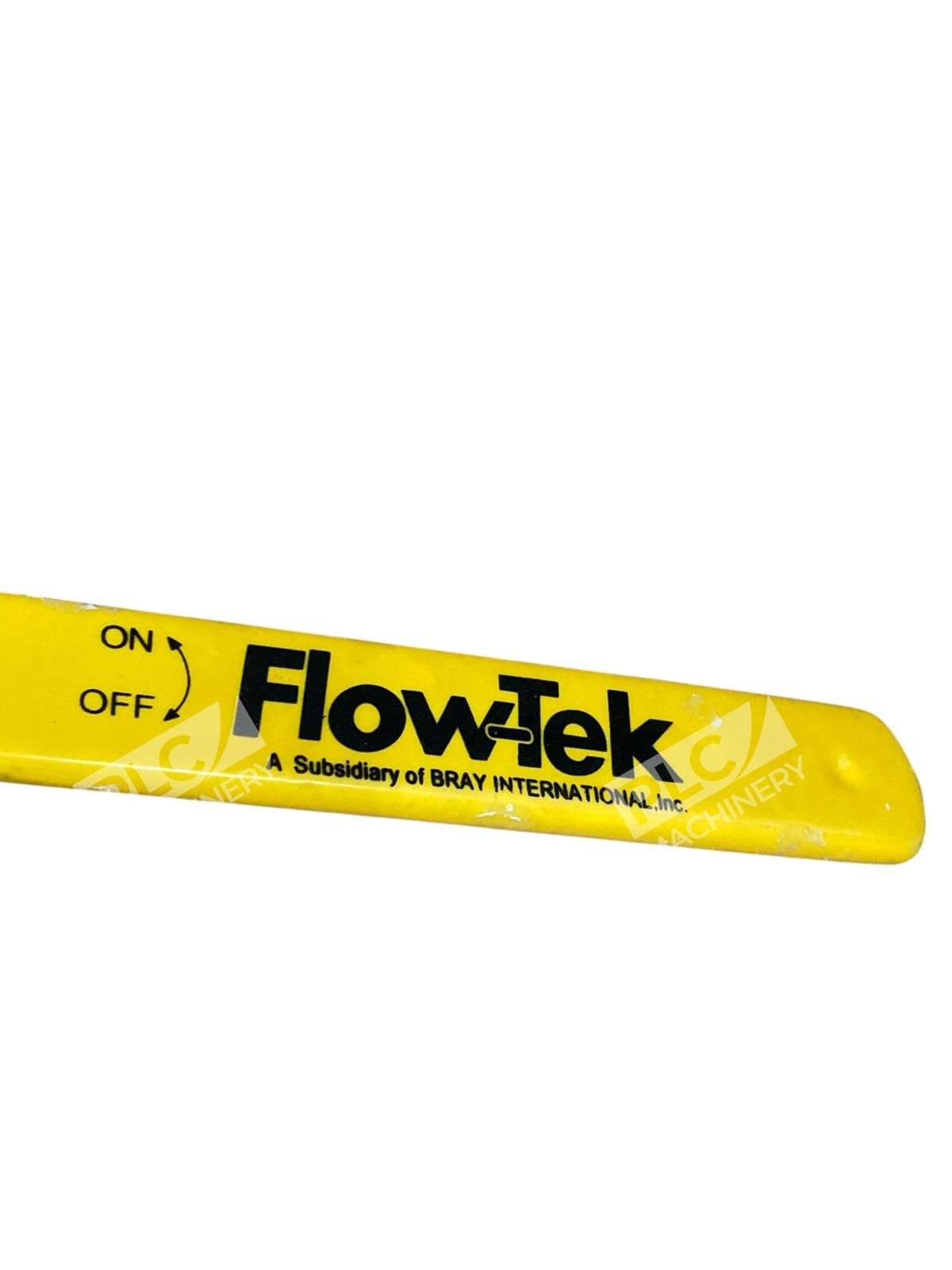

- Safety trigger handle prevents accidental valve movement; lockable with anti-tamper padlock option
- Double lock nuts allow safe handle removal under full line pressure
Technical Specifications
- Body Material: Stainless Steel (CF8M / A351 Gr. CF8M) or Carbon Steel (WCB / ASTM A216 Gr. WCB)
- Pressure Rating: Class 150 & Class 300 per ASME B16.34
- Port Type: Full port
- Port Configuration: Standard or optional V-ball (30°, 60°, 90°)
- Seat Material (Standard): TFM 1600; optional Tek-Fil®, PEEK, RPTFE, 50/50, UHMWPE, or metal
- Stem Sealing: Live-loaded packing (standard) with Belleville washers; graphite stem seals (fire-safe models)
- Size Range: ½” – 2″ (½”–2″ DN15–DN50 with Smart Stem™ live-load packing)
- Larger Sizes: 2½” – 12″ with independent packing gland
- Standards Compliance: ASME B16.34, API 607 (fire-safe), ISO 15848-1, API 641, TA-Luft VDI2440 (low-emissions)
- Flange Standard: ASME B16.5 (flanged connections)
Typical Applications
The Flow-Tek F15 Series is widely used across industrial sectors requiring reliable flow isolation and control:
- Oil & gas production and transportation
- Power generation and steam systems
- Chemical processing and petrochemical facilities
- HVAC and heating systems
- Pulp and paper manufacturing
- Water treatment and municipal systems
- Food & beverage processing
- General industrial automation and process control
Compatibility & Replacements
Compatible With
- ASME B16.5 flanged piping systems (150# and 300# ratings)
- Standard ISO 5211 actuator mounting pads (½”–2″ sizes)
- Both standard stem seals and fire-safe (API 607) configurations
- Optional body cavity fillers for low-temperature and sealed-system applications
- Manual lever handles with safety triggers and anti-tamper lock provisions
Replaces / Drop-In Replacement For
The Flow-Tek F15 Series is a direct replacement for other ASME B16.34 Class 150/300 flanged ball valves of equivalent size and pressure rating. Verify valve size, pressure class, and flange standard with your system integrator before ordering to ensure seamless installation.
Works With
- Electric, pneumatic, and hydraulic actuators (ISO 5211 compliant on ½”–2″ sizes)
- ASME B16.34 and ASME B16.5 flanged pipeline systems
- Low-emissions packing systems certified to ISO 15848-1 and API 641
- Fire-safe operations in petrochemical and high-risk service environments
- Both standard manual lever operation and full automation integration
