Overview

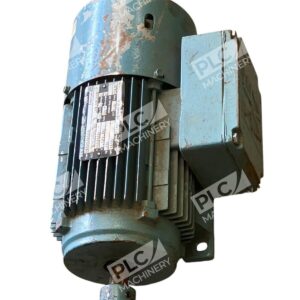

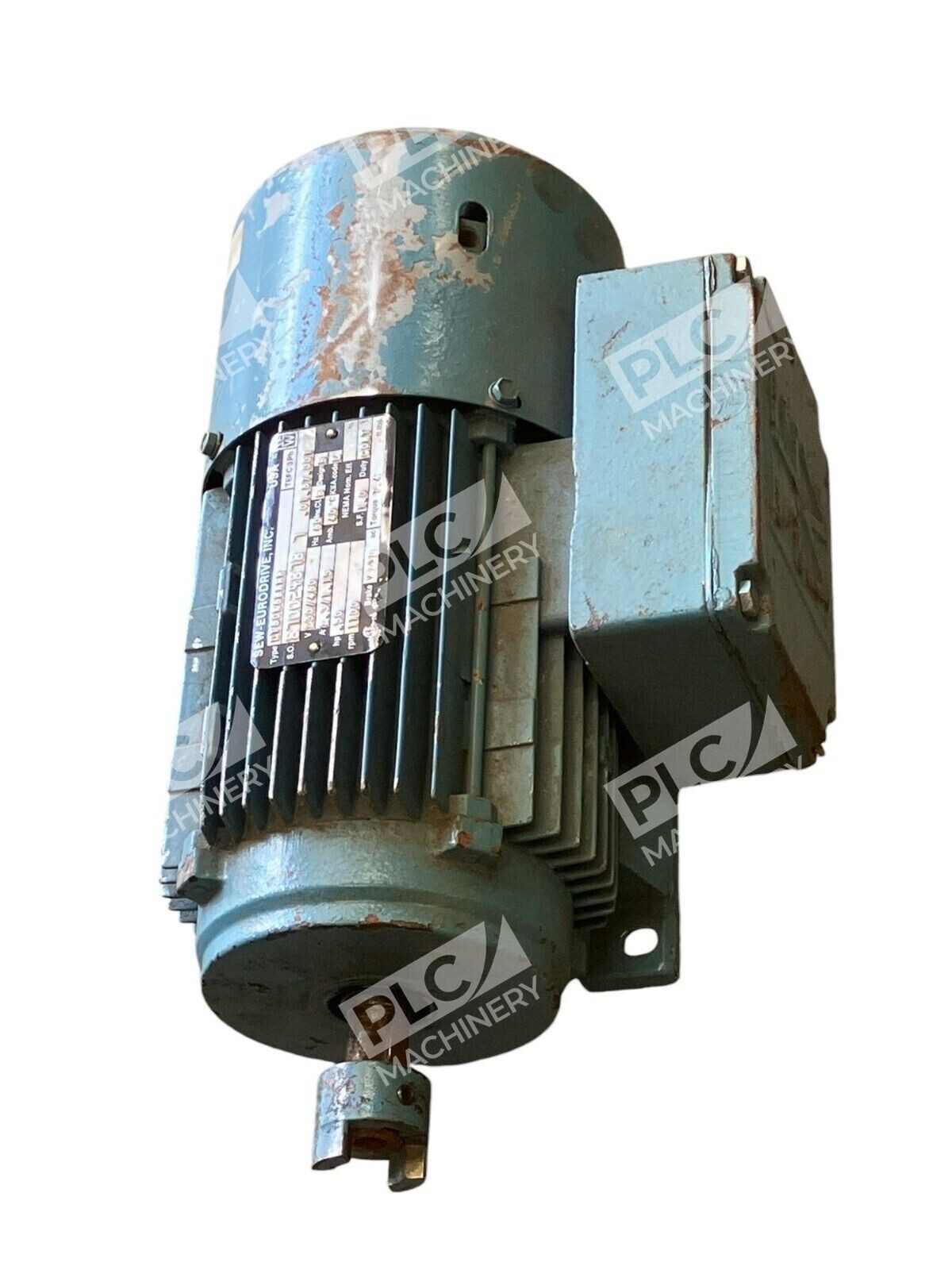

The SEW Eurodrive DT80K6BNHR is a 0.5 horsepower AC motor designed for general purpose industrial applications. Configured for dual-voltage operation (230/460V), this motor delivers reliable performance at 1100 RPM in a compact aluminum frame 80 TEFC enclosure. The DT80K6BNHR is well-suited for retrofit, repair, and replacement applications across manufacturing, HVAC, conveyor systems, and process equipment.
Key Features
- 0.5 HP rated power output
- 230/460V dual voltage three-phase operation
- 1100 RPM motor speed
- NEMA frame 80 aluminum housing with TEFC (totally enclosed fan-cooled) enclosure
- Compact, modular design for drop-in replacement installations
- Standard industrial cooling for continuous duty operation
Technical Specifications

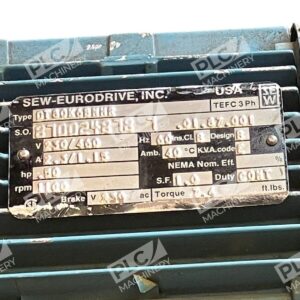

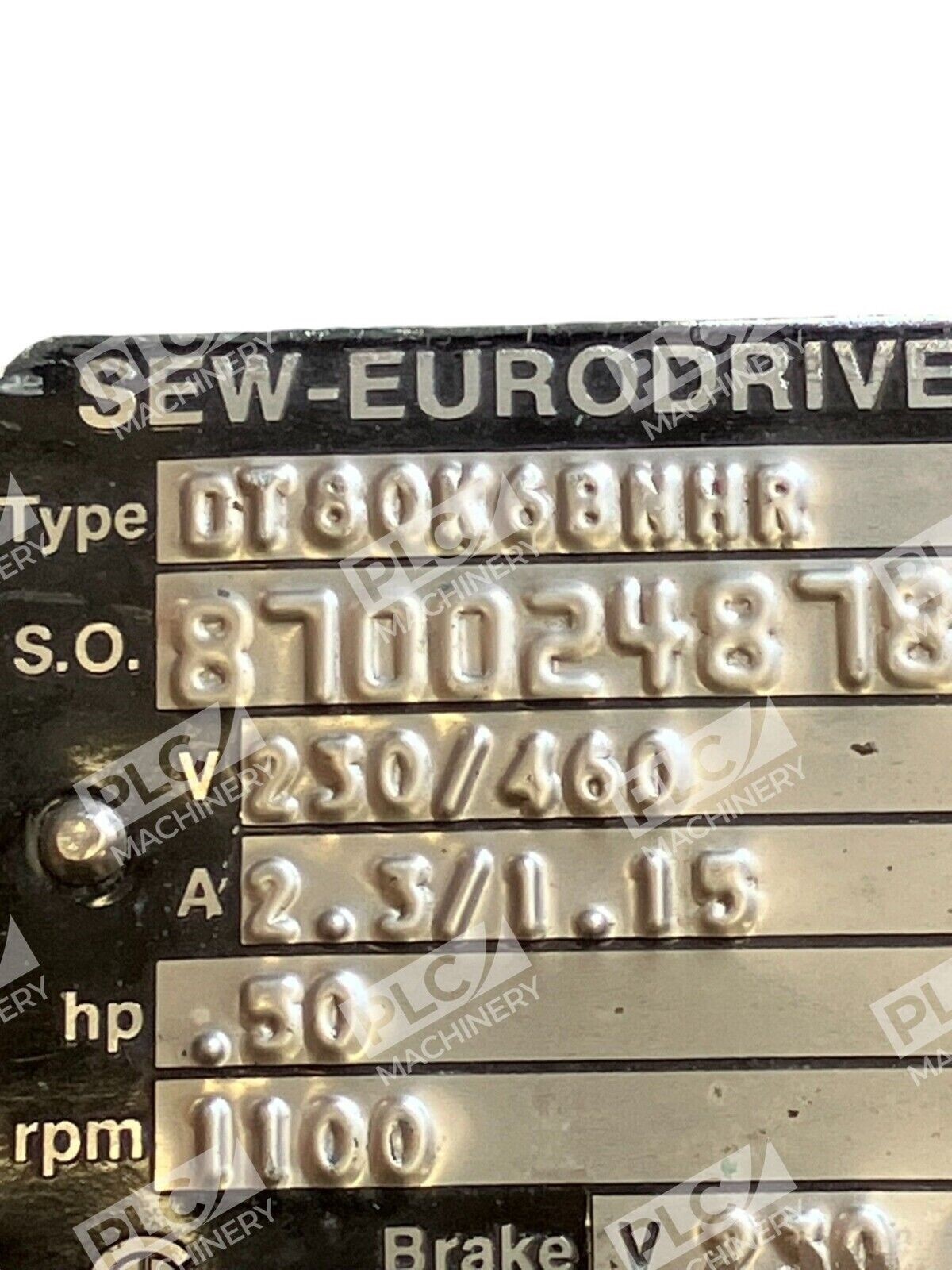

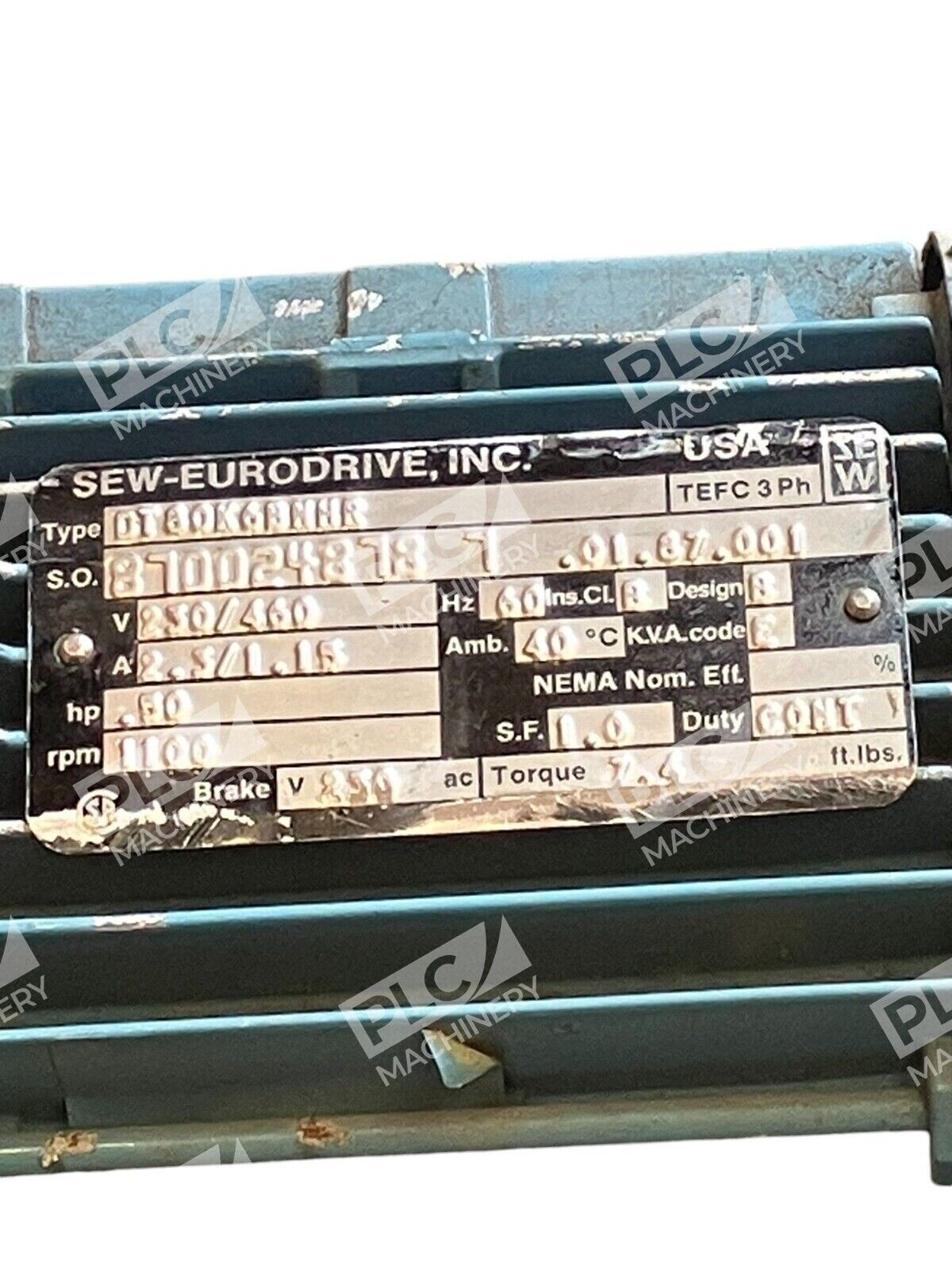

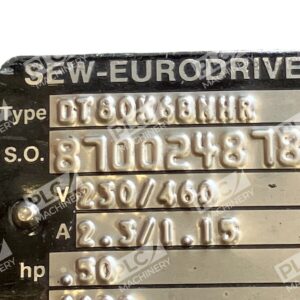

The motor meets standard industrial motor performance and thermal characteristics. Rated current at 230V is 2.3A and at 460V is 1.15A. The TEFC enclosure provides protection against dust and moisture ingress in industrial environments. Motor frame material is aluminum for lightweight construction while maintaining mechanical strength. Mounting is via NEMA C-face or foot-mount configurations depending on the specific suffix code (BNHR).
Typical Applications
- Pump and compressor drive systems
- Material handling and conveyor systems
- Industrial fan and blower applications
- Machine tool auxiliary equipment
- HVAC and ventilation systems
- General industrial motor replacement and retrofit
Compatibility & Replacements
Compatible With
- NEMA C-face shaft couplings and flexible couplings
- Standard industrial motor starters and soft starters
- Dual-voltage motor contactors (230/460V)
- Variable frequency drives (VFDs) with proper motor derating
- Standard foot-mount and C-face gearbox adapters
Replaces / Drop-In Replacement For
SEW DT80 series motors at 0.5 HP and 1100 RPM. Verify exact mounting configuration (foot-mount vs. C-face) and shaft diameter with your application before installation. Contact our sales team for specific interchangeability cross-reference.
Works With
- Standard three-phase industrial power systems (60 Hz)
- Dual-voltage motor control circuits
- Industrial automation soft starters and VFDs
- Mechanical power transmission (belts, chains, couplings)
- Standard industrial motor thermal overload protection
