Overview

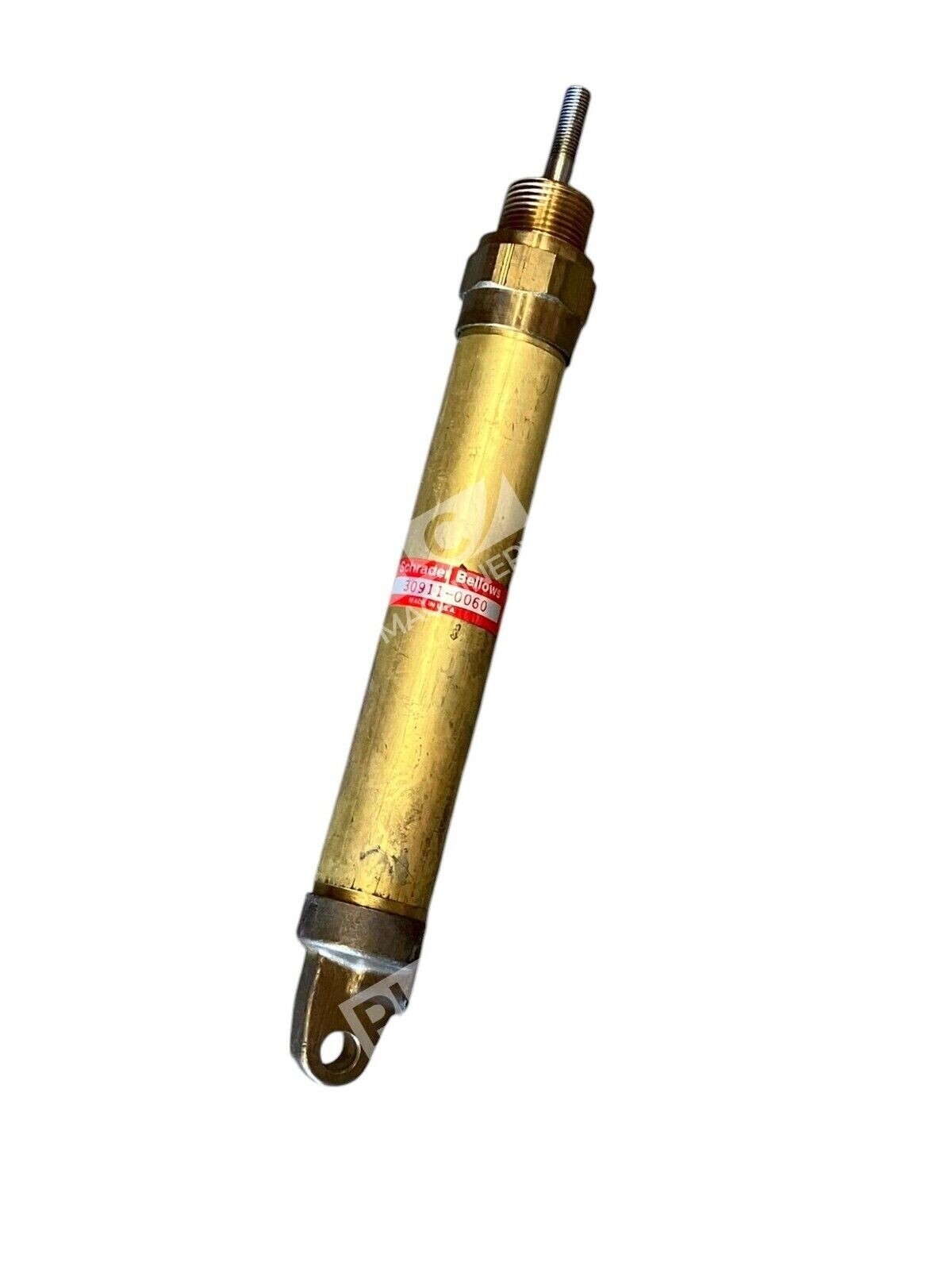

The Schrader Bellows 30911-0060 is a double-acting fixed eye cylinder from Parker Hannifin’s Schrader Bellows Industrial Cylinder Division. This model belongs to the 30911 series, engineered for dependable hydraulic and pneumatic operation in industrial automation, material handling, and manufacturing equipment. The fixed eye design allows straightforward mounting and alignment, while the double-acting configuration enables precise bi-directional control.
Key Features
- Double-acting design for forward and reverse operation
- Fixed eye rod end for direct mounting and alignment
- Compact industrial-grade construction for space-constrained applications
- Compatible with both hydraulic and pneumatic fluid power systems
- Pressure-tested and inspected for reliability
Technical Specifications
Standard specifications for Schrader Bellows 30911 series cylinders include NFPA-compatible mounting and SAE port threads. Port connections, bore size, stroke, and rated pressure vary by configuration. Consult the manufacturer datasheet or your system integrator to verify exact specifications for your application.
Typical Applications
The 30911-0060 is commonly used in:
- Industrial press and stamping equipment
- Automation and material handling systems
- Machine tool clamping and positioning
- Manufacturing assembly operations
- General purpose industrial actuation
Compatibility & Replacements
Compatible With
- Hydraulic power units (1000–3000 PSI rated systems)
- Pneumatic air supplies (60–150 PSI industrial systems)
- NFPA standard mounting surfaces and port configurations
- SAE standard thread port connections
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Direct replacement compatibility depends on bore size, stroke, port type, and pressure rating of your existing cylinder.
Works With
- Proportional and directional control valves (Parker, Moog, Bosch Rexroth)
- Pressure relief and flow control systems
- Standard hose and tube fittings (SAE/ISO)
- PLC and motion control systems via solenoid valve integration
