Overview

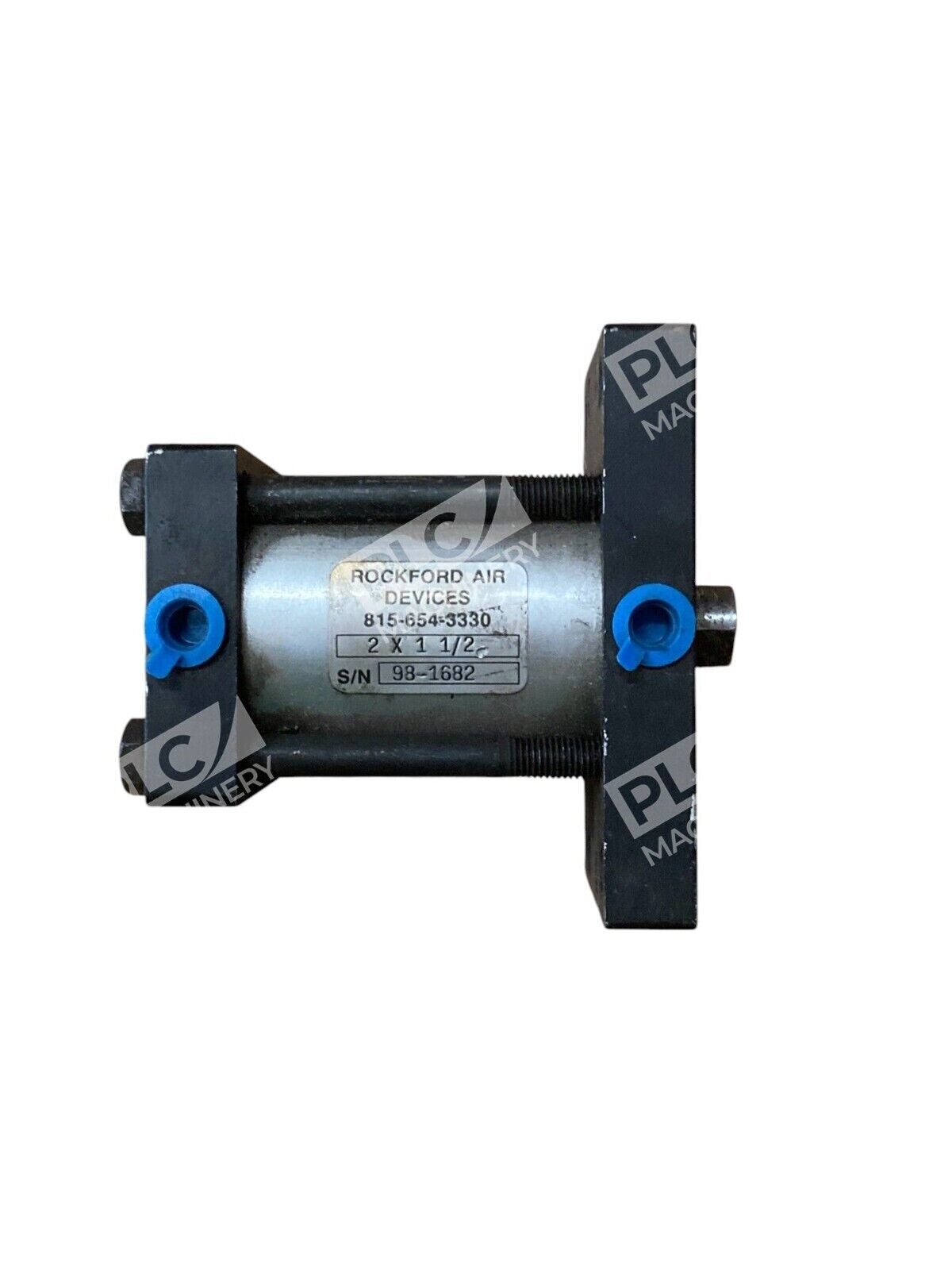

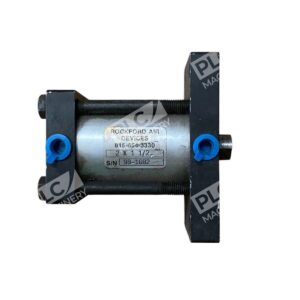

The Rockford Air Devices 2X1-1/2 pneumatic cylinder is a precision-engineered air cylinder featuring a 2″ bore and 1-1/2″ stroke. This industrial-grade pneumatic cylinder is built for dependable linear actuation in automated systems, manufacturing equipment, and industrial machinery. Rockford Air Devices cylinders are widely specified for their robust construction and consistent performance across demanding industrial applications.
Key Features
- 2″ bore diameter with 1-1/2″ stroke length for standard industrial duty
- Single-rod pneumatic design for reliable linear motion control
- NFPA-compatible mounting and interchangeability
- Compact footprint suitable for space-constrained automation systems
- Rated for pressures up to 200 psi in standard industrial service
- Low-friction construction minimizes energy consumption
Technical Specifications
- Bore Diameter: 2 inches
- Stroke Length: 1-1/2 inches
- Rod Diameter: Standard single-rod configuration
- Maximum Operating Pressure: 200 psi (typical)
- Mounting Style: NFPA interchangeable
- Material: Steel tube with anodized aluminum rod (standard)
- Ports: 1/4″ NPT SAE inlet/outlet (standard configuration)
- Operating Temperature: -10°F to +160°F (typical)
- Cushioning: Available with adjustable or fixed end cushioning
Typical Applications
- Assembly line automation and conveyor systems
- Clamping, holding, and positioning fixtures
- Packaging machinery and material handling equipment
- Industrial press and stamping machine control
- Automated tool changers and workholding systems
- General-purpose factory automation and production control
Compatibility & Replacements
Compatible With
- Standard pneumatic air compressors and control systems
- Proportional and directional control valves
- NFPA-compliant mounting and accessories
- Industrial automation controllers (PLC, PAC)
- Solenoid valve banks and manifold systems
Replaces / Drop-In Replacement For
Verify compatibility with your equipment manufacturer or system integrator before ordering, as direct replacement compatibility depends on the specific original equipment model and mounting configuration. Rockford Air Devices cylinders are NFPA-interchangeable with other standard industrial cylinders of matching bore and stroke dimensions.
Works With
- Compressed air systems operating at 25–200 psi
- Manual and automatic control valve systems
- Pneumatic logic controllers and timing modules
- Standard industrial port configurations (1/4″ NPT SAE)
- Automation software and HMI systems via PLC pneumatic I/O modules
