Overview
The Rexroth R103883020 LSAOE-B-30-DD is a precision linear motion bearing set designed for applications requiring smooth, accurate linear travel. This unit combines a lightweight aluminum housing with Super B linear bushings and delivers consistent performance across industrial automation, machine tools, and positioning systems. The open, adjustable design allows technicians to fine-tune radial clearance and adapt to application-specific requirements without extensive modifications.
Key Features
- Super B Linear Bushings: Precision ball bearings optimized for repeatability and low breakaway force
- 30 mm Shaft Diameter: Designed for mid-range load applications requiring rigidity without excessive bulk
- Zero-Clearance Configuration: Ships pre-tensioned and ready to install, with adjustable clearance via integral screw
- Aluminum Housing: Lightweight construction reduces inertial load while maintaining structural integrity
- Integrated Wiper Seals: Dual-sided seals protect bearing elements from contamination and extend service life
- Operating Temperature Range: -20°C to 80°C for use in controlled industrial environments
Technical Specifications
This linear set conforms to Rexroth R1038 series standards for compact linear motion systems.
- Series: LSAOE (Linear Set, Open, Adjustable) with Super B bushings
- Shaft Diameter: 30 mm
- Bushing Type: Super B (fixed, no self-alignment)
- Sealing: Dual wiper seals (both sides)
- Housing Material: Aluminum (precision cast)
- Bearing Elements: Steel balls with optimized chamfering
- Radial Clearance: Zero-clearance nominal; adjustable via integral screw
- Maximum Linear Speed: Up to 5 m/s (under standard conditions)
- Operating Temperature: -20°C to 80°C
- Mounting: Two mounting holes in aluminum housing

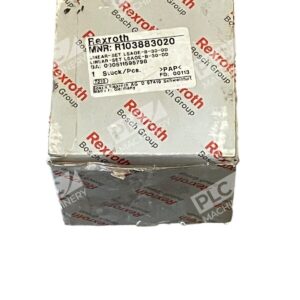

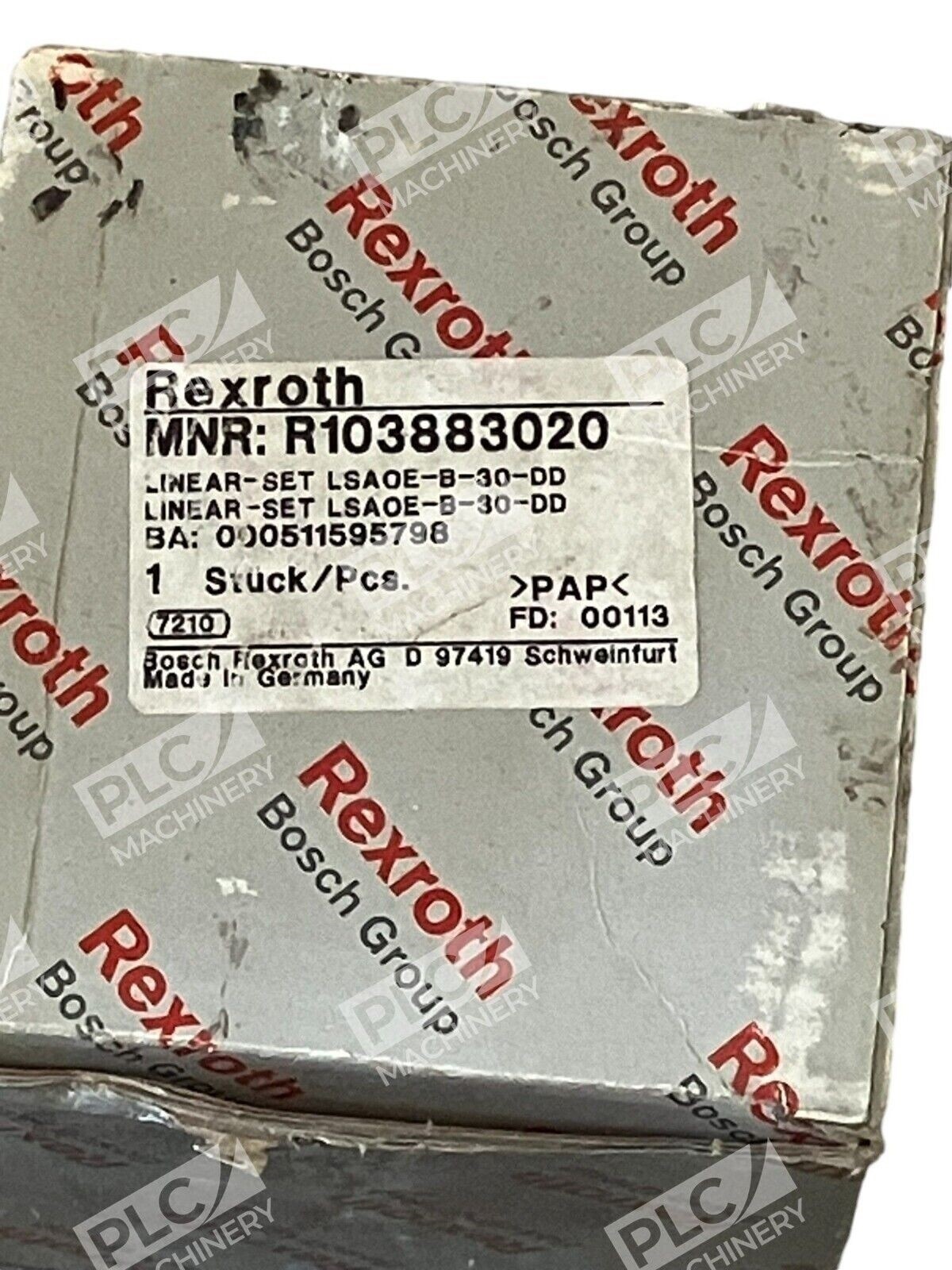

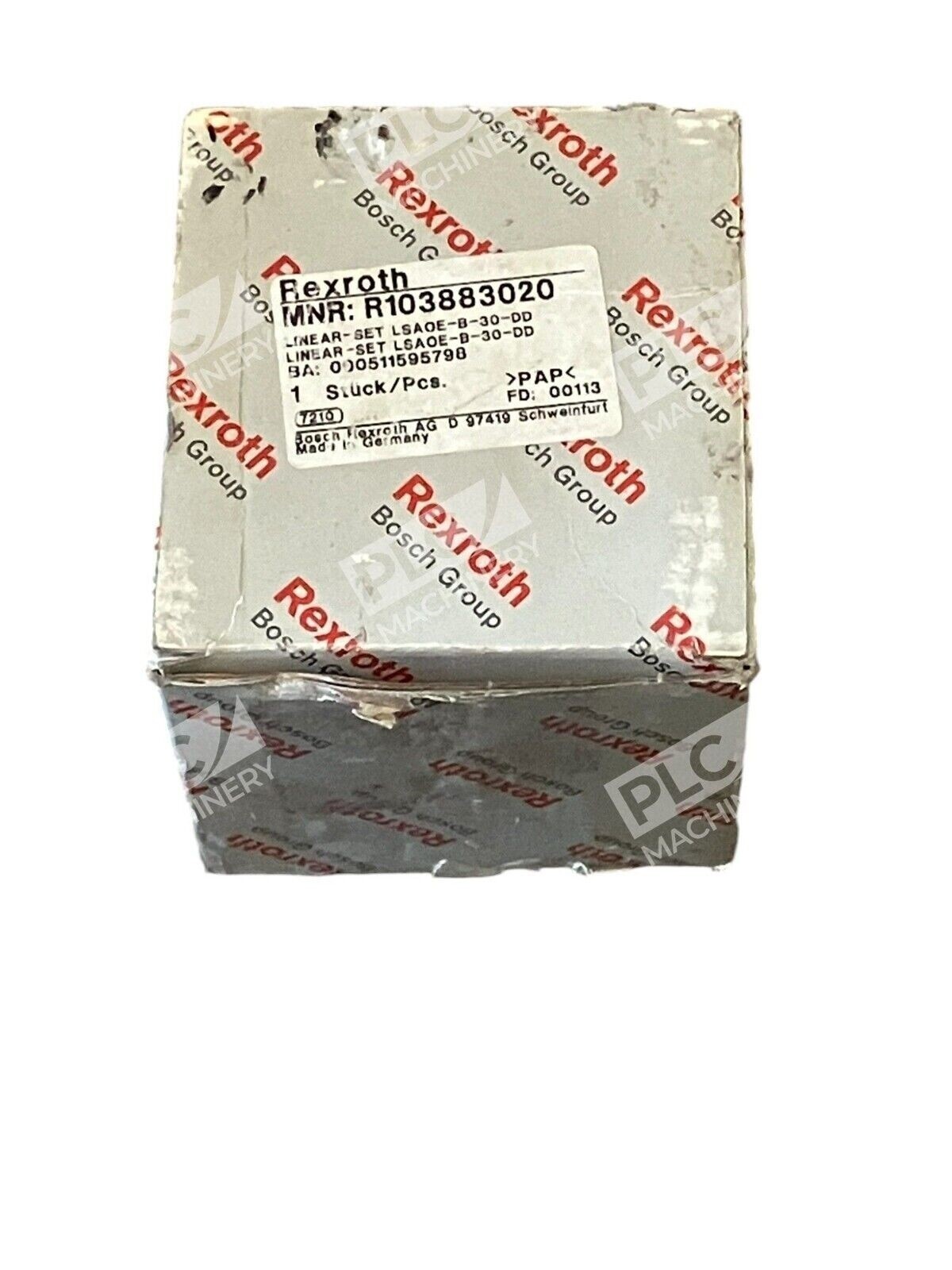

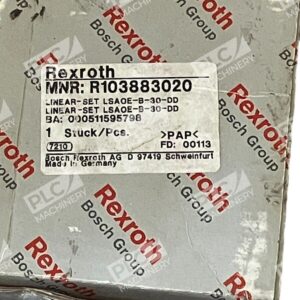

- Condition: New in Box
Typical Applications
- Machine tool positioning and feed tables
- Industrial automation assembly systems
- Precision measurement and inspection equipment
- Packaging machinery linear actuators
- CNC router and plasma cutting table slides
- Medical device motion control systems
Compatibility & Replacements
Compatible With
- Rexroth R1038 series linear bearings and guides
- 30 mm diameter precision hardened shafts (h6 lower tolerance)
- Industrial motion control systems using linear bearing cartridges
- OEM machine tool original equipment requiring drop-in replacement bushings
Replaces / Drop-In Replacement For
- Original Rexroth LSAOE-B-30-DD assemblies
- Verify compatibility with your specific installation before ordering
Works With
- Rexroth 30 mm precision ground shafts
- Bosch Rexroth R1038 series integrated linear guides
- Standard industrial mounting plates and assemblies
- Custom linear motion frames and automation fixtures
