Overview

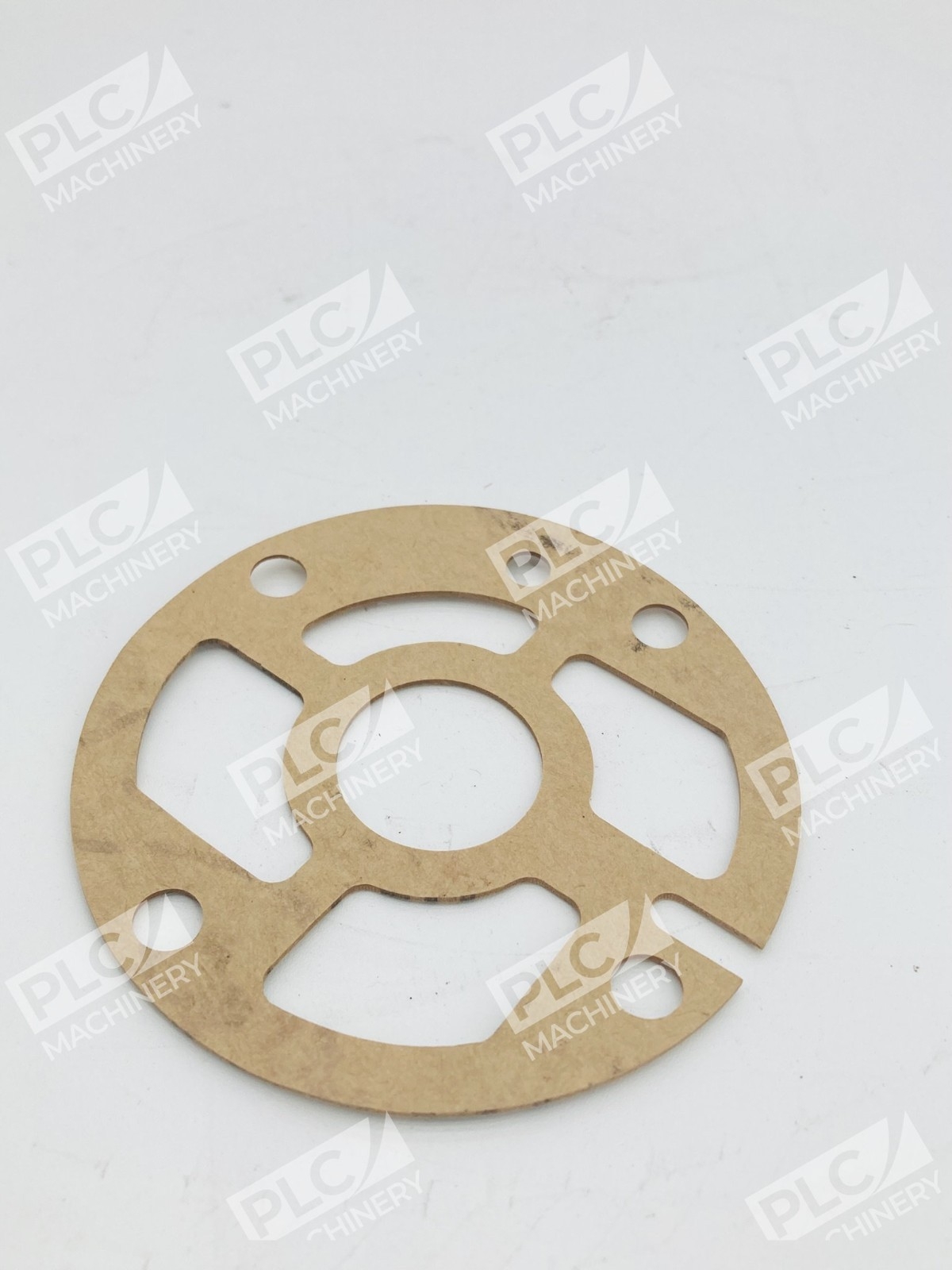

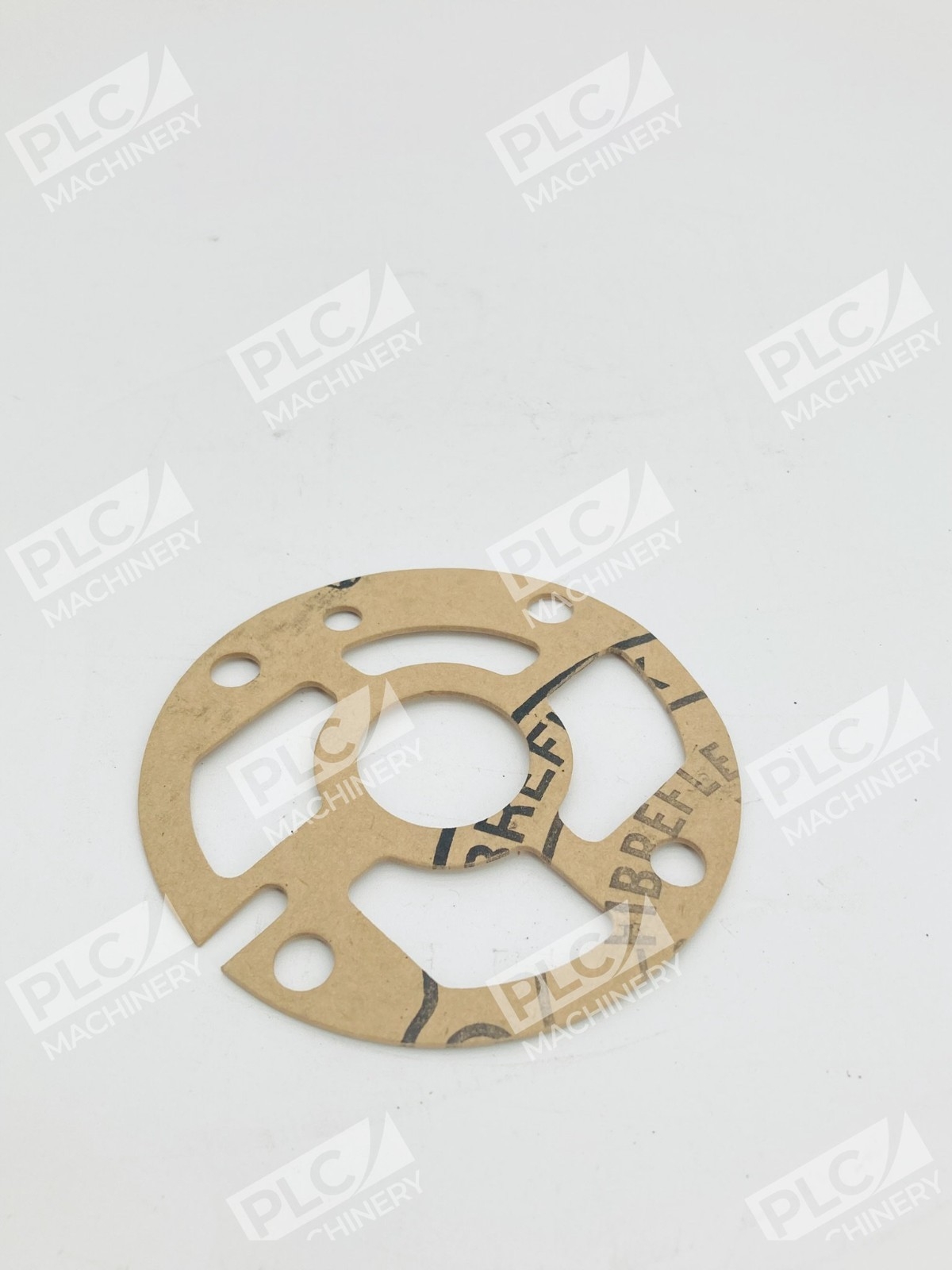

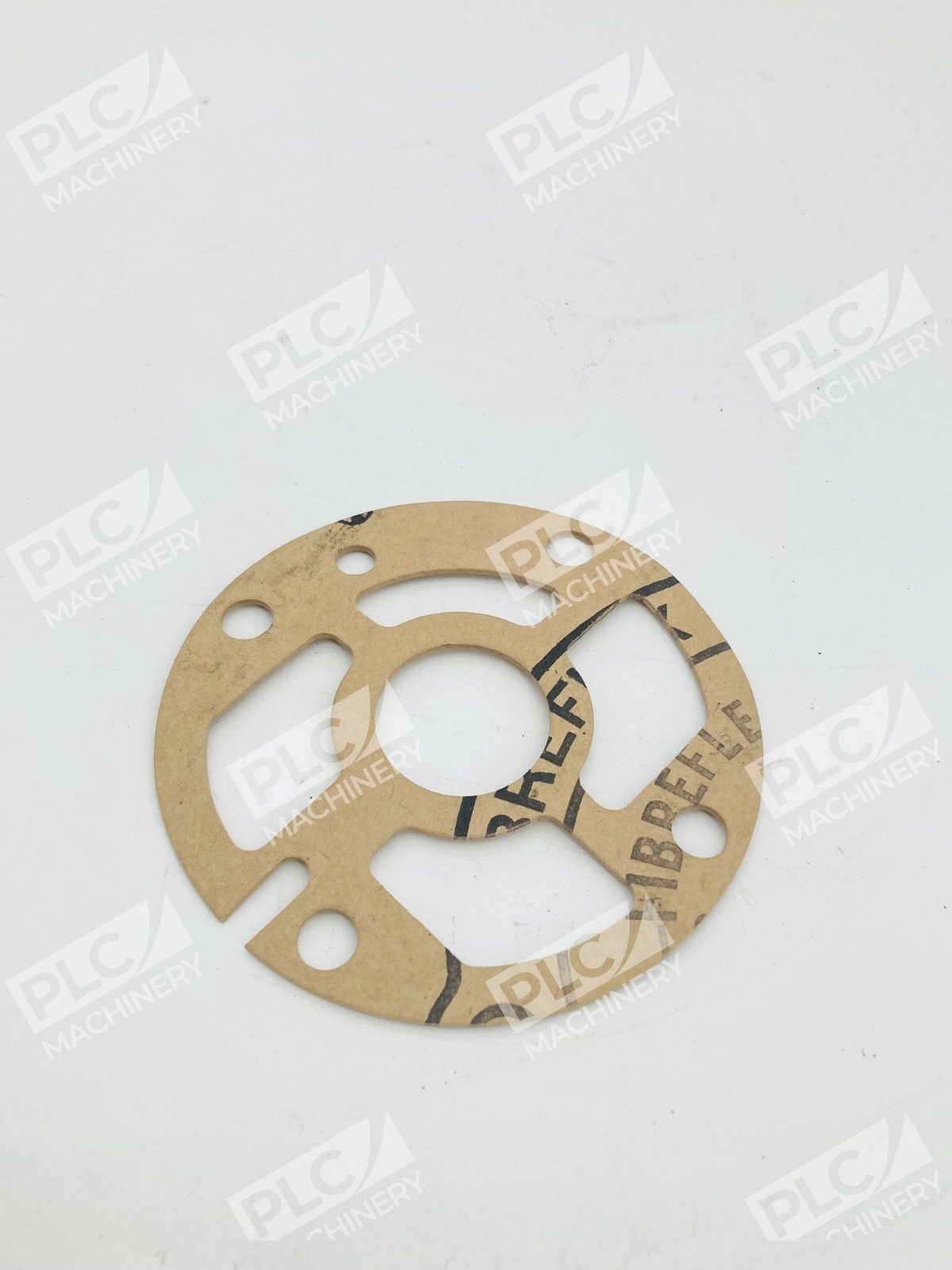

The Red Jacket 000311361 is an OEM replacement discharge head gasket engineered for 4″ submersible turbine pumps (STPs). This gasket creates a leak-proof seal between the pump’s universal motor pump (UMP) and discharge head assembly. Supplied as a box of three gaskets, this product is essential for routine maintenance and field repairs of Red Jacket fuel transfer pump systems.
Key Features
- OEM Red Jacket gasket for discharge head assembly sealing
- 4″ diameter designed for standard pump configurations

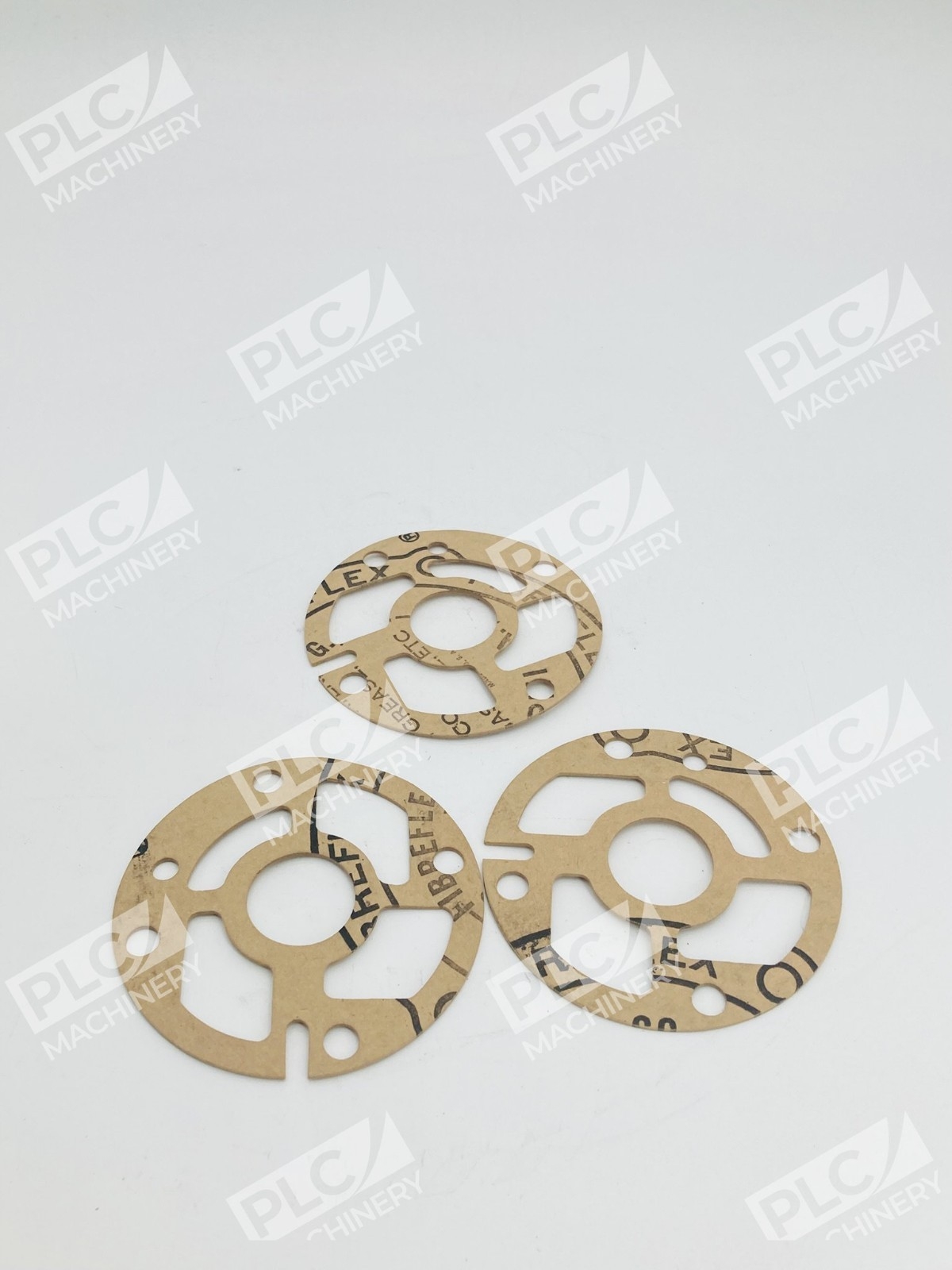

- Box of 3 gaskets—convenient spare inventory for ongoing maintenance
- Prevents leakage at the UMP-to-discharge head interface
- Meets Red Jacket pump service specifications and torque requirements
Technical Specifications
- Manufacturer: Red Jacket (Veeder-Root/Xylem)
- Part Number: 000311361 (031-136-1)
- Size: 4 inch diameter

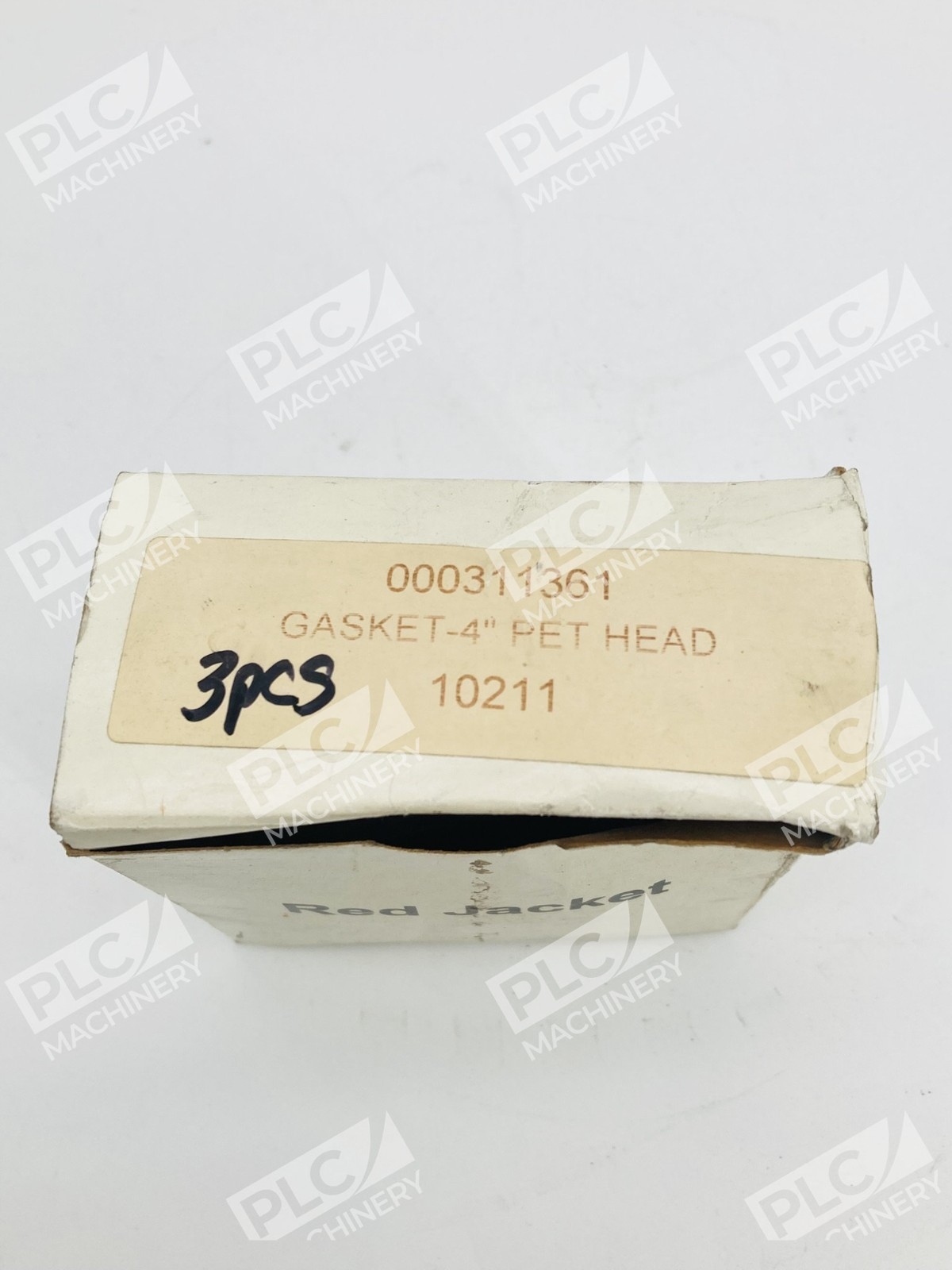

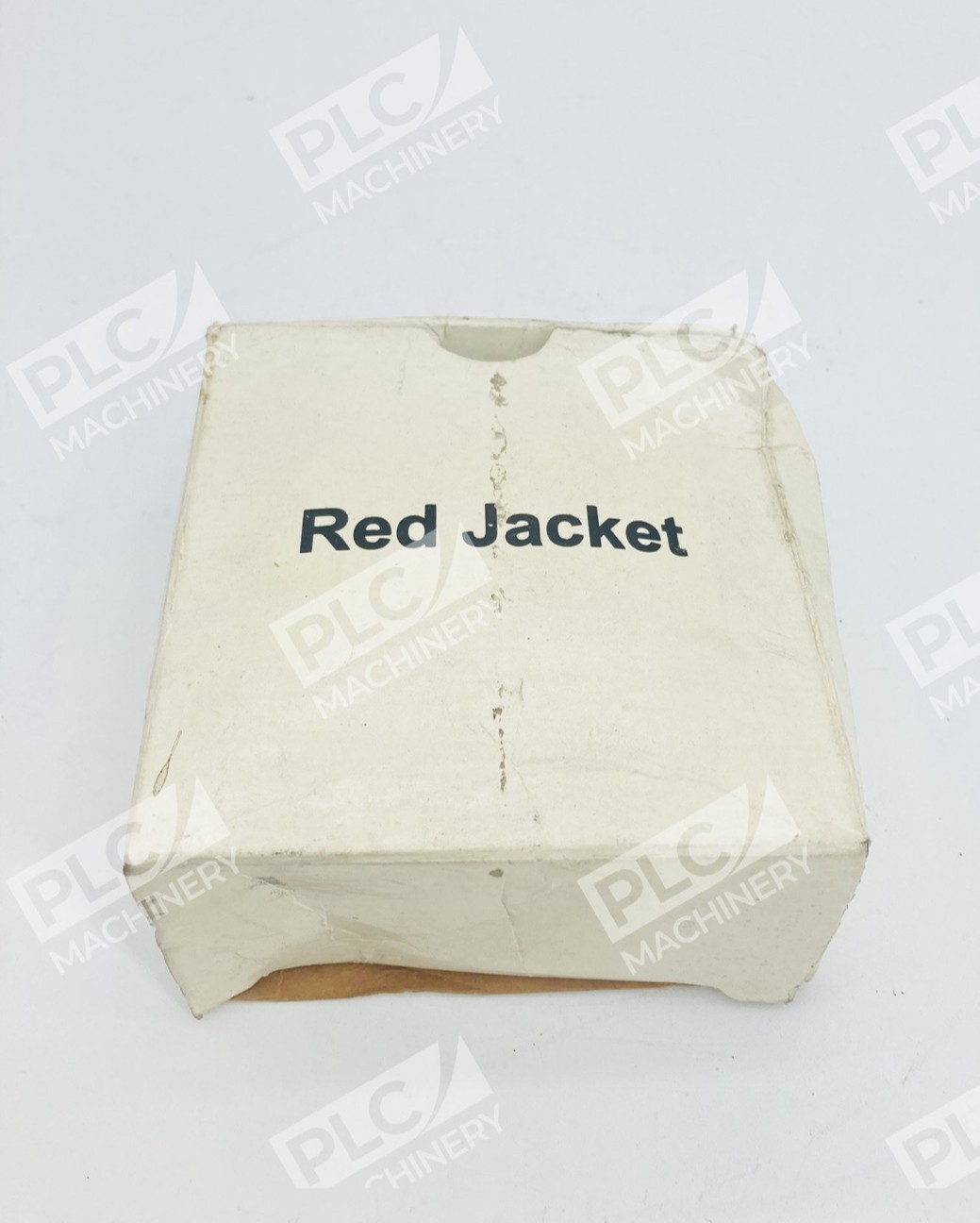

- Quantity: 3 gaskets per box
- Application: Submersible Turbine Pump discharge head
- Material Type: Gasket (elastomer/composite)
- Installation: UMP-to-discharge head interface with cross-pattern torque (7 ft-lbs / 11 N·m)
Typical Applications
- Fuel transfer systems using Red Jacket submersible turbine pumps
- Storage tank pump assemblies—aboveground and underground installations
- Routine pump maintenance and UMP replacement procedures
- Emergency field repairs requiring quick gasket replacement
- Industrial and commercial fuel distribution networks
Compatibility & Replacements
Compatible With
- Red Jacket standard storage tank pumps (4-inch NPT discharge)
- Red Jacket submersible turbine pump (STP) assemblies
- Red Jacket universal motor pump (UMP) discharge interfaces
- 4″ diameter discharge head manifold and packer assemblies
Replaces / Drop-In Replacement For
- Red Jacket 031-136-1 (alternate part number format)
- OEM gaskets in existing Red Jacket pump discharge head kits
- Original equipment gaskets removed during UMP service or replacement
Works With
- Red Jacket IQ Control Units and monitoring systems
- Red Jacket Quick-Set and standard pump configurations
- Veeder-Root fuel management and leak detection systems
- Standard UMP replacement kits and hardware/seal kits
