Overview

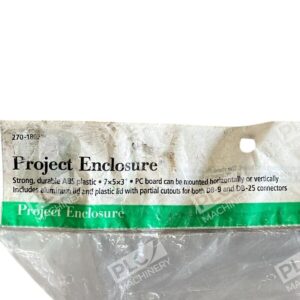

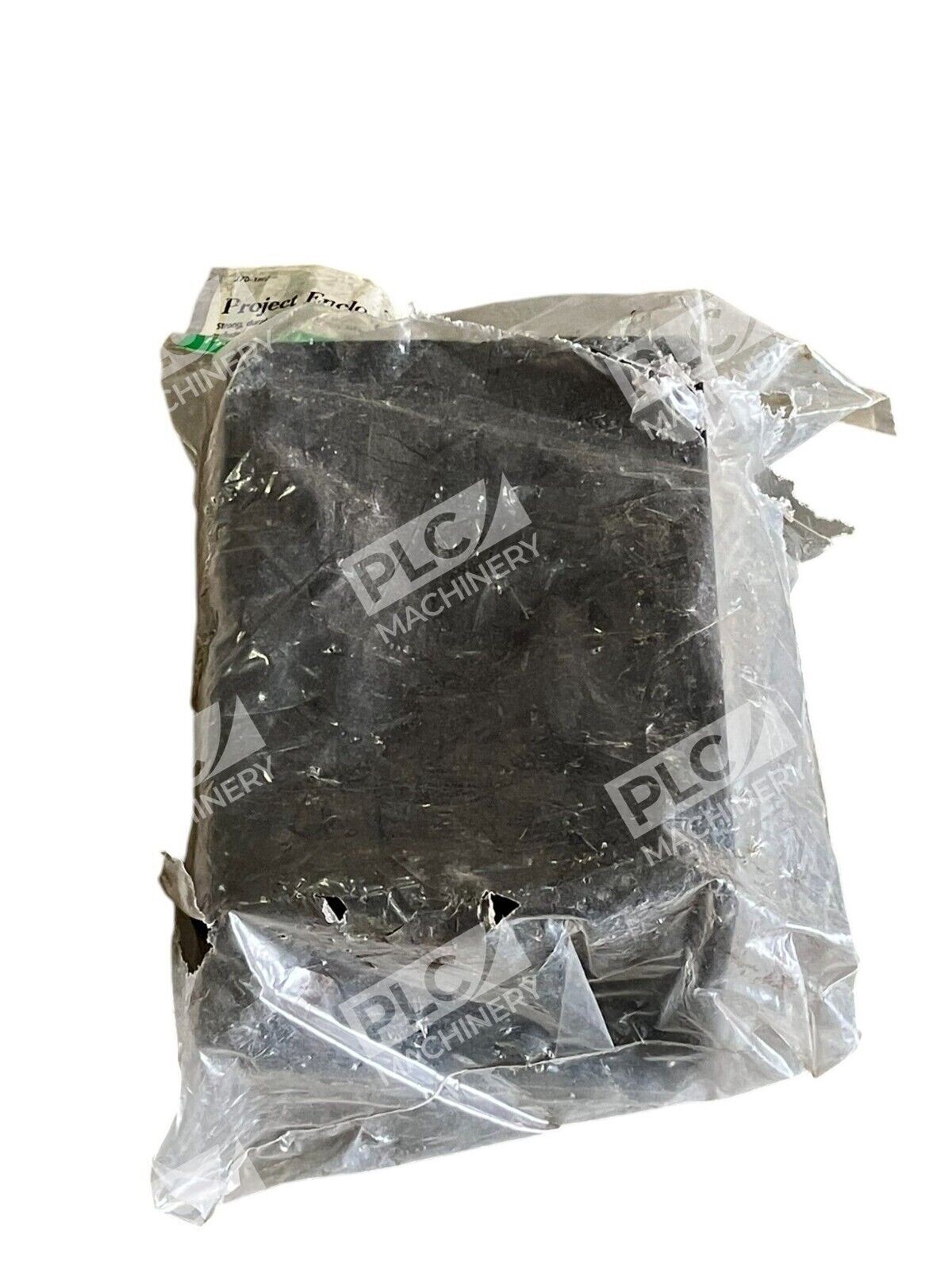

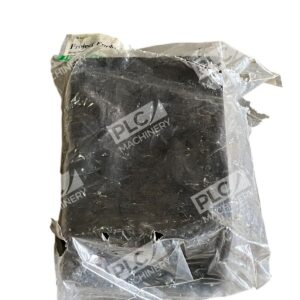

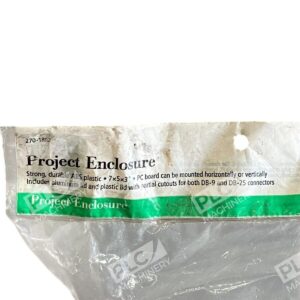

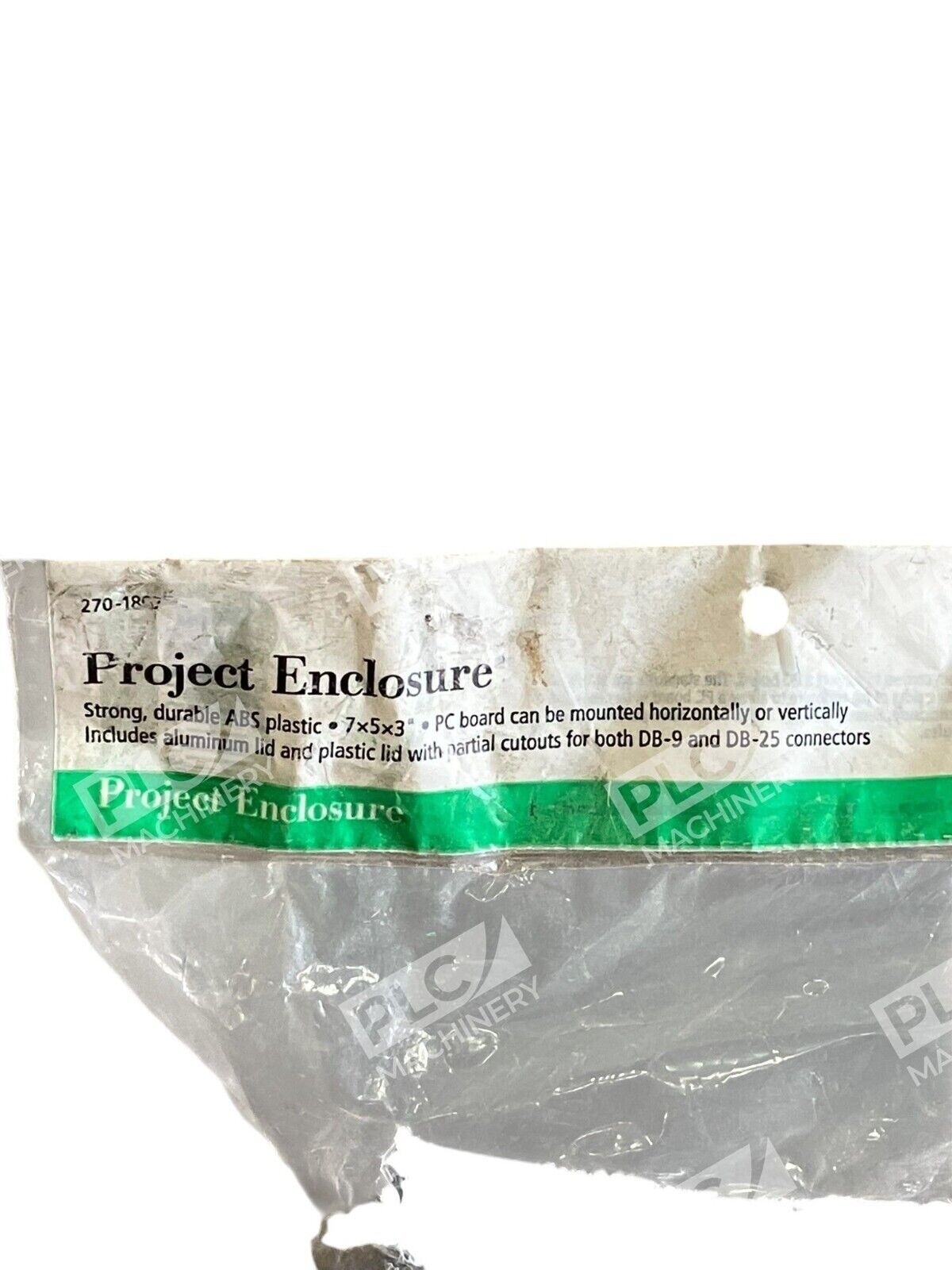

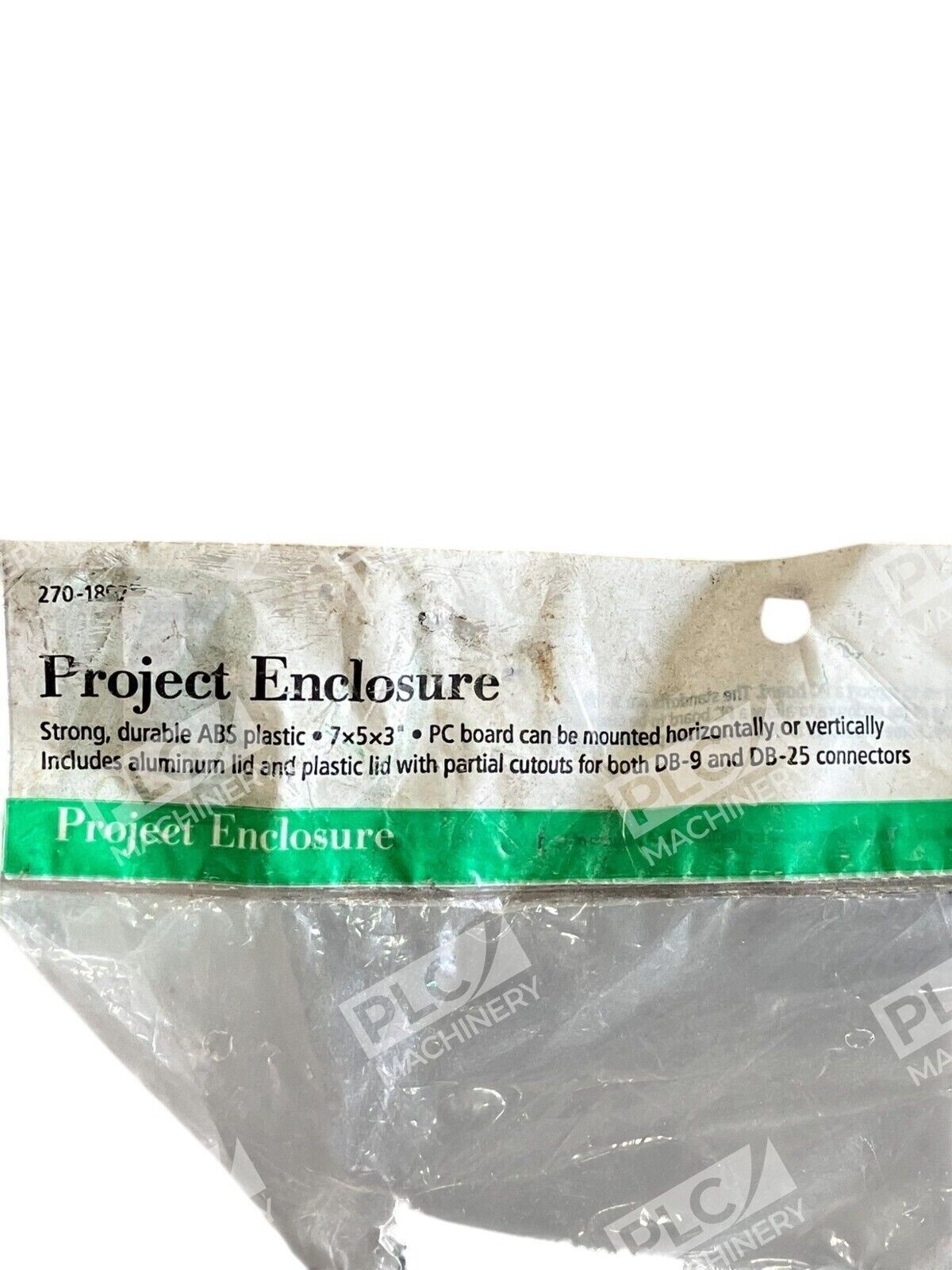

The Radio Shack 270-1807 project enclosure is a robust ABS plastic box designed for electronics hobbyists, technicians, and system builders who need reliable housing for circuit boards and components. Measuring 7×5×3 inches, this enclosure provides ample internal space while maintaining a compact footprint suitable for benchtop and portable applications.
Key Features
- Dual-lid design: Aluminum lid for durability combined with plastic lid featuring pre-cut connector ports
- DB connector cutouts: Pre-drilled ports accommodate DB-9 and DB-25 connectors for straightforward integration
- ABS plastic construction: Lightweight yet durable material resists impact and provides adequate shielding for sensitive electronics
- Flexible mounting: Accepts PC boards mounted horizontally or vertically for flexible circuit layout
- Established legacy: Long-standing design trusted by electronics professionals and hobbyists worldwide
Technical Specifications
- External Dimensions: 7 × 5 × 3 inches (17.78 × 12.45 × 7.62 cm)
- Weight: 159 grams (5.6 oz)
- Material: ABS plastic with aluminum lid
- Connector Ports: DB-9 and DB-25 cutouts in plastic lid
- PCB Mounting: Horizontal or vertical orientation supported
- Color: Black or gray (typical Radio Shack finish)
- Lid Configuration: Dual lids (aluminum and plastic)
Typical Applications
- Amateur radio and electronics projects
- Test equipment enclosures
- Interface converter housings (RS-232, serial devices)
- Custom control systems and logic modules
- Educational electronics demonstrations and kits
- Data acquisition and measurement device packaging
Compatibility & Replacements
Compatible With
- Standard DB-9 serial connectors (RS-232 devices)
- Standard DB-25 connectors (legacy parallel interfaces)
- Low-voltage electronic circuits and hobby projects
- Single and double-sided PCBs up to standard dimensions
- Standard mounting hardware and fasteners
Replaces / Drop-In Replacement For
- Earlier Radio Shack project enclosure models with similar footprint
- Generic ABS project boxes of comparable size
- Custom-fabricated aluminum or plastic housings (minimal redesign required)
Works With
- RS-232 serial interface devices and adapters
- Legacy parallel port equipment (DB-25)
- Hobbyist electronics and maker projects
- Standard off-the-shelf PCB components and modules
- Common fastening and mounting systems
