Overview

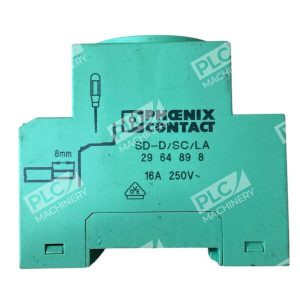

The Phoenix Contact SD-D/SC/LA control cabinet socket is a robust industrial-grade socket designed for mounting in control cabinets, electrical enclosures, and service interfaces. With a continuous current rating of 16A at 250VAC, this socket meets IEC 83 and DIN 49440-1 international standards and is widely deployed in manufacturing, process control, and building automation systems.
Key Features
- Rated for 16A continuous current at 250VAC
- Green color housing for easy identification in cabinet layouts
- Complies with IEC 83 and DIN 49440-1 standards
- Suitable for DIN rail mounting or direct cabinet installation
- Durable polyamide (PA) housing with CuZn38 contact material
- Operating temperature range: –20°C to +60°C
- IP20 degree of protection
Technical Specifications
- Current Rating: 16A continuous
- Voltage Rating: 250VAC
- Contact Material: CuZn38 (copper-zinc alloy)
- Housing Material: Polyamide (PA)
- Color: Green
- Width: 45 mm
- Height: 75 mm
- Depth: 65.2 mm
- Degree of Protection: IP20
- Operating Temperature: –20°C to +60°C
- Storage/Transport Temperature: –20°C to +60°C
- Standards: IEC 83, DIN 49440-1
Typical Applications
This socket is commonly used in industrial control cabinets, machinery enclosures, and electrical distribution panels where reliable relay connectivity is required. Its compact form factor and standard mounting options make it suitable for:
- Factory automation and PLC-based control systems
- Building management and HVAC control panels
- Process control and instrumentation circuits
- Emergency stop and safety control circuits
- Power distribution and switching applications
Compatibility & Replacements
Compatible With
- Standard DIN rail enclosure mounting systems
- Phoenix Contact control cabinet components and accessories
- IEC 83 and DIN 49440-1 compliant relay systems
- Industrial control panels rated for 250VAC operation
- Modular electrical distribution systems
Replaces / Drop-In Replacement For
- Phoenix Contact SD-D/SC/LA (all color variants including gray and yellow models)
- Verify compatibility with your system integrator before ordering for legacy equipment
Works With
- Phoenix Contact modular cabinet systems
- IEC 83 DIN 49440-1 standard relay plugs and modules
- Standard 16A industrial relay and contactor assemblies
- Control cabinet wiring and terminal block systems
