Overview

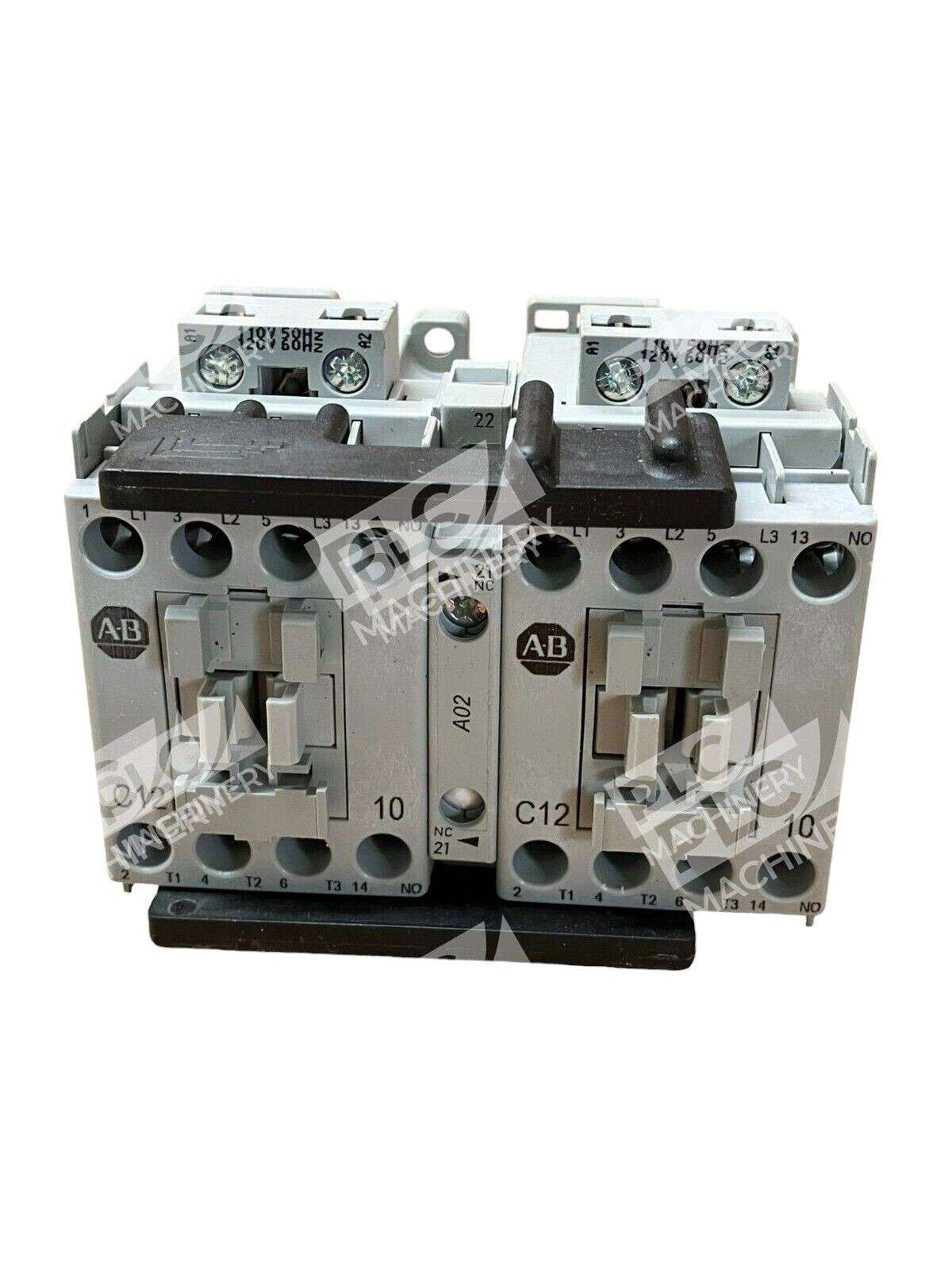

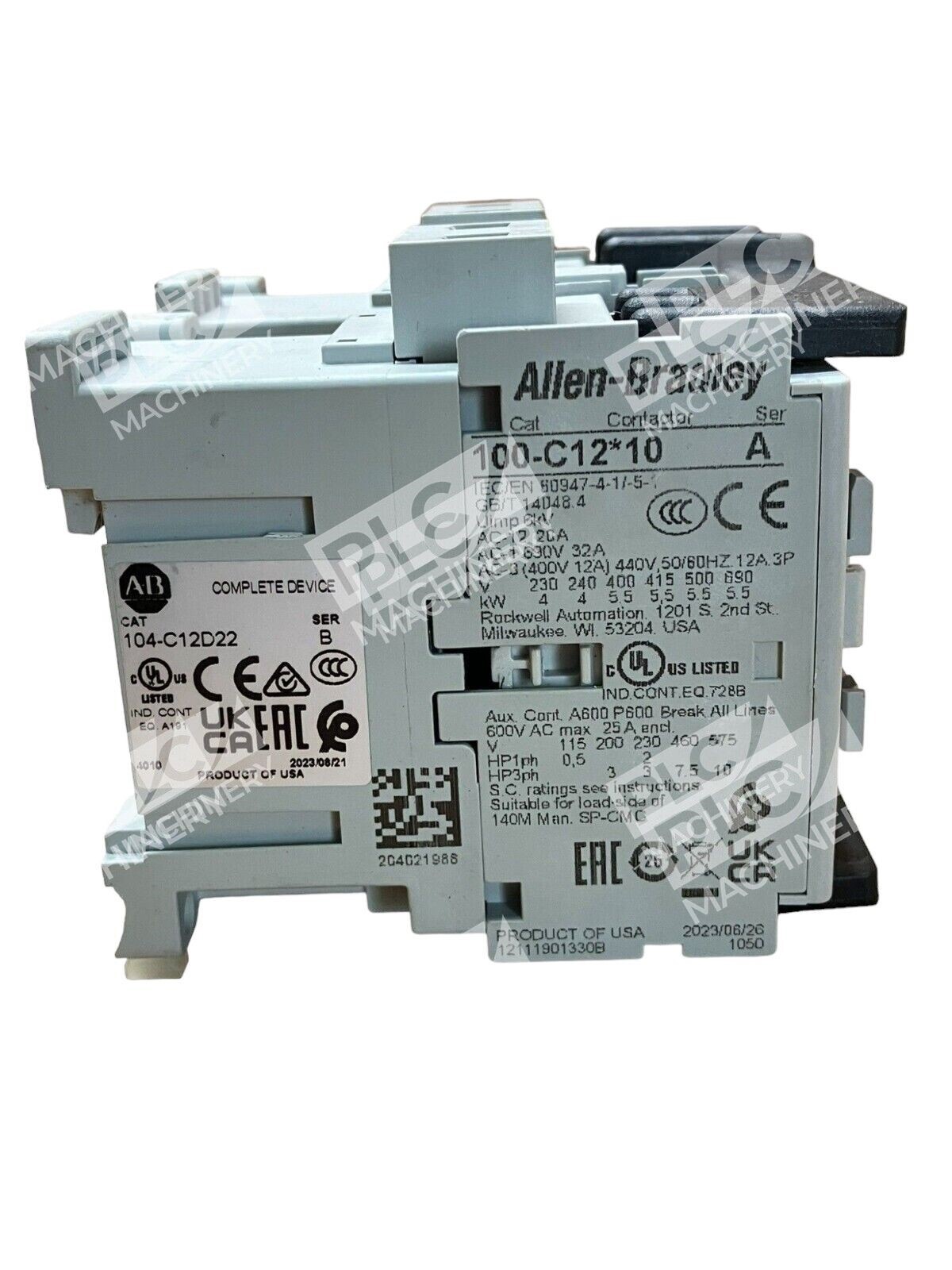

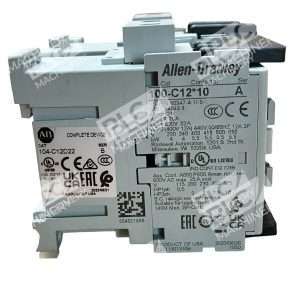

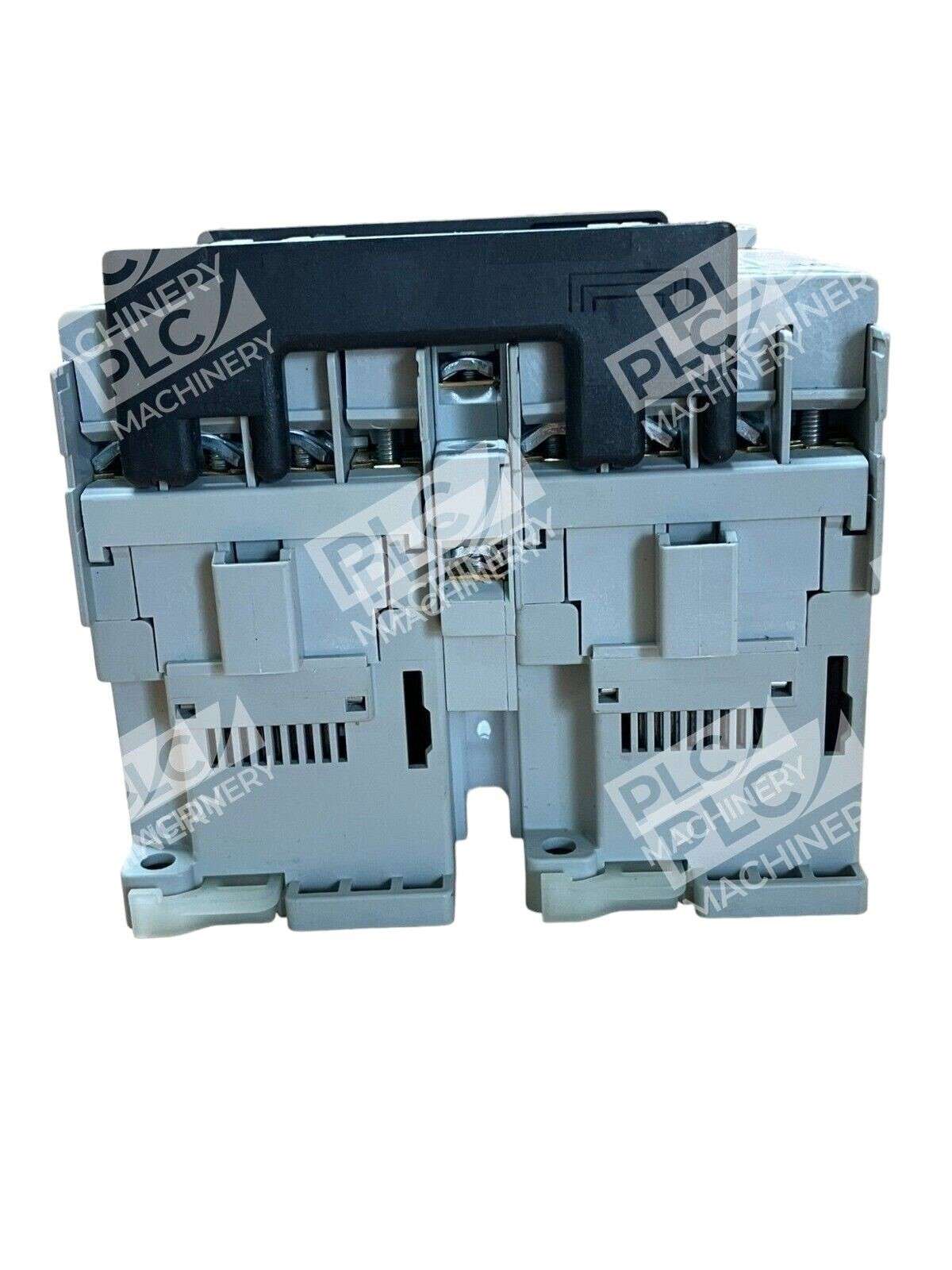

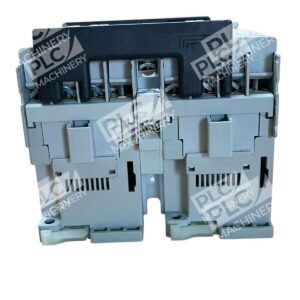

The Allen-Bradley 100-C12*10 /A is an IEC-rated contactor designed for efficient switching and control of 3-phase AC motor loads in industrial automation systems. As a definite purpose contactor from Rockwell Automation, it provides the durability and reliability required for heavy-duty industrial environments.
Key Features
- 12 AMP AC-3 Rating: Rated for 12 A continuous current in motor-starting duty (AC-3) at 40°C, with 32 A capacity for AC-1 resistive loads
- Motor Load Capacity: Suitable for up to 3 HP at 230V and 7.5 HP at 460V (3-phase AC applications)
- 1 N.O. Auxiliary Contact: Base-mounted normally open auxiliary contact for flexible control circuit design
- Screw Terminals: Secure, tool-free connection for main power and coil circuits
- DIN Rail Mountable: Compact form factor enables direct DIN rail or base mounting in control panels
- Line-Side Coil Termination: Coil connections on the line side for simplified wiring and safety
Technical Specifications
- Current Rating (AC-3): 12 A at 40°C
- Current Rating (AC-1): 32 A at 40°C
- Rated Voltage (Power Circuit): 600 VAC
- Coil Voltage Options: Available with multiple coil voltages (e.g., 110/120V AC 50/60 Hz)
- Poles: 3 normally open poles
- Auxiliary Contacts: 1 N.O., 0 N.C.
- Frequency: 50/60 Hz
- Terminal Style: Screw terminals
- Mounting: DIN rail or base-mount compatible
- Coil Termination: Line-side
- Conformance: IEC/EN 60947-4-1 and IEC/EN 60947-5-1
- Dimensions: Approximately 2 × 3 × 4 inches
- Weight: ~0.86 lbs
Typical Applications
The 100-C12*10 /A is ideal for:
- 3-phase induction motor starting and control
- HVAC compressor and pump motor circuits
- General-purpose motor load switching and reversing
- Process automation and conveyor systems
- Industrial control panels and control systems requiring compact DIN rail components
- Machine tool and industrial equipment motor control
Compatibility & Replacements
The 100-C12*10 /A integrates seamlessly with Allen-Bradley 100-series control equipment. Compatible auxiliary contact blocks and thermal overload relays (such as the 193-T series) can be directly mounted or added for enhanced circuit protection. The contactor accepts a range of optional AC coil voltages to match facility power supplies. Always verify coil voltage requirements before ordering to ensure proper control circuit operation. Consult the product documentation or contact your distributor for specific replacement or accessory compatibility.
