Overview

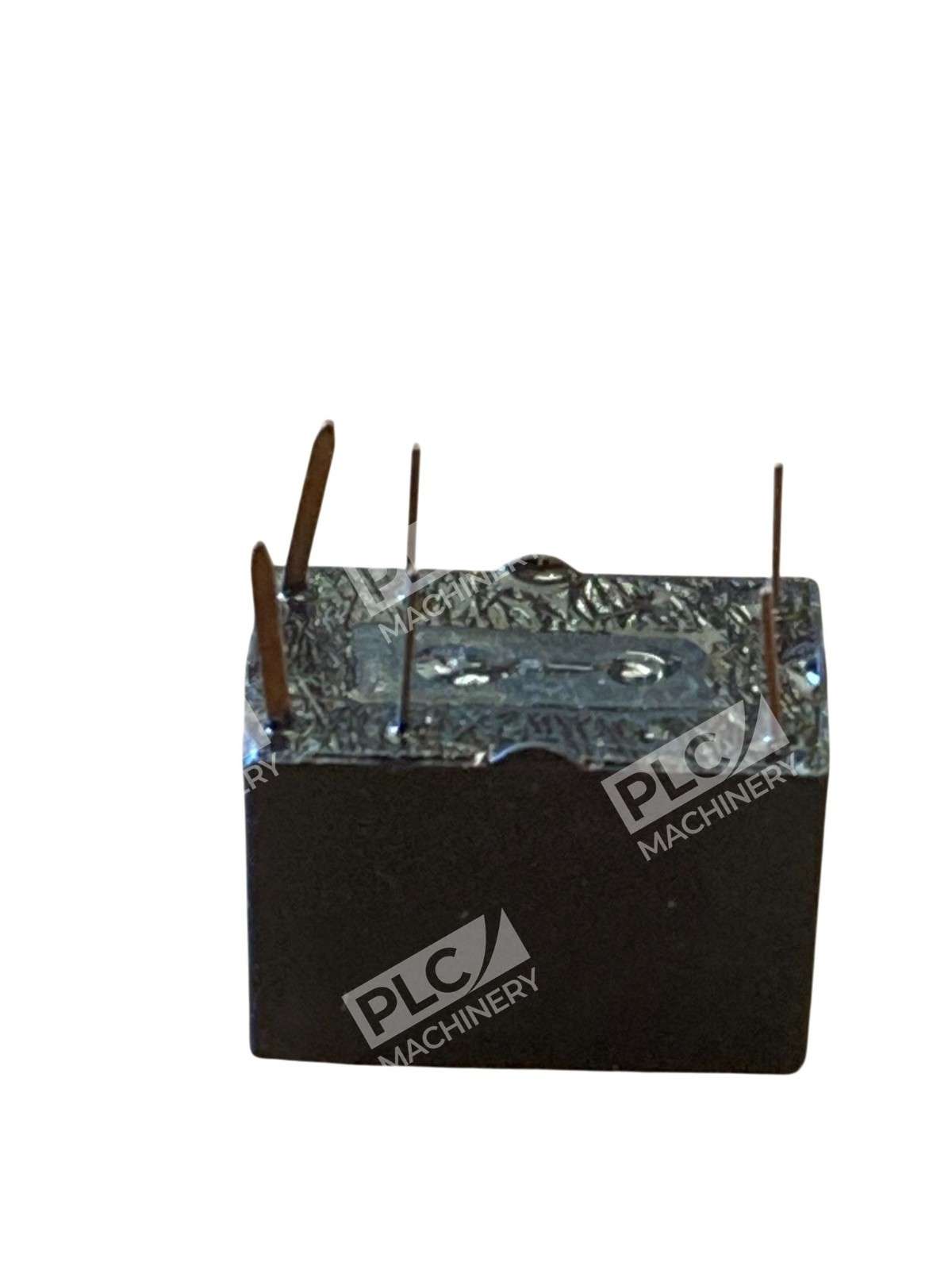

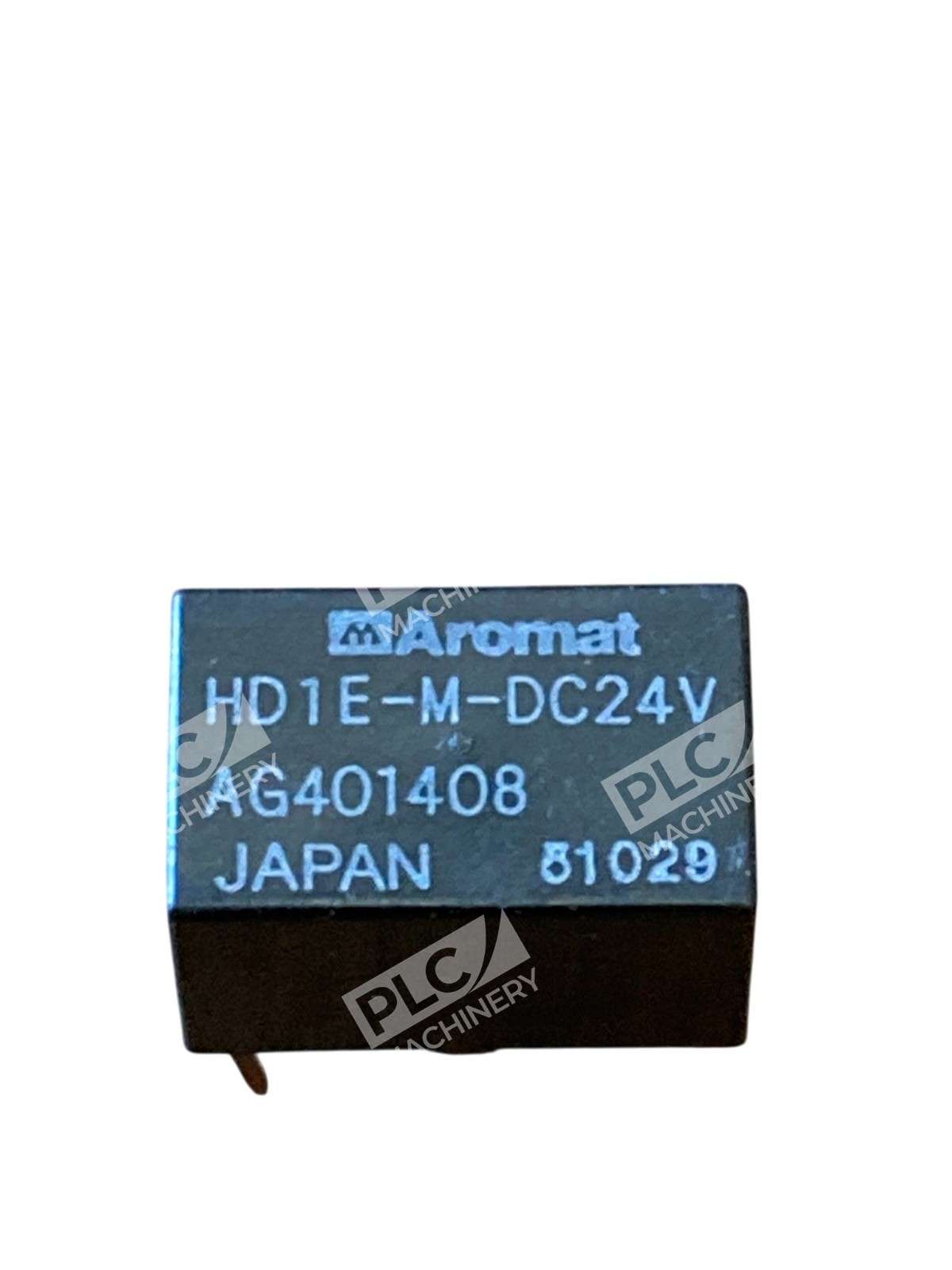

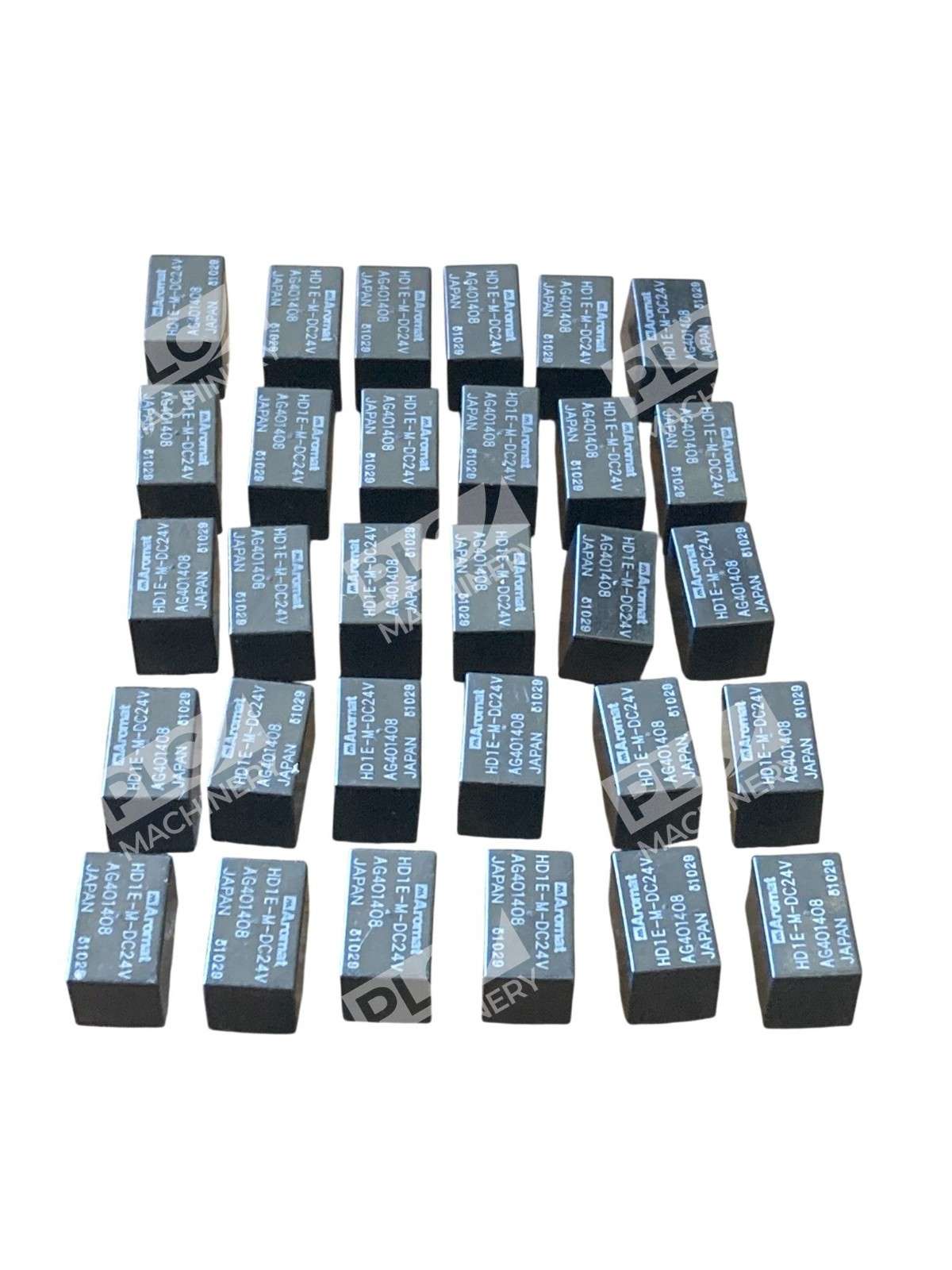

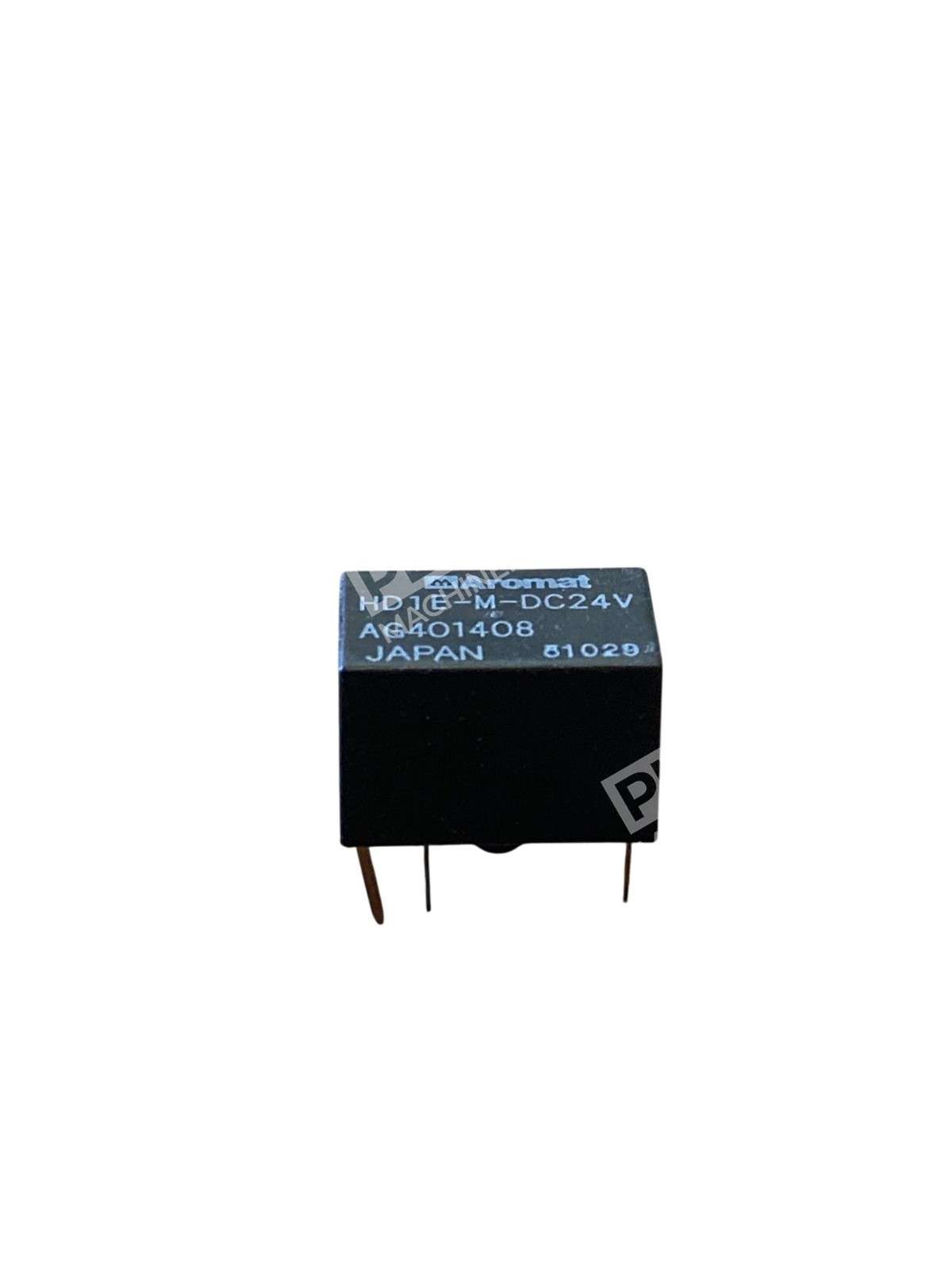

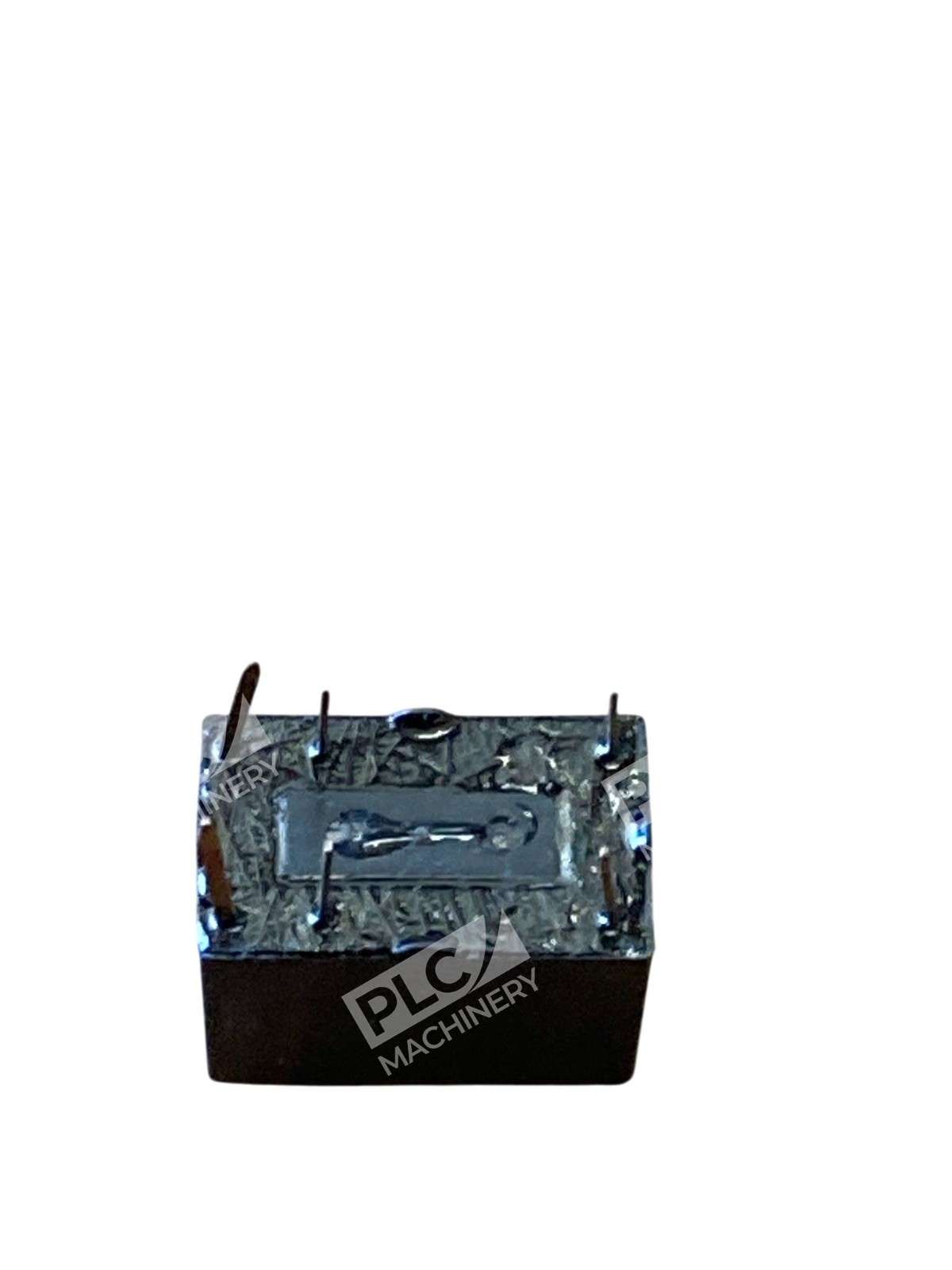

The Aromat HD1E-M-DC24V miniature relay is a space-saving, 24V DC coil switching relay engineered for reliable general-purpose signal and control applications. Manufactured by Aromat Corporation (a Panasonic brand), this relay delivers consistent electromagnetic switching in compact industrial and commercial equipment. The part designation AG401408 corresponds to this model. Supplied in a lot of 30 units, these relays are ready for immediate deployment in systems requiring redundant or bulk inventory.
Key Features
- Compact miniature package for space-constrained panel designs
- 24V DC coil voltage with stable electromagnetic operation
- General-purpose SPDT switching configuration
- Trusted Aromat/Panasonic quality and reliability
- Ideal for OEM integration, maintenance stocking, and equipment replacement
- Lot of 30 units reduces per-unit cost for bulk applications
Technical Specifications
Because detailed specifications were not available from the manufacturer’s online resources, verify the following with your integrator or Aromat technical support before installation:
- Coil Voltage: 24V DC
- Relay Type: Miniature, General Purpose
- Contact Configuration: SPDT (Single Pole Double Throw)
- Package Type: Through-hole, standard miniature relay footprint
- Manufacturer: Aromat Corporation (Panasonic Electric Works)
- Part Number: HD1E-M-DC24V
- AG Designation: AG401408
- Quantity: 30 units per lot
Typical Applications
- Industrial control panels and automation equipment
- HVAC system control and switching
- Motor starter circuits and interlock logic
- Safety circuits and alarm systems
- Telecommunications and instrumentation
- Original equipment manufacturer (OEM) integration
Compatibility & Replacements
Compatible With
- Standard 24V DC industrial control systems
- DIN rail-mounted control platforms
- Relay socket modules and footprints compatible with miniature relays
- IC socket-compatible relay applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Specific replacement models were not confirmed via manufacturer documentation.
Works With
- Standard relay sockets and DIN mounting hardware
- Industrial automation controllers (PLC, PAC)
- 24V DC power supplies and control circuits
- General-purpose switching circuits
