Overview

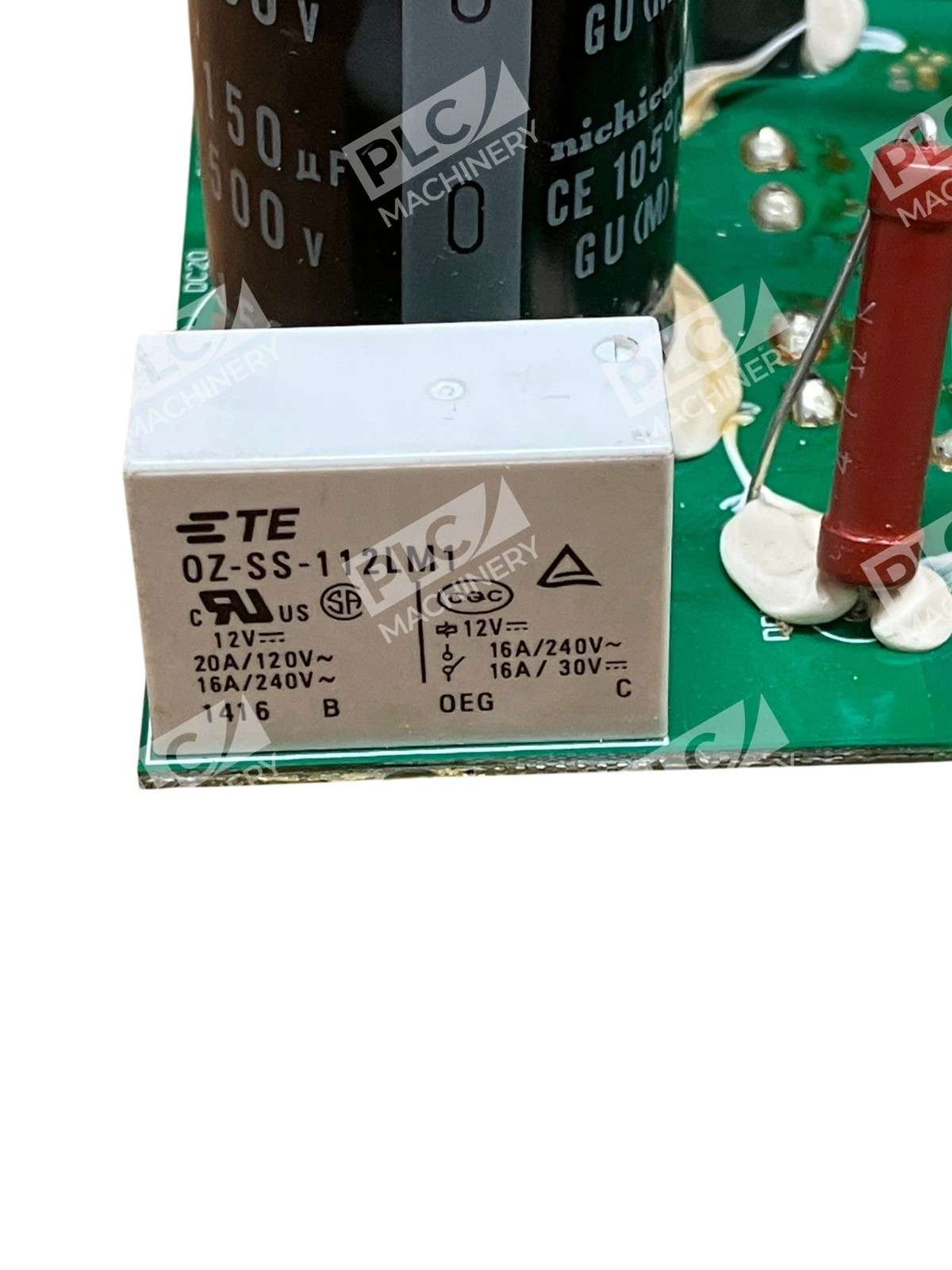

The Allen-Bradley 2945004005 is a PCB driver circuit board designed for industrial switching and control applications. This board integrates a TE OZ-SS-112LM1 12V DC power relay, making it ideal for equipment requiring reliable relay control in manufacturing, HVAC, refrigeration, and general industrial settings. The board is engineered for straightforward integration into existing systems.
Key Features
- Integrated TE OZ-SS-112LM1 12V DC power relay for reliable switching control
- Rated for 10A at 1200V switching capacity
- PCB-mounted design suitable for panel integration and enclosure mounting
- Compact form factor for space-constrained applications
- General-purpose relay configuration for diverse control applications
Technical Specifications
- Manufacturer: Allen-Bradley
- Part Number: 2945004005
- Relay Type: TE OZ-SS-112LM1
- Relay Voltage: 12V DC
- Current Rating: 10A
- Voltage Rating: 1200V
- Form Factor: Printed Circuit Board (PCB)
- Application Class: General Purpose Relay
- Mounting: PCB or enclosure panel mount
Typical Applications
The Allen-Bradley 2945004005 is commonly used in:
- Industrial motor control and switching circuits
- HVAC and refrigeration equipment controls
- Manufacturing automation and process control systems
- PLC output interfaces and signal relay circuits
- General-purpose electrical control panel applications
- Equipment protection and interlocking systems
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC processors and control systems
- Industrial control panels and enclosures
- 24V and 12V DC control circuits
- Standard industrial relay sockets and DIN rail mounting systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Contact the seller for specific cross-reference information.
Works With
- Allen-Bradley industrial automation platforms
- Standard 12V DC control power supplies
- Industrial wiring standards and practices
- General-purpose relay control applications
