Overview

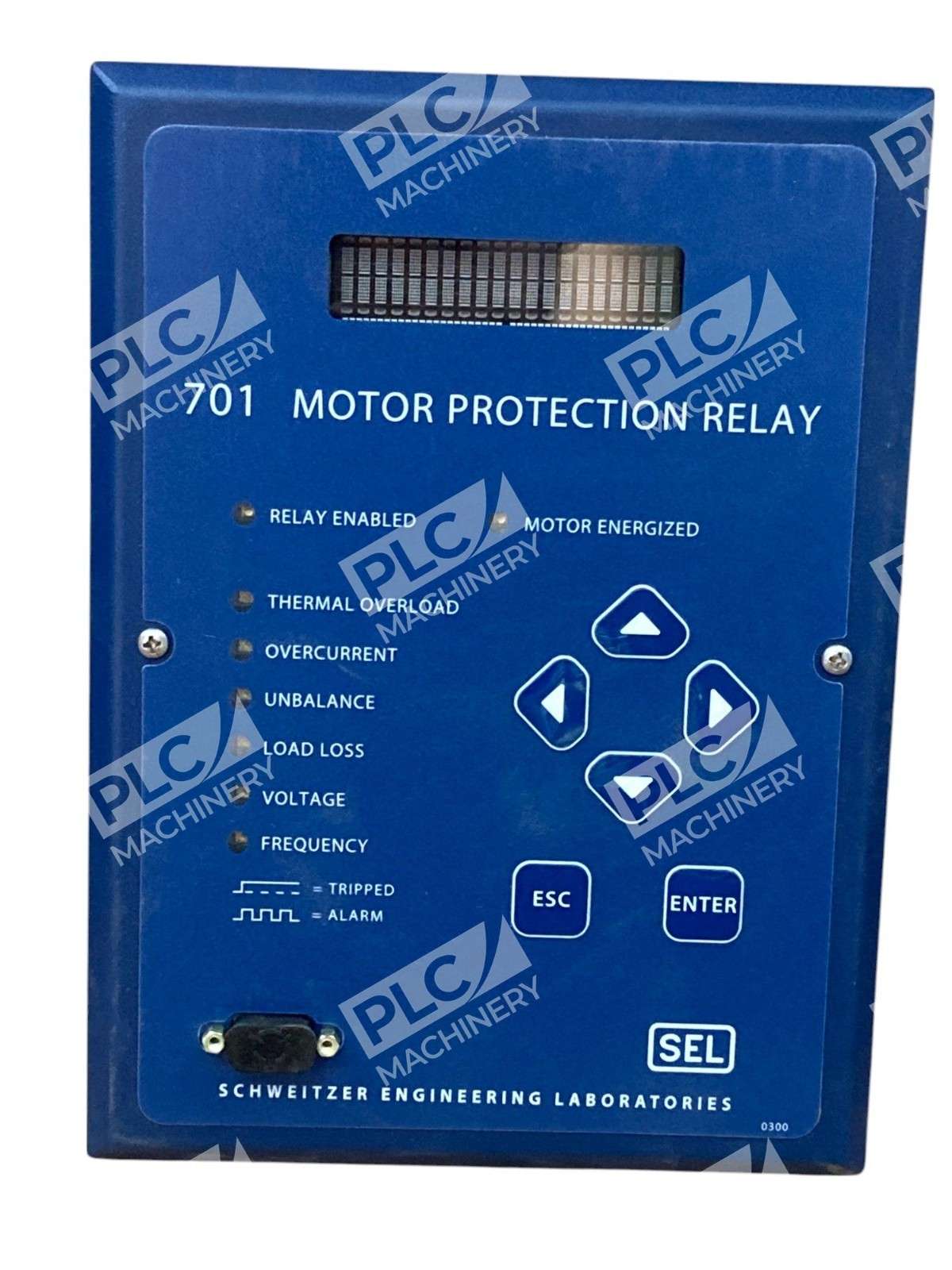

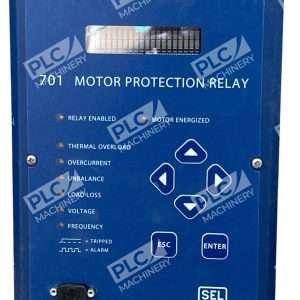

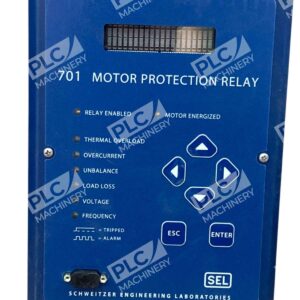

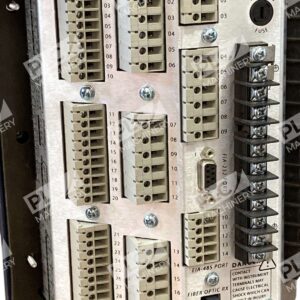

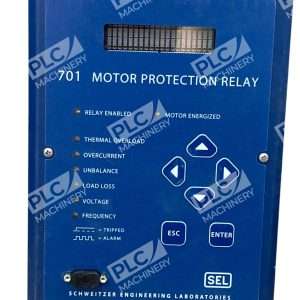

The Schweitzer Engineering SEL-701 Motor Protection Relay (part number 0701011XXX) is a microprocessor-based protective relay designed for three-phase, medium voltage motor applications. This relay combines thermal motor protection with advanced fault detection to safeguard motors against damage from overloads, locked rotor conditions, phase imbalance, and short circuits. The SEL-701 integrates flexible thermal modeling with industry-standard communication protocols, making it suitable for critical industrial motor control systems in plants, mills, pumping stations, and power generation facilities.
Key Features
- Flexible motor thermal protection against locked rotor, running overload, and negative-sequence current heating
- Phase, neutral, residual, and negative-sequence overcurrent protection for motor and cable short-circuit detection
- Load-loss and load-jam protection with antijogging functions (minimum start time and starts-per-hour limits)
- Unbalance current (46) and phase reversal (47) element protection

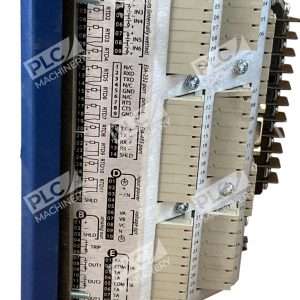

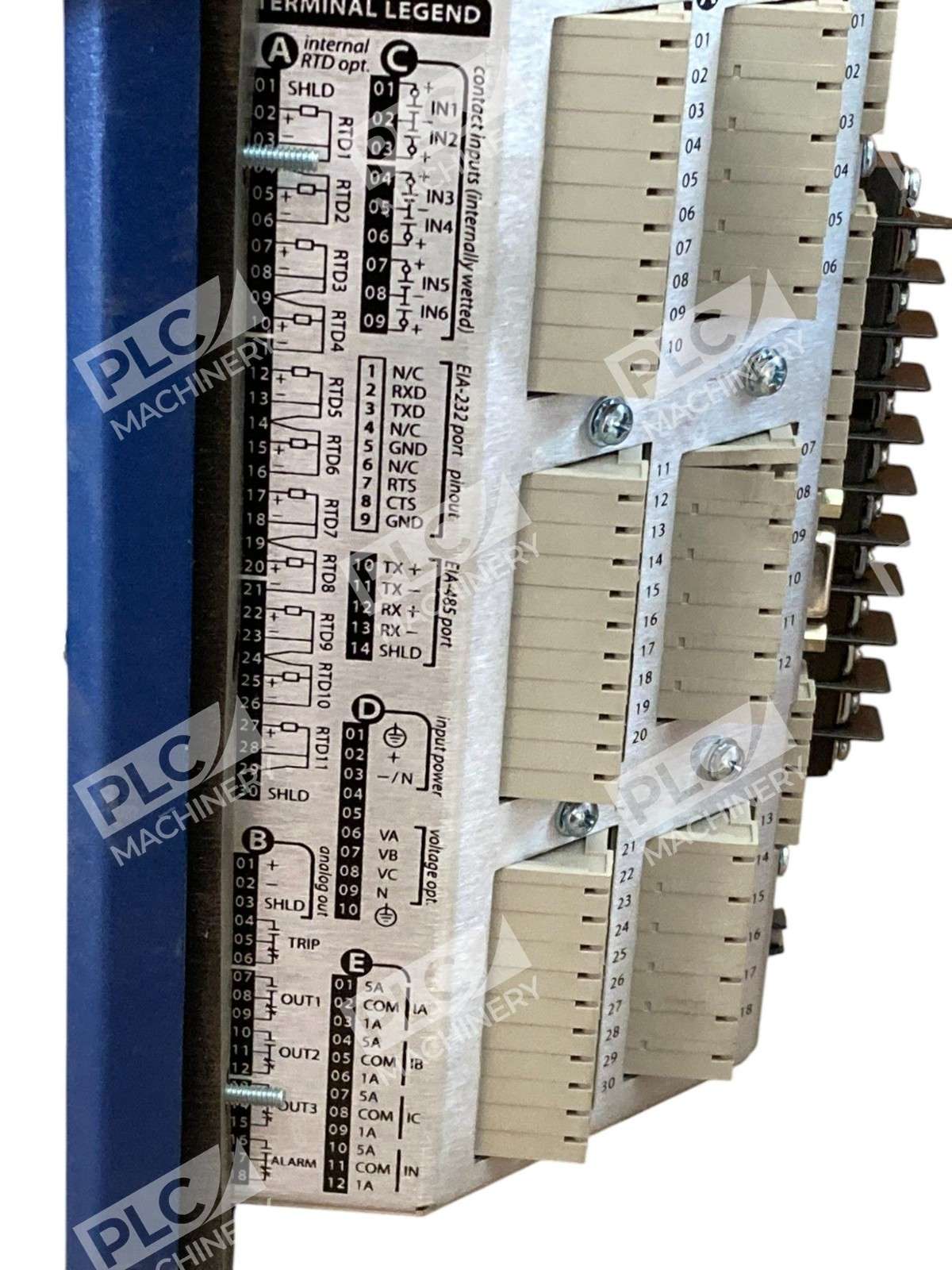

- Optional RTD temperature inputs and voltage-based protection for comprehensive monitoring

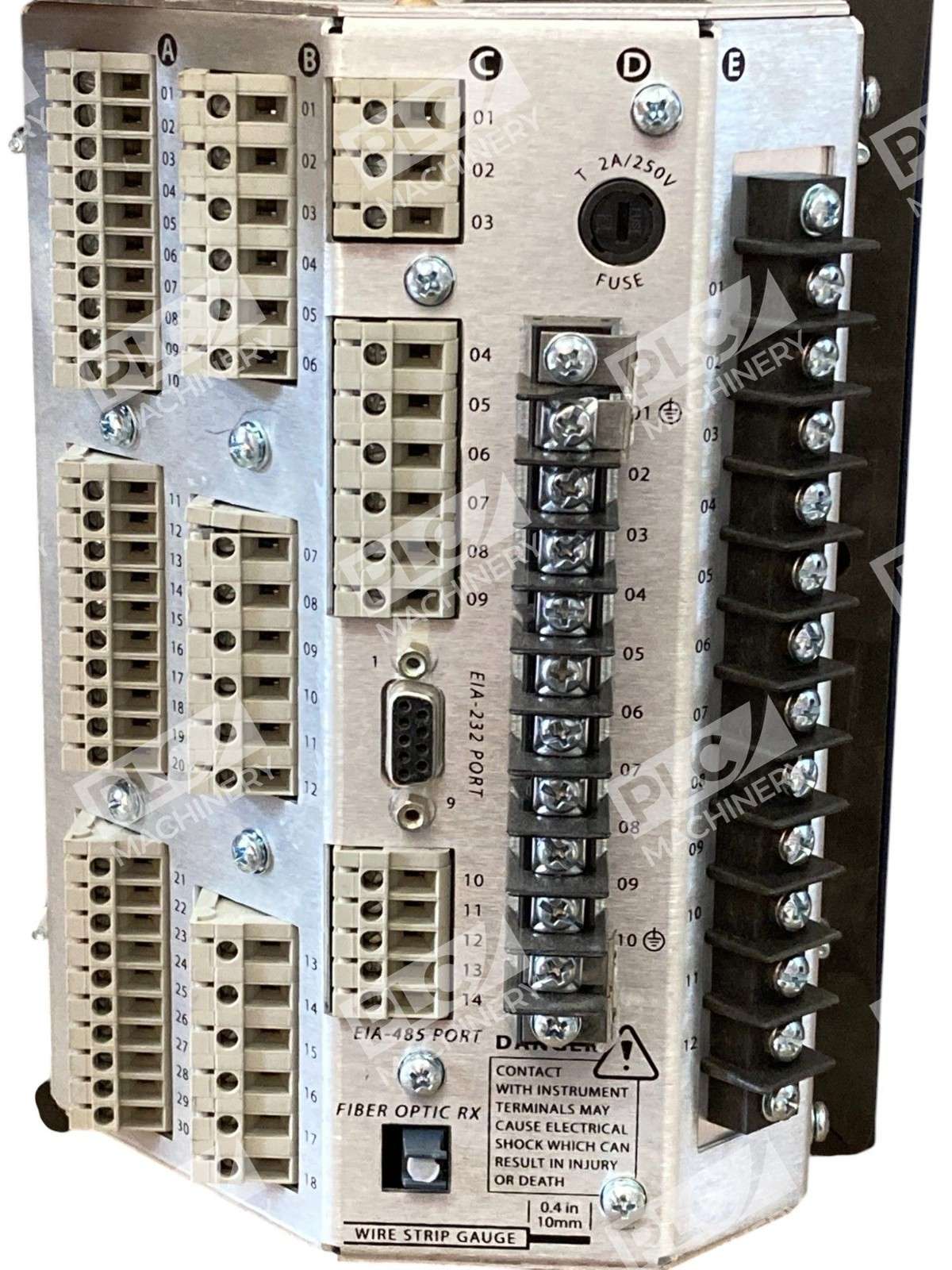

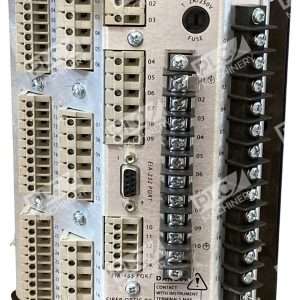

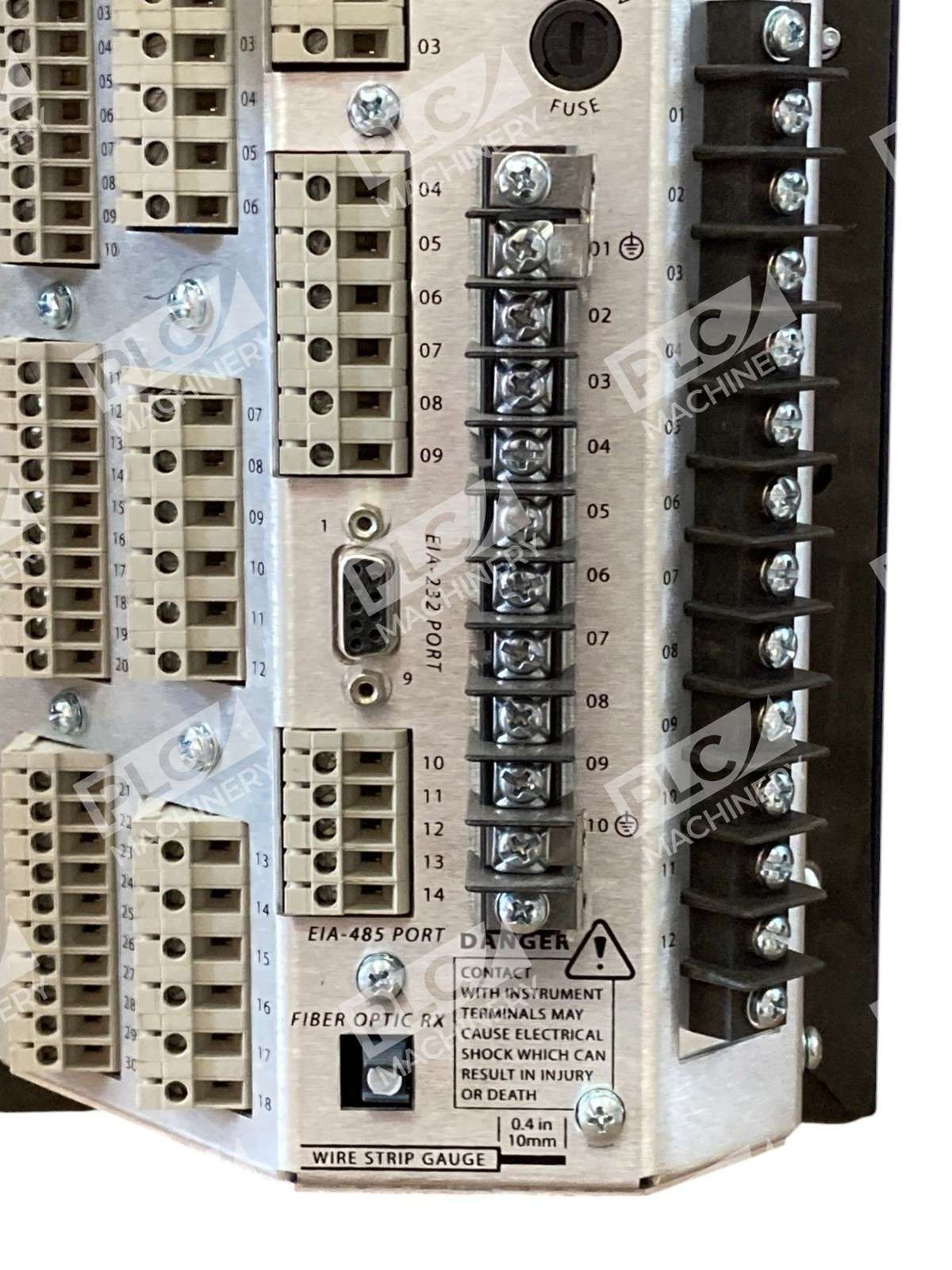

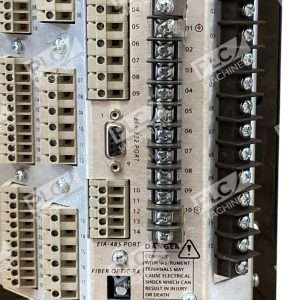

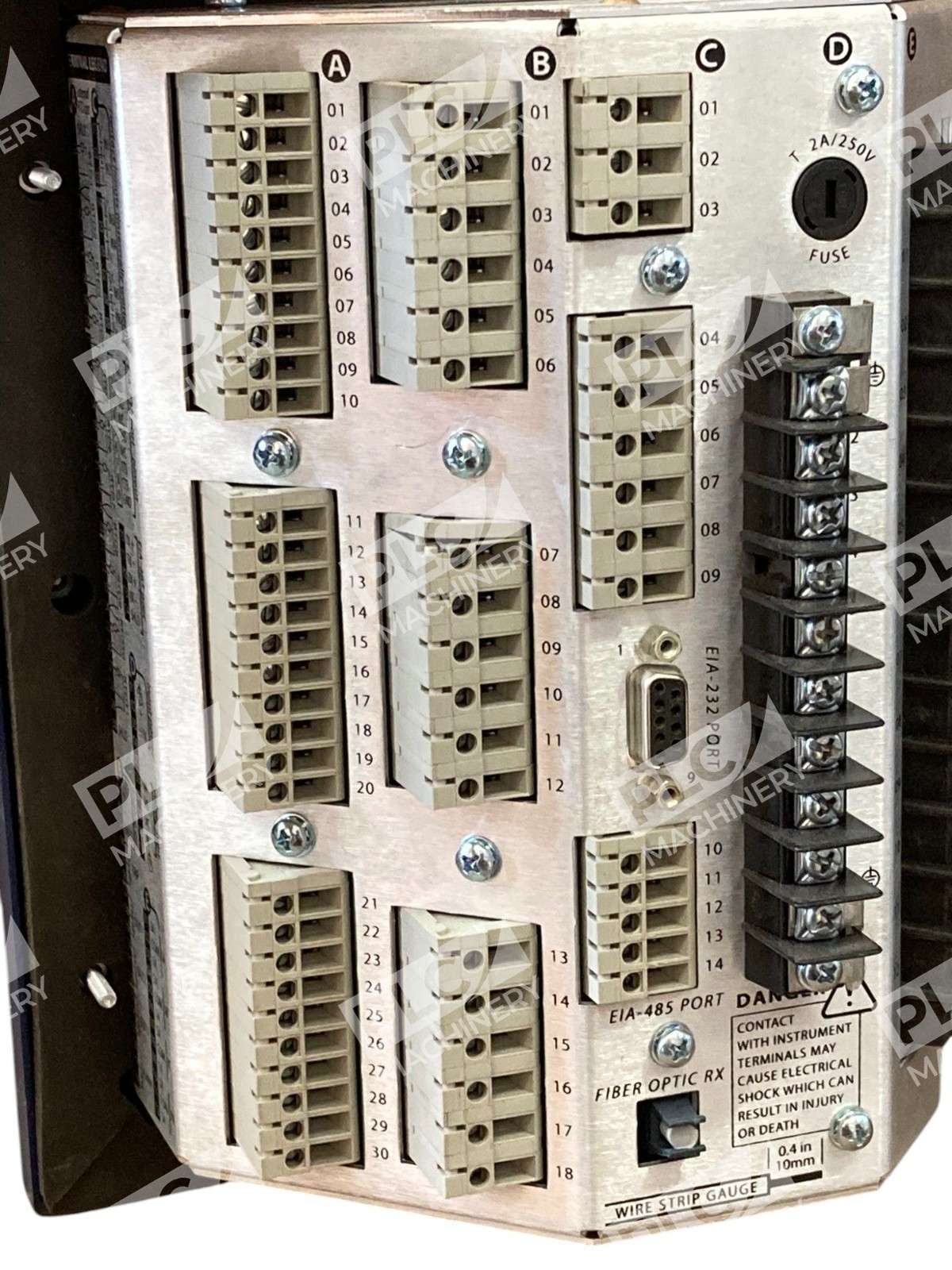

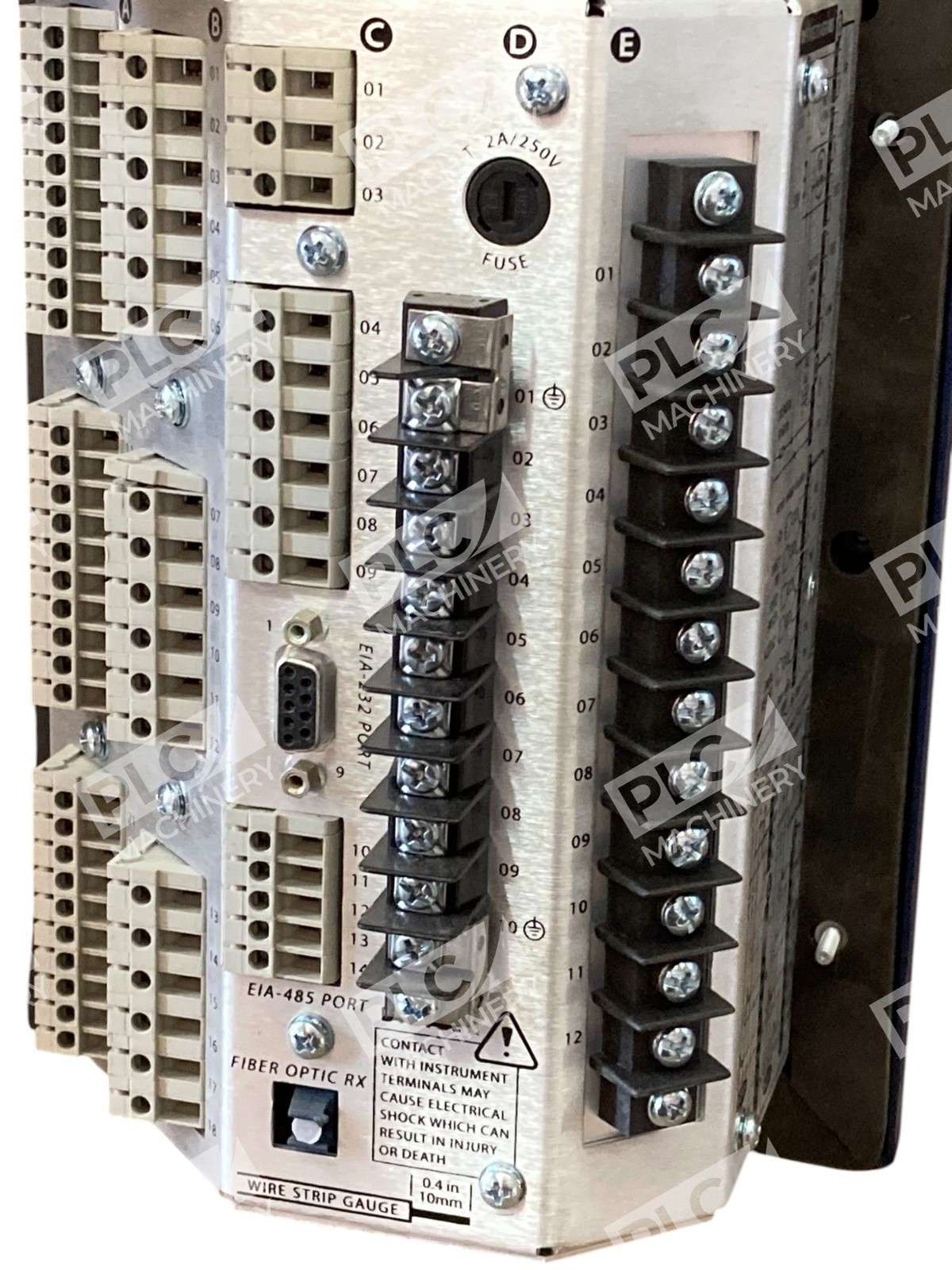

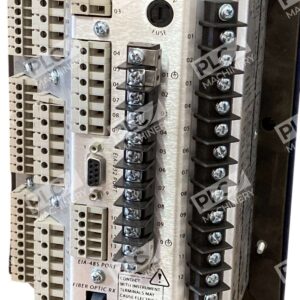

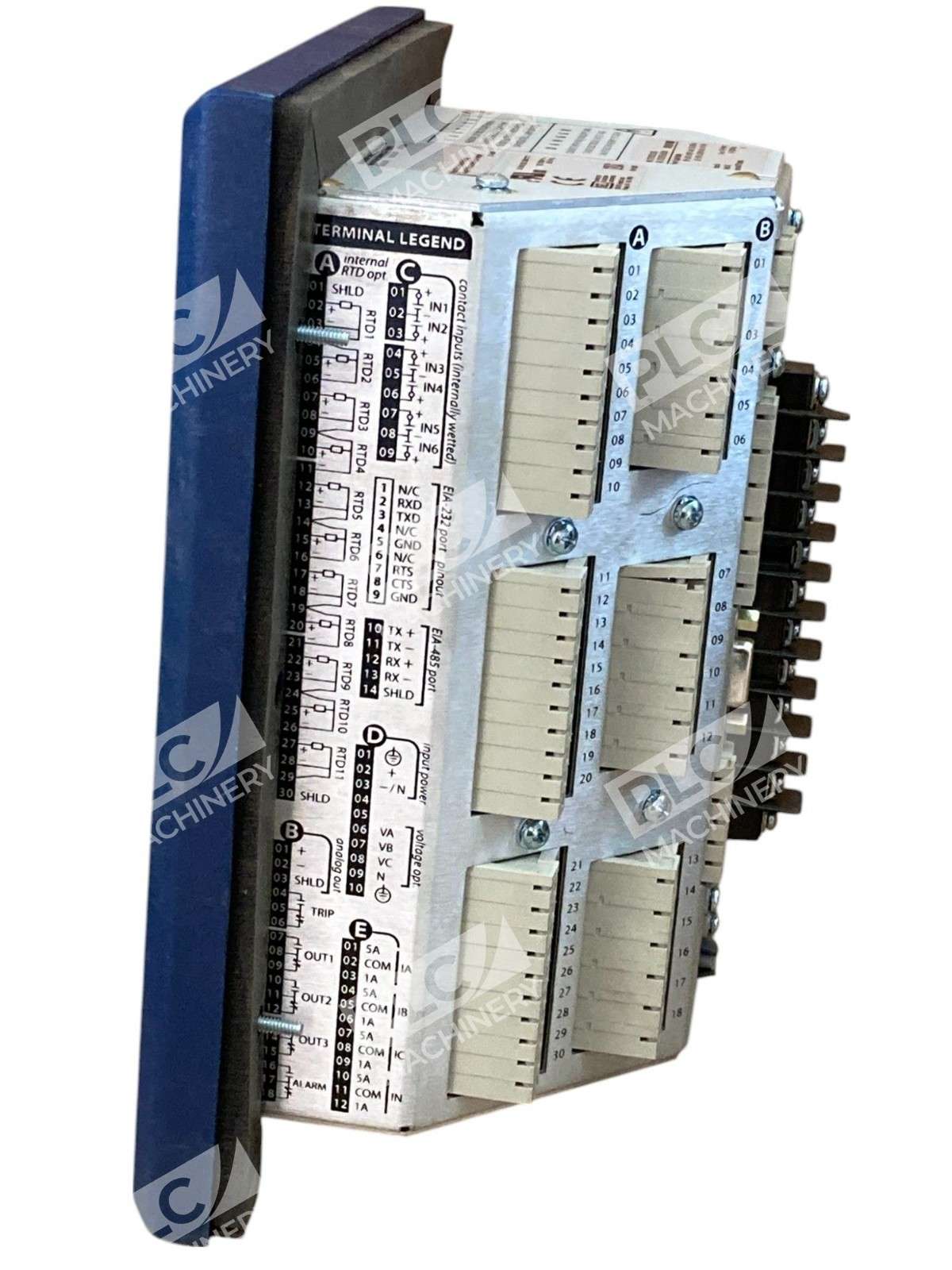

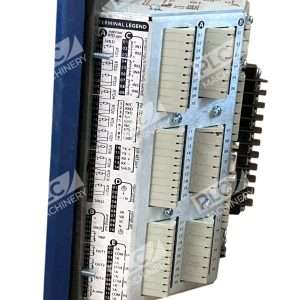

- ASCII and Modbus RTU serial communication via front and rear EIA-232/485 ports
Technical Specifications
- Model Number: 701 Motor Protection Relay

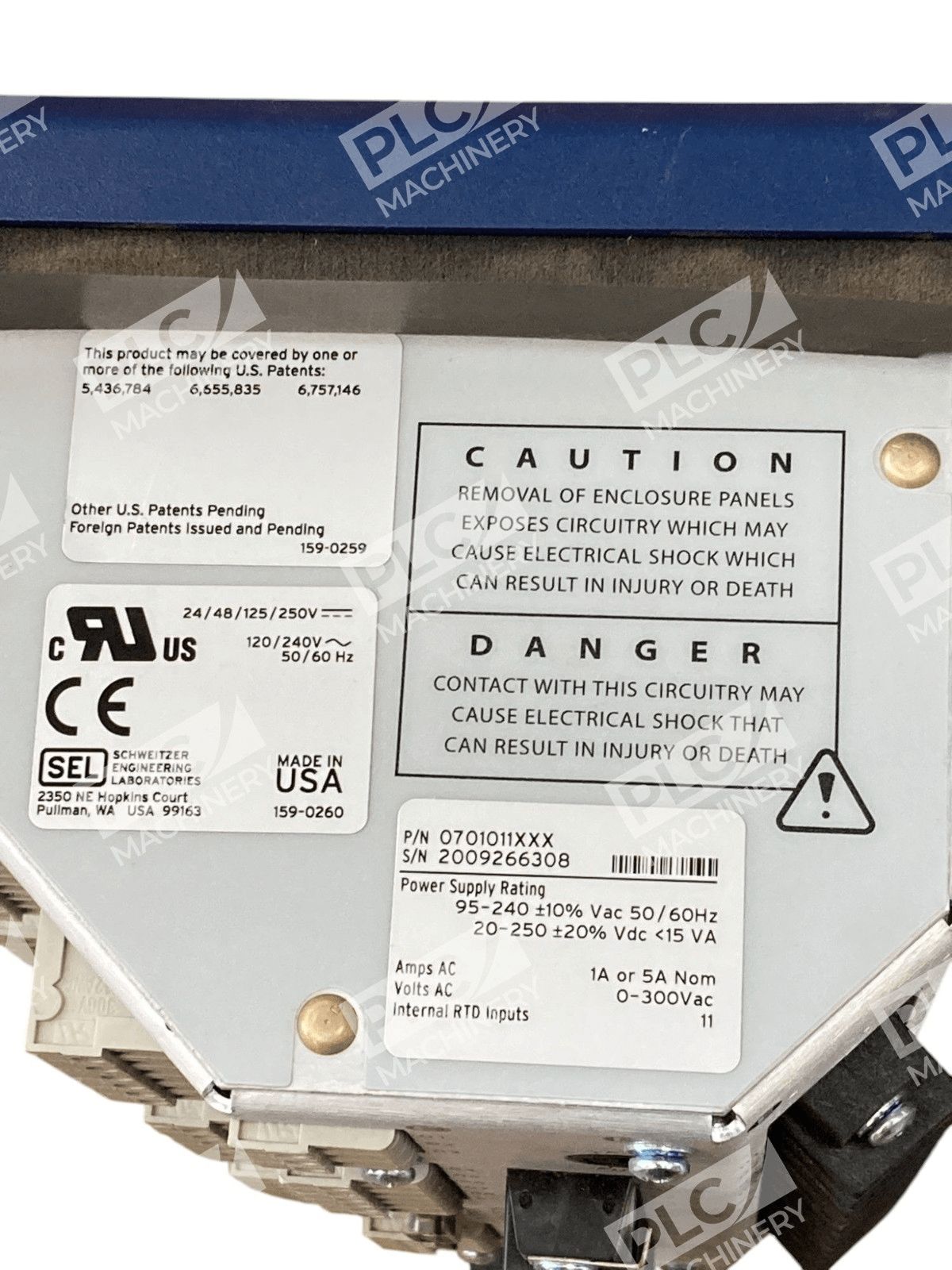

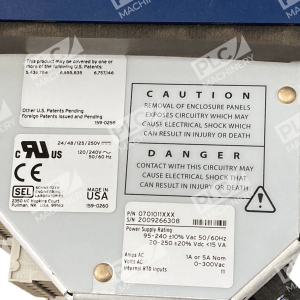

- Part Number: 0701011XXX
- Manufacturer: Schweitzer Engineering Laboratories (SEL)
- Application: Three-phase medium voltage motors
- Protection Functions: Thermal (49), overcurrent (50), unbalance (46), phase reversal (47), load-loss, load-jam, antijogging (66)
- Communication Protocols: ASCII (EIA-232), Modbus RTU (EIA-485)

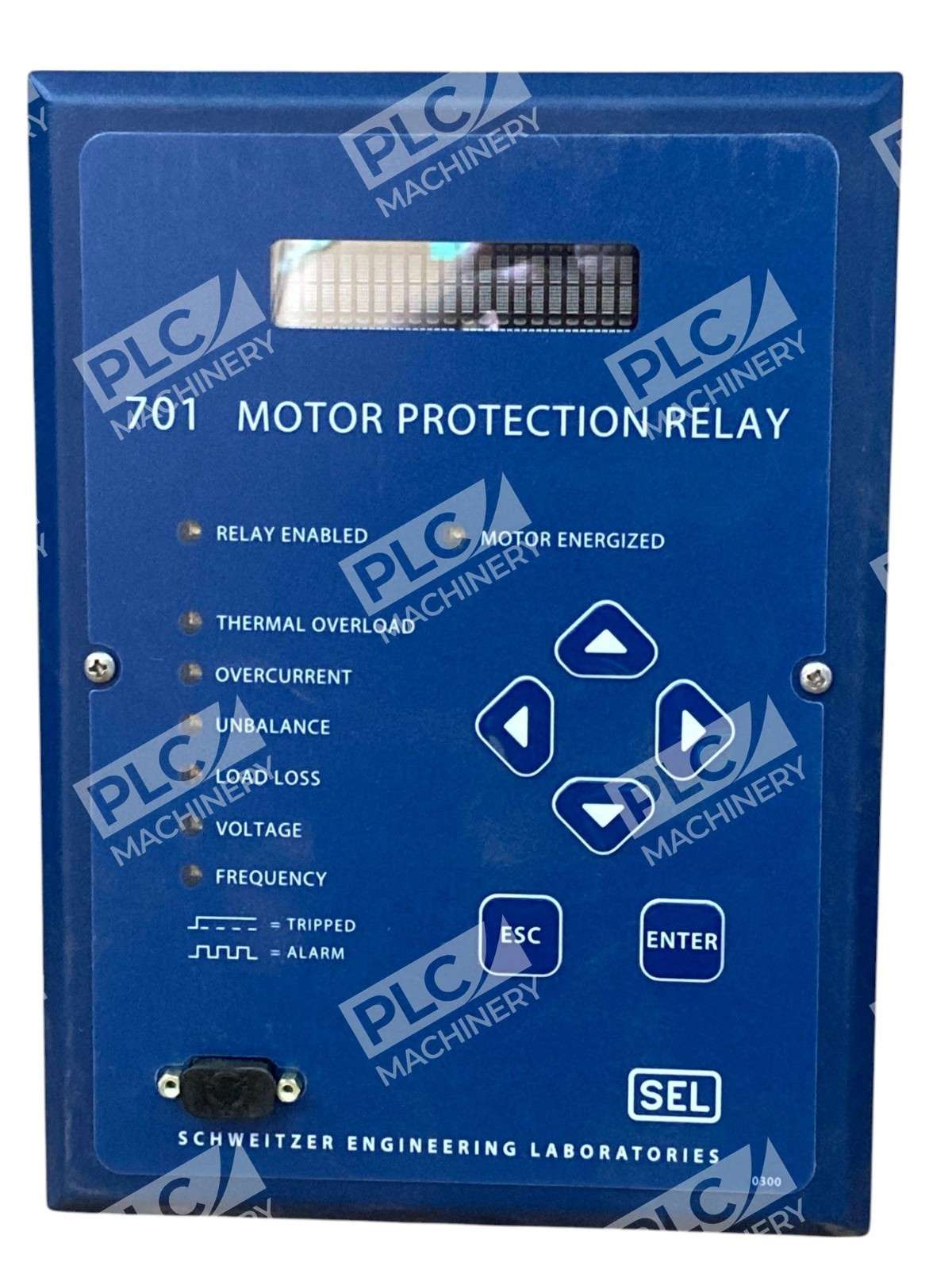

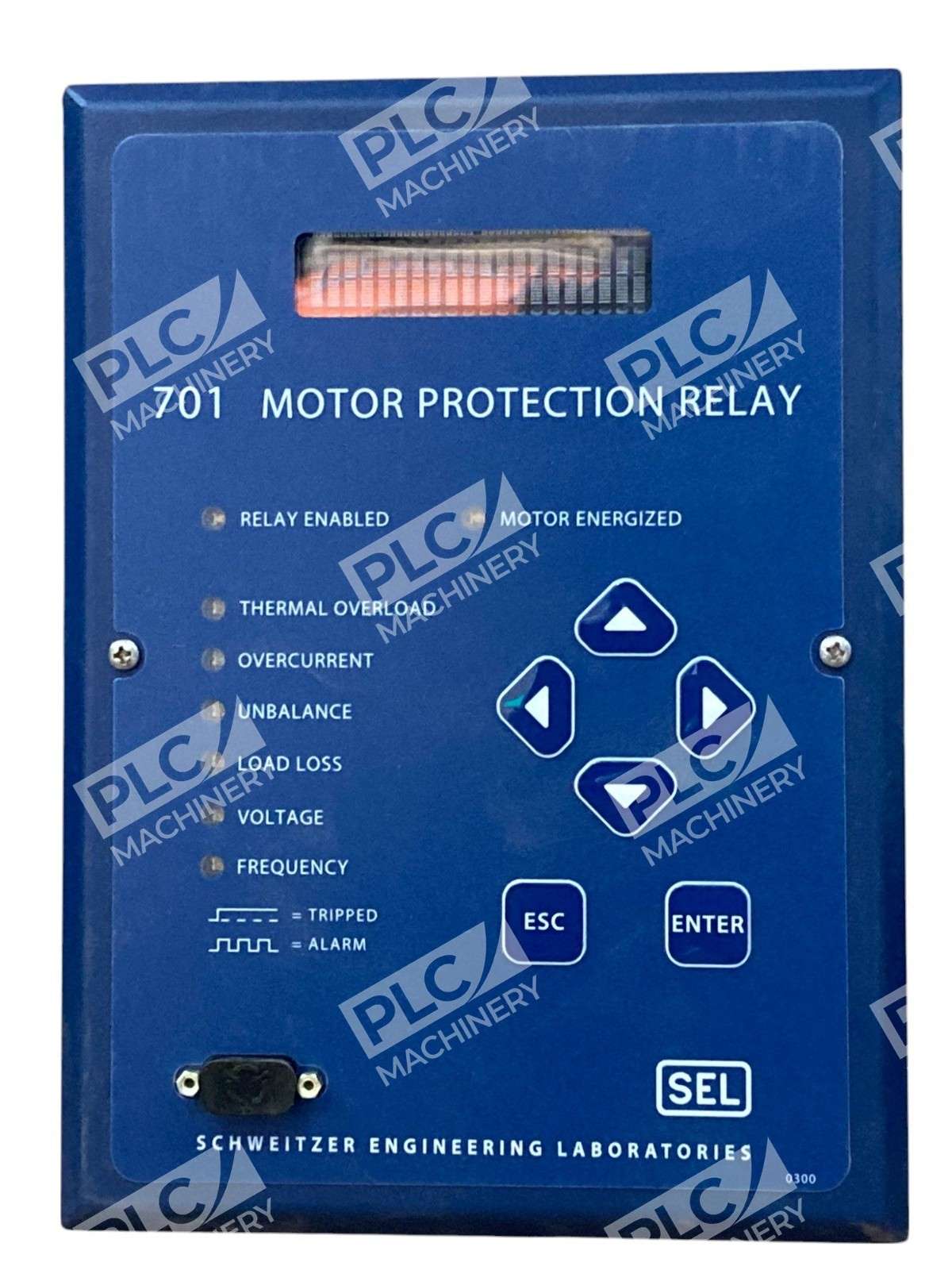

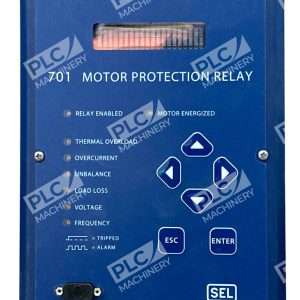

- Front Panel Interface: EIA-232 serial port for local configuration and monitoring
- Data Logging: Event Summaries (HIS), Event Reports (EVE), Sequential Events Recorder (SER), Load Profile (LDP), Motor Statistics (MOT), Motor Start Reports (MSR)

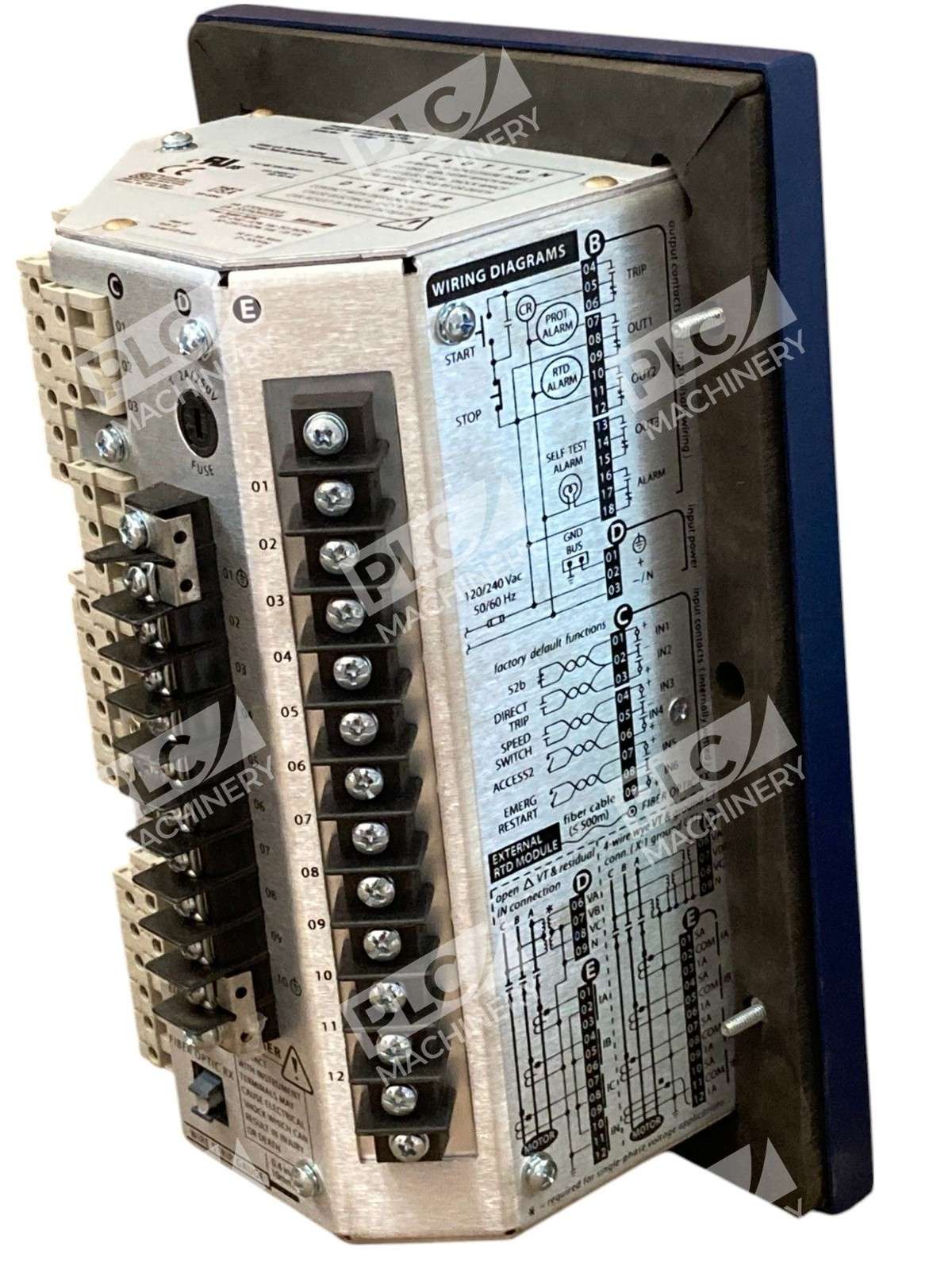

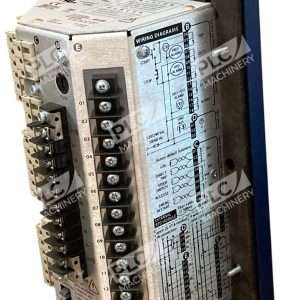

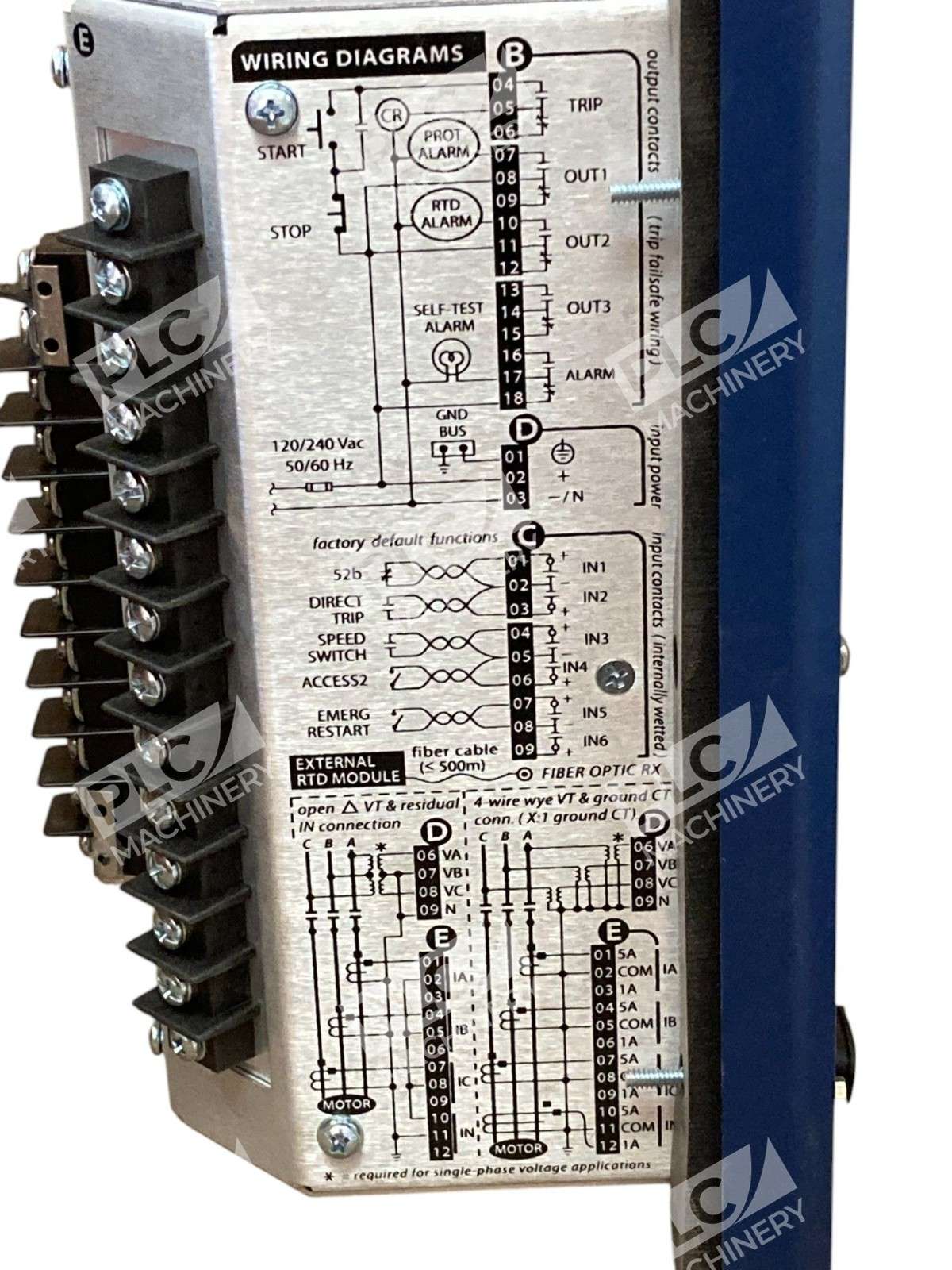

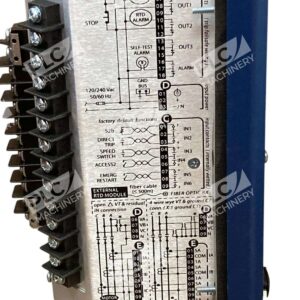

- Installation: Panel-mounted with four mounting studs and locknuts (10–15 in/lb torque recommended)
Typical Applications
The SEL-701 is commonly deployed in electrical systems designed to protect three-phase, medium voltage motors in industrial environments including:
- Process mills and manufacturing plants
- Water and wastewater pumping stations
- Power generation and utility motor control centers
- Compressor and fan motor protection
- Mining and extraction equipment
- HVAC and chiller motor systems in large facilities
Compatibility & Replacements
Compatible With
- Three-phase medium voltage motor control systems
- Industrial automation and SCADA systems supporting ASCII or Modbus RTU protocols
- Motor control centers (MCCs) with standard relay panel cutouts
- Electrical power distribution systems with EIA-232 or EIA-485 serial communication
- Legacy and modern motor protection relay replacement applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or electrical engineer before ordering. The SEL-701 0701011XXX is a specific motor protection relay model; predecessor or competing alternatives should be confirmed for direct substitution based on current settings, CT ratios, and control scheme requirements.
Works With
- SEL-701PC Software (configuration and commissioning)
- ASCII serial communication (front-panel EIA-232)
- Modbus RTU protocol (rear-panel EIA-485)
- Standard SCADA platforms supporting serial-based relay communication
- RTD temperature sensors for advanced thermal monitoring
- Voltage inputs for over/undervoltage and frequency monitoring
