Overview

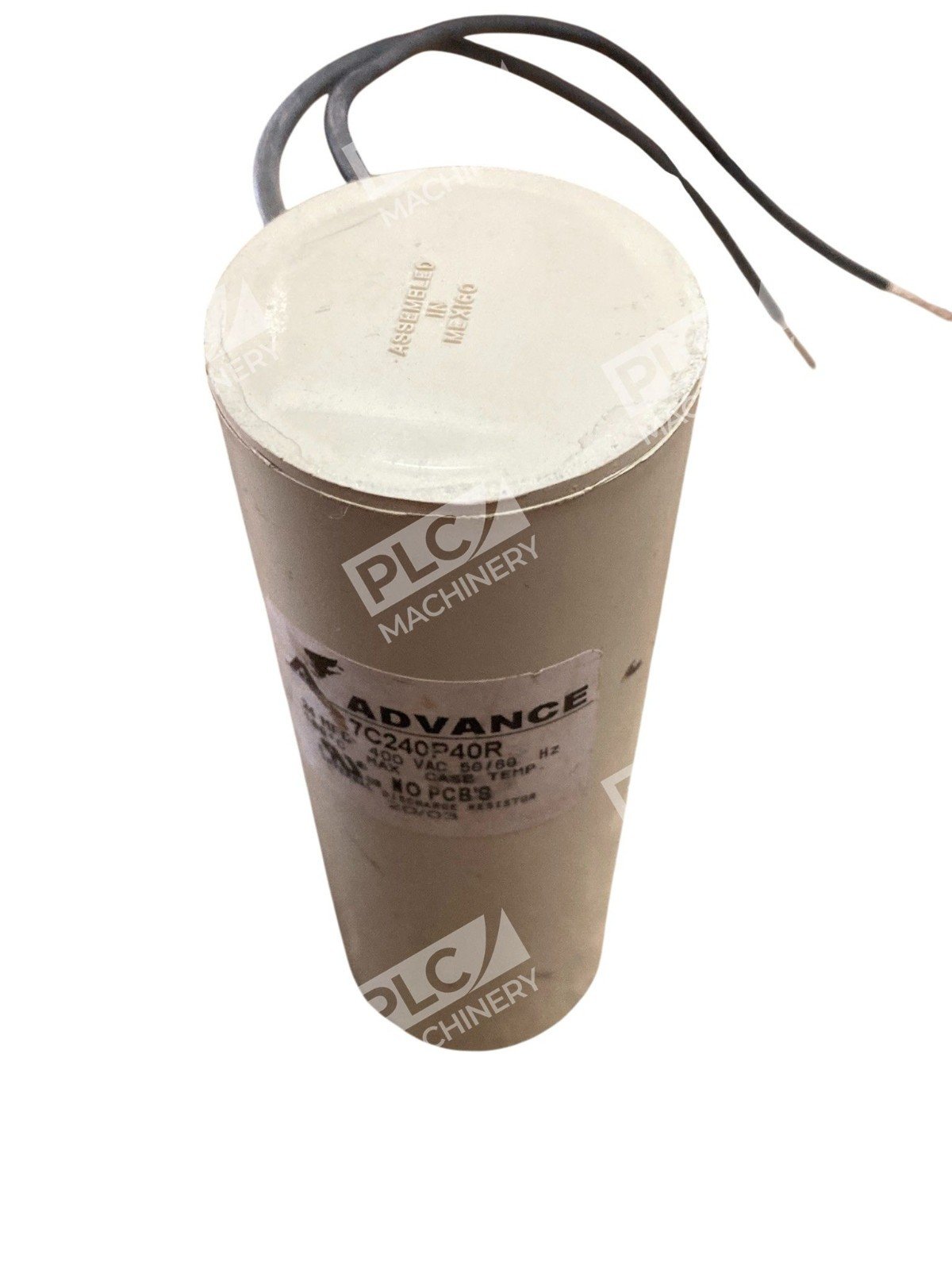

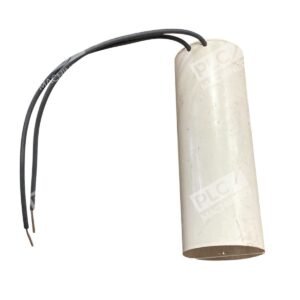

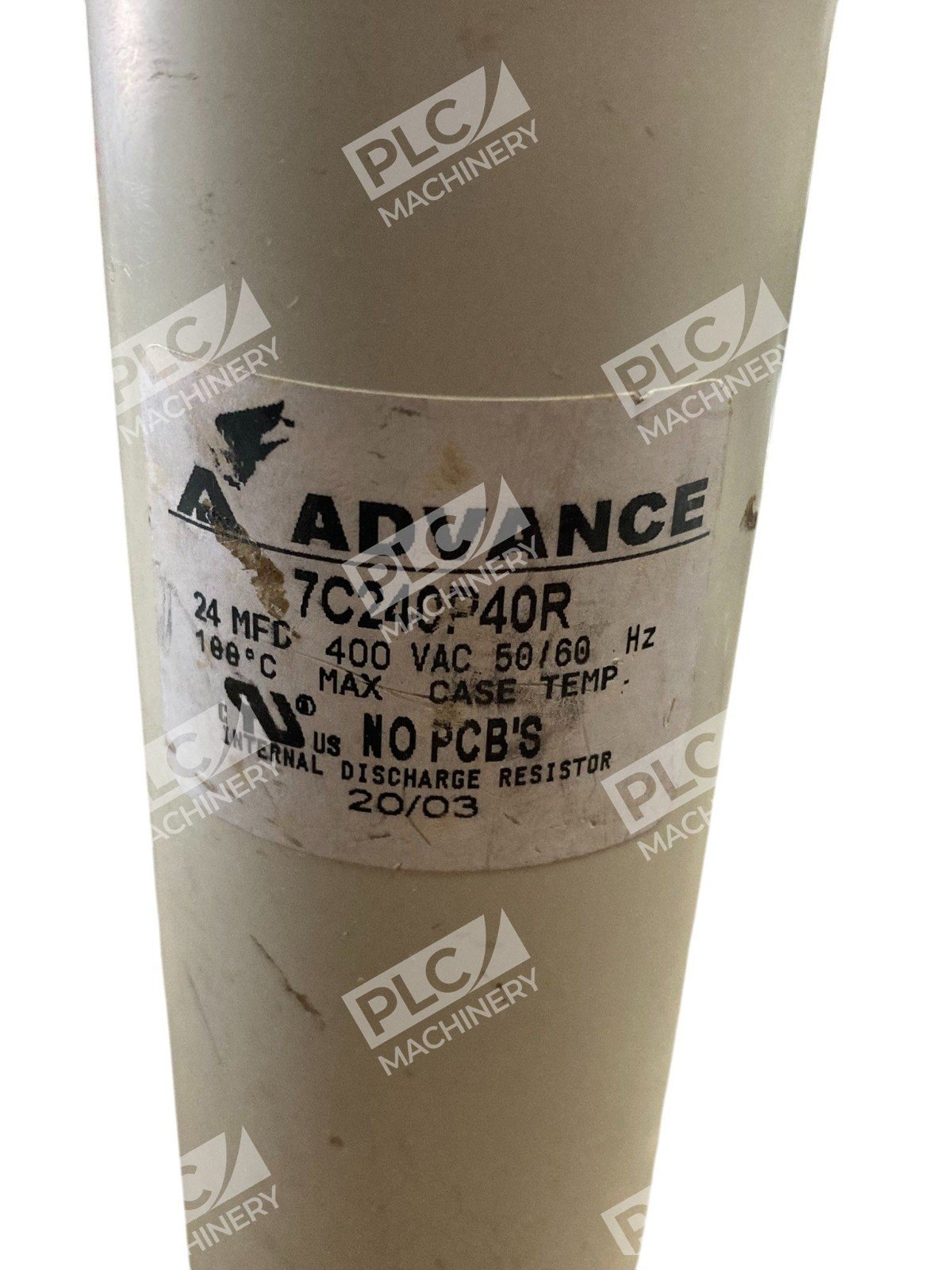

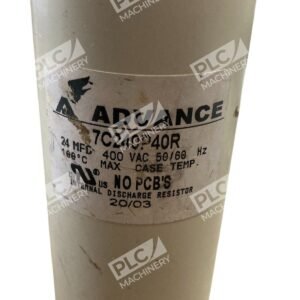

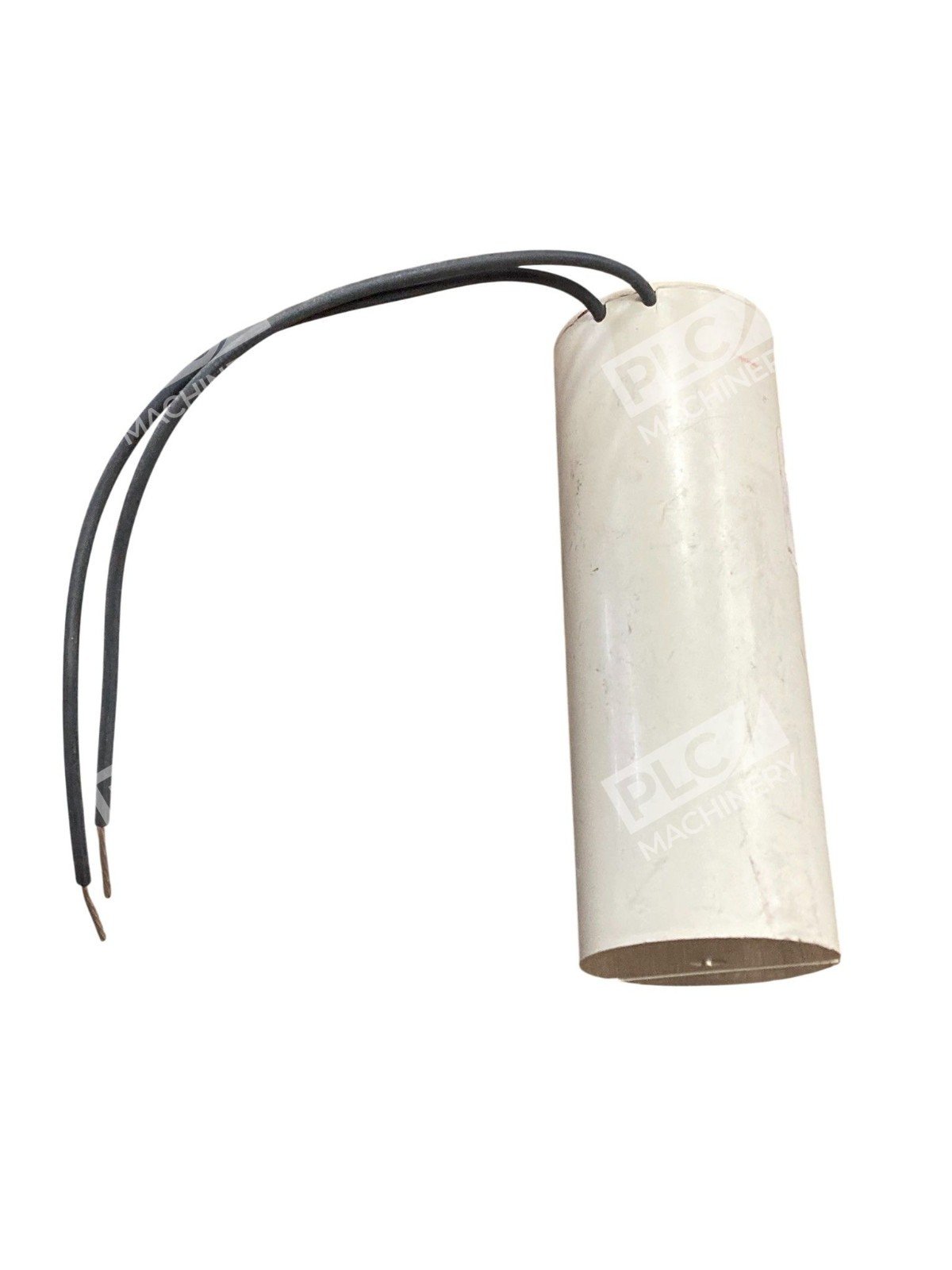

The Philips Advance 7C240P40R is a high-reliability dry film ballast capacitor engineered for high-intensity discharge (HID) metal halide lighting systems. Rated at 24µF and 400VAC, this capacitor delivers the reactive power compensation required for optimal ballast operation and lamp performance in 400W M59 ANSI metal halide fixtures. Built to industrial standards with a maximum operating temperature of 105°C, it provides dependable capacitance stability and long service life.
Key Features
- 24µF capacitance rated for 400VAC operation
- Dry film (non-PCB) construction for safe, reliable performance
- EB25 plastic case with 8-inch leads for flexible installation
- Designed for 400W metal halide lamps (ANSI M59 code)
- 50/60Hz compatible for global deployment
- EB25 elliptical dimple case design minimizes temperature stress
Technical Specifications
- Capacitance: 24µF
- Voltage Rating: 400VAC
- Type: Dry Film (Non-PCB)

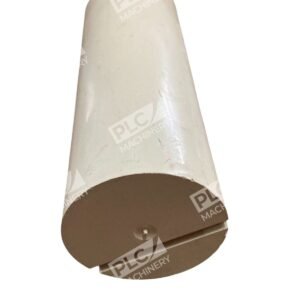

- Case Style: EB25 (Elliptical Dimple), Plastic

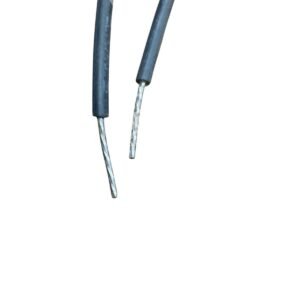

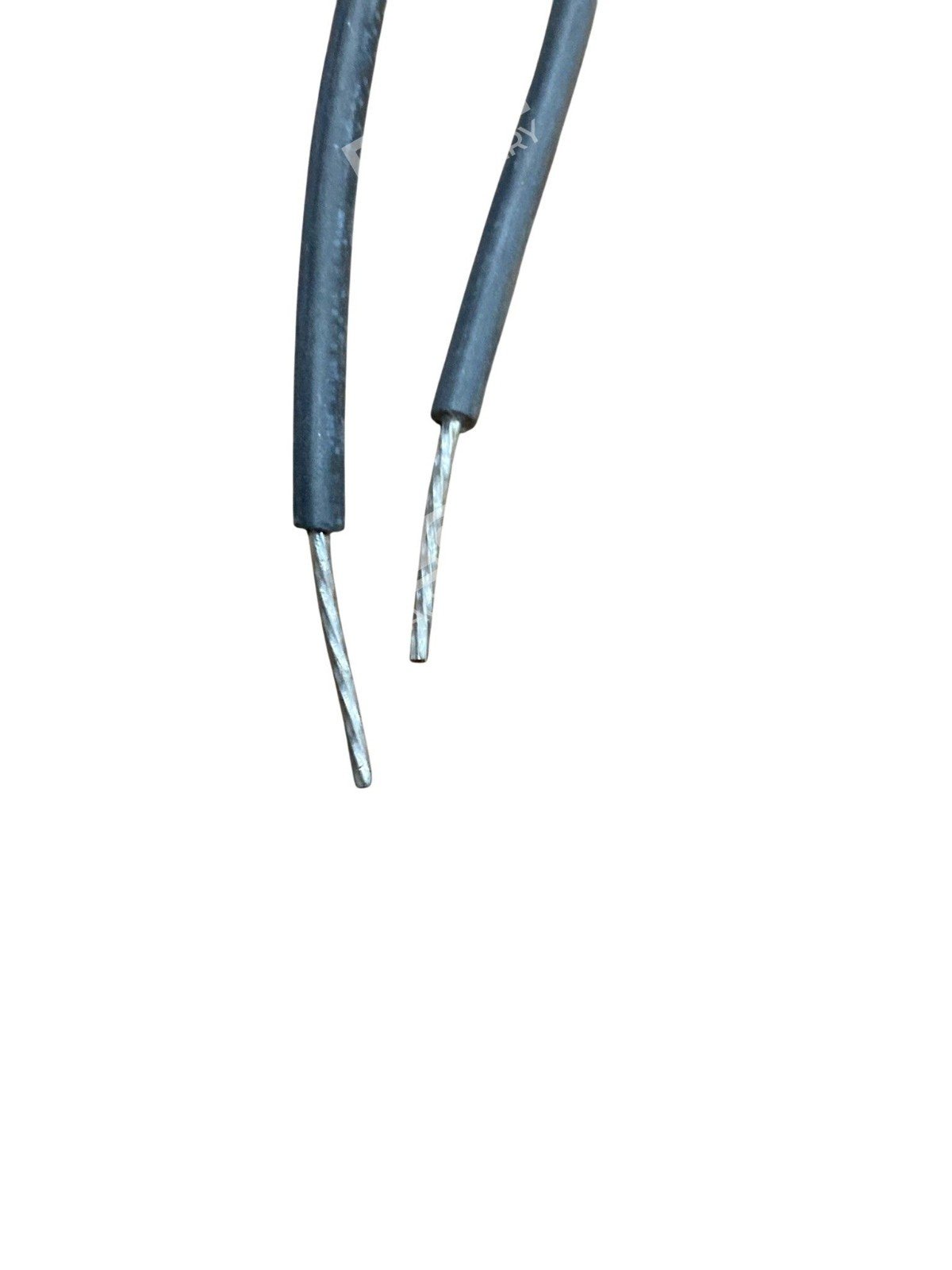

- Lead Length: 8 inches
- Frequency: 50/60Hz
- Maximum Operating Temperature: 105°C
- Capacitance Tolerance: ±3%
- Dimensions: 1.75 x 5.15 inches
- Application: 400W Metal Halide HID Ballast
- ANSI Code: M59
Typical Applications
The Philips Advance 7C240P40R is widely used in:
- Factory and warehouse lighting (400W metal halide systems)
- Sports facility and stadium illumination
- Outdoor security and flood lighting
- Commercial retail and showroom applications
- Industrial plant and equipment lighting
- Ballast retrofits and repairs for M59-rated fixtures
Compatibility & Replacements
Compatible With
- Philips Advance 400W metal halide HID ballasts
- 400W metal halide lamps (ANSI M59, M132, M132, M154)
- Ballast fixtures rated 320–400 watts
- Standard North American and European ballast designs
- 50/60Hz AC utility power systems
Replaces / Drop-In Replacement For
The 7C240P40R is a standard OEM replacement for:
- Other Philips Advance equivalent 24µF/400VAC ballast capacitors
- Universal 24µF 400VAC dry film capacitors in M59 ballast circuits
- Ballast repair kits requiring 24µF capacitance (verify with original ballast documentation)
Works With
- Advance Philips magnetic ballasts (M59 rated)
- Standard electronic HID ballast controllers
- Lighting control systems and dimmers compatible with capacitive ballast circuits
- Power factor correction networks in commercial lighting panels
