<h2>Overview</h2>

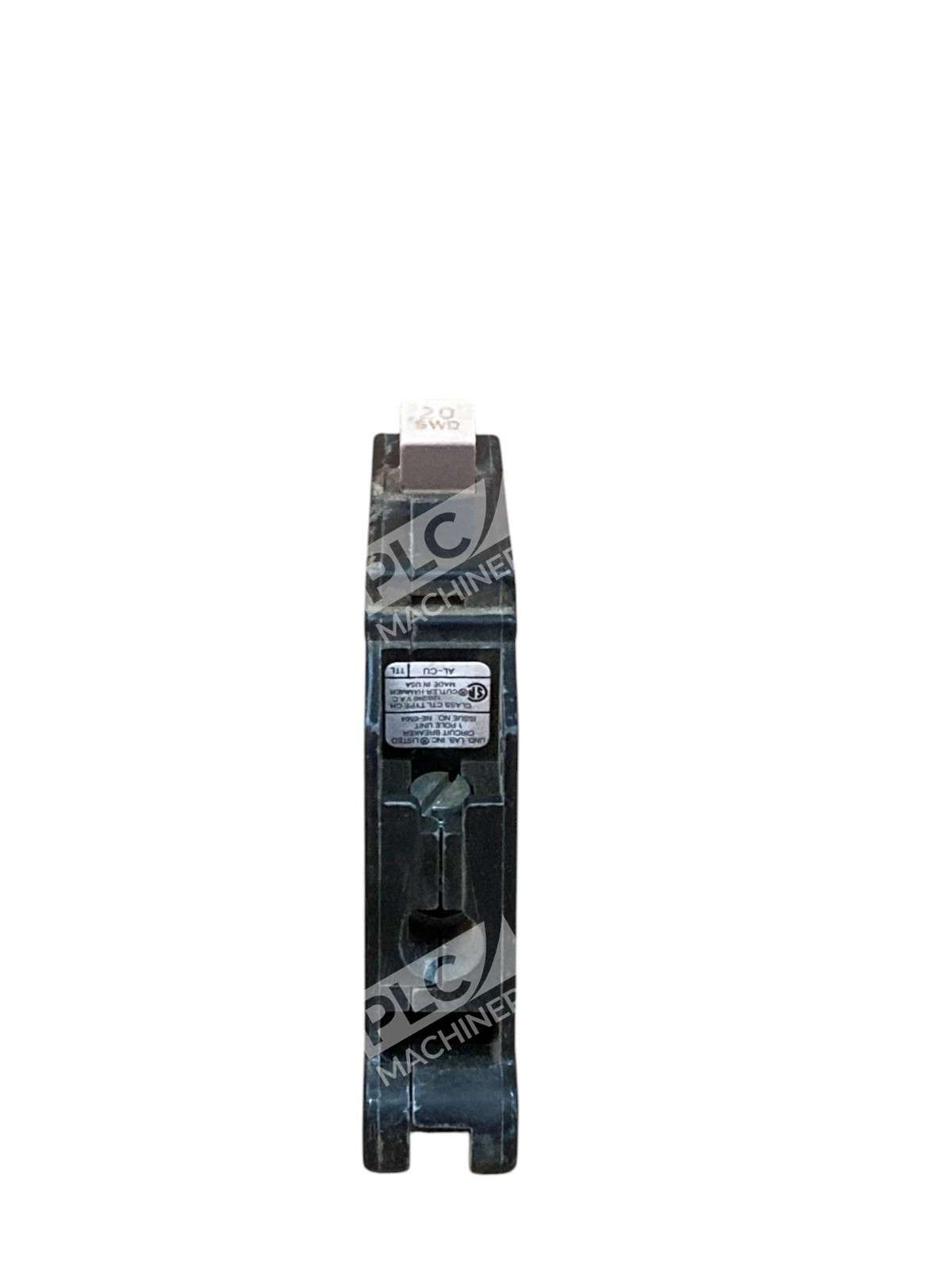

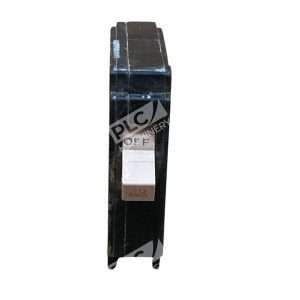

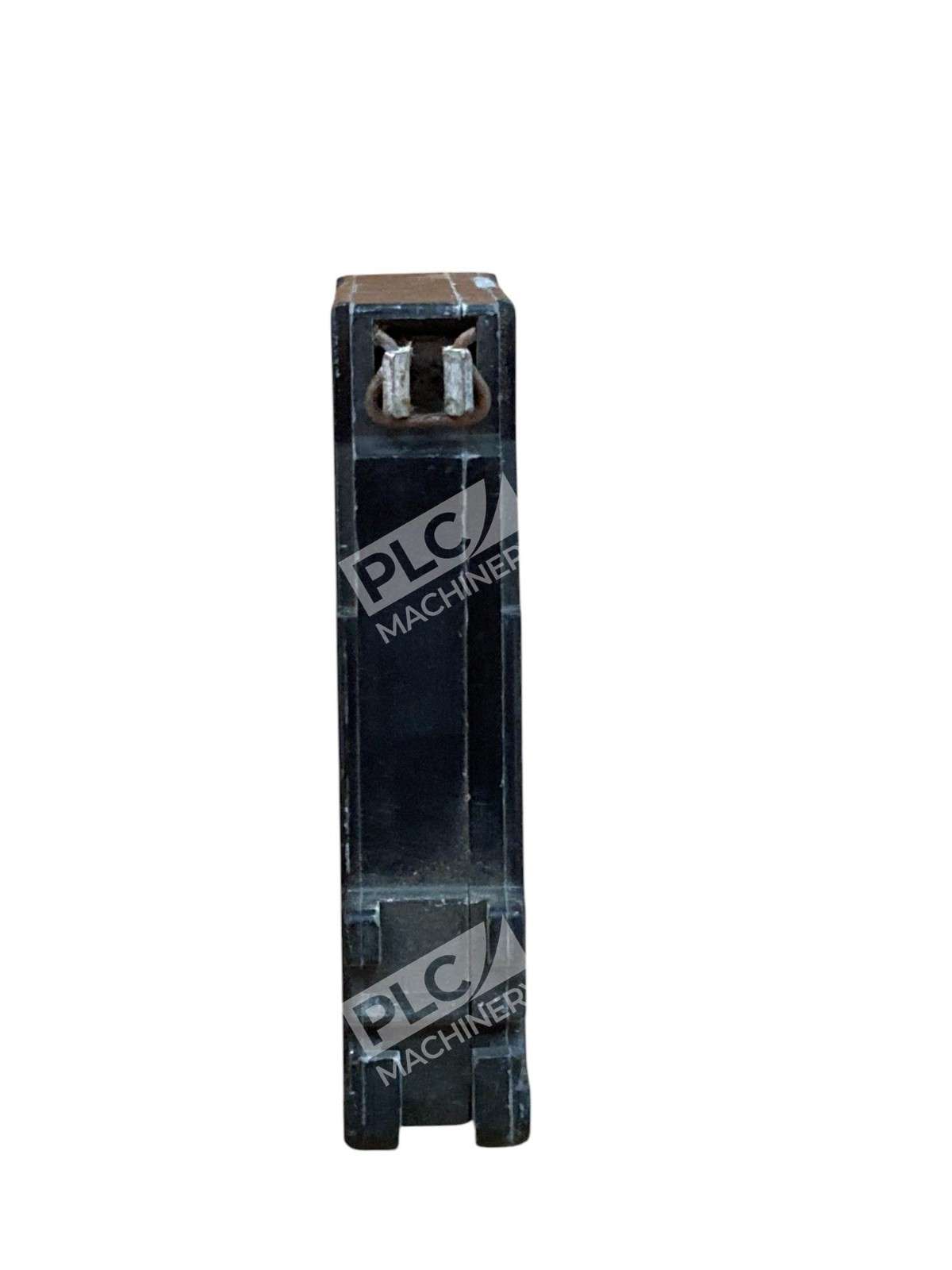

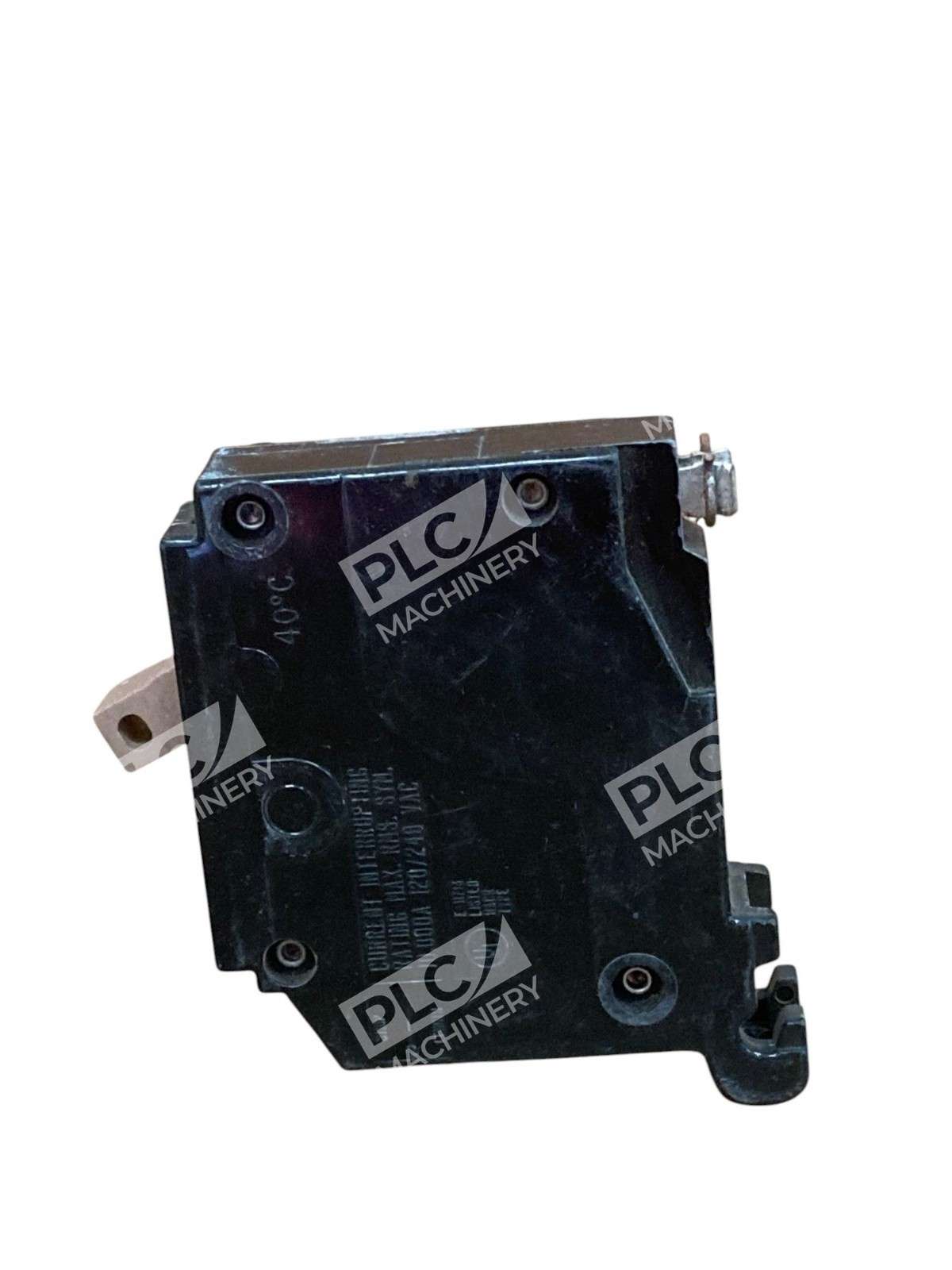

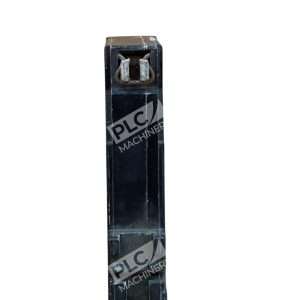

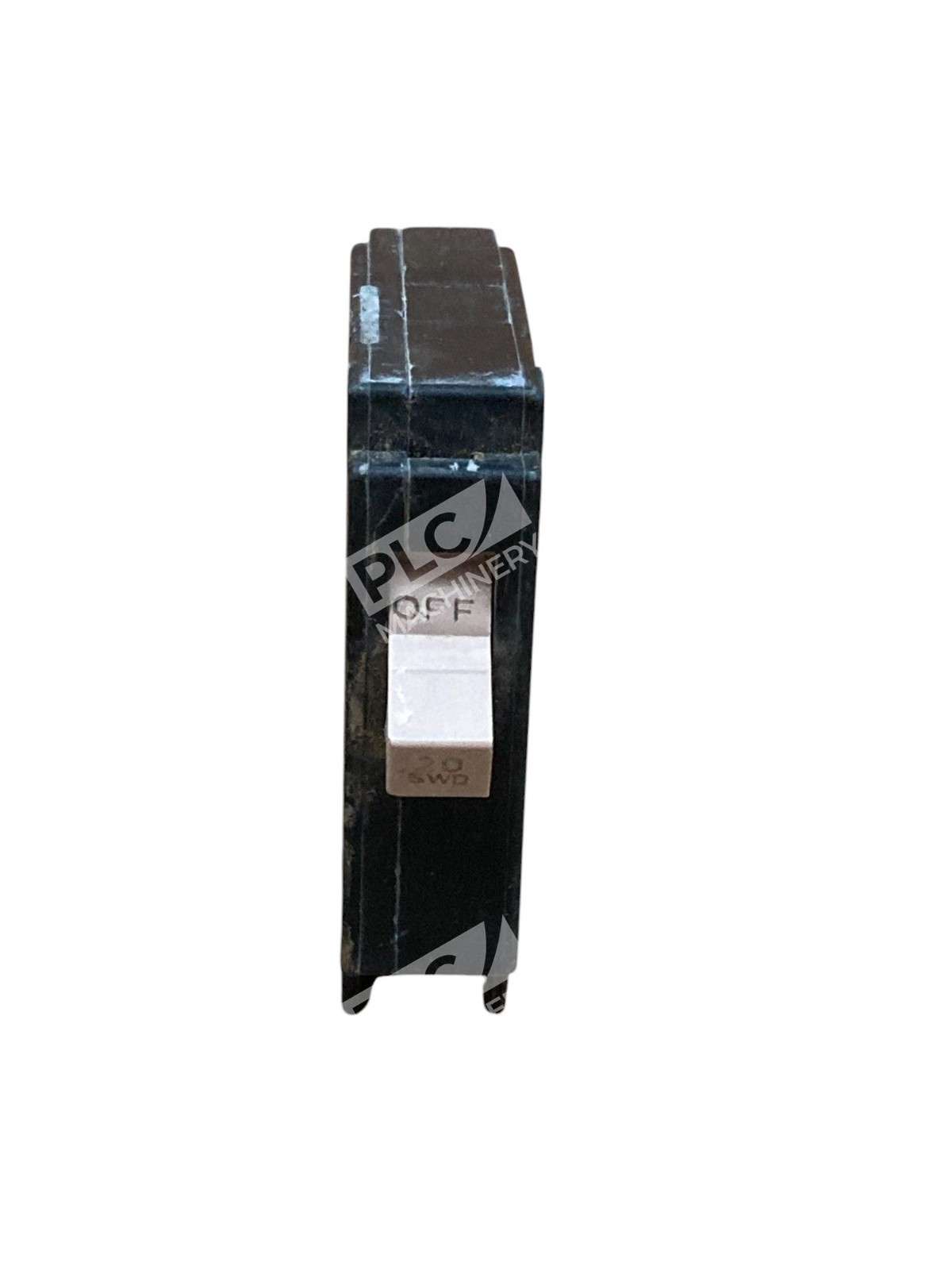

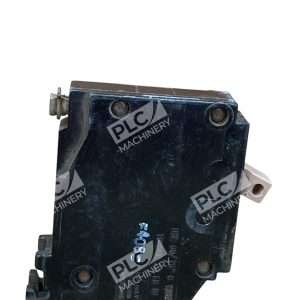

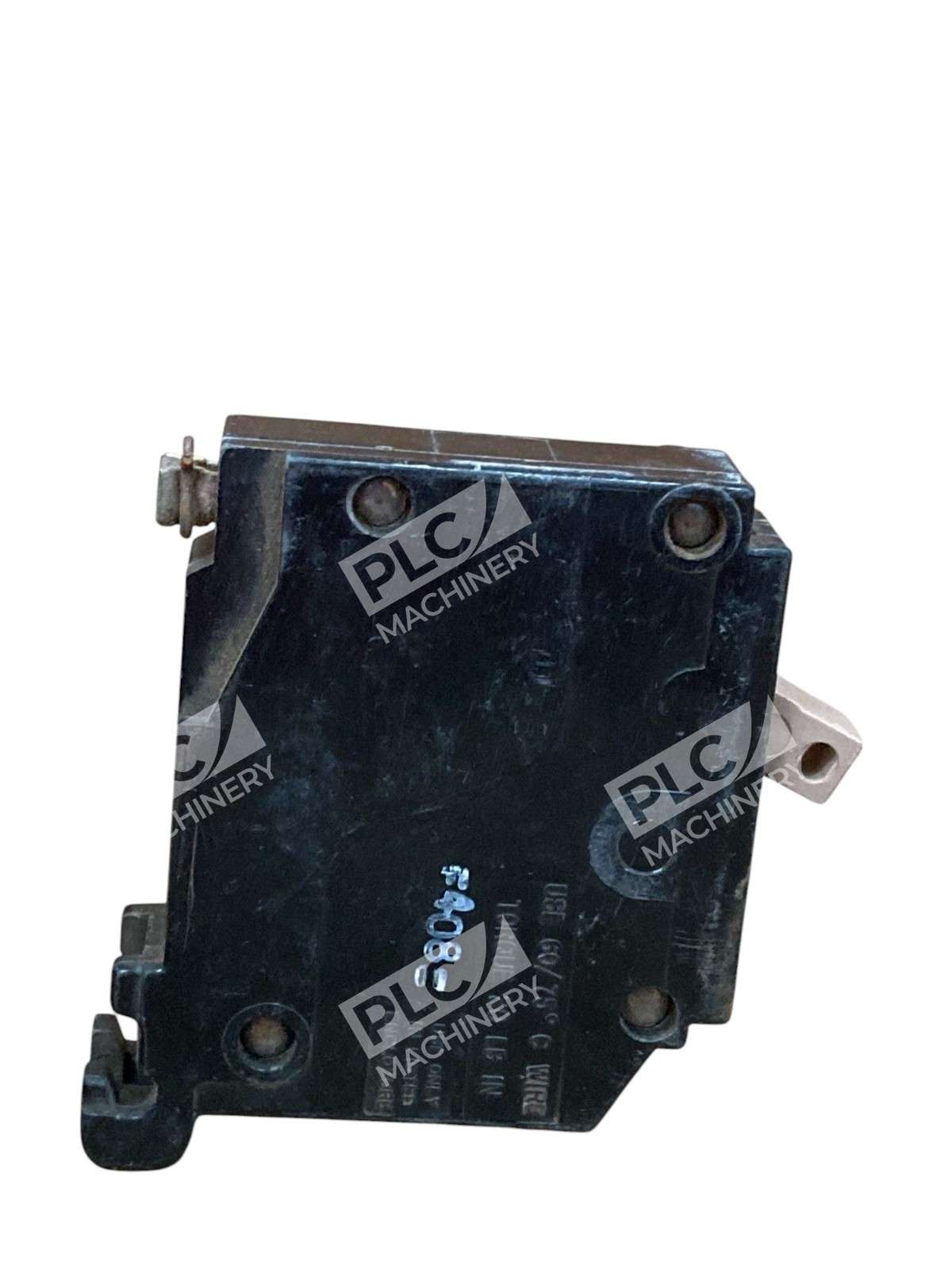

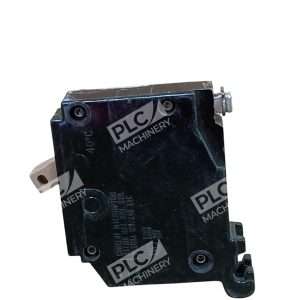

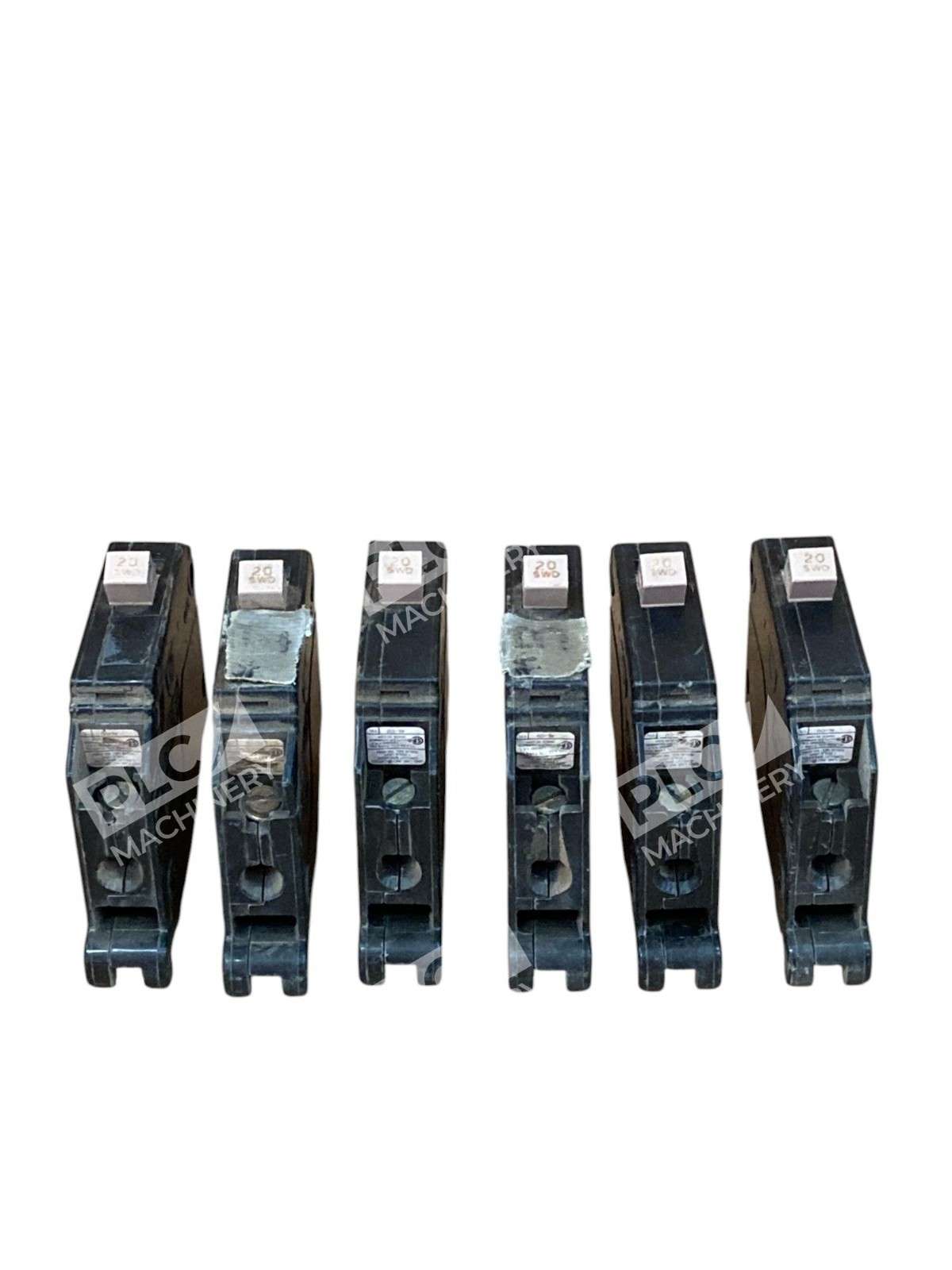

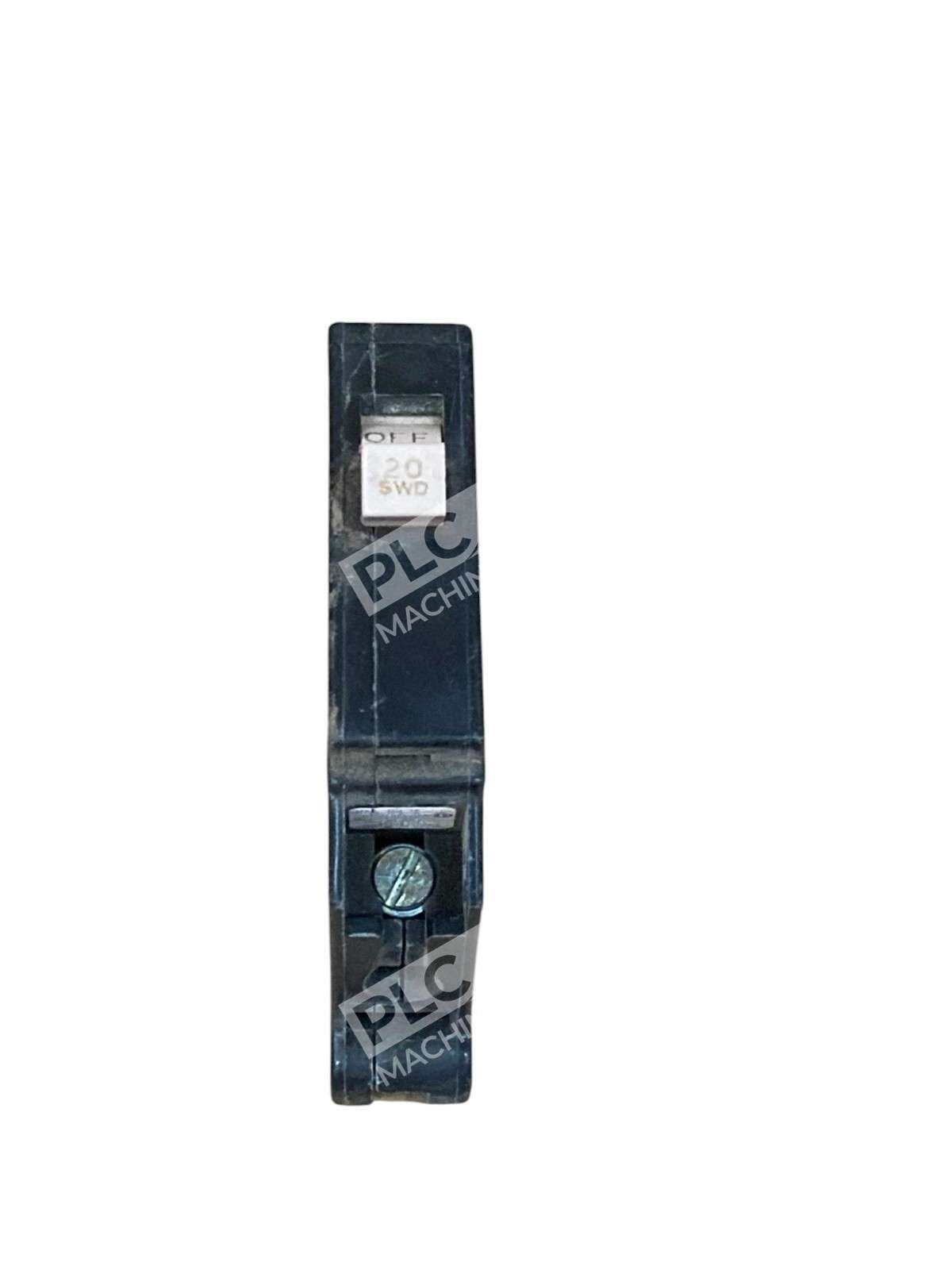

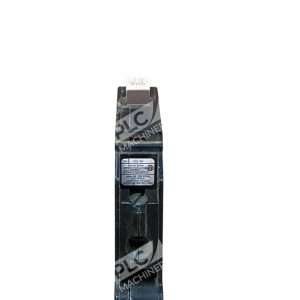

<p>This lot includes 6 units of the Cutler-Hammer CH120 circuit breaker, a standard single-pole residential and light commercial protection device. The CH120 is a 1-pole, 20-amp circuit breaker designed for 120/240V electrical systems. The CH120 utilizes a Thermal Magnetic trip unit, providing both time-delay protection for overloads and instantaneous protection for short circuits. These breakers are fully functional, tested, and ready for panel installation.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Single-Pole Design:</strong> Ideal for standard branch circuits</li>
<li><strong>Thermal-Magnetic Protection:</strong> Provides both time-delay protection for overloads and instantaneous protection for short circuits, with an interrupting rating of 10kA@120VVAC</li>
<li><strong>Compact Footprint:</strong> 3/4-inch width maximizes panel space</li>
<li><strong>Plug-On Mounting:</strong> Installs quickly into Eaton Type CH load centers via standard plug-on connection</li>
<li><strong>SWD & HACR Rated:</strong> Fully SWD and HACR rated, ensuring safe operation for lighting and HVAC equipment</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li>Amperage: 20A</li>
<li>Voltage Rating: 120/240V AC</li>
<li>Poles: 1 (single-pole)</li>

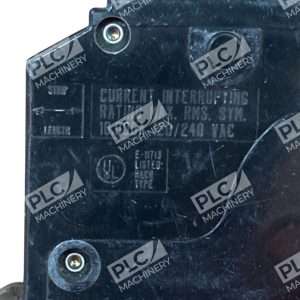

<li>Interrupting Rating: 10 kA @ 120/240V</li>
<li>Trip Type: Thermal-Magnetic (Long-Time and Instantaneous)</li>
<li>Mount Style: Plug-On (Type CH frame)</li>
<li><strong>Wire Size:</strong> (1) #14-8 AWG and (2) #14-10 AWG copper/aluminum conductors</li>
<li>Width: 3/4 inch</li>

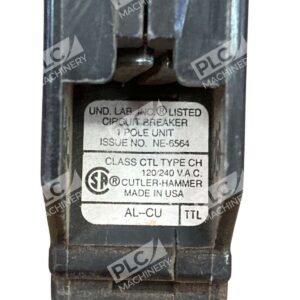

<li><strong>Certifications:</strong> UL, CSA</li>
<li><strong>Series:</strong> Type CH (Eaton CH frame)</li>
<li><strong>Condition:</strong> Used, Tested, Fully Functional</li>
<li><strong>Quantity per Lot:</strong> 6 units</li>
</ul>
<h2>Typical Applications</h2>
<p>The Cutler-Hammer CH120 is suitable for a range of residential and light commercial circuits:</p>
<ul>
<li><strong>Branch Circuits:</strong> Ideal for standard branch circuits</li>
<li><strong>Residential Loads:</strong> Kitchen circuits, wall receptacles, electric heaters, dishwashers, and more</li>
<li><strong>Lighting & HVAC:</strong> Safe operation for lighting and HVAC equipment</li>
<li><strong>General Distribution:</strong> Suitable for residential, commercial, and light industrial electrical distribution systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Eaton Type CH load centers and main panels</li>
<li>Cutler-Hammer CH-frame breaker panels</li>
<li>120/240V single-phase residential and light commercial systems</li>
<li>Standard North American residential panel configurations</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Cutler-Hammer CH120 (all manufactured versions)</li>
<li>Eaton CH120 thermal-magnetic breaker</li>
<li>Original equipment replacements for Type CH panels</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Type CH load center configurations (plug-on/clip-on style)</li>
<li>Standard branch circuit wiring (14 to 8 AWG)</li>
<li>Thermal-magnetic protection schemes (no digital/electronic compatibility required)</li>
</ul>
