Overview

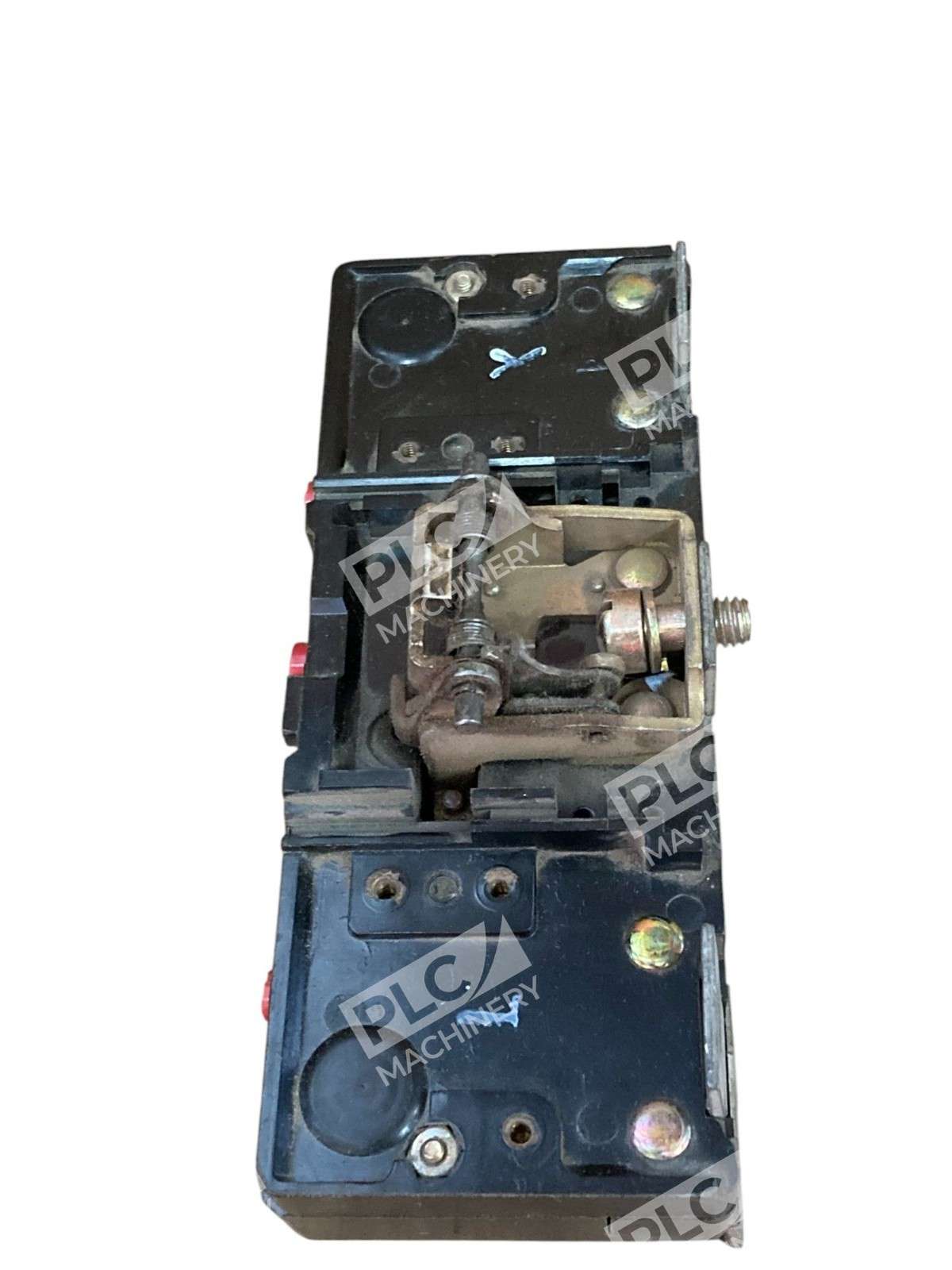

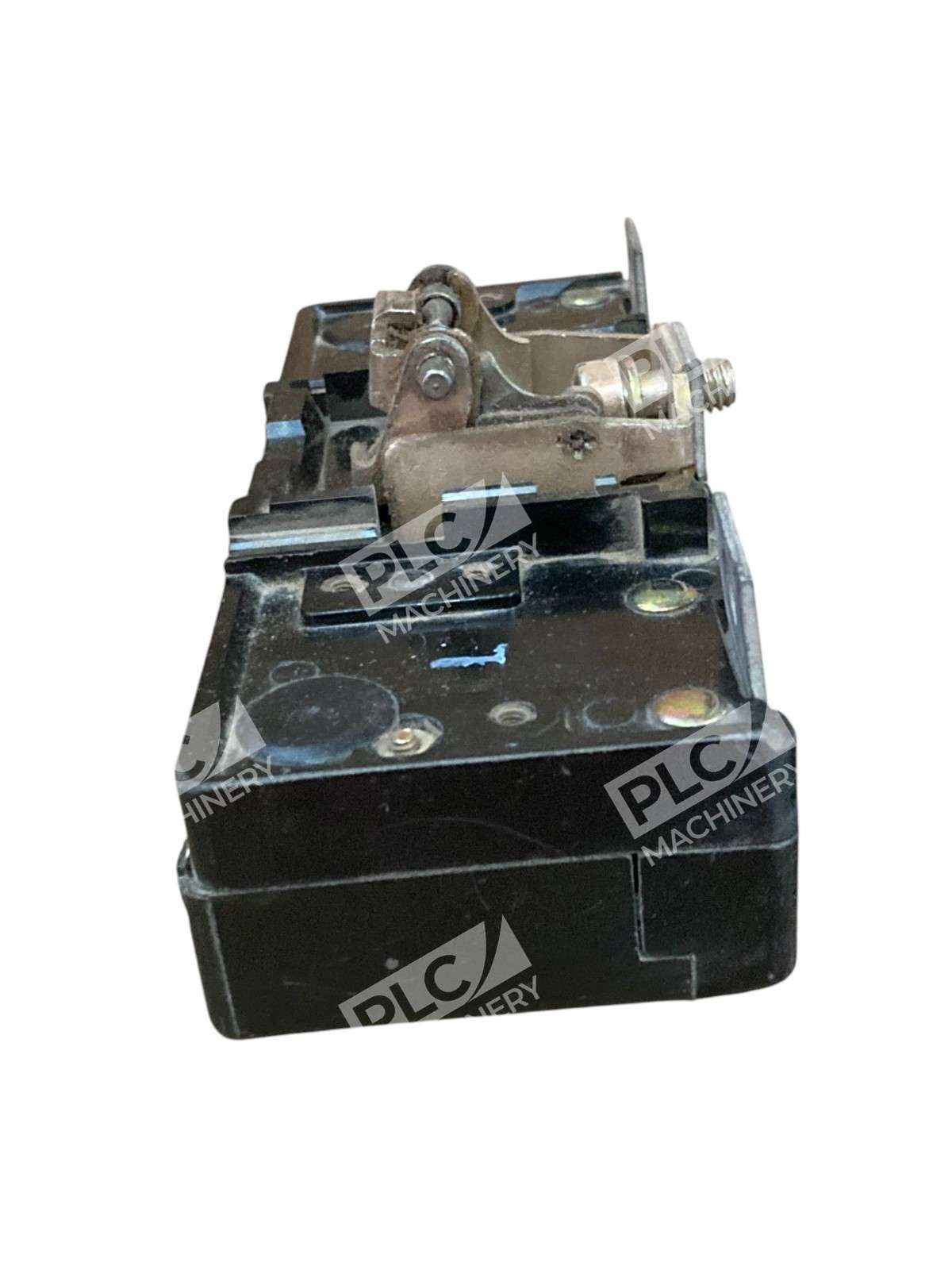

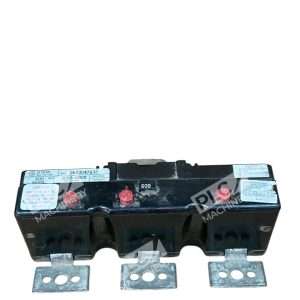

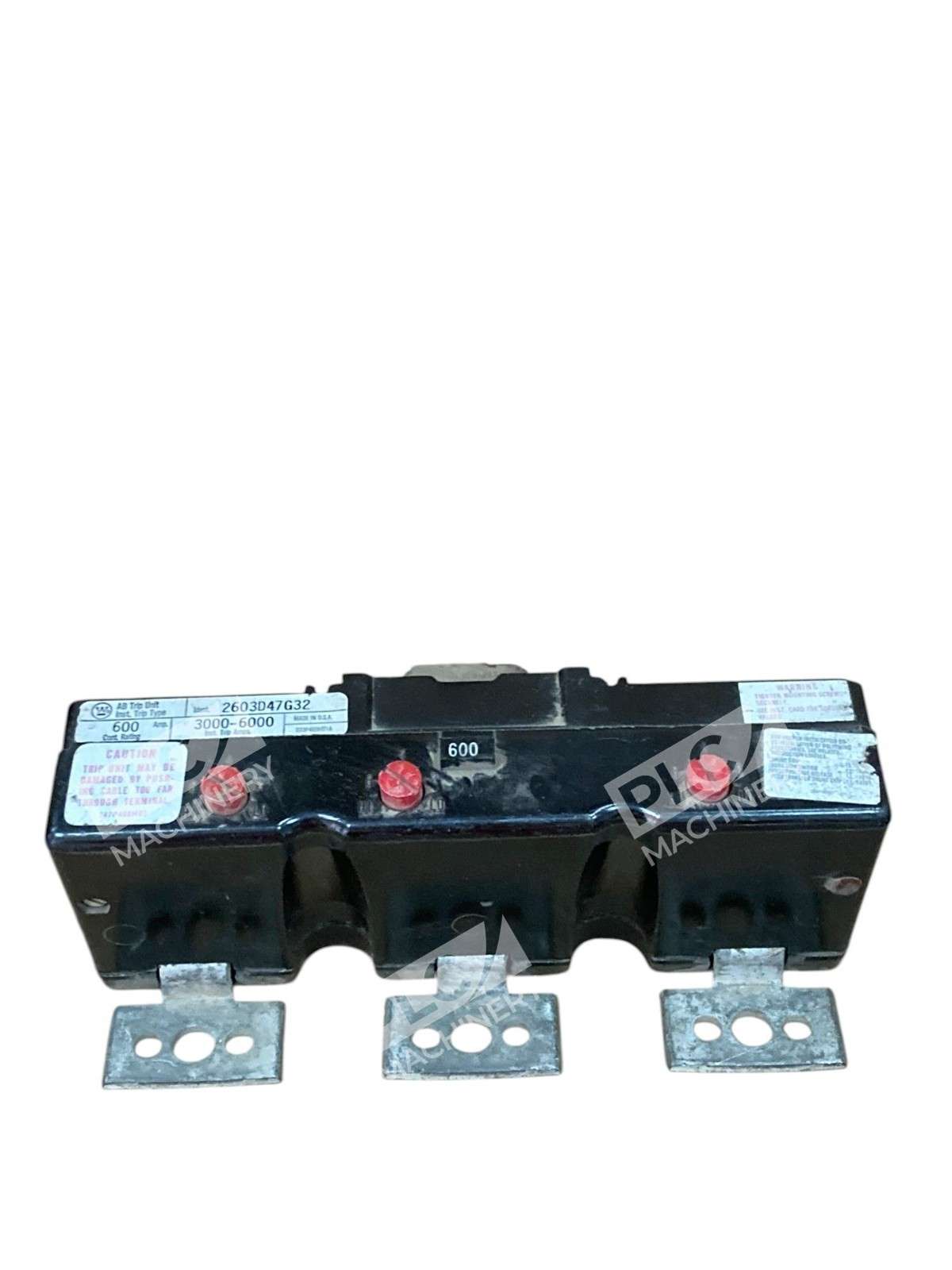

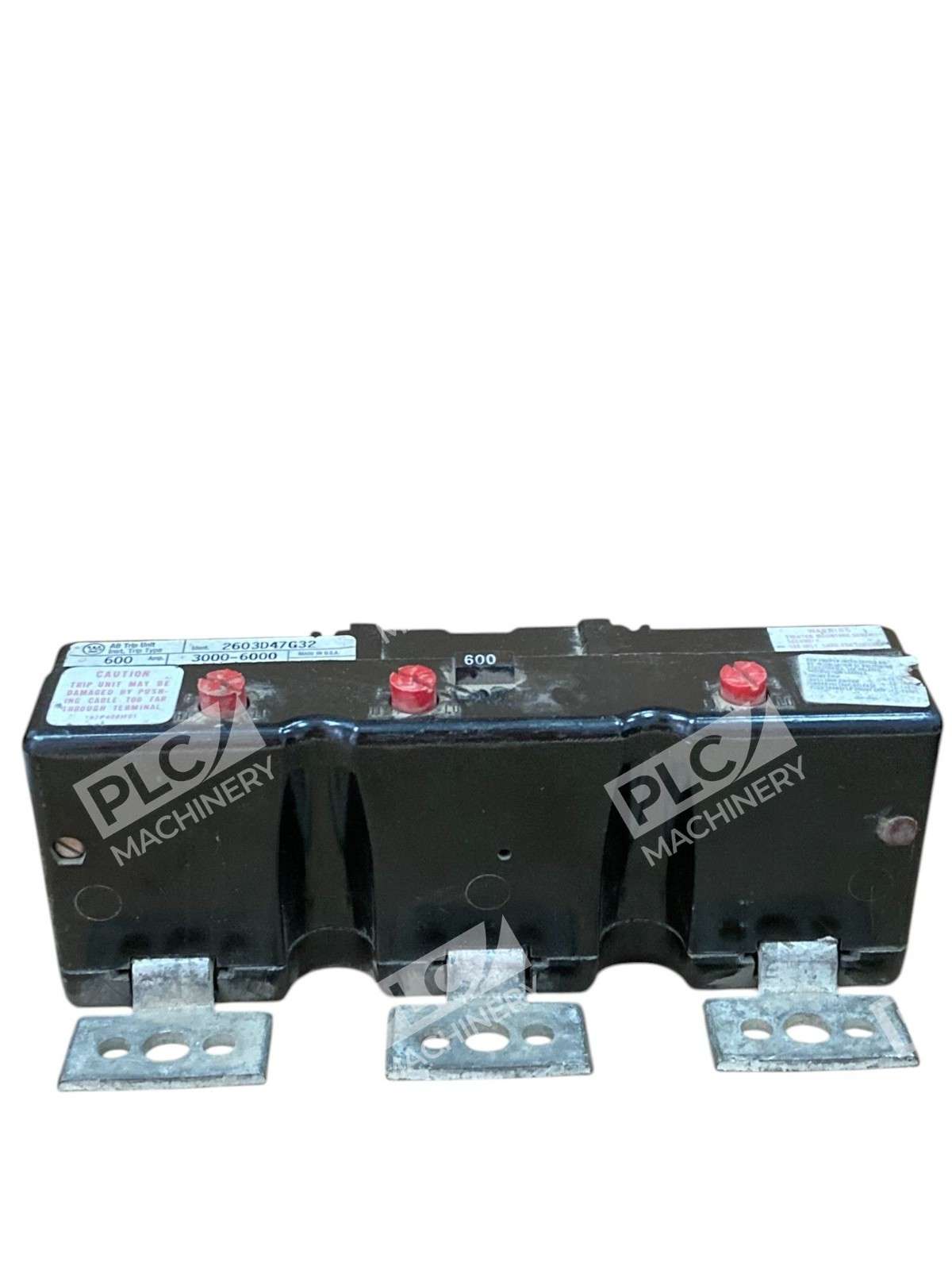

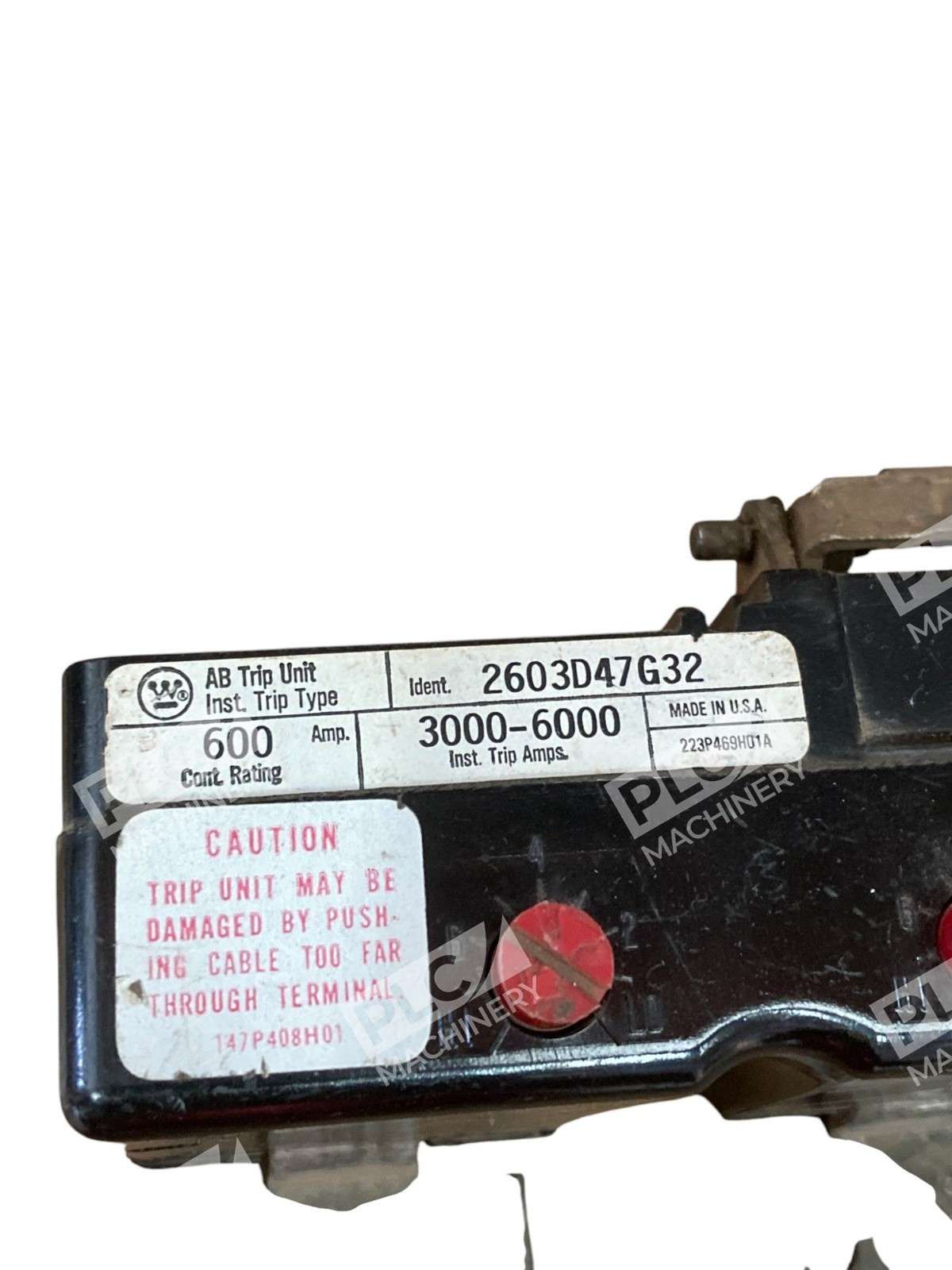

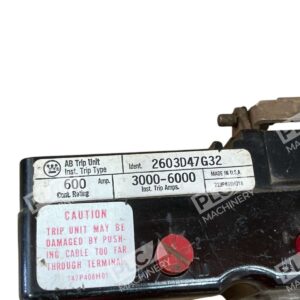

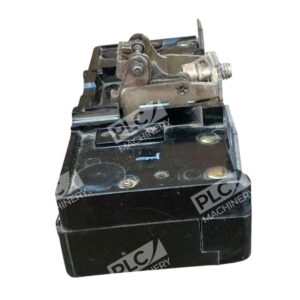

The Westinghouse 2603D47G32 circuit breaker trip unit is engineered for industrial electrical protection in three-phase AC systems. This component features a robust design for on/off operation and manual switch control, making it suitable for applications requiring dependable fault protection and circuit isolation.
Key Features
- 3-pole, 3-phase AC tripping configuration
- On/off operation with switch control method
- Designed for industrial and commercial electrical systems
- Westinghouse-manufactured component for consistent quality
- Black molded case construction
Technical Specifications
- Phase Configuration: 3-phase AC
- Poles: 3
- Operation Type: Manual on/off switch
- Control Style: Switch control
- Manufacturer: Westinghouse Electric Corporation
- Color: Black
- Application: Industrial and commercial electrical distribution
Typical Applications
The Westinghouse 2603D47G32 trip unit is well-suited for industrial electrical systems requiring main breaker protection and circuit isolation. Common applications include:
- Industrial control centers and motor starters
- Main distribution panel protection
- Equipment circuit protection in manufacturing facilities
- Electrical system upgrades and retrofits
Compatibility & Replacements
Compatible With
- Westinghouse molded case circuit breaker frames rated for 3-pole configuration
- Three-phase AC electrical systems (50/60 Hz)
- Industrial distribution and control panels
- Electrical equipment requiring manual on/off control
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 2603D47G32 may replace other Westinghouse 3-pole trip units in compatible frame styles, but specific model cross-references should be confirmed with technical documentation.
Works With
- Westinghouse industrial control systems
- Standard 3-phase AC distribution networks
- Molded case circuit breaker frames with matching mounting specifications
- Industrial electrical switchgear and panelboards
