Overview
The General Electric CR101Y manual motor starter is a full-voltage, non-reversing control solution for single-phase motors. This toggle-operated starter delivers reliable on-off switching with integrated thermal overload protection, making it ideal for applications requiring straightforward motor control without complex automation. The CR101Y is compact, easy to install, and widely used in industrial and commercial environments where manual motor control is preferred.
Key Features
- Toggle operator switch for simple, reliable on-off control
- Full-voltage non-reversing NEMA 1 rated design
- Integrated thermal overload protection with 1 required thermal element
- Small open-type construction fits standard GEM or handy boxes
- Molded switch housing protects internal mechanism
- UL 508 and CSA certified
Technical Specifications
- Manufacturer: General Electric
- Model: CR101Y
- Starter Type: Manual, Full-Voltage Non-Reversing

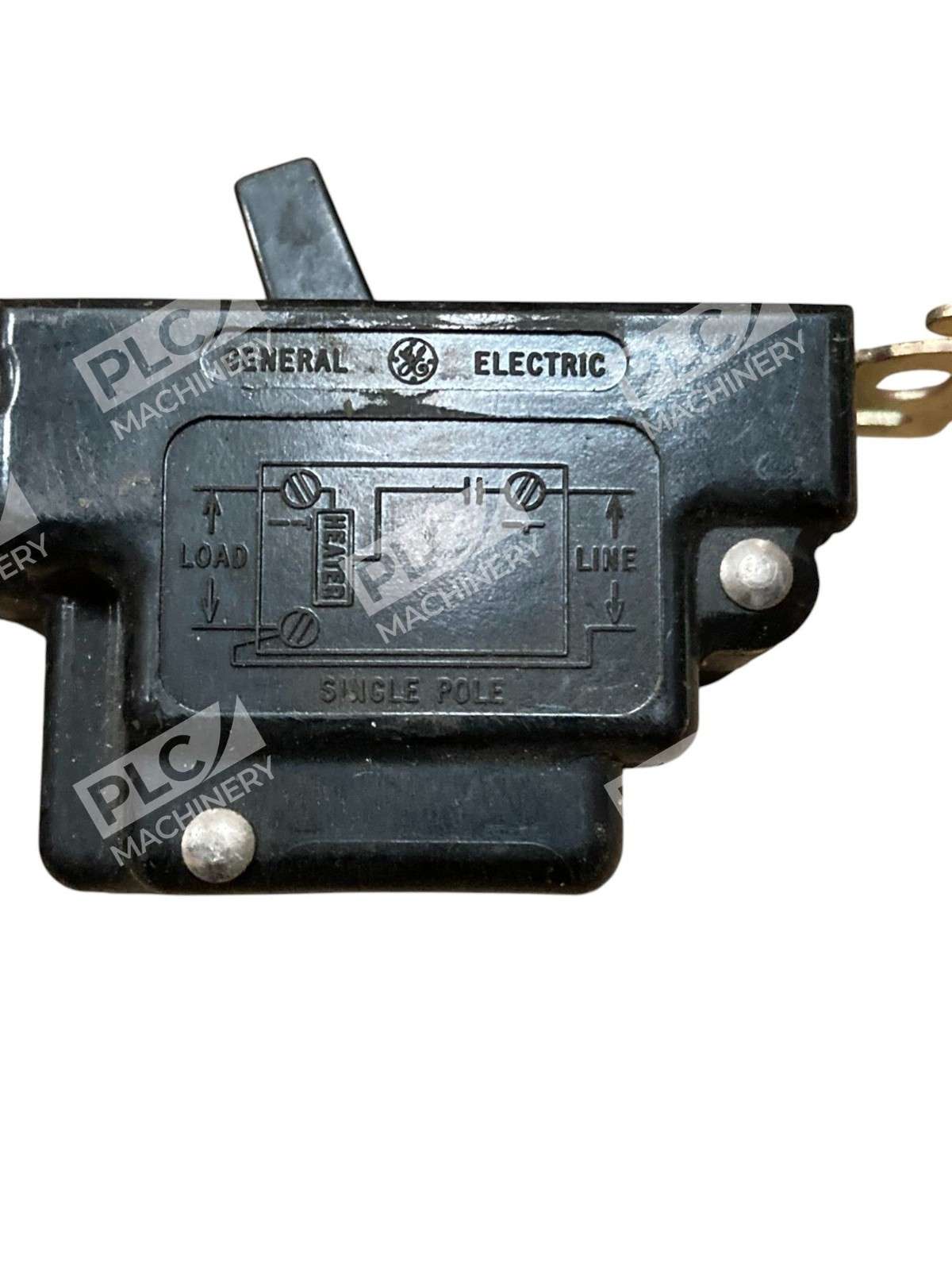

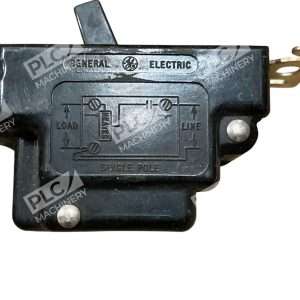

- Number of Poles: 1
- Operator Type: Toggle Switch
- Maximum Current (AC): 16 A
- Voltage Rating: 230 V AC/DC (max)

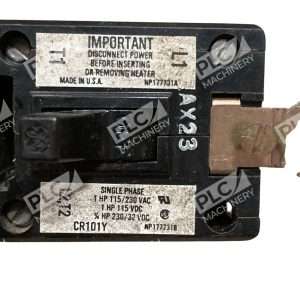

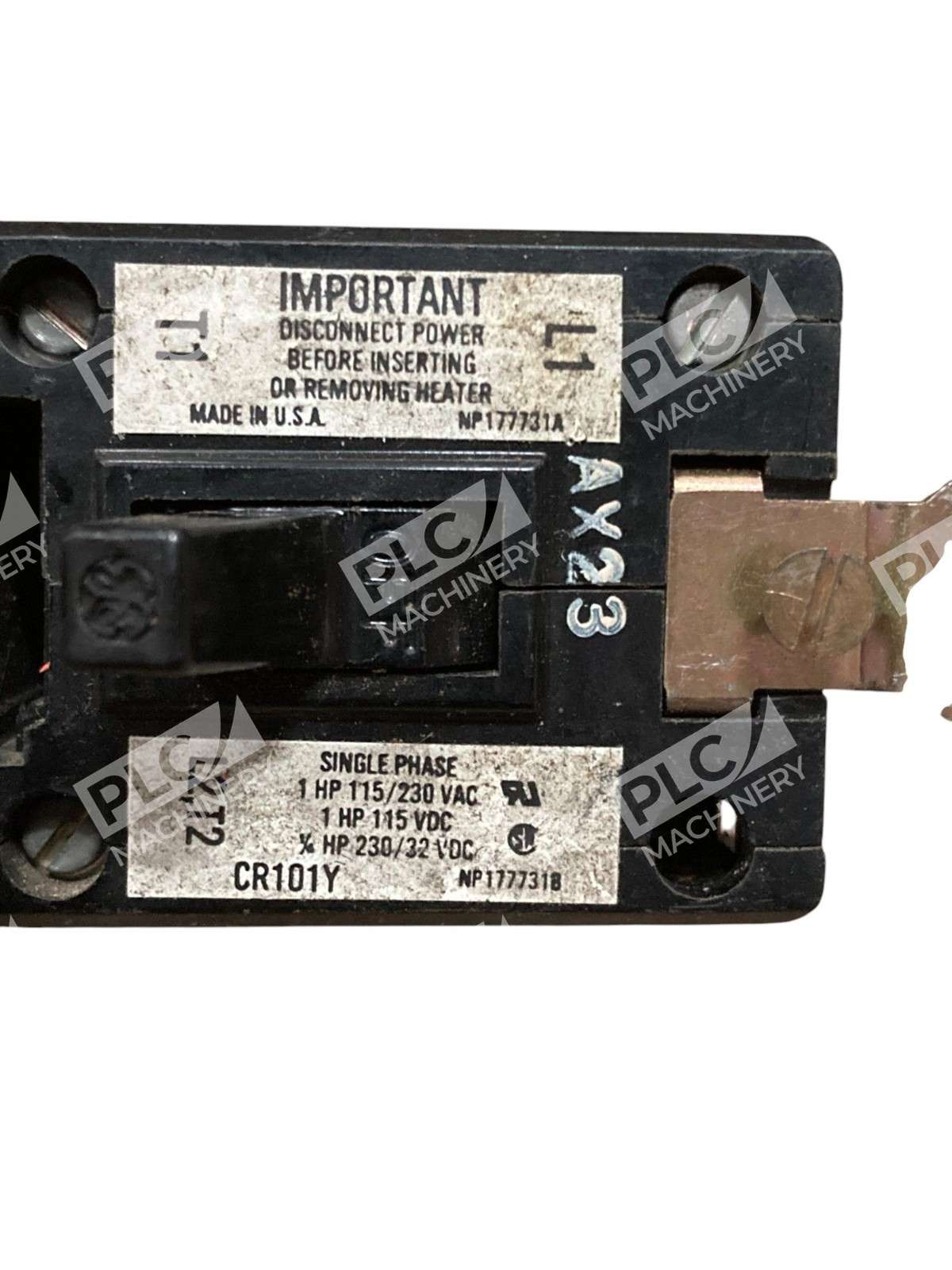

- Horsepower Ratings: 1 HP @ 115/230V AC; 1 HP @ 115V DC; 1/4 HP @ 230V DC; 1/4 HP @ 32V DC
- Enclosure Rating: NEMA 1 (open type)
- Overload Protection: Thermal, 1 thermal element required
- Standards: UL 508, CSA
- Phase: Single Phase
- Overall Dimensions: Approximately 4.16 in H × 2.63 in D
- Mounting: Surface mount (fits GEM or handy box)
Typical Applications
The CR101Y is suited for:
- Pump and fan motor control
- Compressor and blower motor switching
- Small industrial motor applications requiring manual control
- HVAC equipment motor control
- General-purpose single-phase motor switching where automatic starters are not required
Compatibility & Replacements
Compatible With
- Single-phase AC motors rated up to 1 HP at 115/230V
- Single-phase DC motors rated up to 1 HP at 115V
- Standard electrical enclosures and GEM/handy boxes
- Thermal overload relays and protection devices
Replaces / Drop-In Replacement For
- Other GE CR101 series manual starters (CR101Y1, CR101 variants)
- Verify exact model compatibility with system integrator before substitution
Works With
- Standard electrical wiring and box terminals
- Industrial control systems requiring manual motor switching
- Thermal overload protection elements
- NEMA-compliant motor control circuits
