Overview

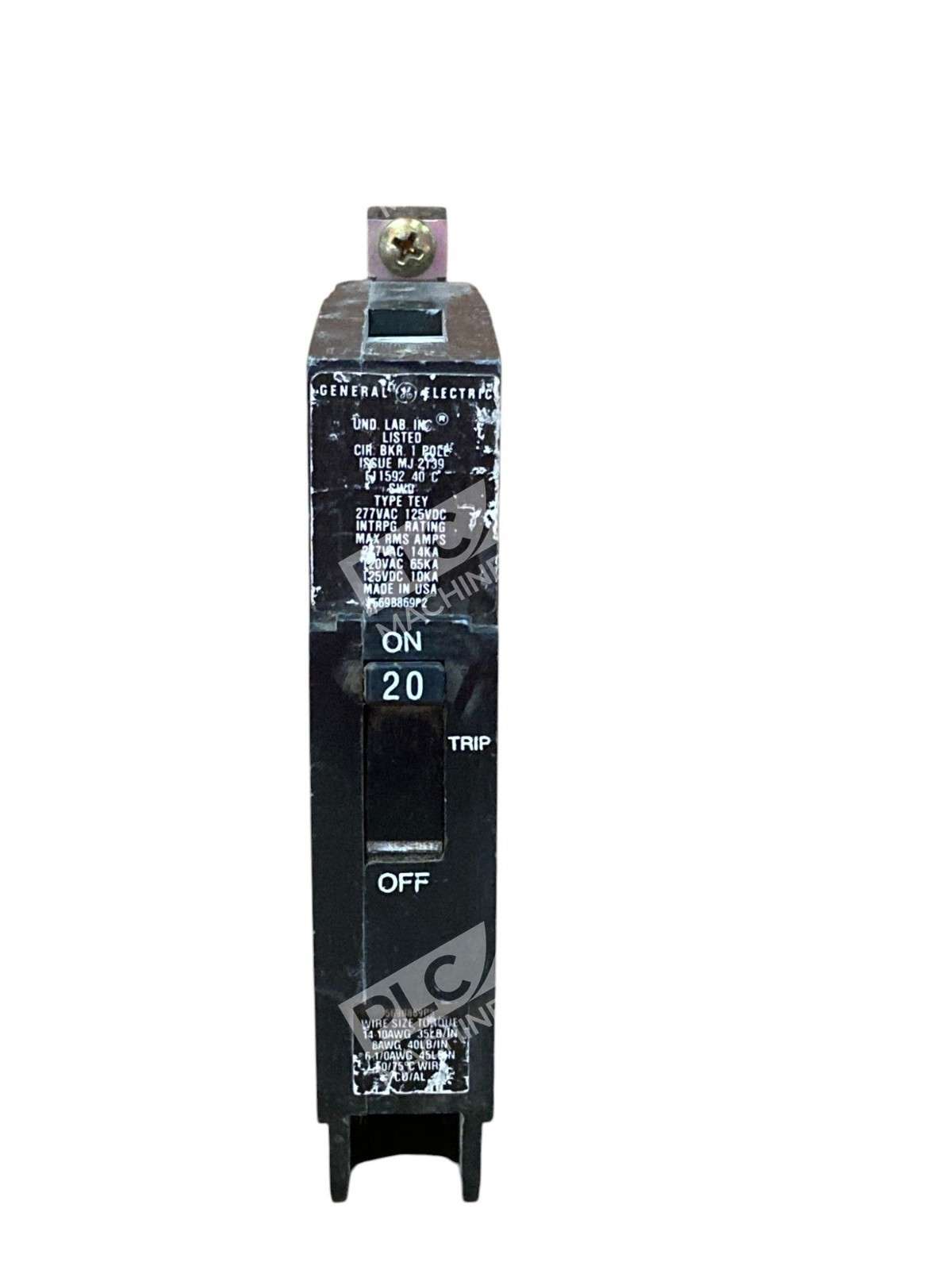

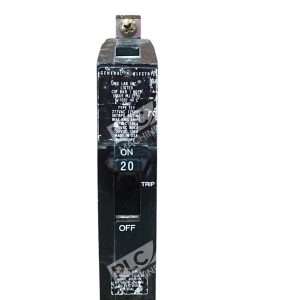

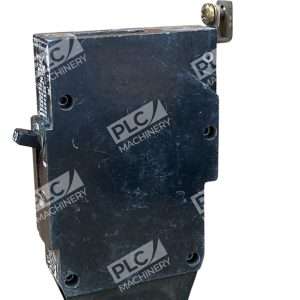

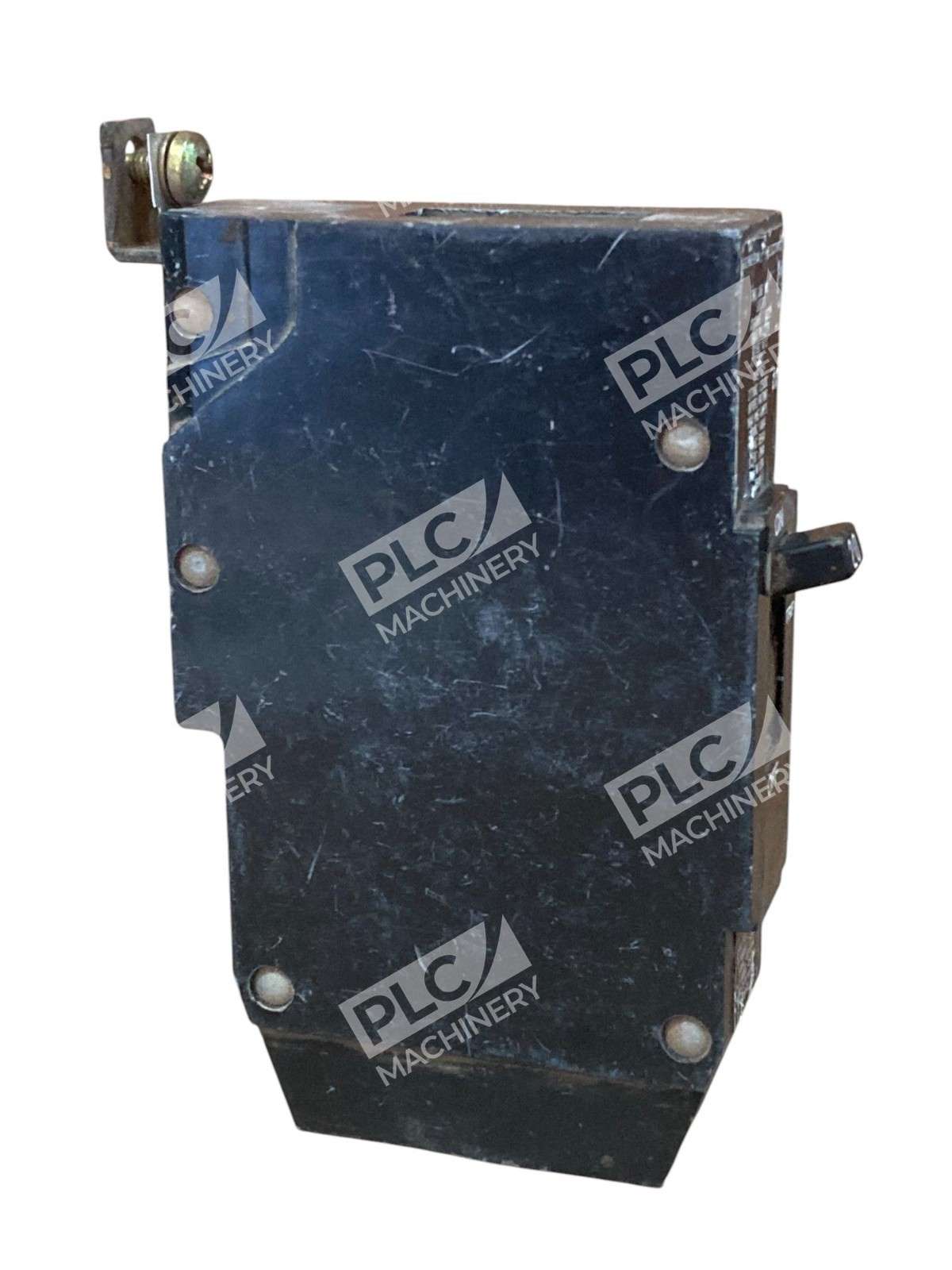

The General Electric TEY120 is a compact, bolt-on molded case circuit breaker designed for lighting and power distribution applications. This 1-pole thermal magnetic circuit breaker has a 20A current rating and 277VAC voltage rating. It delivers an interrupting rating of 14kAIC at 277V. This lot includes 5 units suitable for replacing worn or failed breakers in existing GE Q-Line panelboards.
Key Features
- Bolt-on connection type with long-time and instantaneous trip functions
- Thermal magnetic trip mechanism providing protection against both overloads and short circuits
- Secure installation in grounded 480Y/277V AC panelboards, supporting both copper and aluminum conductors
- Manufactured as part of the GE Q-Line series
- Non-interchangeable trip unit ensures consistent performance
- Single-pole (1P) configuration for single-phase applications

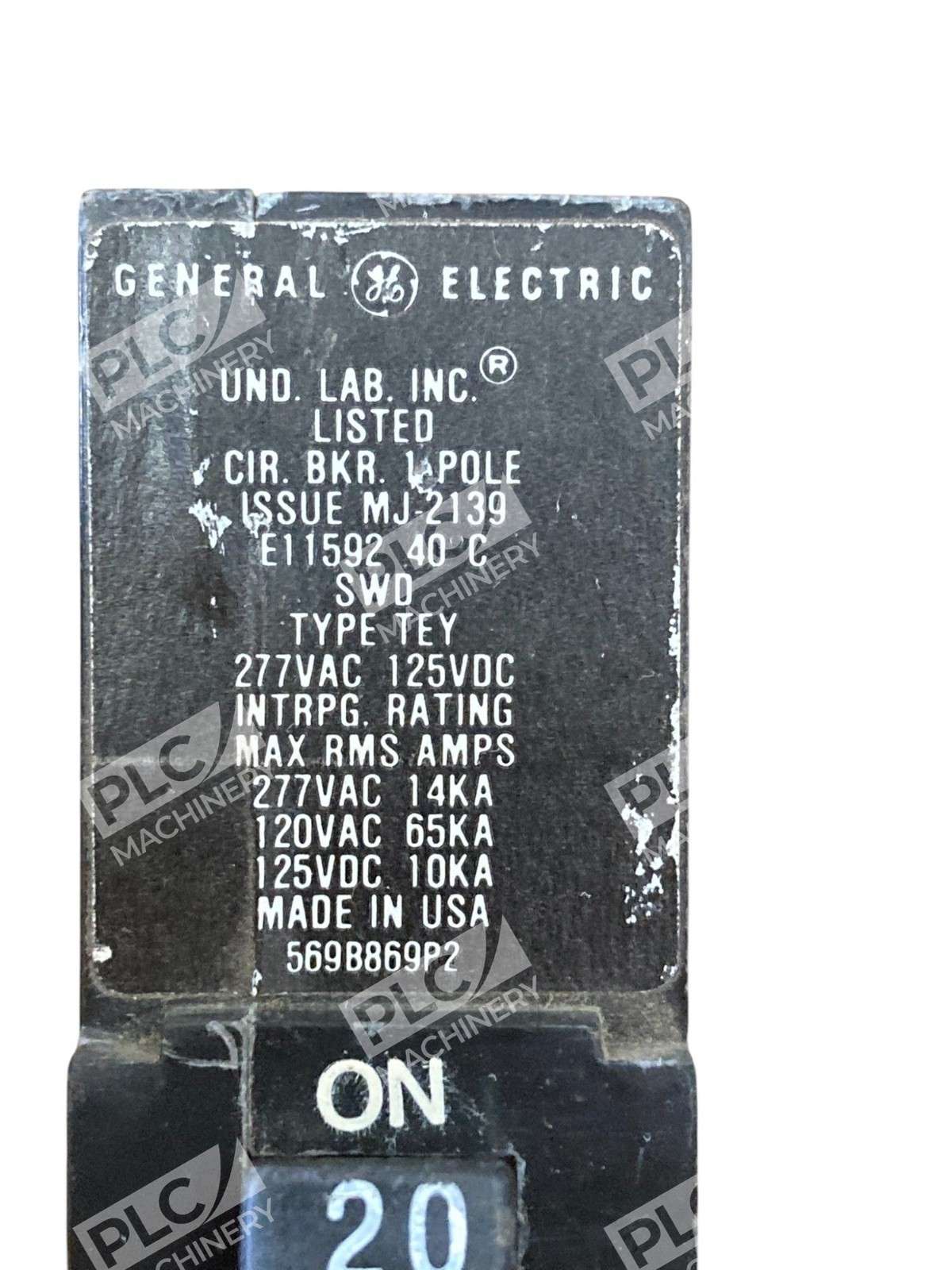

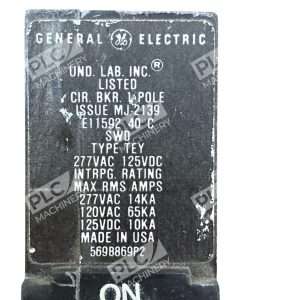

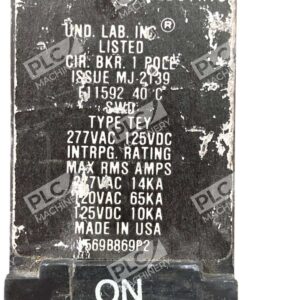

Technical Specifications

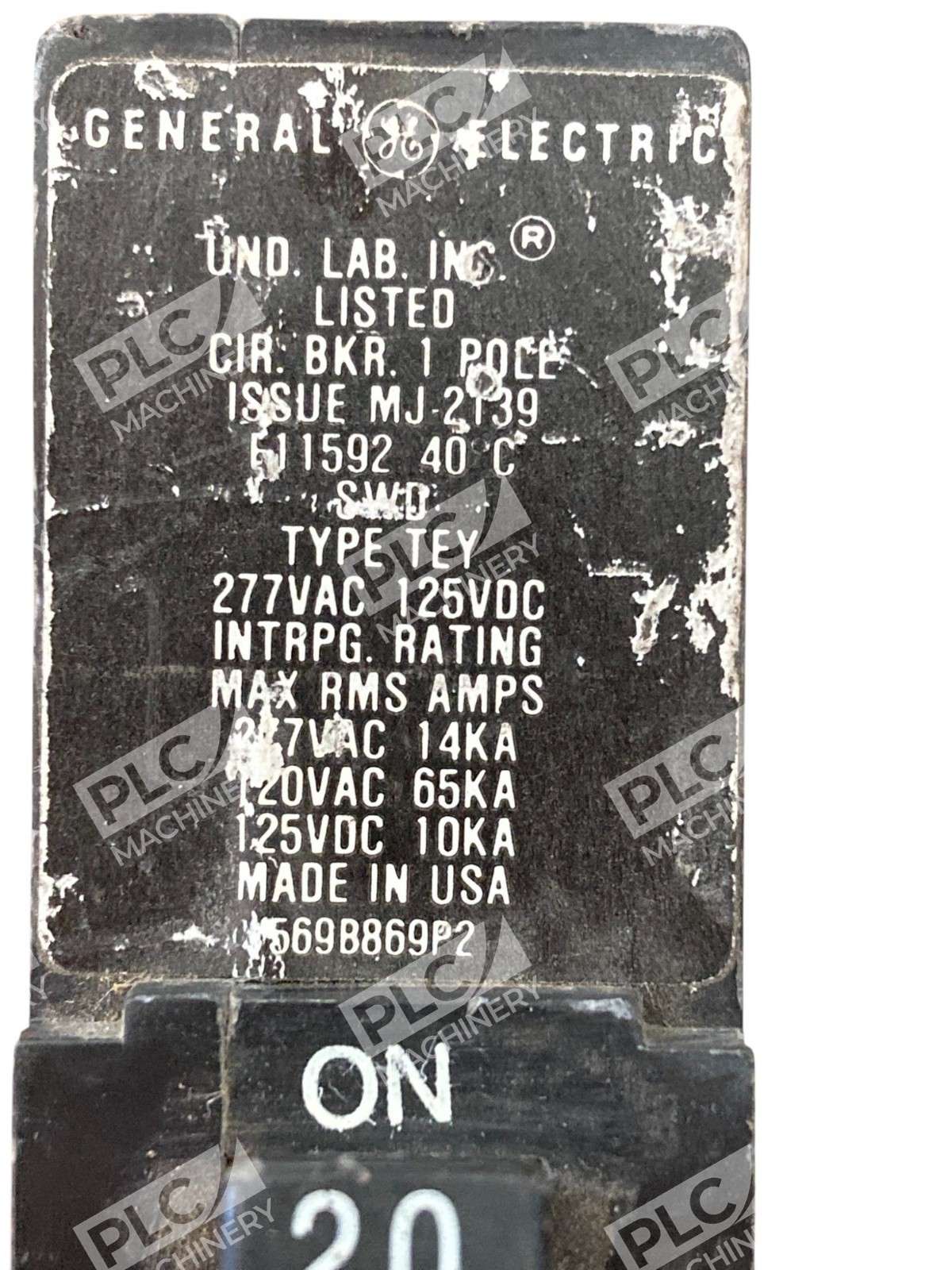

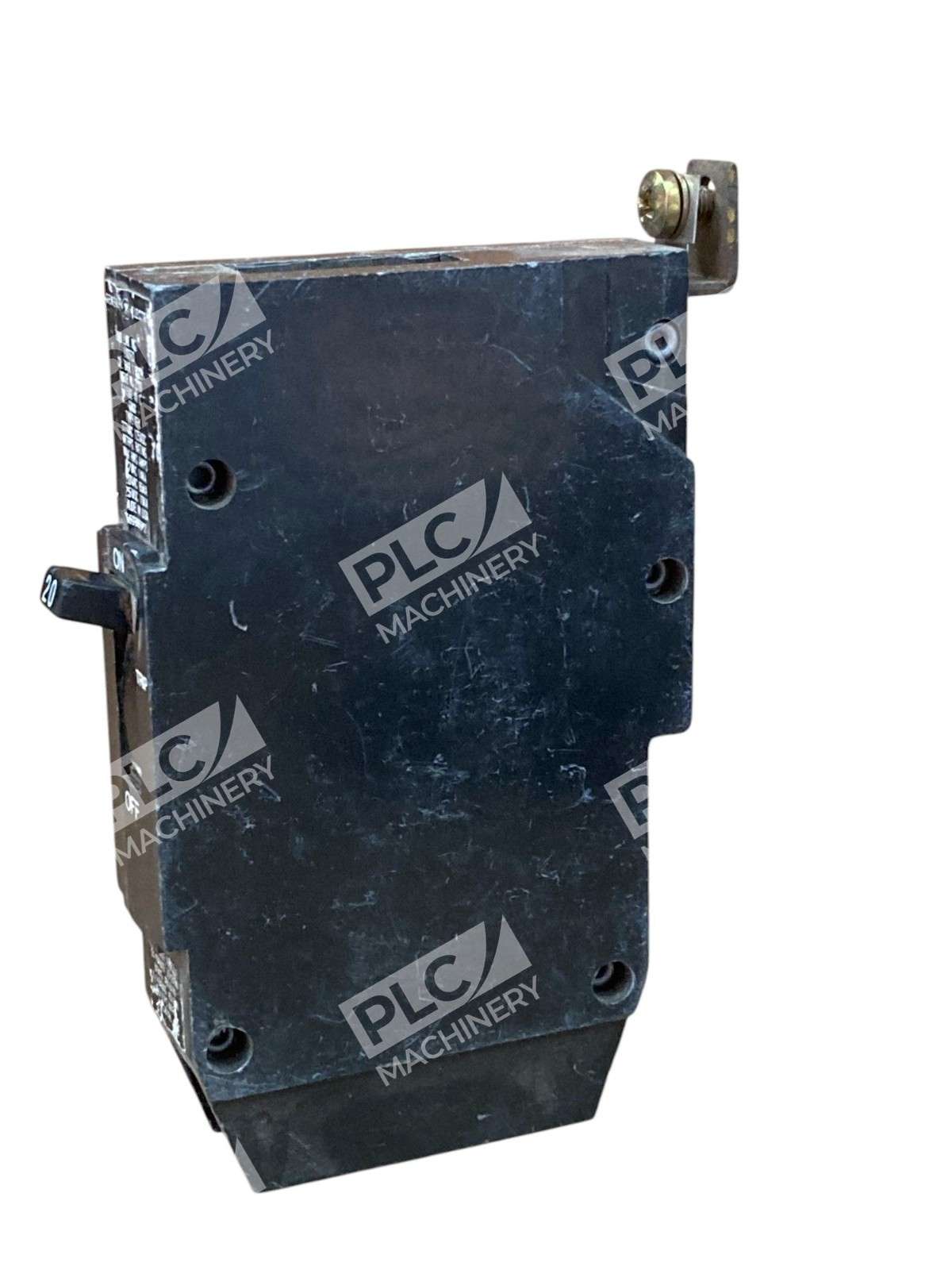

| Manufacturer | General Electric |
| Model | TEY120 |
| Type | Type TEY Molded Case |
| Current Rating | 20 Amps |
| Voltage Rating | 277VAC (120/240/277V rated) |
| Interrupting Capacity | 14kA @ 277V; 65kA @ 120V |
| Poles | 1 Pole (Single Pole) |
| Phase | Single Phase (1PH) |
| Trip Function | Long-Time and Instantaneous (Thermal Magnetic) |
| Connection Type | Bolt-On |
| Operating Temperature | 40°C Ambient |
| Series | Q-Line |
| Lot Quantity | 5 Units |
Typical Applications
The TEY120 is engineered for lighting and power distribution in commercial and industrial panelboards. These breakers are commonly used in:
- Lighting panel protection in commercial buildings
- Industrial power distribution systems requiring compact, high-interrupting-capacity breakers
- Replacement of failed breakers in existing GE Q-Line installations
- 480Y/277V grounded AC systems
Compatibility & Replacements
Compatible With
- GE Q-Line panelboards rated for 480Y/277V AC systems
- Grounded AC systems at 120V, 240V, and 277V nominal
- Copper and aluminum conductor installations
- Standard lighting and distribution panel configurations
Replaces / Drop-In Replacement For
The TEY120 directly replaces other TEY120 units and equivalent 20A, 277V molded case breakers designed for GE Q-Line panelboards. Verify compatibility with your specific panelboard model before ordering.
Works With
- GE Q-Line series panelboard components
- 480Y/277V AC distribution systems
- Standard industrial and commercial electrical panels
- No software or network compatibility required (passive electrical component)
