Overview

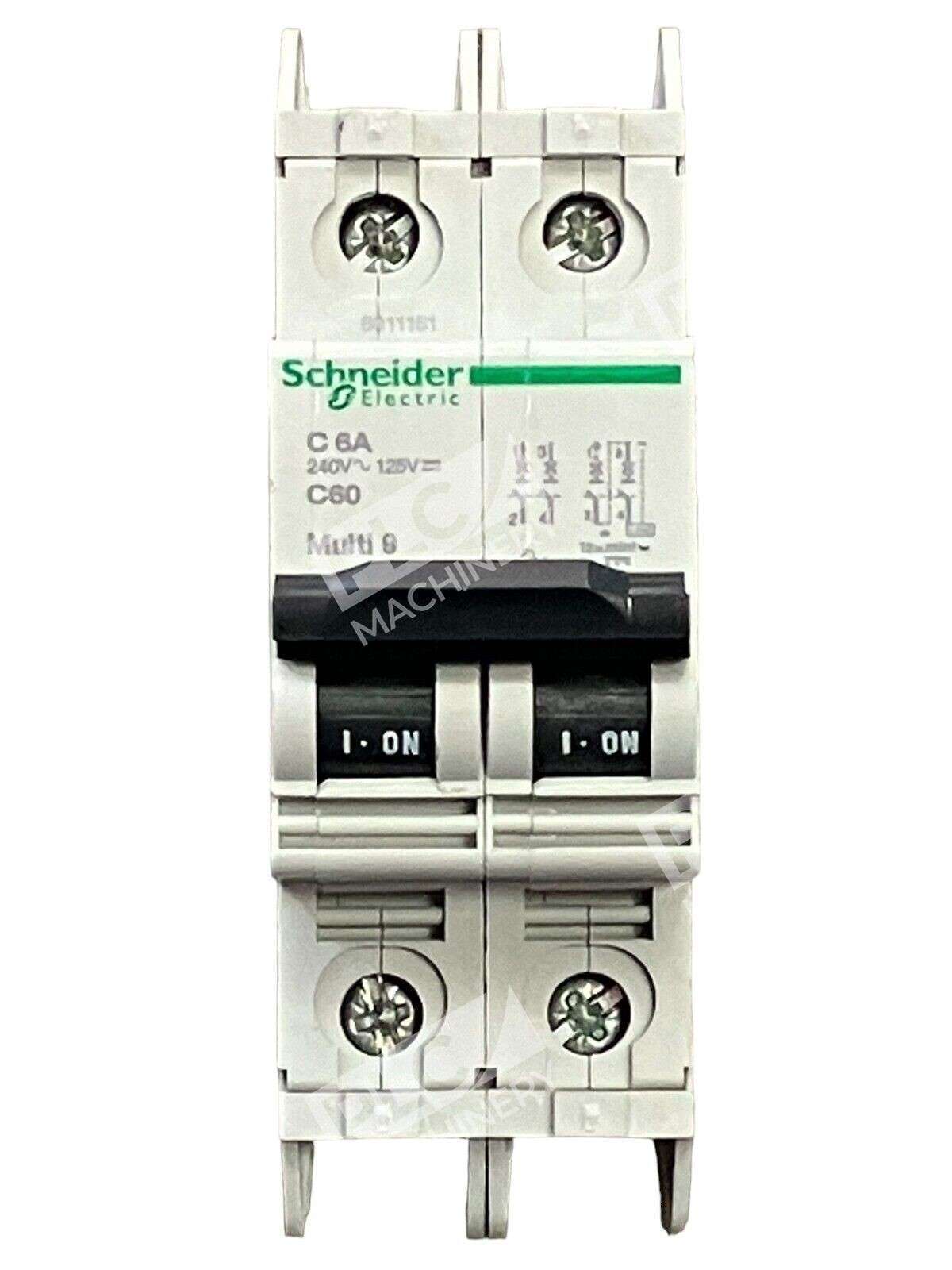

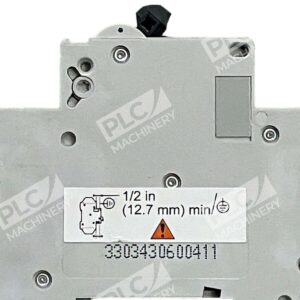

The Schneider Electric C60 60141 is a compact 2-pole miniature circuit breaker designed for branch circuit and supplementary protection in AC and DC applications. This unit combines magnetic and thermal overload protection with C-curve (medium) trip characteristics, making it ideal for general-purpose loads in industrial control panels, machinery, and electrical distribution systems. New in box condition ensures factory specifications and full reliability.
Key Features
- 2-pole configuration for balanced 120–240V AC or 125V DC protection
- C-curve trip characteristic for general-purpose applications with moderate inrush tolerance
- Compact DIN-rail mounting form factor saves panel real estate
- 10 kA rms interrupt capacity at 125V DC (proven switching capability)
- Multi-standard design complies with UL 1077, CSA C22.2, and IEC/EN 60947-2
- Manual handle operation with integrated status indication

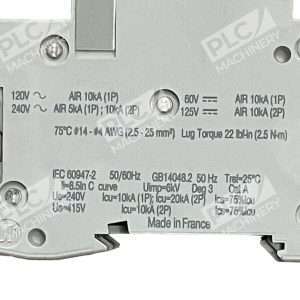

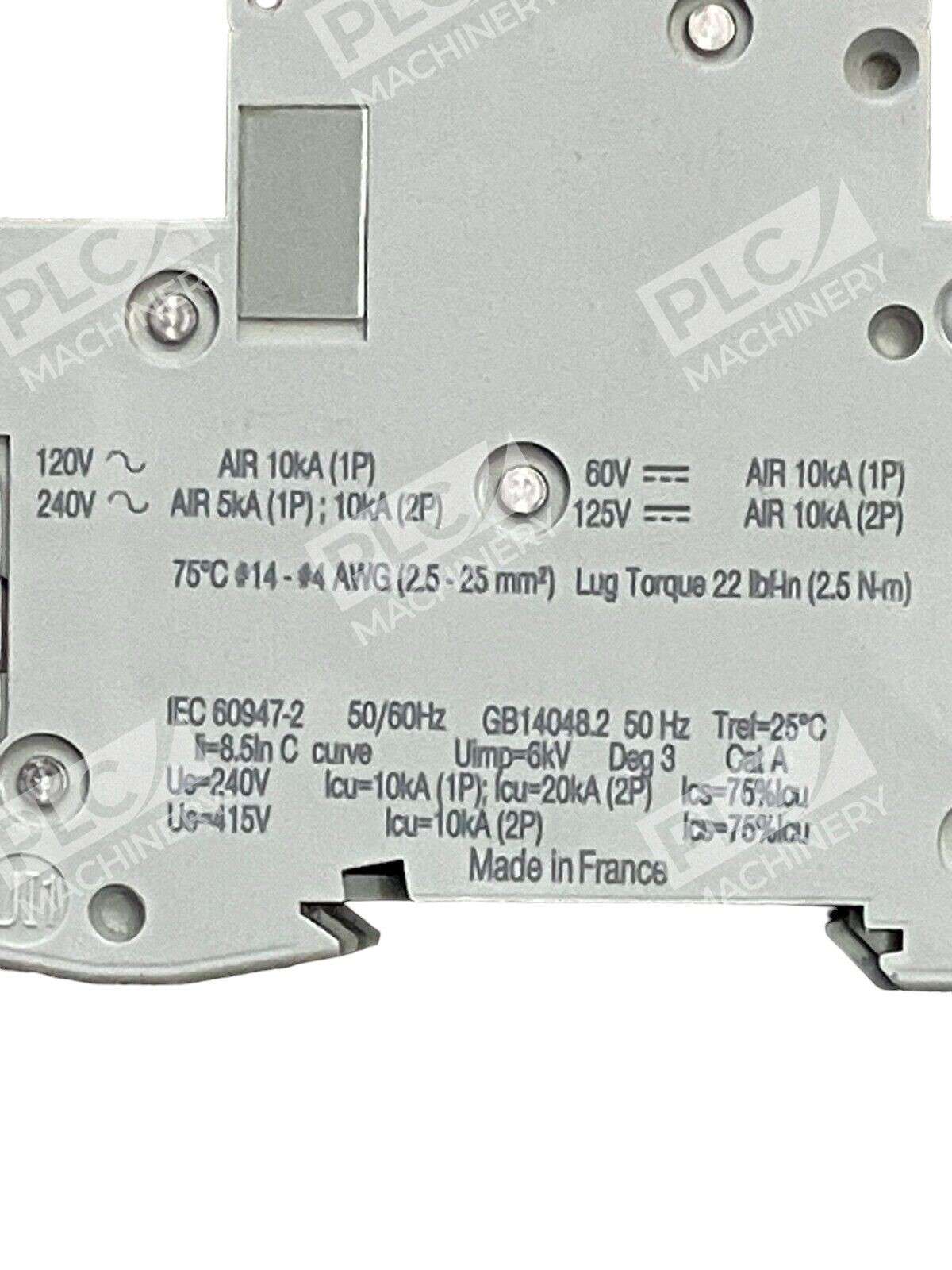

Technical Specifications
- Part Number: 60141
- Poles: 2
- Current Rating: 6A
- Voltage Rating: 120–240V AC, 125V DC
- Trip Curve: Type C (magnetic-thermal)
- Interrupt Capacity: 10 kA rms @ 125V DC
- Mounting: DIN rail (35 mm standard)
- Width: 2 modules (18 mm per module)
- Standards: UL 1077, CSA C22.2 No. 235, IEC 60947-2, GB 14048-2
- Condition: New in Box
Typical Applications
- Motor control centers and variable frequency drive (VFD) input protection
- PLC and control module circuits in industrial automation systems
- Lighting and heating circuits in manufacturing facilities
- Low-voltage DC protection in renewable energy and battery-backup systems
- General-purpose branch circuit protection in commercial electrical panels
Compatibility & Replacements
Compatible With
- Schneider Electric Multi 9 enclosures and busbar systems
- Standard 35 mm DIN rails in North American and international control panels
- Auxiliary contact kits and trip indicator modules for the C60 series
- AC and DC distribution systems rated 120–240V AC or 125V DC
Replaces / Drop-In Replacement For
- Earlier Schneider C60 variant models with equivalent 6A, 2-pole, 240V specifications
- Verify exact part compatibility with your system integrator before ordering, as MCB models can vary by region and application
Works With
- Schneider EcoStruxure Power and Control software for remote monitoring (if auxiliary contacts are added)
- Standard DIN-rail busbar and protective device coordination protocols
- Compliant with IEC 61508 and EN 61010 safety standards for control systems
