Overview
The Parker PGI AK-022-C0 is a stabilized connector flange kit engineered for high-pressure instrumentation applications. Built from ASTM A743-316 stainless steel, this kit delivers robust pressure handling and corrosion resistance in demanding flow measurement systems. The stabilized design minimizes vibration and deflection, ensuring reliable connections between instrument manifolds and orifice plate assemblies across refinery, petrochemical, and pipeline operations.
Key Features
- 316 Stainless Steel Construction: ASTM A743-316 stabilizing connector and stabilizing foot for superior corrosion resistance
- High Pressure Rating: 10,000 PSI @ 200°F and 8,000 PSI @ 450°F maximum

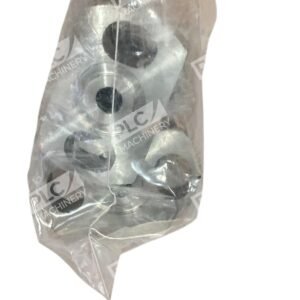

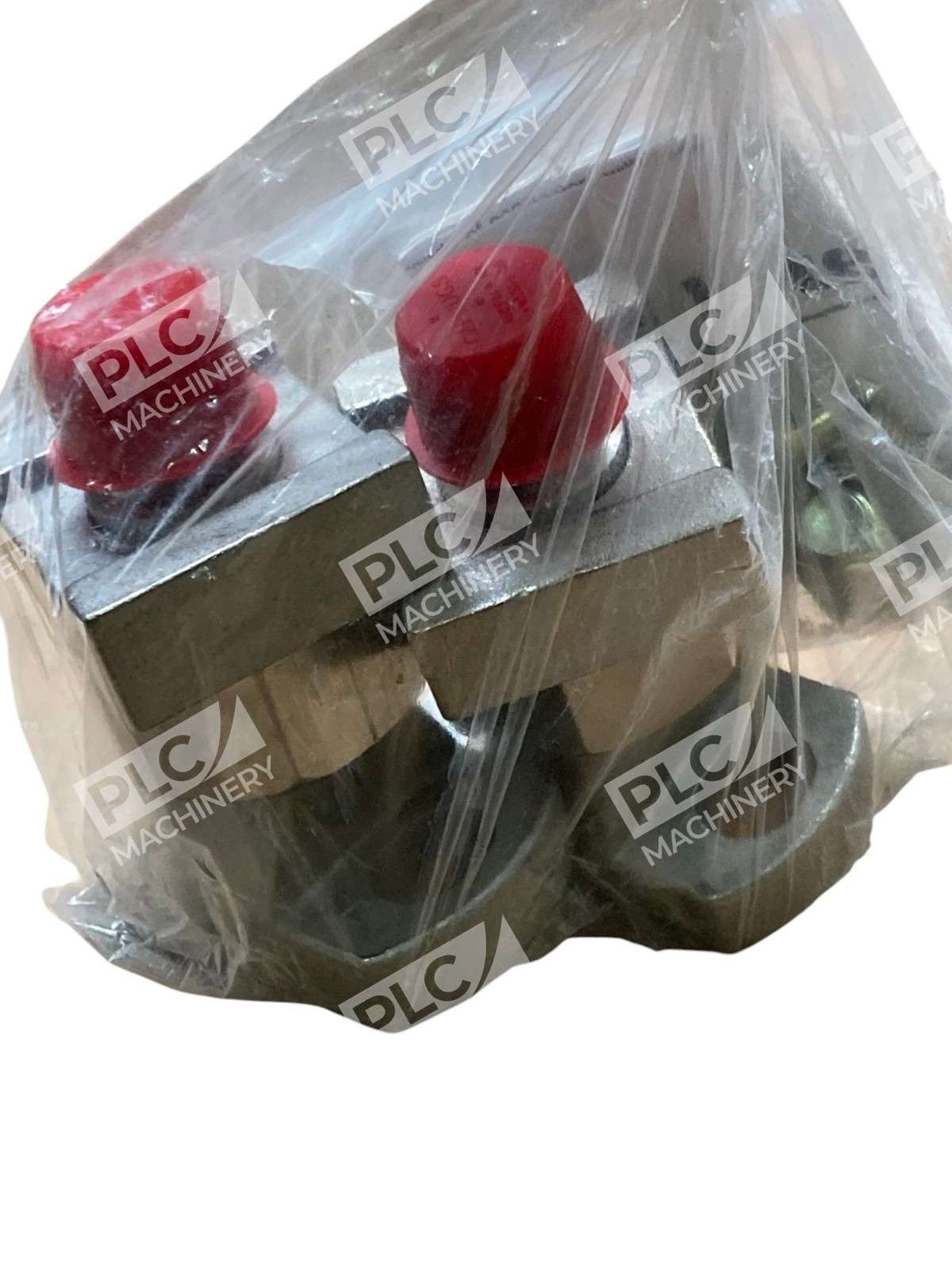

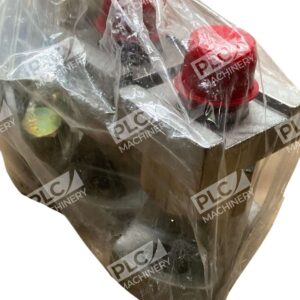

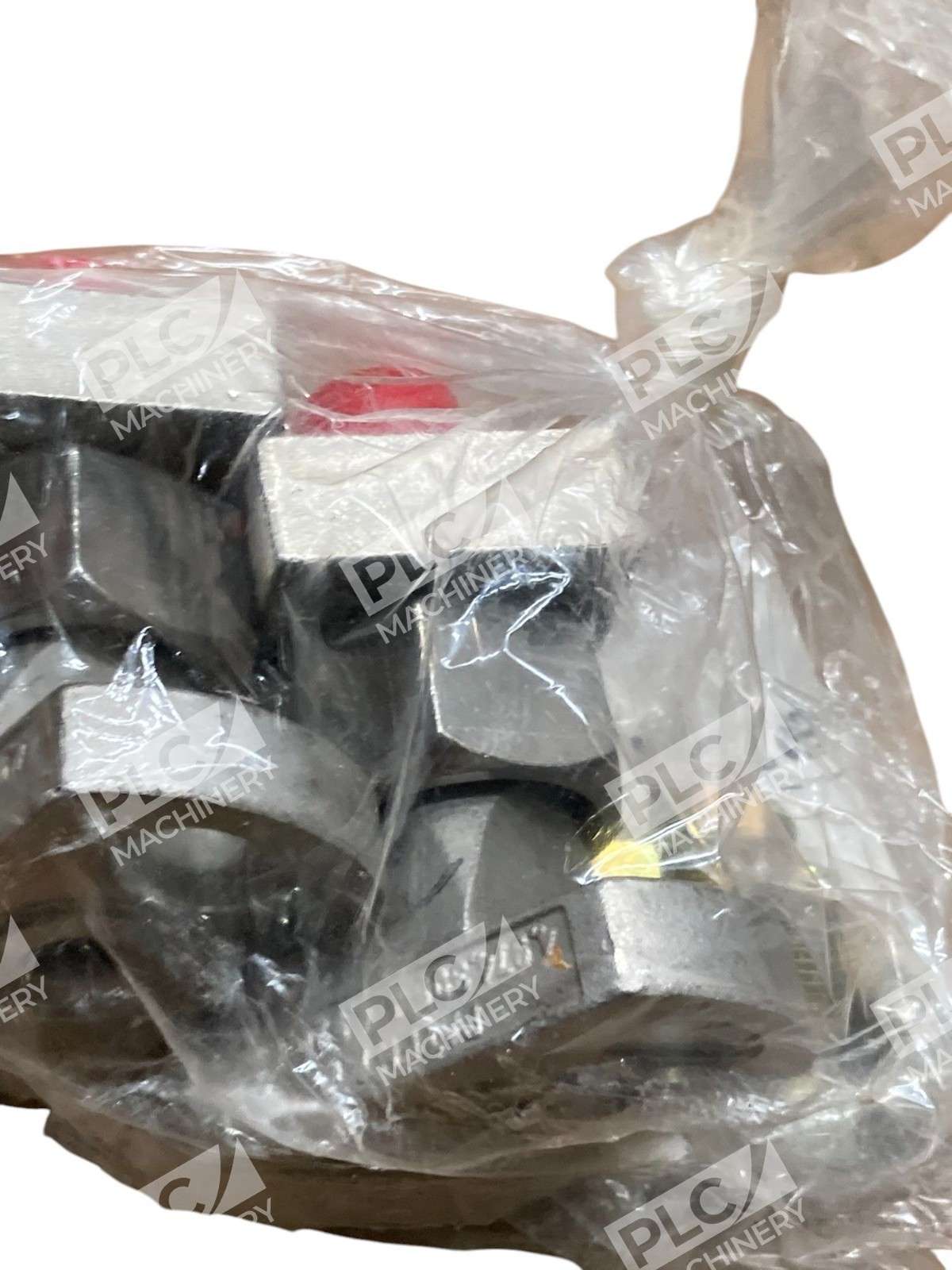

- Complete Kit Assembly: Includes stabilizing foot, 1-1/2″ hex nut, 7/16-20 x 1″ mounting bolt, and Teflon flange seal
- Stabilized Design: Integrated stabilizer foot reduces connector deflection and vibration during high-pressure transients
- Nace-Compliant: Meets NACE MR0175/ISO 15156-3 requirements for sour service applications
Technical Specifications
- Pressure Rating: 10,000 PSI @ 200°F; 8,000 PSI @ 450°F
- Body Material: ASTM A743-316 Stainless Steel
- Stabilizing Foot Material: ASTM A743-316
- Hex Nut: 1-1/2″ (300 Series SS)
- Mounting Bolt: 7/16-20 UNF x 1″ (ASTM 449-Type 1)
- Flange Seal: Teflon
- Thread Type: NPT (National Pipe Tapered)
- Stabilizer Hex Nut Torque: 80–100 ft./lbs.
- Material Certifications: ASTM A743, ASTM 449-Type 1
Typical Applications
- Differential pressure orifice plate flow measurement systems
- Instrument manifold-to-orifice fitting connections in high-pressure lines
- Petrochemical and refinery process instrumentation
- Sour service (Hâ‚‚S) environments requiring NACE MR0175 compliance
- Pipeline custody transfer and allocation metering
- Wellhead and subsea instrumentation systems
Compatibility & Replacements
Compatible With
- Parker PGI instrument manifolds (all series)
- Orifice plate assembly fittings with NPT threaded ports
- Direct-Mount Systems (DMS) manifold packages
- High-pressure flow measurement instrumentation
- Ductile iron and carbon steel process flanges
Replaces / Drop-In Replacement For
- Parker PGI AK-022-C0-MNW9 (316SS variant)
- Similar stainless steel stabilized connector flange kits from competitor suppliers
Works With
- Parker/PGI direct-mount instrumentation systems and manifolds
- NACE MR0175/ISO 15156-3 compliant piping and fittings
- Standard 7/16″-20 UNF flange bolt configurations
- NPT-threaded orifice plate outlet ports
