Overview

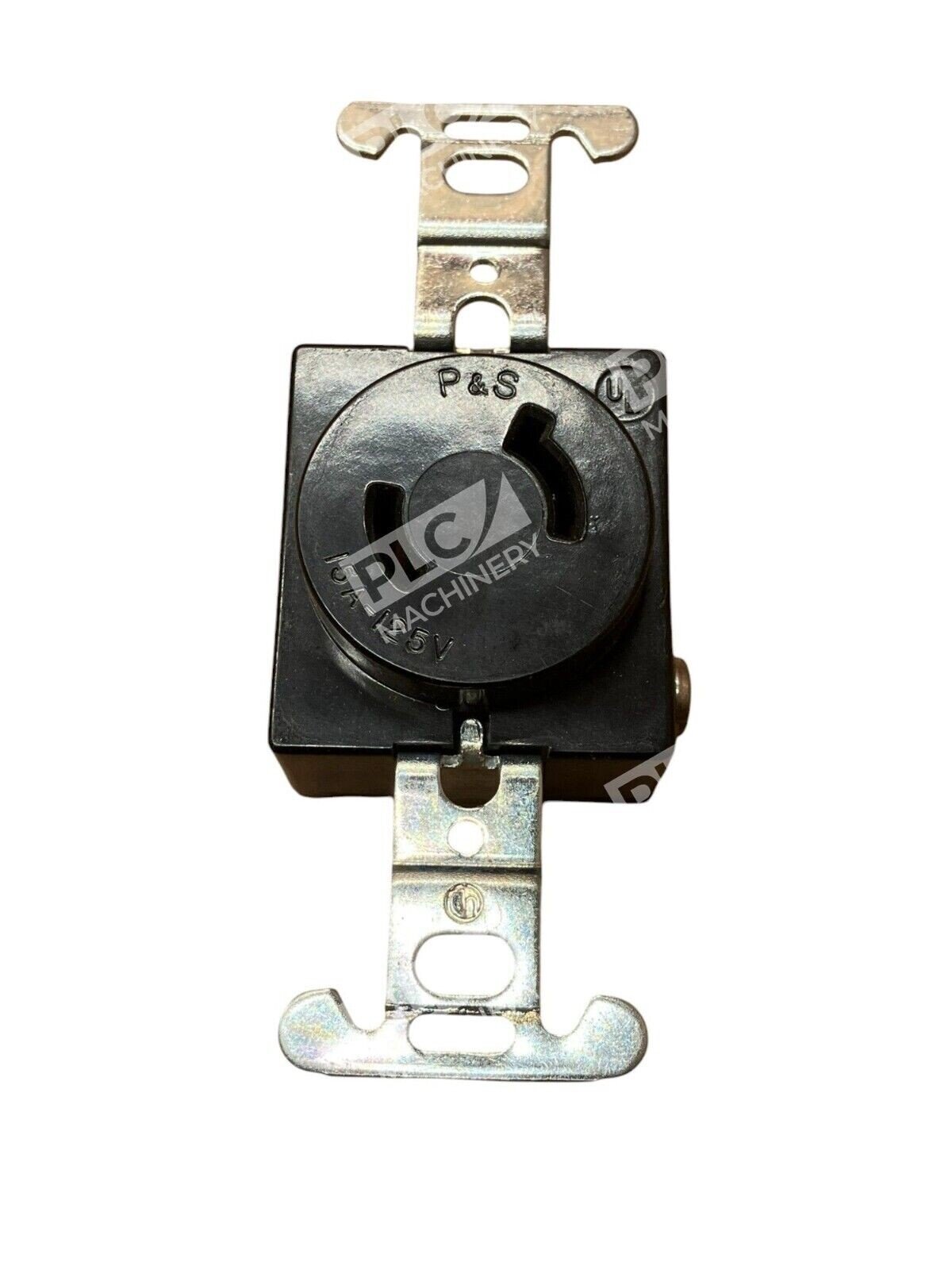

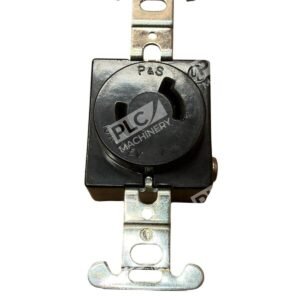

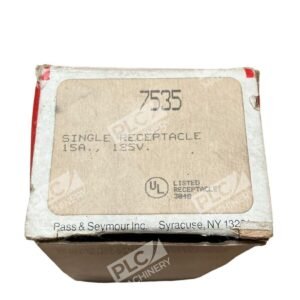

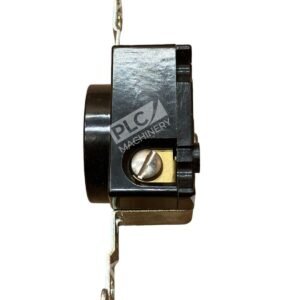

The Pass & Seymour 7535 is an industrial-grade single locking receptacle rated for 15 amperes at 125 volts. This NEMA L1-15R Turnlok receptacle is engineered for secure, reliable power connections in commercial and industrial settings where equipment security and uptime are critical.
Key Features
- High-grade brass interior components for electrical and physical integrity
- High-impact thermoplastic nylon housing resists on-the-job damage and environmental stress
- NEMA L1-15R locking configuration ensures secure mating and prevents accidental disconnection

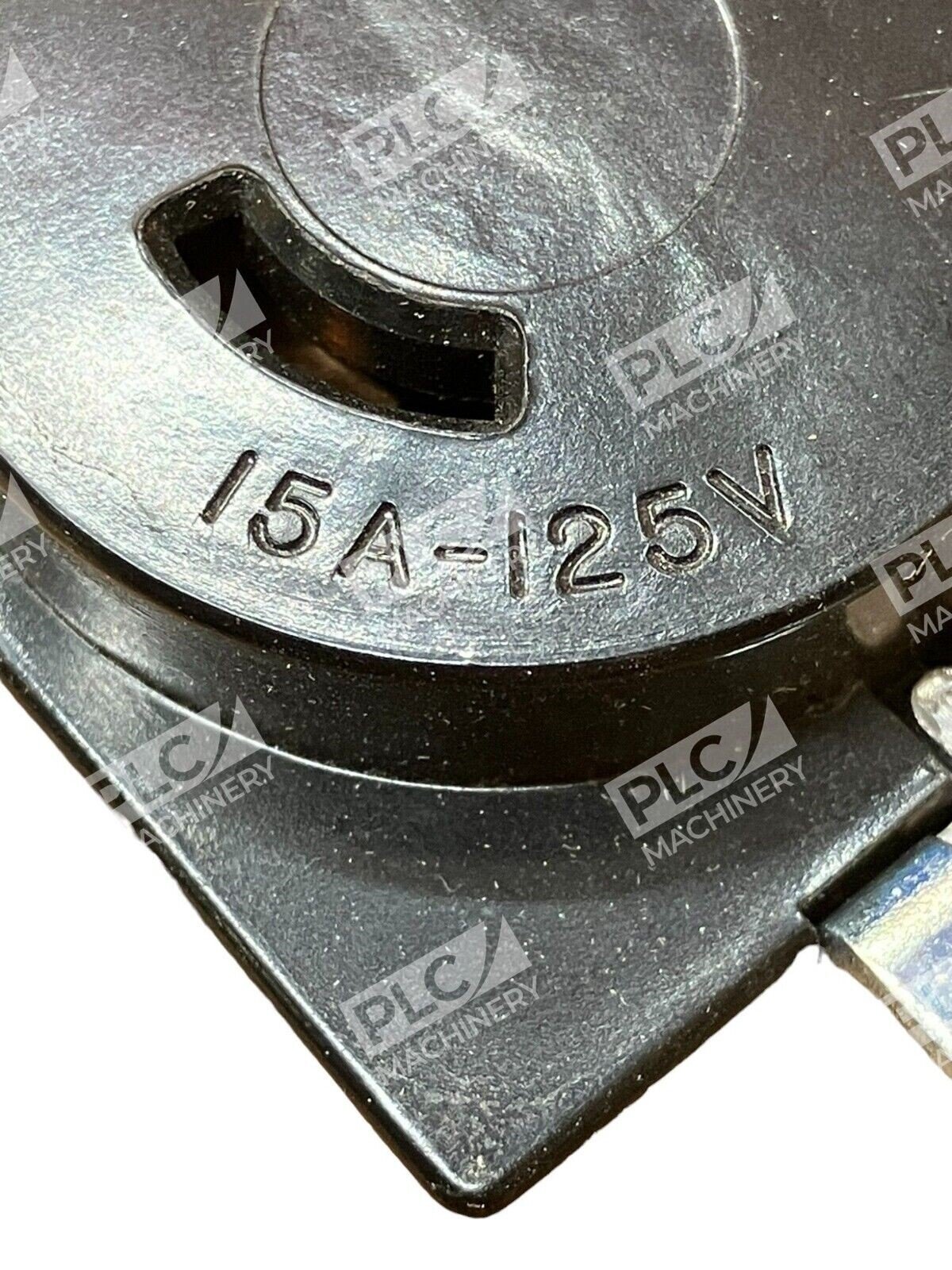

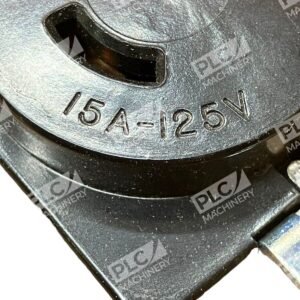

- Clear ratings and NEMA configuration markings on flange face for fast identification during operation

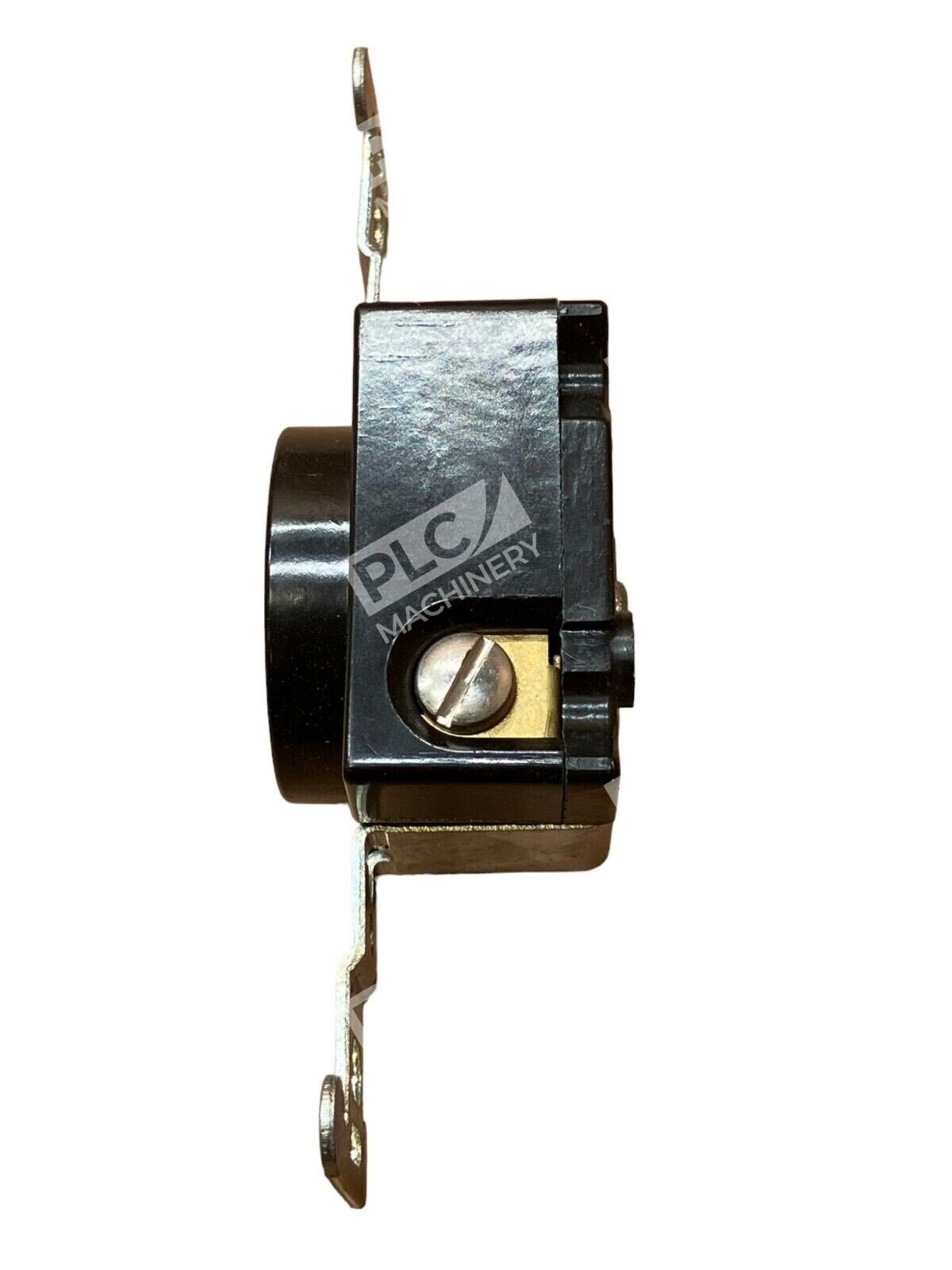

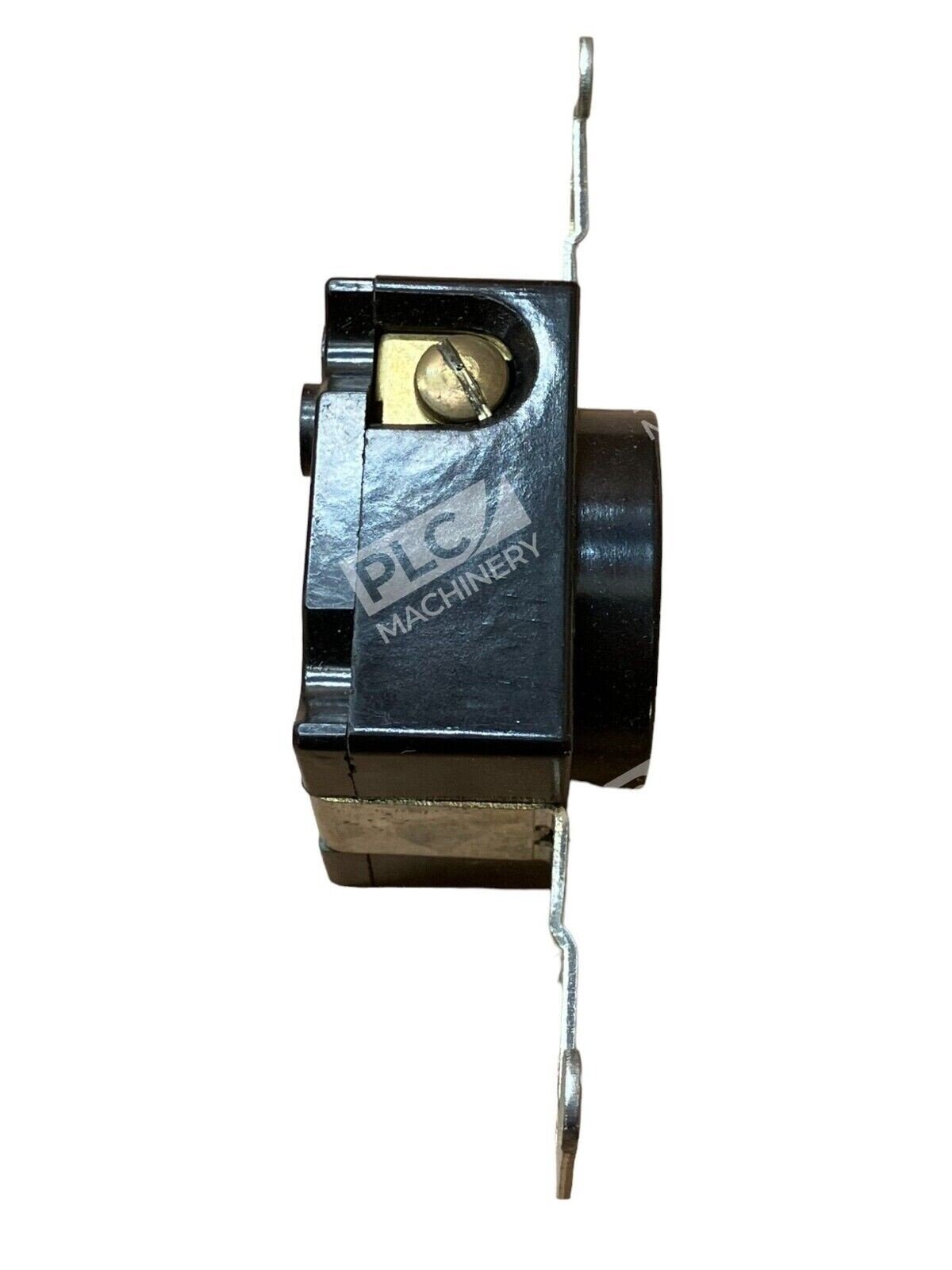

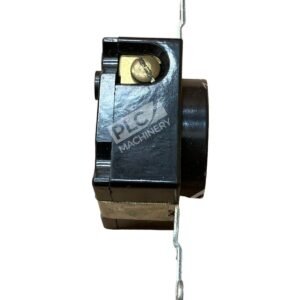

- Back/side wire terminal design for flexible installation options
- Industrial-grade construction suitable for harsh operating conditions
Technical Specifications
- Amperage Rating: 15A
- Voltage Rating: 125V AC
- NEMA Configuration: L1-15R
- Poles: 2
- Wires: 2
- Conductor Size: 18-10 AWG
- Wire Size: 10 AWG maximum
- Material: Nylon body with brass interior
- Mounting: Flange-face design
- Operating Temperature Range: -40°C to +75°C
- Dimensions: 3.3" diameter × 3.281" height × 1.562" width × 0.922" depth
- Terminal Type: Back/side wire
- Approval: UL 498, CSA C22.2
Typical Applications
- Industrial machinery and equipment power distribution
- Commercial temporary power and event setup
- Heavy-duty industrial control systems requiring secure power connections
- Motor and motor-driven equipment installations
- Manufacturing floor and facility power management
- Situations requiring locking connectors to prevent accidental device disconnection
Compatibility & Replacements
Compatible With
- NEMA L1-15P locking plugs and connectors
- Standard 15A industrial power distribution systems
- Equipment designed for 125V 15A NEMA L1-15R receptacles
- Back/side wire connection terminals (10 AWG and smaller)
Replaces / Drop-In Replacement For
The Pass & Seymour 7535 directly replaces other NEMA L1-15R single receptacles from compatible manufacturers. Verify connector configuration and terminal type before ordering a replacement unit. Consult the original equipment documentation or your system integrator to confirm compatibility with your specific installation.
Works With
- Industrial power distribution systems utilizing NEMA locking connectors
- Equipment requiring secure, non-slip-ring power connections
- Temporary power distribution for industrial and commercial job sites
- Any 15A 125V AC electrical circuit with NEMA L1-15R plug configuration
