Overview

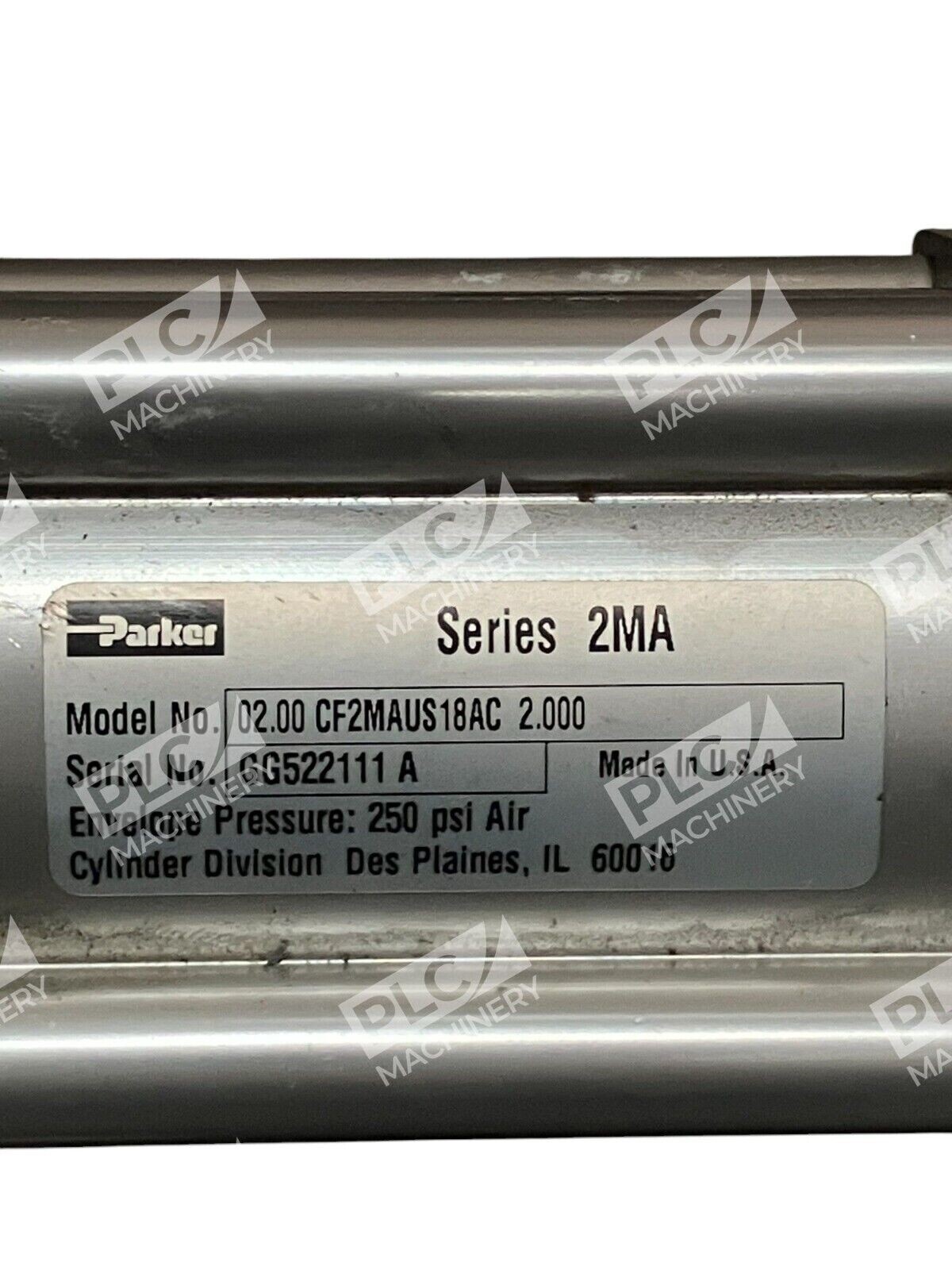

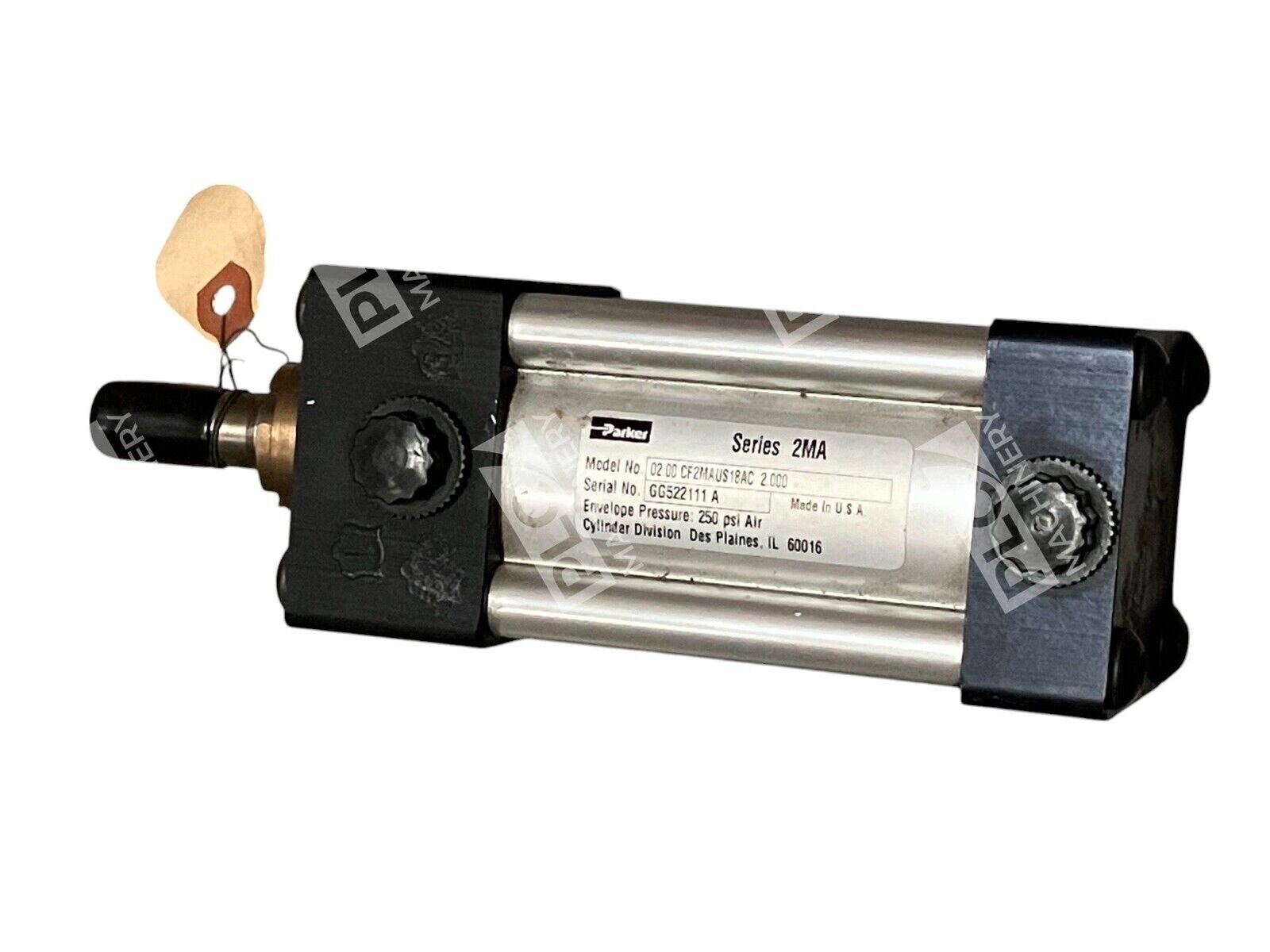

The Parker 02.00 CF2MAUS18AC is a Series 2MA pneumatic cylinder engineered for heavy-duty industrial applications. This double-acting design delivers consistent force and smooth linear motion, making it ideal for manufacturing, assembly automation, and material handling systems. The cylinder features proven tie rod construction that ensures structural integrity under demanding operating conditions.
Key Features
- Tie Rod Construction: Provides enhanced strength and stability for heavy-duty operations
- Double-Acting Design: Enables controlled extension and retraction cycles
- Cartridge Gland Design: Removable without full cylinder disassembly for easier maintenance
- Serrated Lip Seals: Self-compensating design resists pressure variations and mechanical deflection
- NPTF Ports: Standard connection points for pneumatic system integration
- Pressure-Actuated End Seals: O-rings on body-to-head and cap joints ensure reliable containment
Technical Specifications
The model number CF2MAUS18AC encodes the following specifications: 2-inch bore diameter, 2.000-inch stroke length, double-acting operation with cap end cushioning, and 1/4-inch rod thread. Operating pressure is rated for 18 bar (250 psi) pneumatic service. The cylinder conforms to ANSI and NFPA standards for North American industrial pneumatic applications.
Typical Applications
- Manufacturing and production line automation
- Assembly machinery and workholding fixtures
- Material handling and lift systems
- Press operations and stamping equipment
- Packaging and conveyor automation
Compatibility & Replacements
Compatible With
- Parker pneumatic control valves and directional control systems
- Standard pneumatic airlines and 1/4-inch NPT(F) fittings
- Industrial pneumatic power units rated 18 bar minimum
- ANSI/NFPA-standard mounting kits and accessories
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This model replaces equivalent Parker Series 2MA cylinders with matching bore, stroke, and port configuration.
Works With
- Parker pneumatic cushion kits and gland assemblies
- Standard trunnion and clevis mounting styles (styles C, D, DD, DB, BB)
- REXROTH/WABCO-compatible rod extensions and proximity switches
- Parker magnetic ring position sensors (part symbol #159)
