Overview

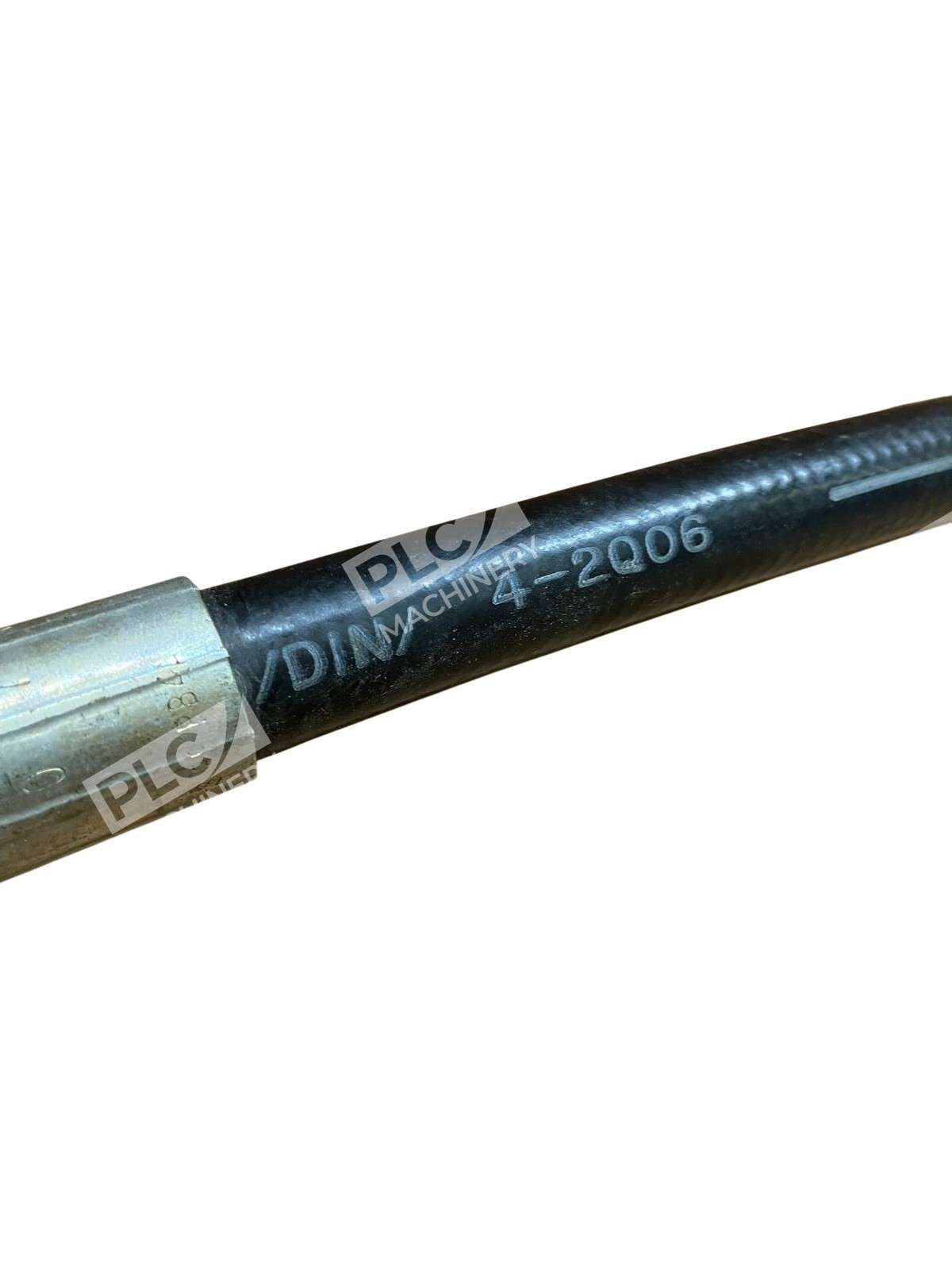

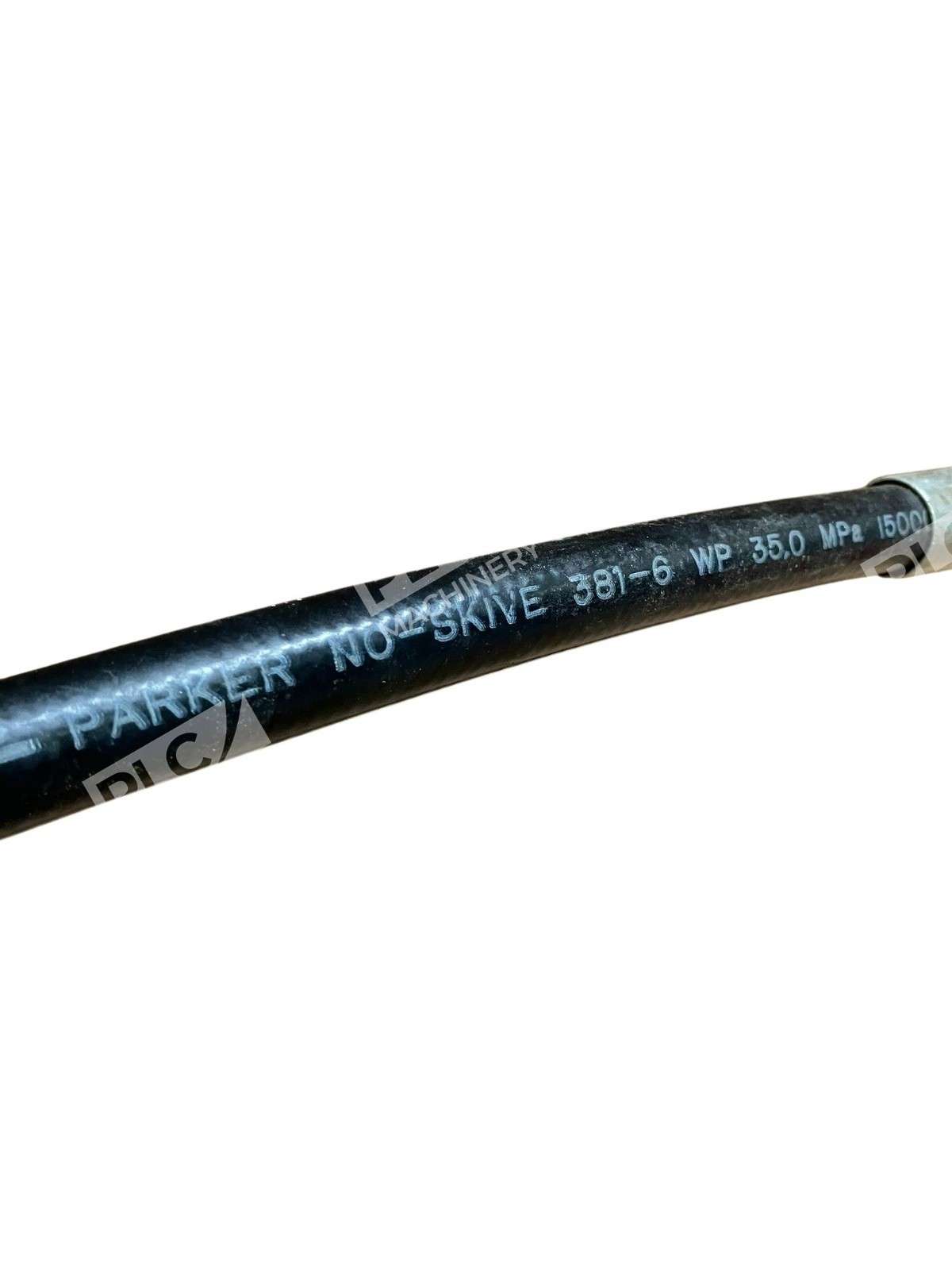

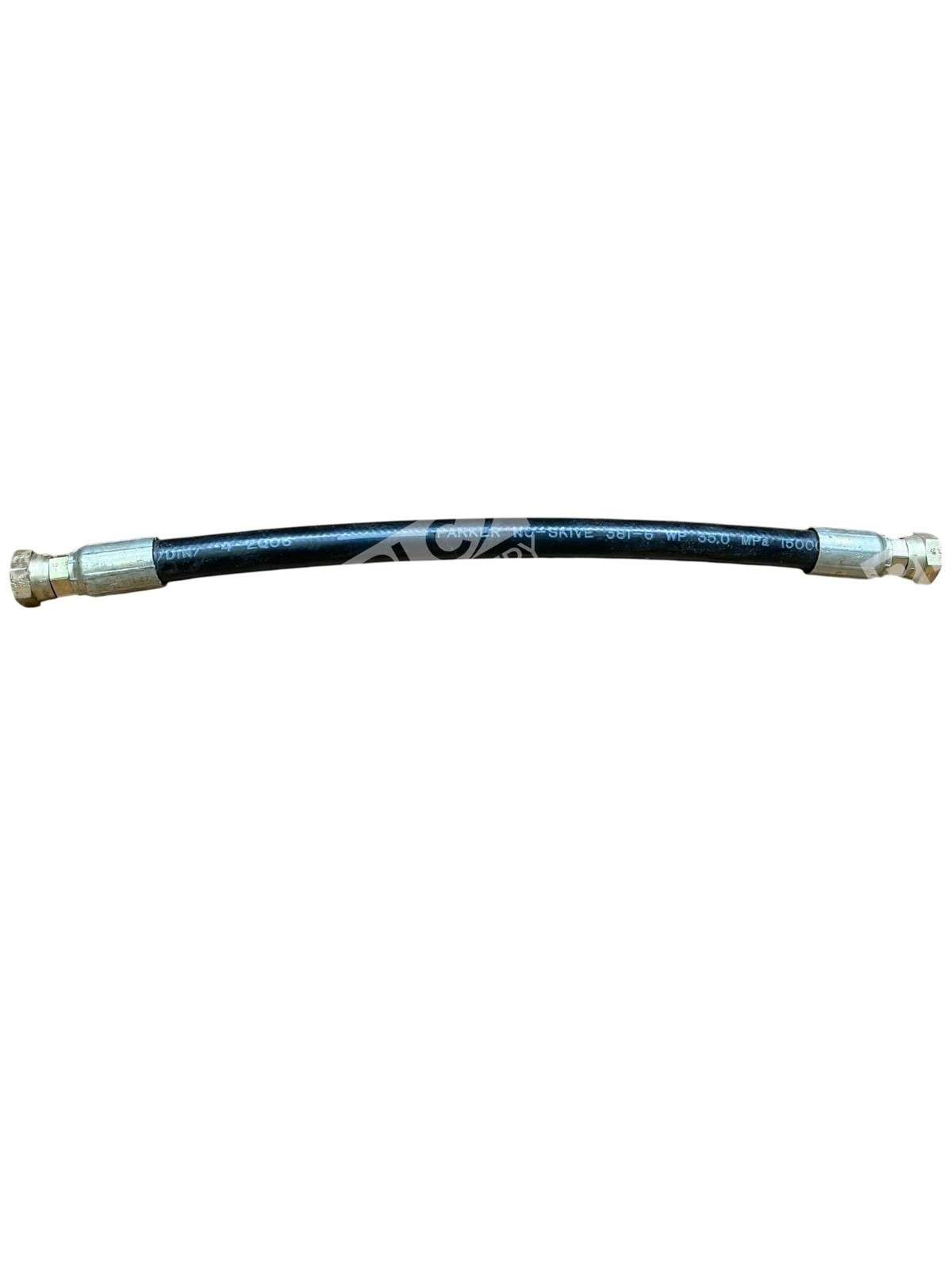

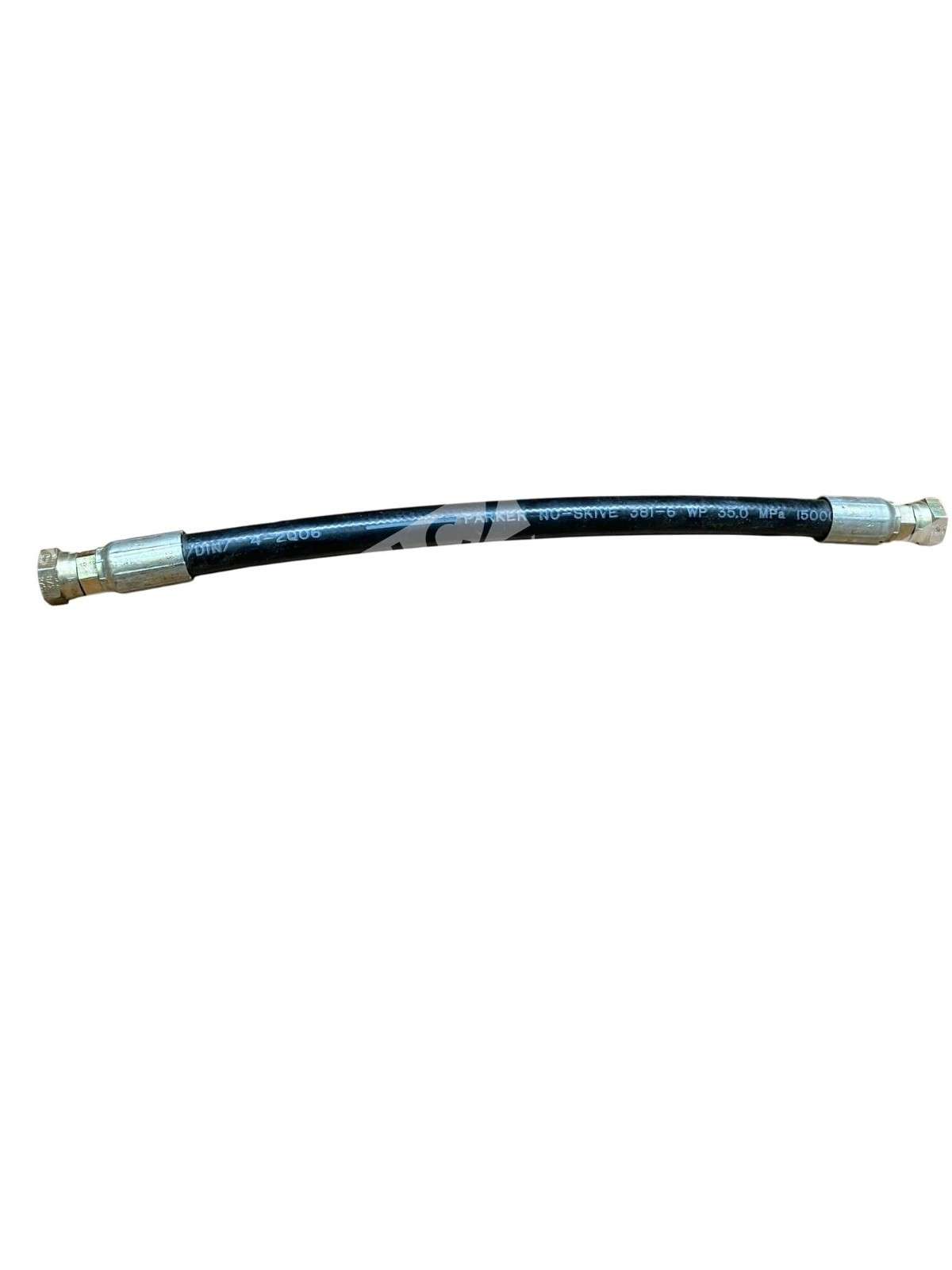

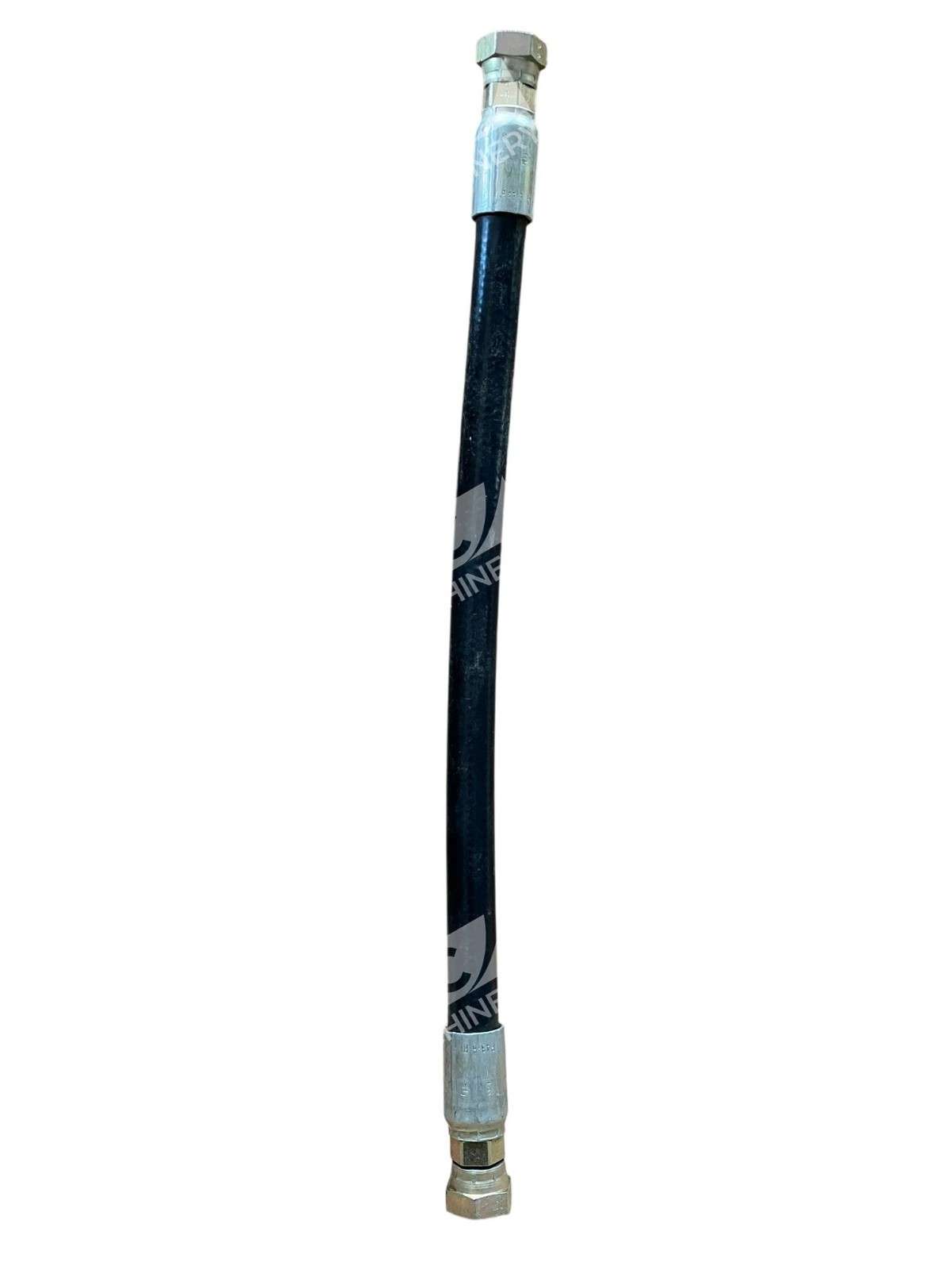

The Parker 381-6 is a no-skive hydraulic hose assembly engineered for reliable performance in industrial and mobile applications. This universal two-wire construction hose delivers consistent hydraulic power transmission with a 35 MPa (approximately 400–350 bar) working pressure rating. The 381-6 combines ease of installation with proven durability across a broad range of fluids and environmental conditions, making it a trusted choice for maintenance teams and system integrators worldwide.
Key Features
- No-skive design for quick, tool-free installation and reduced downtime
- Universal two-wire braid construction (SAE 100R2 / ISO 1436 Type 2AT)
- 35 MPa working pressure rating suitable for general-purpose hydraulic systems
- Wide fluid compatibility with synthetic rubber inner tube and cover
- Operating temperature range from −40°C to +100°C (−40°F to +212°F)
- Meets strict international quality standards and specifications
Technical Specifications
| Model | Parker 381-6 |
| Hose Type | No-Skive Hydraulic Hose |
| Standard | SAE 100R2 / ISO 1436-1 Type 2SN |
| Working Pressure | 35 MPa (approximately 350–400 bar) |
| Inner Tube | Synthetic rubber (high fluid compatibility) |
| Reinforcement | Two steel wire braids |
| Cover | Synthetic rubber |
| Temperature Range | −40°C to +100°C (−40°F to +212°F) |
| Dash Size | -6 |
| Condition | New – No Box |
| Applications | General-purpose industrial hydraulics, mobile equipment, construction, agriculture |
Typical Applications
The Parker 381-6 is widely deployed in industrial and mobile hydraulic systems where moderate pressure, flexibility, and ease of service are priorities. Common applications include:
- General industrial machinery – pump stations, presses, machine tools
- Mobile equipment – forklifts, telehandlers, skid steers, aerial lifts
- Construction equipment – excavators, loaders, cranes requiring standard-duty hose
- Agricultural equipment – tractors, balers, implements
- Utility and grounds maintenance – pumps, compressors, support systems
- Material handling – conveyors, bulk handling systems
Compatibility & Replacements
Compatible With
- Parker Snap-Tite quick-connect fittings and standard SAE hydraulic fittings
- Mineral oil and most ISO 46 industrial hydraulic fluids
- ISO 1436 Type 2AT compliant hydraulic systems
- Mobile and industrial equipment requiring SAE 100R2 hose
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment OEM before ordering. The 381-6 dash size and SAE 100R2 standard make it interchangeable with equivalent two-wire braid hoses from other suppliers that meet the same specification. Always confirm fitting types and pressure ratings match your original equipment.
Works With
- Parker hydraulic fitting systems (Snap-Tite, O-ring face seal, JIC)
- Standard SAE flange and straight-thread fittings
- ISO 1436 and SAE 100R2 compliant assemblies
- Mineral oil hydraulic systems rated for 35 MPa operation
