Overview

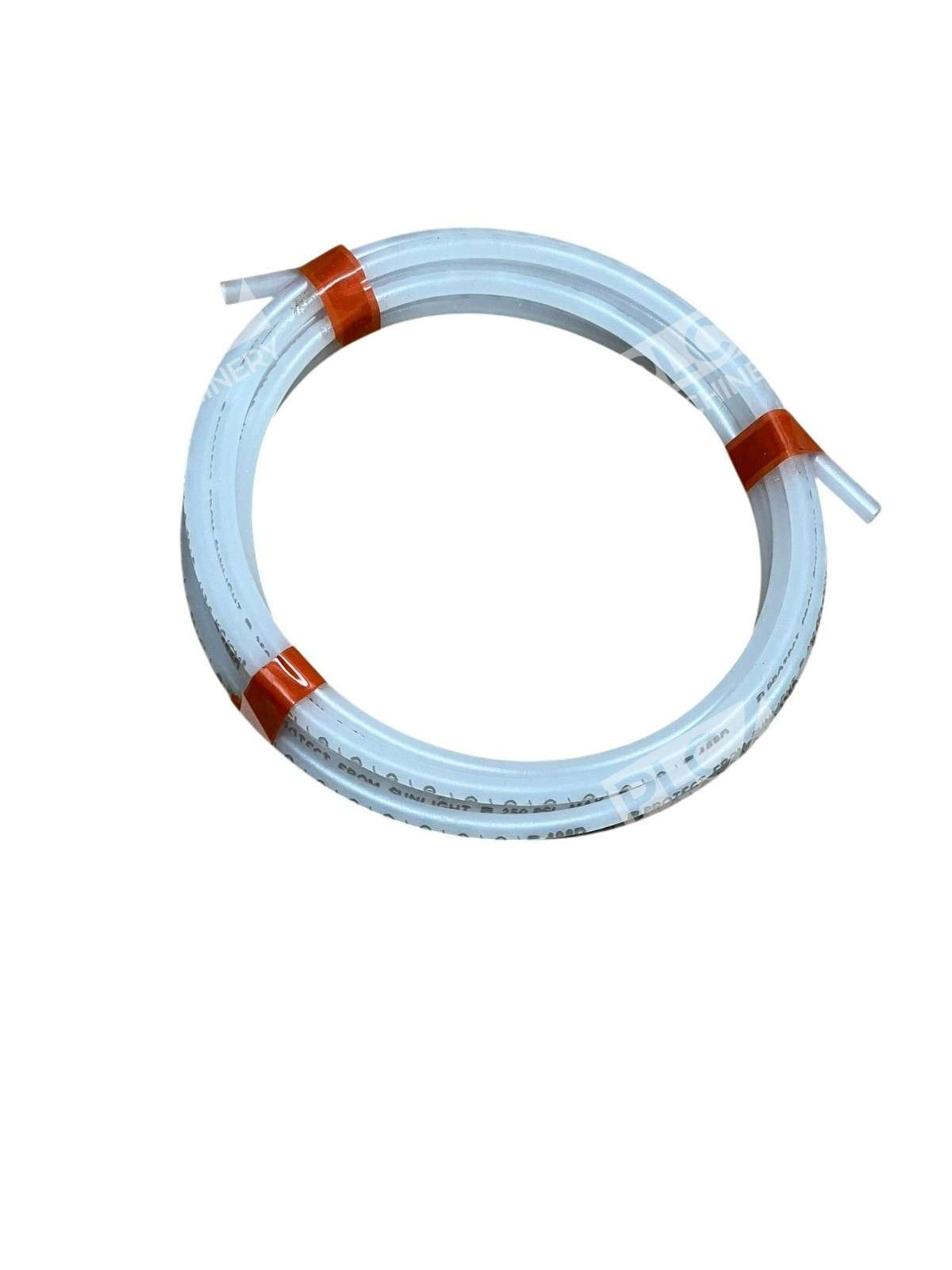

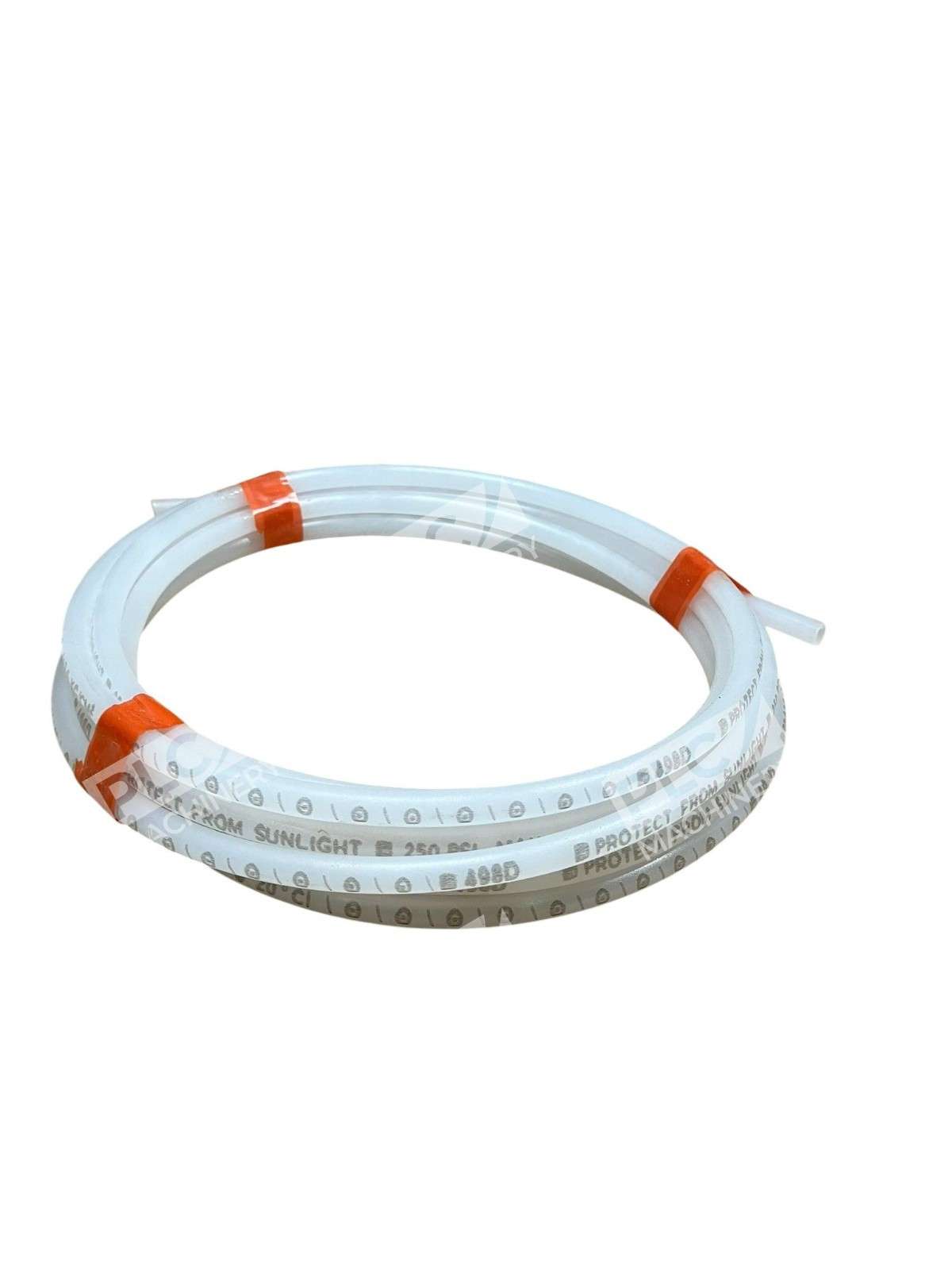

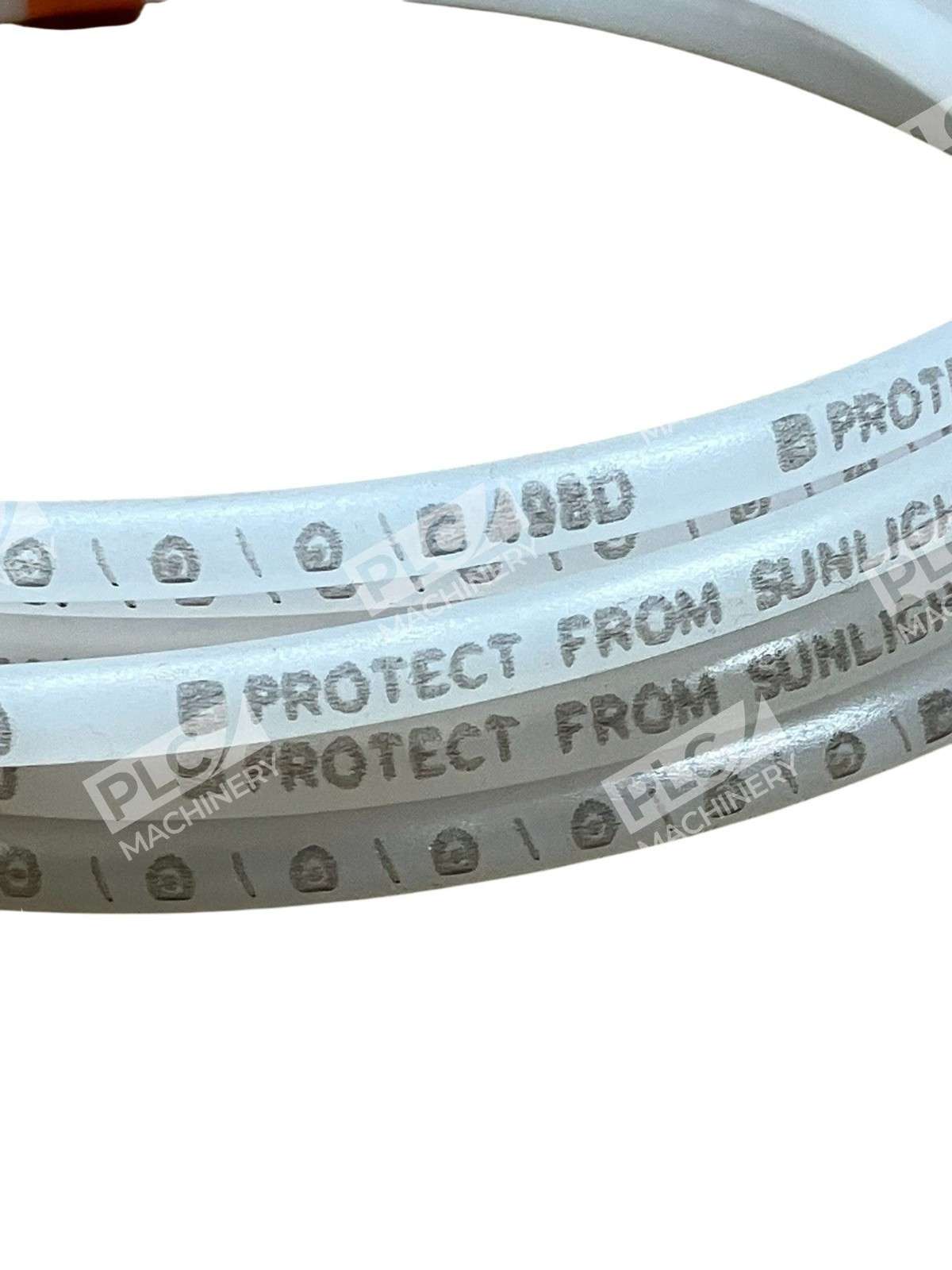

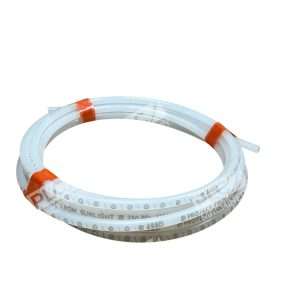

The 498D white flexible PVC tubing is engineered for reliable performance in high-pressure fluid and pneumatic transfer applications. With a maximum working pressure rating of 250 PSI, this tubing delivers dependable service in industrial, commercial, and light municipal settings. The white color provides inherent UV protection, preventing degradation from extended outdoor or direct sunlight exposure. Flexible PVC construction allows easy routing around equipment and machinery without the need for rigid fittings.
Key Features
- 250 PSI maximum working pressure rating for pneumatic and hydraulic lines
- White color formulation with UV protection to resist sunlight damage
- Flexible PVC material for easy installation and equipment routing
- Smooth inner bore compatible with standard barbed fittings
- Chemical and oxidation resistant for industrial fluid transfer
- Durable construction suitable for extended outdoor use
Technical Specifications
| Material | Flexible PVC (Polyvinyl Chloride) |
| Color | White |
| Maximum Working Pressure | 250 PSI |
| UV Protection | Yes — White pigmentation provides UV resistance |
| Application Type | Pneumatic, hydraulic, fluid transfer, plumbing |
| Fitting Compatibility | Standard barbed fittings (smooth bore) |
| Operating Temperature Range | Typically 0°F to 160°F (confirm with specific size) |
| Flexibility | High — Allows tight radius bends without rigid connectors |
| Chemical Resistance | Good — Resistant to common oils, fuels, and low-grade acids |
Typical Applications
- Pneumatic Systems: Compressed air distribution lines and control circuits
- Hydraulic Lines: Fluid transfer in medium-pressure industrial equipment
- Plumbing: Agricultural irrigation, water circulation, and utility water lines
- Outdoor Equipment: Machinery and systems with UV exposure requirements
- Facility Maintenance: General-purpose tubing for maintenance departments and field operations
Compatibility & Replacements
Compatible With
- Standard barbed tube fittings (most common commercial sizes)
- Pneumatic control systems and compressed air circuits
- Low to medium-pressure hydraulic systems
- Industrial fluid transfer equipment
- Outdoor irrigation and water recirculation systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 498D may replace tubing of equivalent diameter and pressure rating; consult the original equipment documentation or contact technical support for specific model substitutions.
Works With
- Barbed connector fittings
- Hose clamps and crimp systems
- Standard pneumatic and hydraulic couplings rated 250 PSI or lower
- PVC-compatible sealants and adhesives (for certain applications)
