Overview

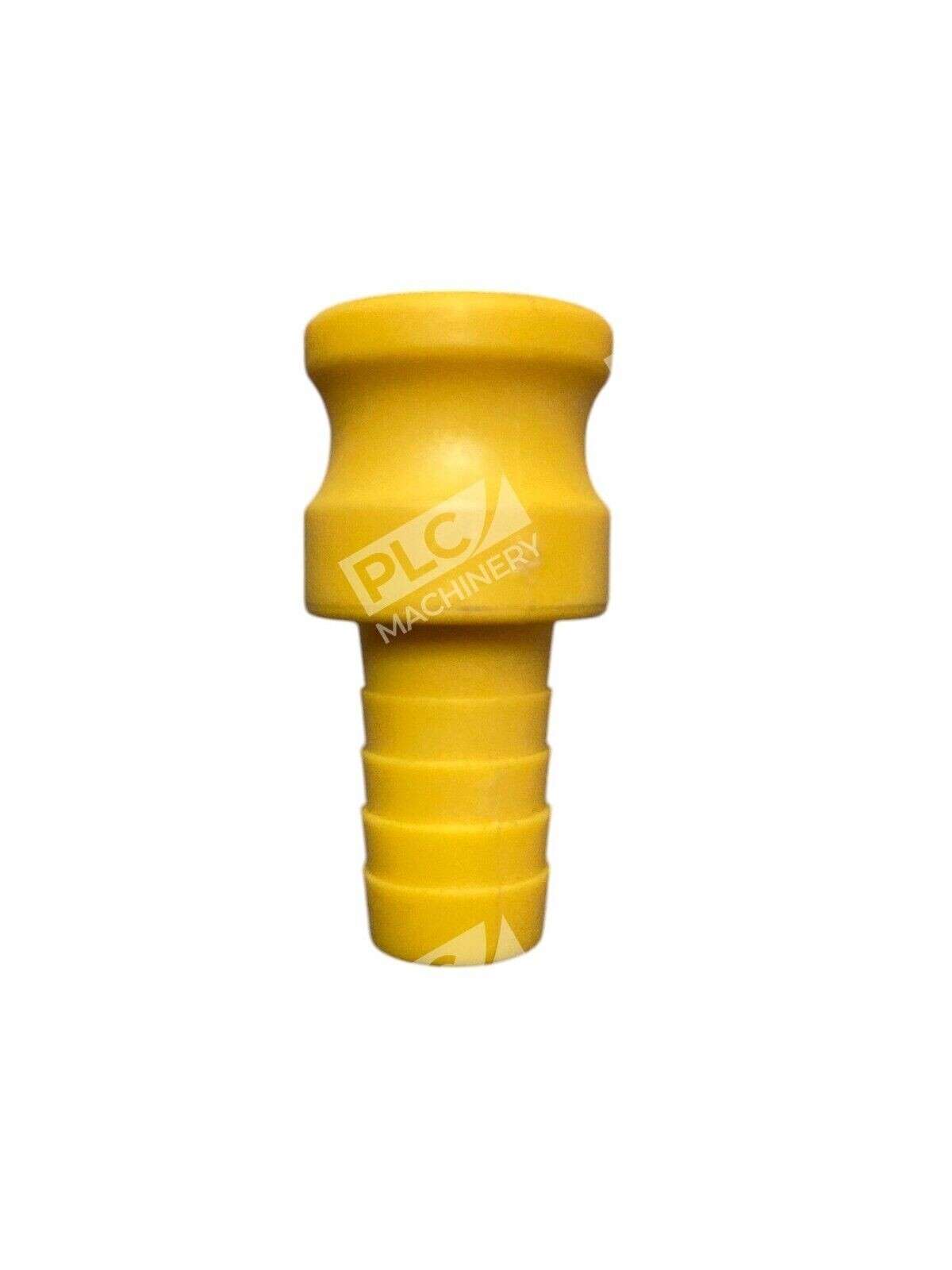

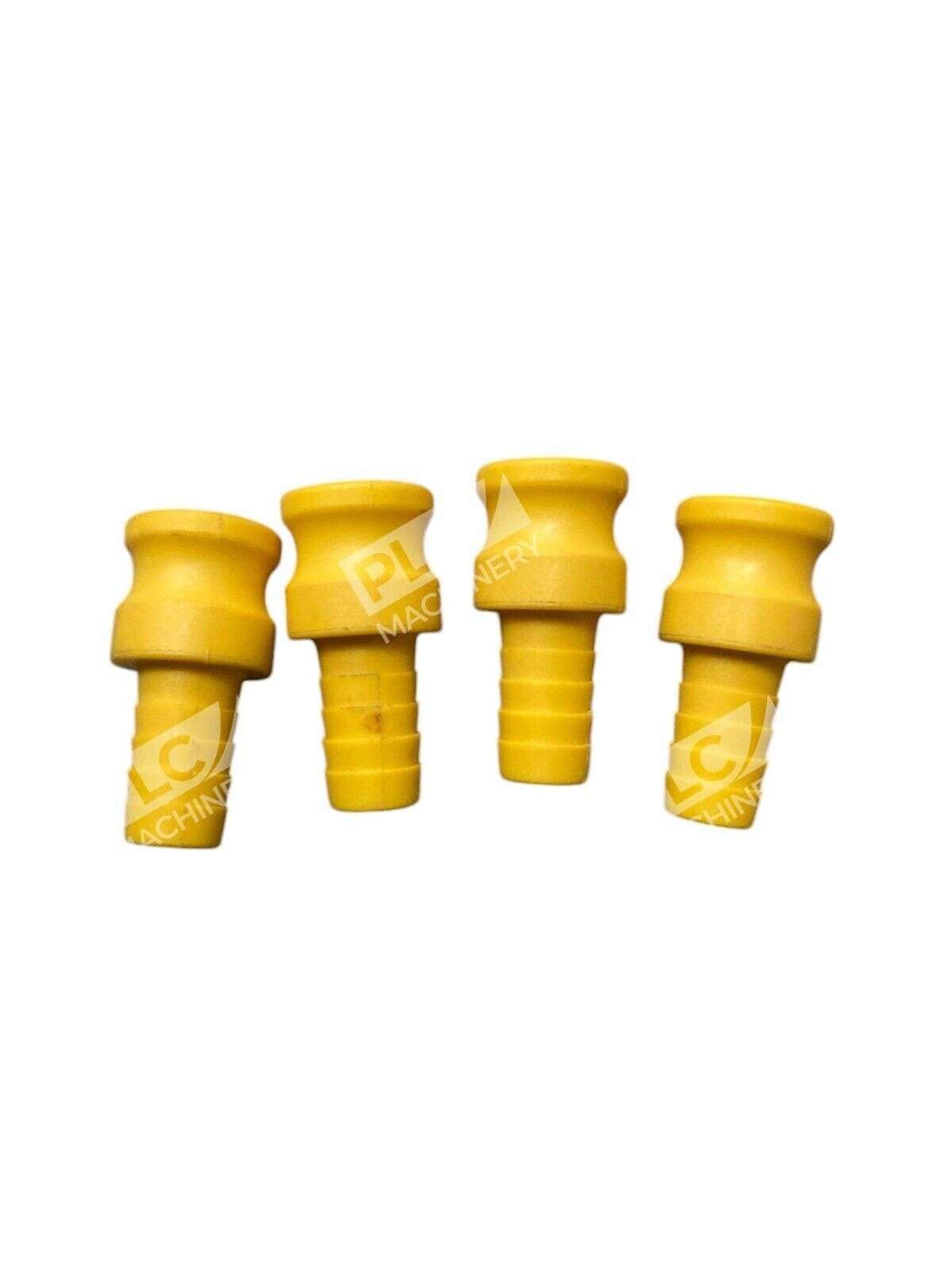

The Nyglass camlock adapter 3/4″ Type F is a set of 4 male-to-male fittings designed for quick-connect applications in fluid transfer systems. Made with 0.75 inch diameter, these fittings feature a Camlock-to-NPT connection construction. Nyglass (Nylon + 30% Glass Fibre) camlock fittings are best for lightweight, chemical-resistant and high-strength non-metal installations.
Key Features
- Male Cam and Groove on one end and male NPT Thread on the other
- Nyglass pressure rating up to 125 psi
- Lightweight non-metallic construction for corrosion resistance
- Set of 4 adapters for bulk applications
- Camlock design minimizes turbulence in flows and abrasion from dry products
Technical Specifications
Type F adapters feature male camlock (cam and groove) on one end paired with male NPT thread on the other. Type F adapters are generally used with the same size Type B couplers, however, Type C and D Couplers are compatible, as well as the DC (Dust Cap).
Typical Applications
- Hydraulic fluid transfer systems
- Pneumatic air lines
- Plumbing and water transfer
- Chemical and corrosive fluid handling
- Agricultural and industrial spraying equipment
- Low-to-moderate pressure process connections (up to 125 psi)
Compatibility & Replacements
Compatible With
- Type B camlock couplers (same 3/4″ size)
- Type C hose shank couplers
- Type D female thread couplers
- Type DC dust caps
- Female NPT threaded ports
- Female cam and groove receiving fittings
Replaces / Drop-In Replacement For
- Other 3/4″ Type F camlock adapters with male NPT thread
- Generic male-to-male camlock adapters 3/4″ (verify thread type before substitution)
Works With
- Camlock coupler systems per MIL-C-27487 standard
- Cam and groove fluid transfer equipment
- Standard NPT-threaded systems and components
- Hydraulic and pneumatic hose assemblies with female NPT ends
