Overview

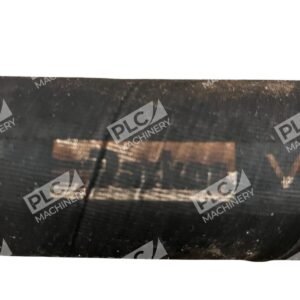

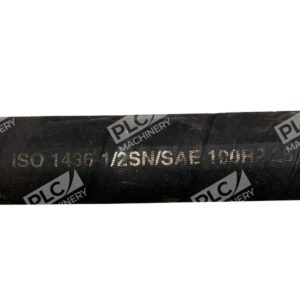

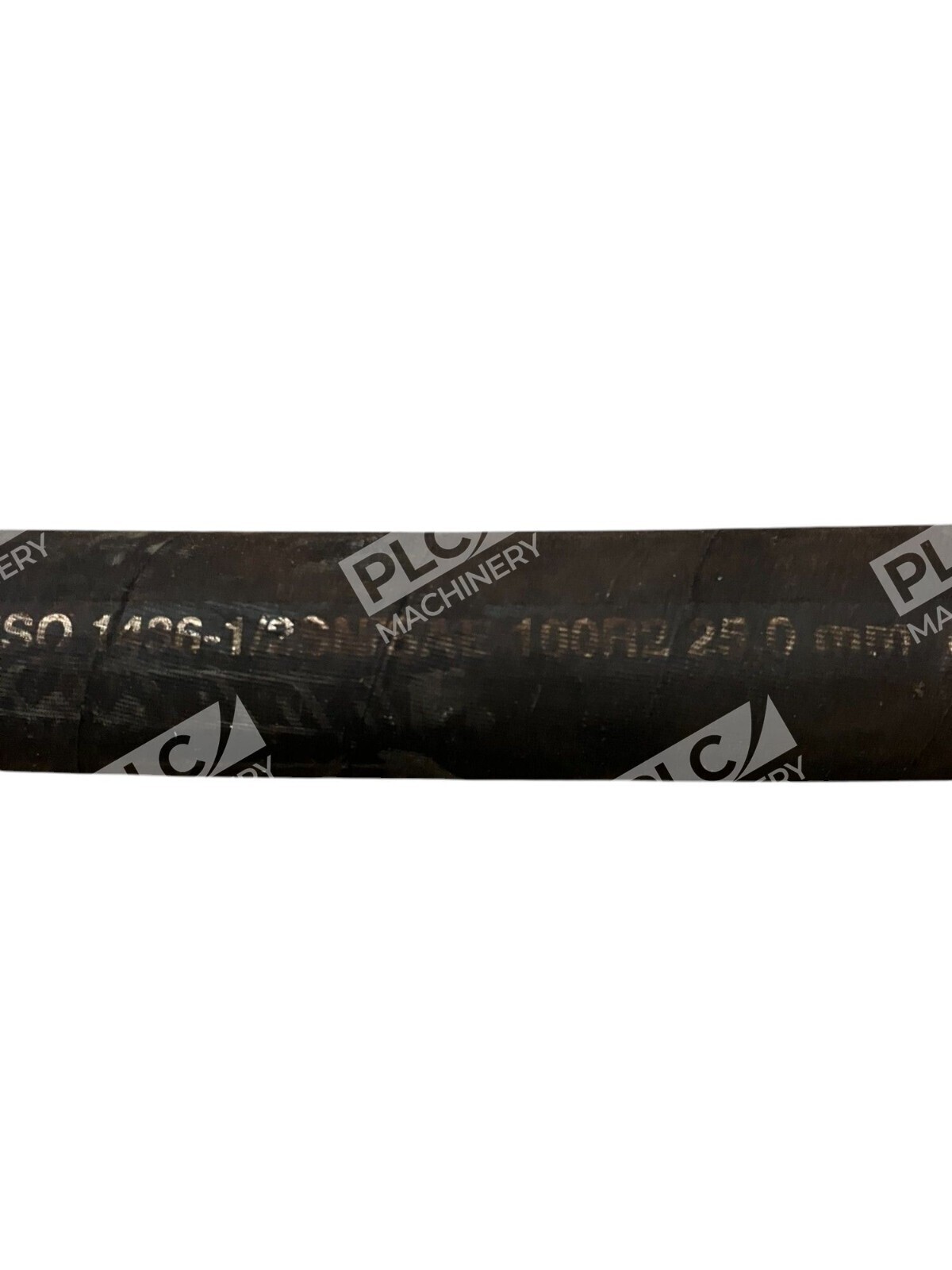

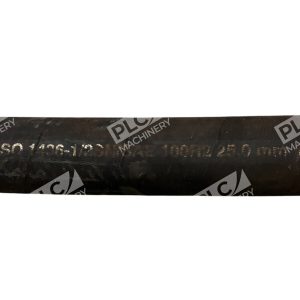

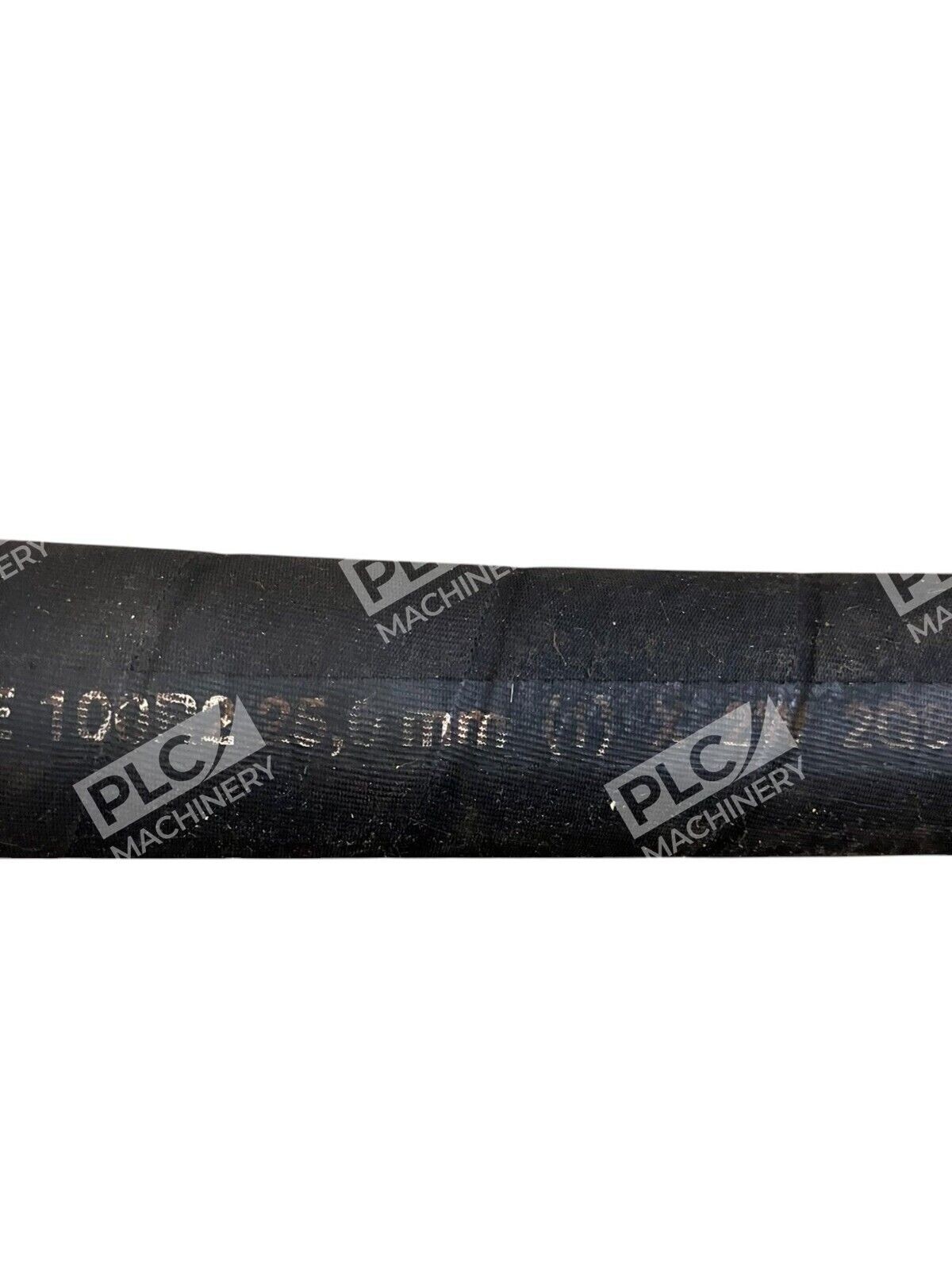

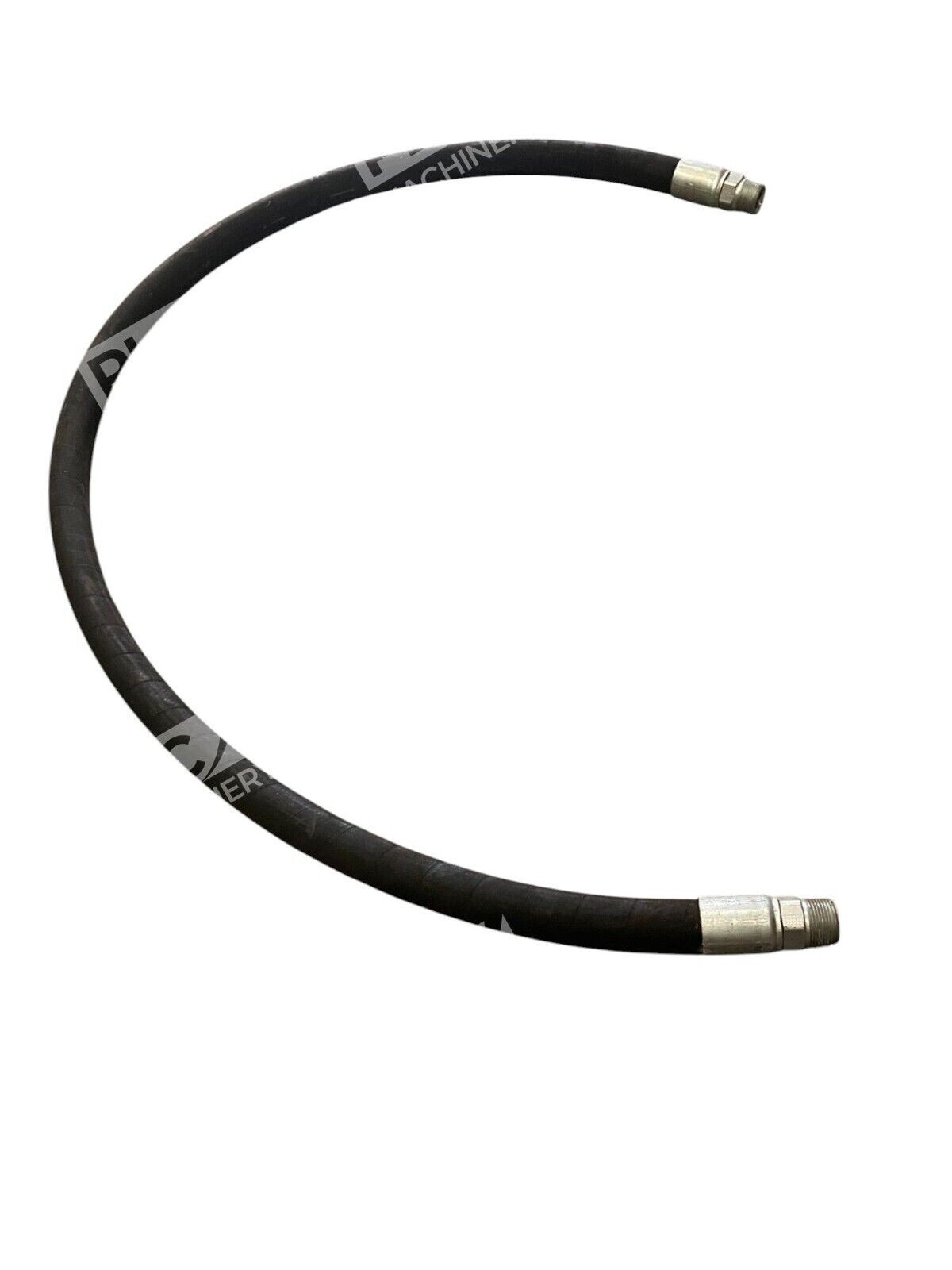

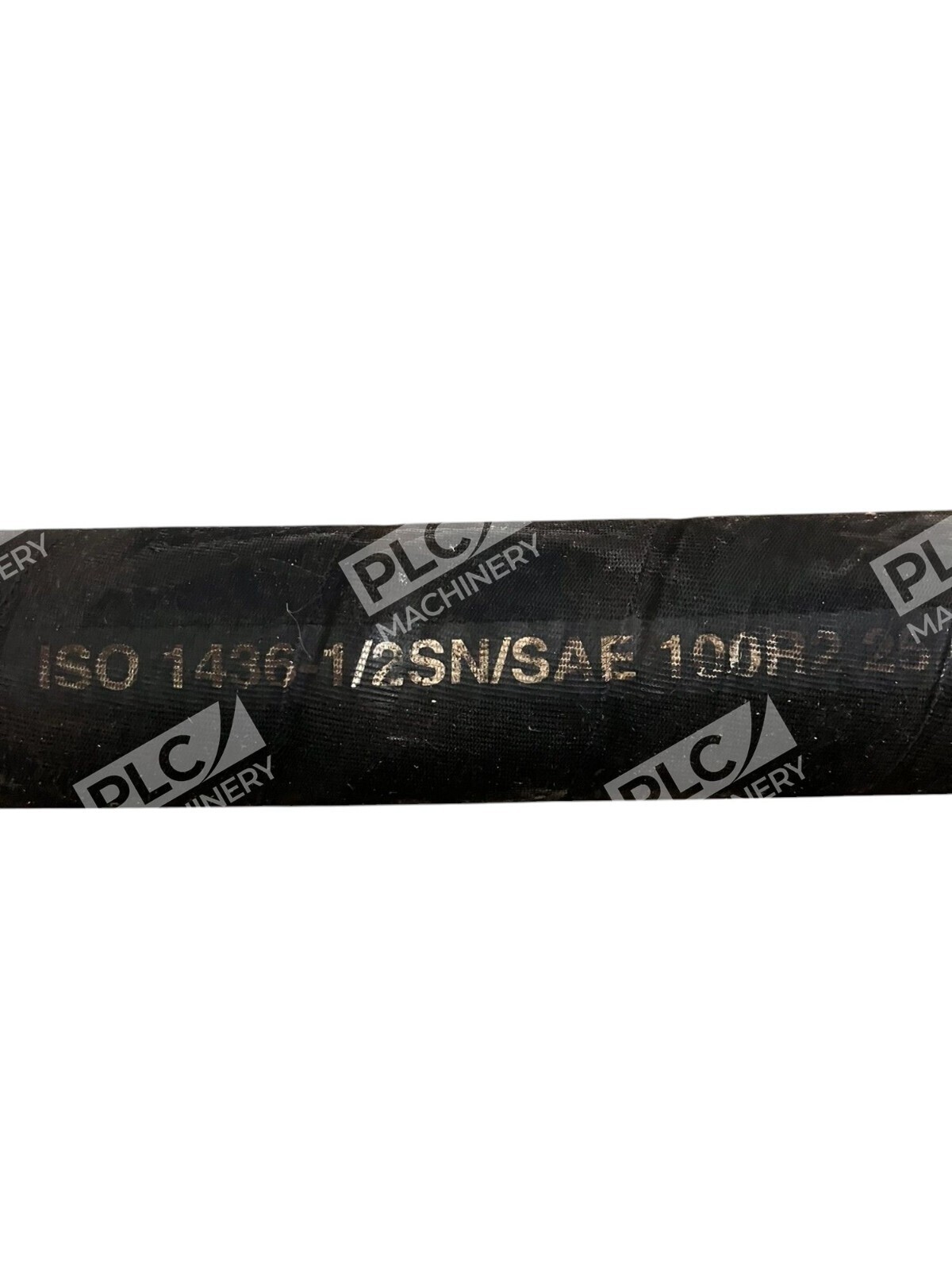

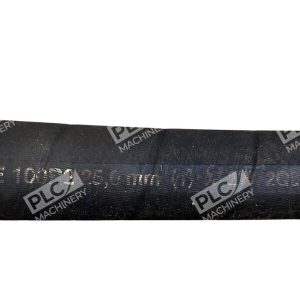

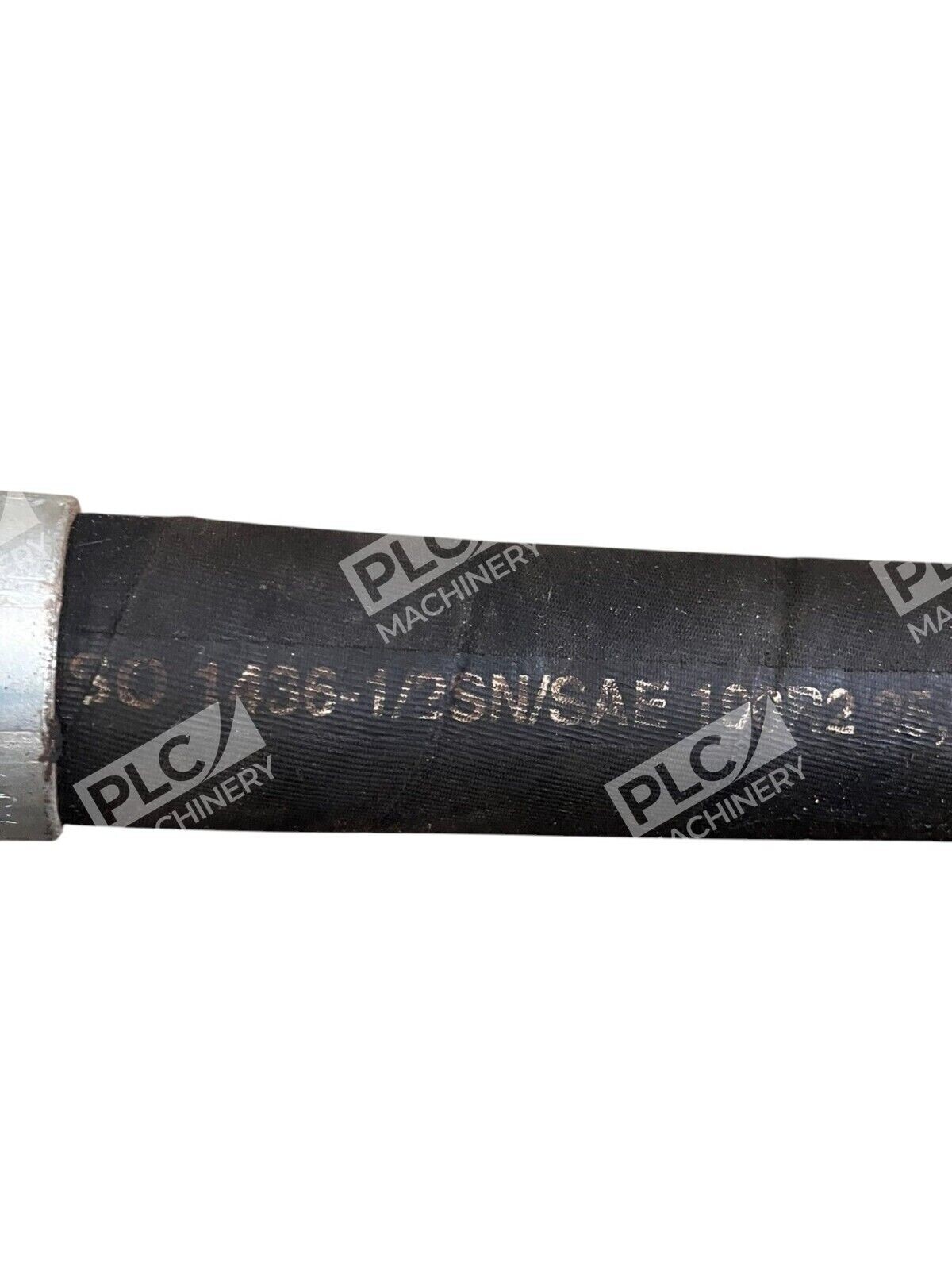

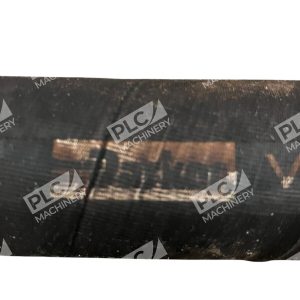

The Parker 1436-1/2SN/SAE is a precision-engineered 100R2 AT (SAE 100R2 AT / ISO 1436-1 Type 2SN) hydraulic hose meeting international specifications. With a 1/2″ inner diameter and 25.0mm outer diameter profile, this hose delivers reliable fluid transfer in medium-pressure industrial hydraulic systems, machinery, and mobile equipment. The two-wire reinforced design ensures consistent performance and long service life across diverse applications.
Key Features
- SAE 100R2 AT / ISO 1436-1 Type 2SN certified — meets industry standards for global compatibility and interchangeability
- Two high-tensile steel wire braids — durable reinforcement for reliable pressure containment and burst protection
- Synthetic rubber inner tube and cover — superior hydraulic fluid compatibility and MSHA-approved abrasion resistance
- Extensive temperature range — operates from −40°C to +100°C (−40°F to +212°F)
- No-Skive technology — eliminates cover removal before crimping, reducing assembly time and labor costs
Technical Specifications
- Hose ID: 1/2″ (12.7 mm)
- Hose OD: 25.0 mm (approximately 0.98″)
- Working Pressure: 3,500 PSI (24 MPa)
- Burst Pressure: 14,000 PSI (96 MPa)
- Design Factor: 4:1 minimum safety margin
- Reinforcement: Two high-tensile steel wire braids
- Inner Tube Material: Synthetic rubber (nitrile, NBR)
- Cover Material: Synthetic rubber, MSHA approved, abrasion resistant
- Temperature Range: −40°C to +100°C (−40°F to +212°F)
- Compatible Fluids: Petroleum-based hydraulic oils, water-glycol fluids, lubricating oils
- Standards: SAE J517 (SAE 100R2 AT), ISO 1436-1 Type 2SN, EN 853 Type 2SN, DNV, ABS, BV certified
- Condition: New – Open Box
Typical Applications
The Parker 1436-1/2SN/SAE hydraulic hose is widely deployed in:
- Industrial machinery and factory automation hydraulic systems
- Construction and earthmoving equipment (loaders, excavators, bulldozers)
- Agricultural implements and tractor hydraulic circuits
- Mobile hydraulic equipment and attachments
- General industrial fluid power systems operating at medium pressures (up to 3,500 PSI)
- Retrofit and maintenance applications requiring exact SAE/ISO compliance
Compatibility & Replacements
Compatible With
- Parker 43 Series fittings and connectors
- SAE J518 Code 61 and Code 62 flange fittings
- ISO 1219 hydraulic schematic symbols and circuit designs
- Equipment and systems rated for SAE 100R2 AT hoses
- ISO 1436-1 Type 2SN compliant hydraulic systems
- Parker No-Skive crimping tools and assembly equipment
Replaces / Drop-In Replacement For
- Earlier Parker 100R2 1/2″ hose assemblies with matching SAE/ISO ratings
- OEM hose replacements specifying SAE 100R2 AT or ISO 1436-1 Type 2SN
- Industry-standard 1/2″ ID two-wire hydraulic hoses meeting equivalent pressure ratings
Works With
- Parker industrial hydraulic system design software
- Standard 43 Series fitting and hose assembly configurations
- ISO and SAE schematic design standards (ISO 1219, SAE J517)
- Petroleum and synthetic hydraulic fluids compliant with ISO VG 32 through VG 68
- Parker crimping machines and field-attachable assembly kits
