Overview

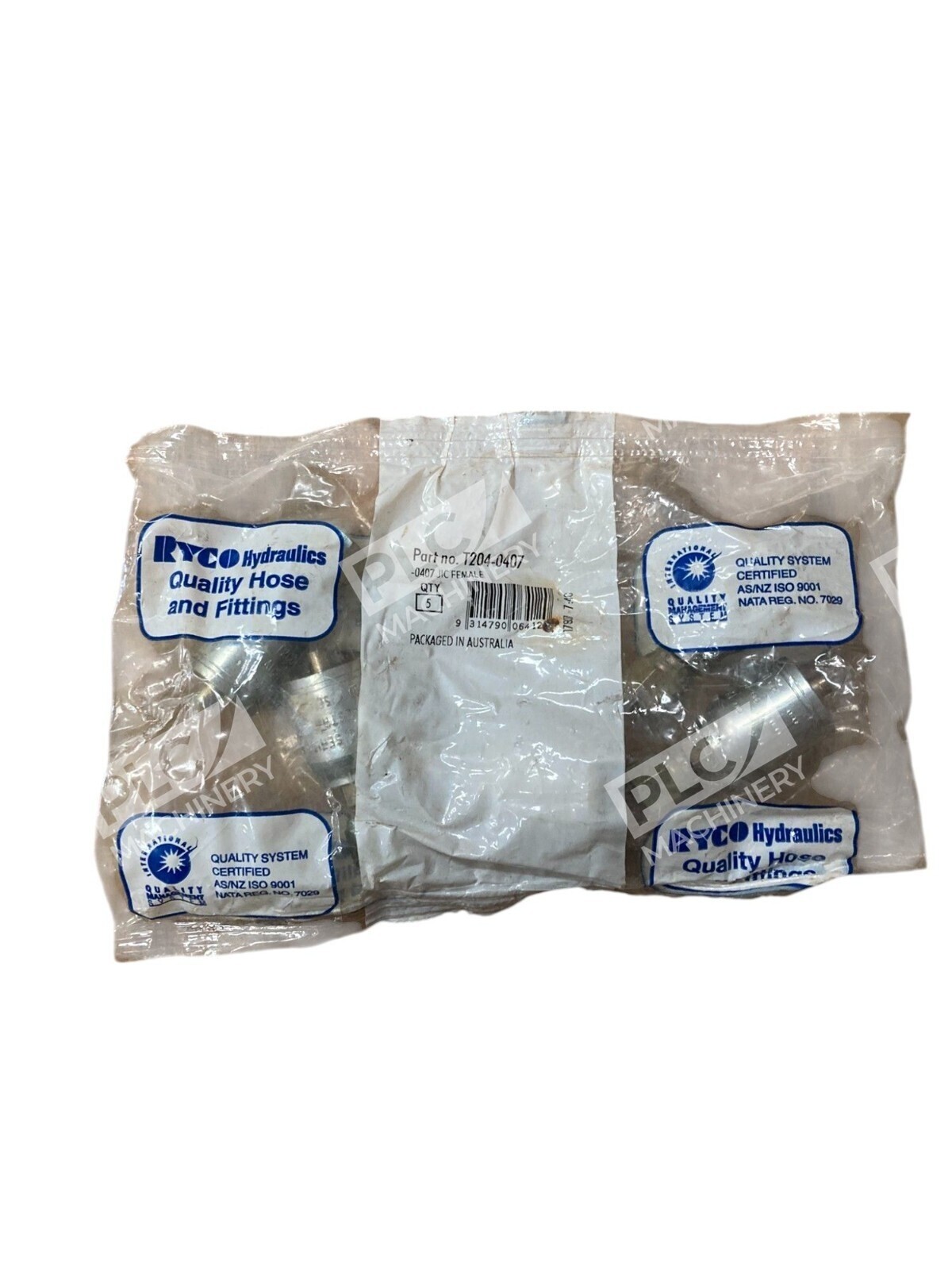

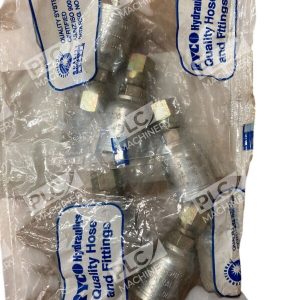

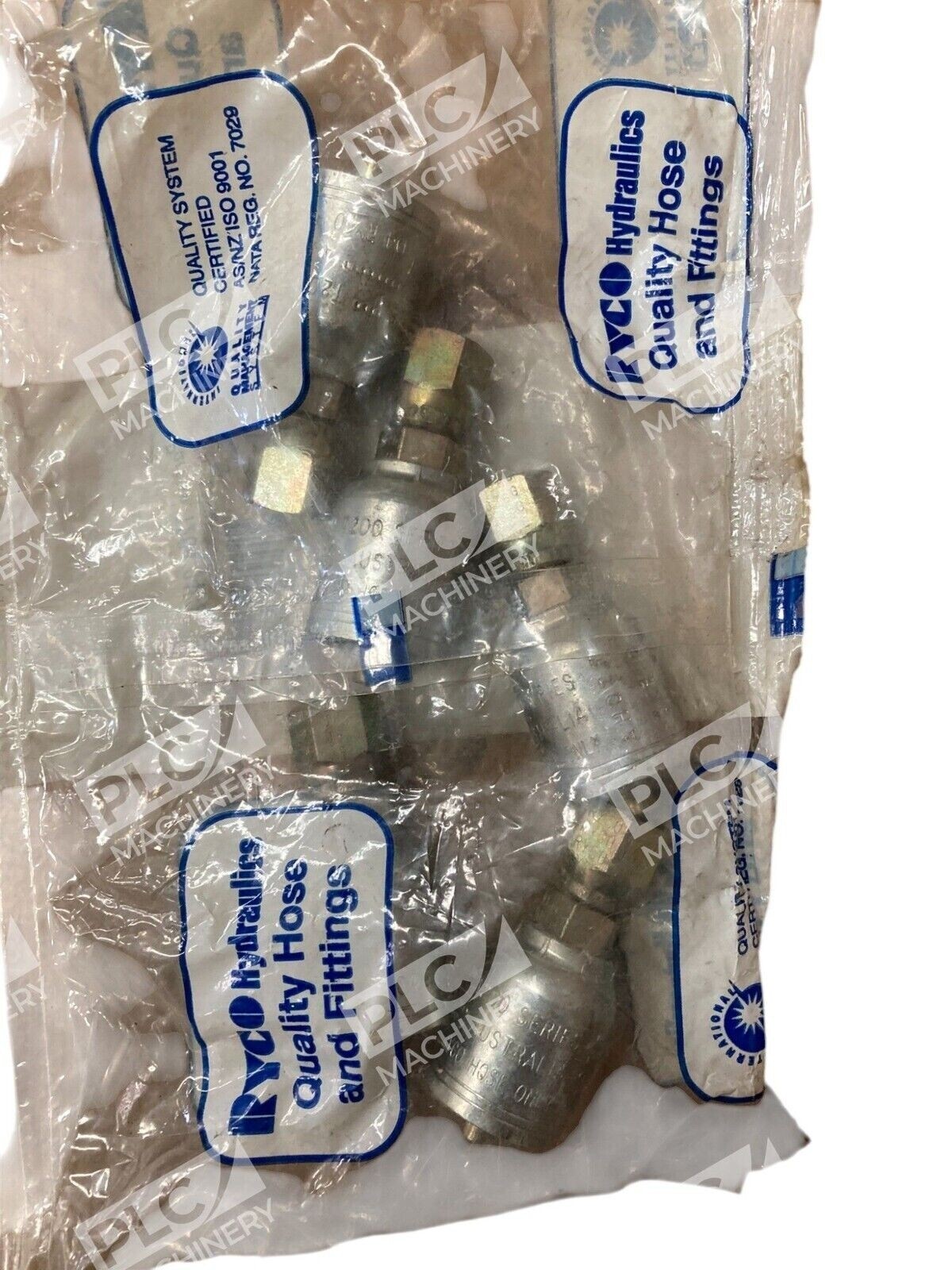

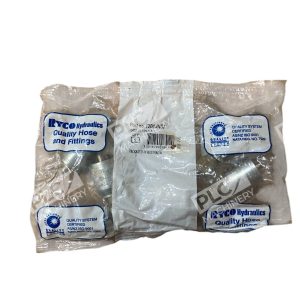

The Ryco T204-0407 JIC female straight hose end fitting is a one-piece crimp coupling designed to terminate 1/4″ hydraulic hose with secure, leak-free connections. This product ships as a set of 5 fittings and is engineered for industrial hydraulic applications where dependable pressure retention is critical. The T200 series bitelock crimp design provides durable, field-proven performance in mobile and stationary hydraulic systems.
Key Features
- JIC female straight end style for standard 37° cone seals
- One-piece crimp construction for simplified assembly
- Rated for 1/4″ hose with 1/4″ NPT (7/16″ hex) thread connection
- Compatible with multiple Ryco hose series
- Sold in convenient packs of 5 fittings
- T200 bitelock design resists hose separation under pressure
Technical Specifications
Hose Size: 1/4″
Connection Thread: 1/4″ NPT (JIC Female)
Hex Size: 7/16″
End Style: Straight
Series: T200 Bitelock

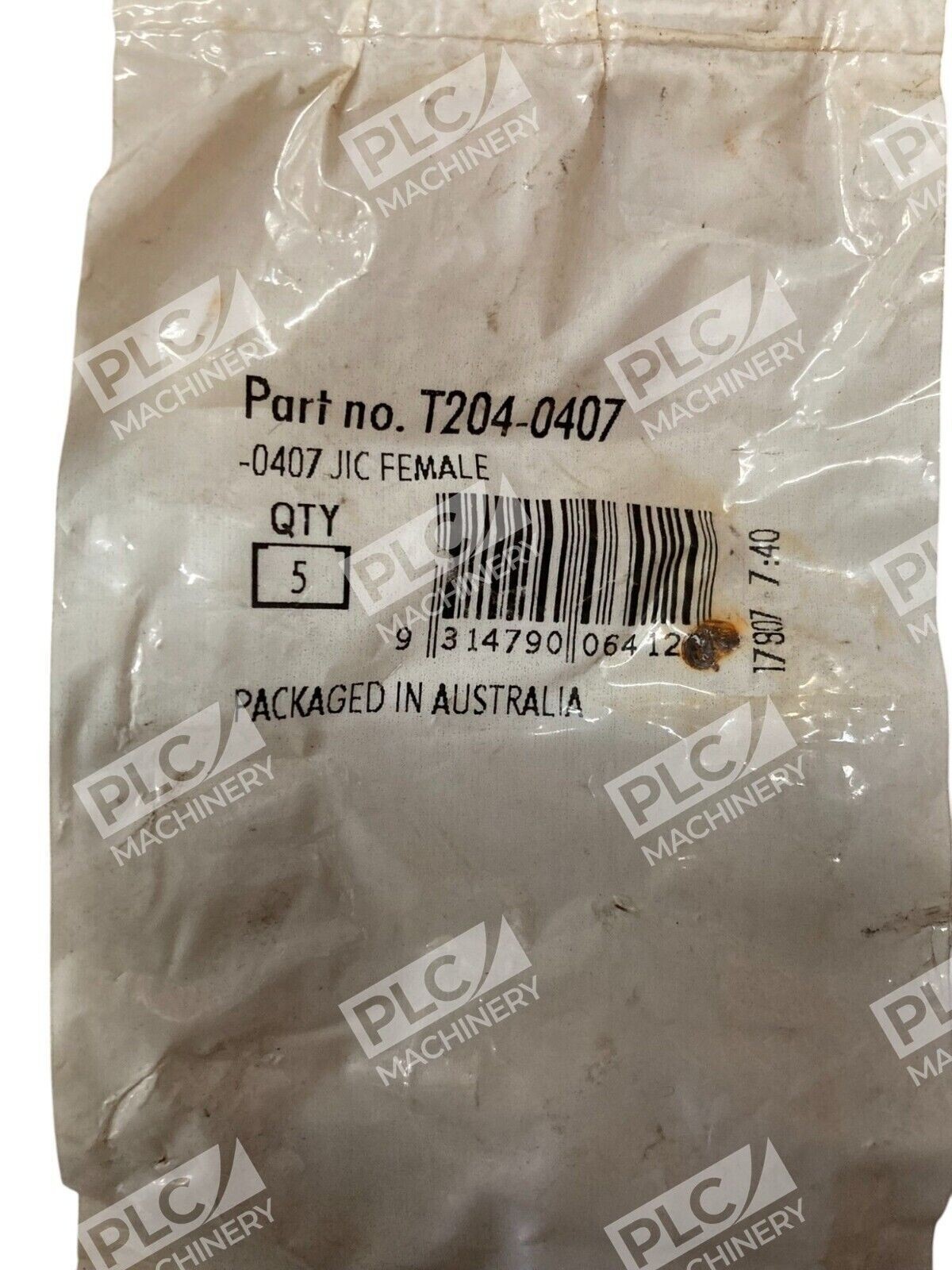

Part Number: T204-0407
Package Quantity: 5 per bag
Sealing Angle: 37° (JIC standard)
Typical Applications
- Mobile hydraulic equipment (loaders, excavators, backhoes)
- Stationary industrial hydraulic presses and cylinders
- Agricultural machinery and implements
- Construction equipment systems
- Fluid transfer line termination
- Hydraulic pump and motor connections
Compatibility & Replacements
Compatible With
- Ryco T1A, T2A, T1D, T2D, TXA2D, T2S hose series
- Ryco AS1D, AS2D, AJ2D, TJ2D hydraulic hose lines
- Ryco RQP1, RQP2, DF2, TW1, PW2, RQG1 hose up to -20 size
- Standard 1/4″ NPT female threaded ports
- 37° JIC cone-seal receptacles
Replaces / Drop-In Replacement For
The T204-0407 directly replaces other straight JIC female fittings for 1/4″ hose applications on Ryco hose assemblies. No specific cross-brand equivalents verified; verify with your system integrator before substituting non-Ryco hose.
Works With
- All Ryco T200 bitelock crimp hose assembly equipment
- Standard 1/4″ NPT female receiving ports
- 37° JIC cone-seal manifolds and couplers
- Manual and powered hydraulic crimping tools rated for T200 series
