Overview

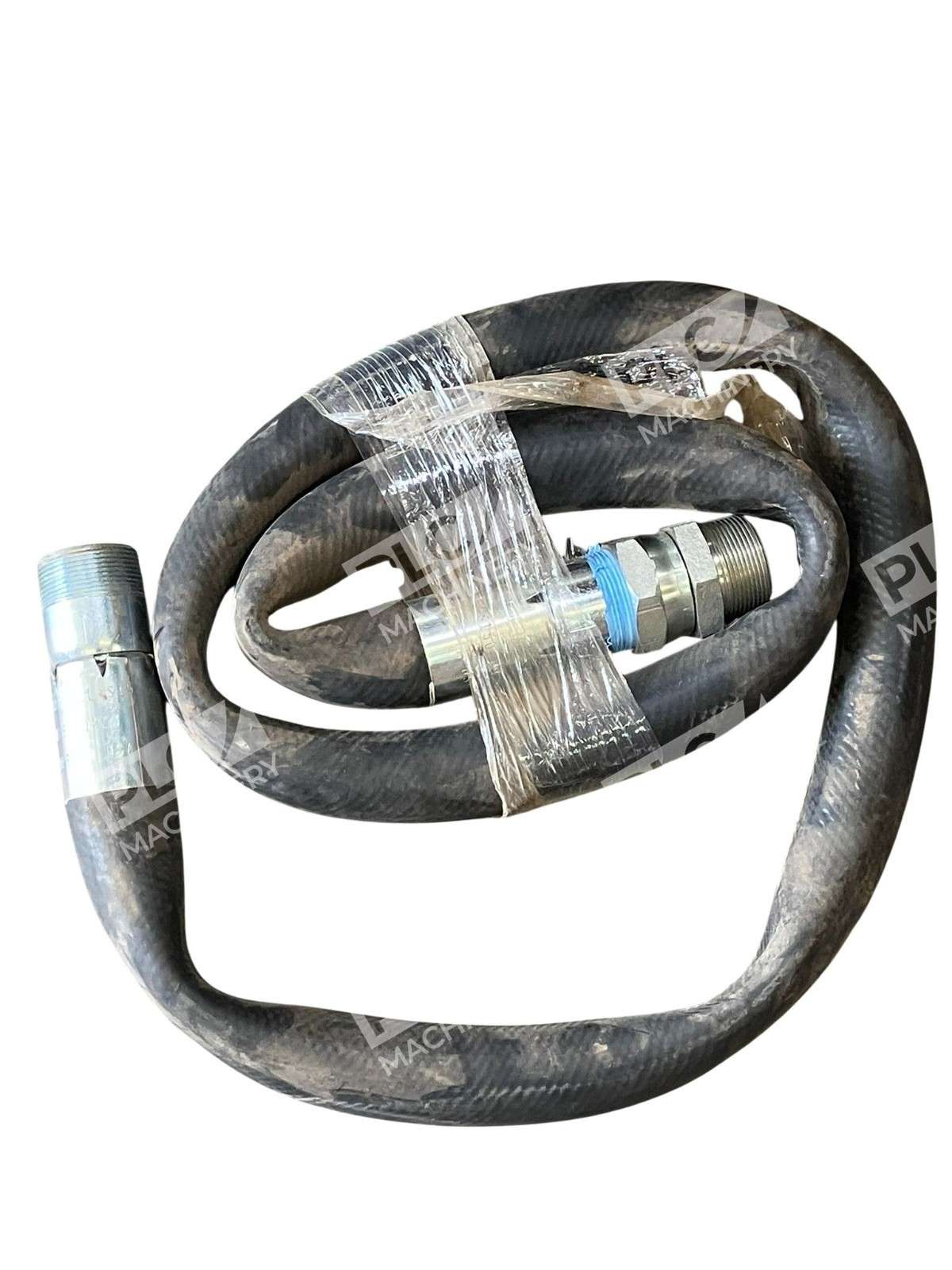

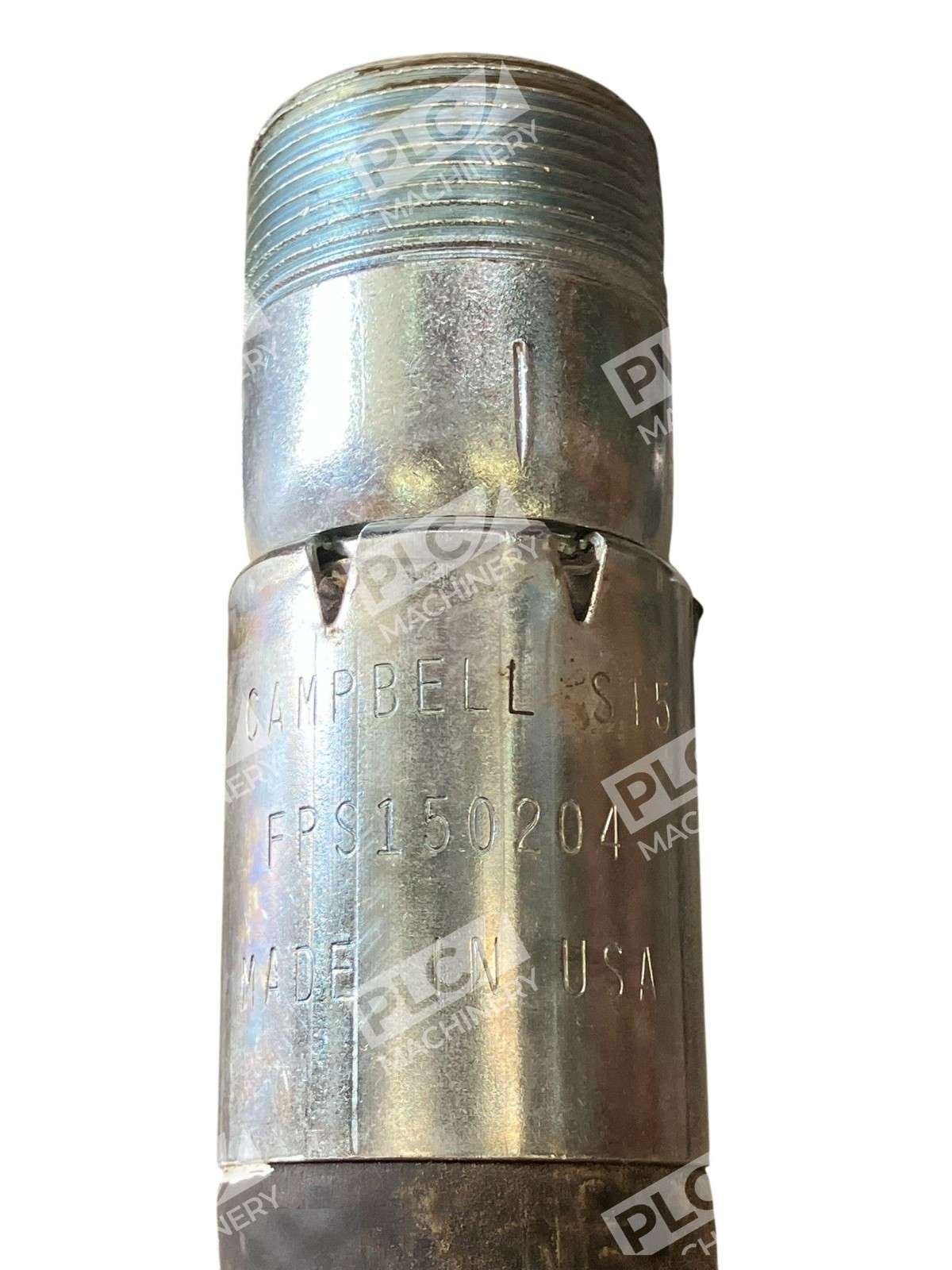

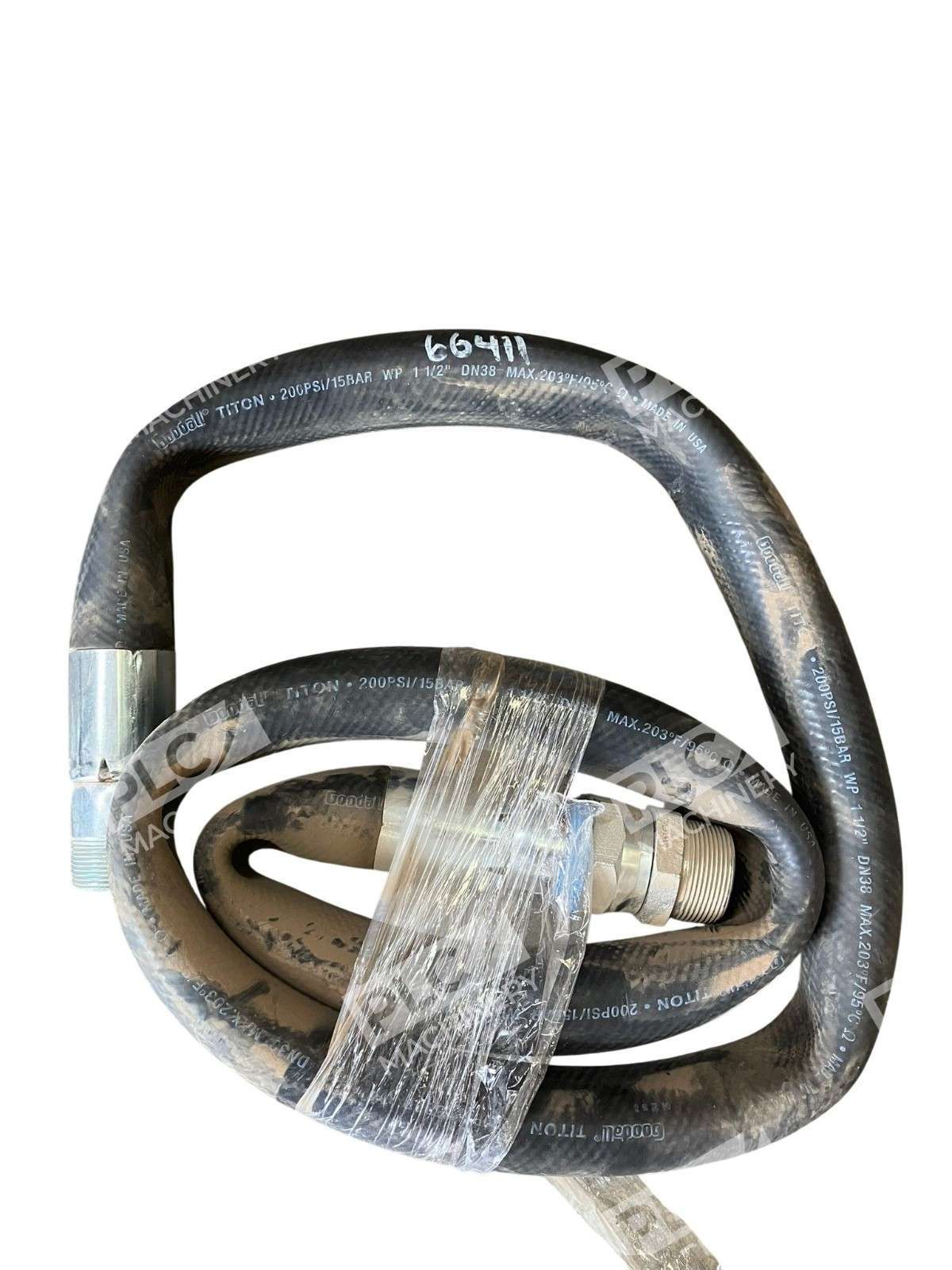

The Campbell FPS150204 plated steel hose ferrule is a precision-engineered crimp fitting engineered for use with 1-1/2″ ID hoses. This ferrule accommodates a 2-4/64″ ferrule ID and features plated steel construction, making it suitable for standard hydraulic, pneumatic, and industrial fluid power applications. Campbell’s ferrule design ensures 360° ferrule-to-fitting interlock for maximum hose retention and system integrity.
Key Features
- Plated steel construction for corrosion resistance and durability
- Precision crimp fitting design compatible with 1-1/2″ ID hoses
- 360° interlock groove ensures full ferrule-to-fitting engagement
- Shank length and ferrule geometry optimized to prevent hose tube or cover damage
- Direct replacement for OEM Campbell hose assemblies
- Engineered for industrial fluid power, hydraulic, and pneumatic systems
Technical Specifications

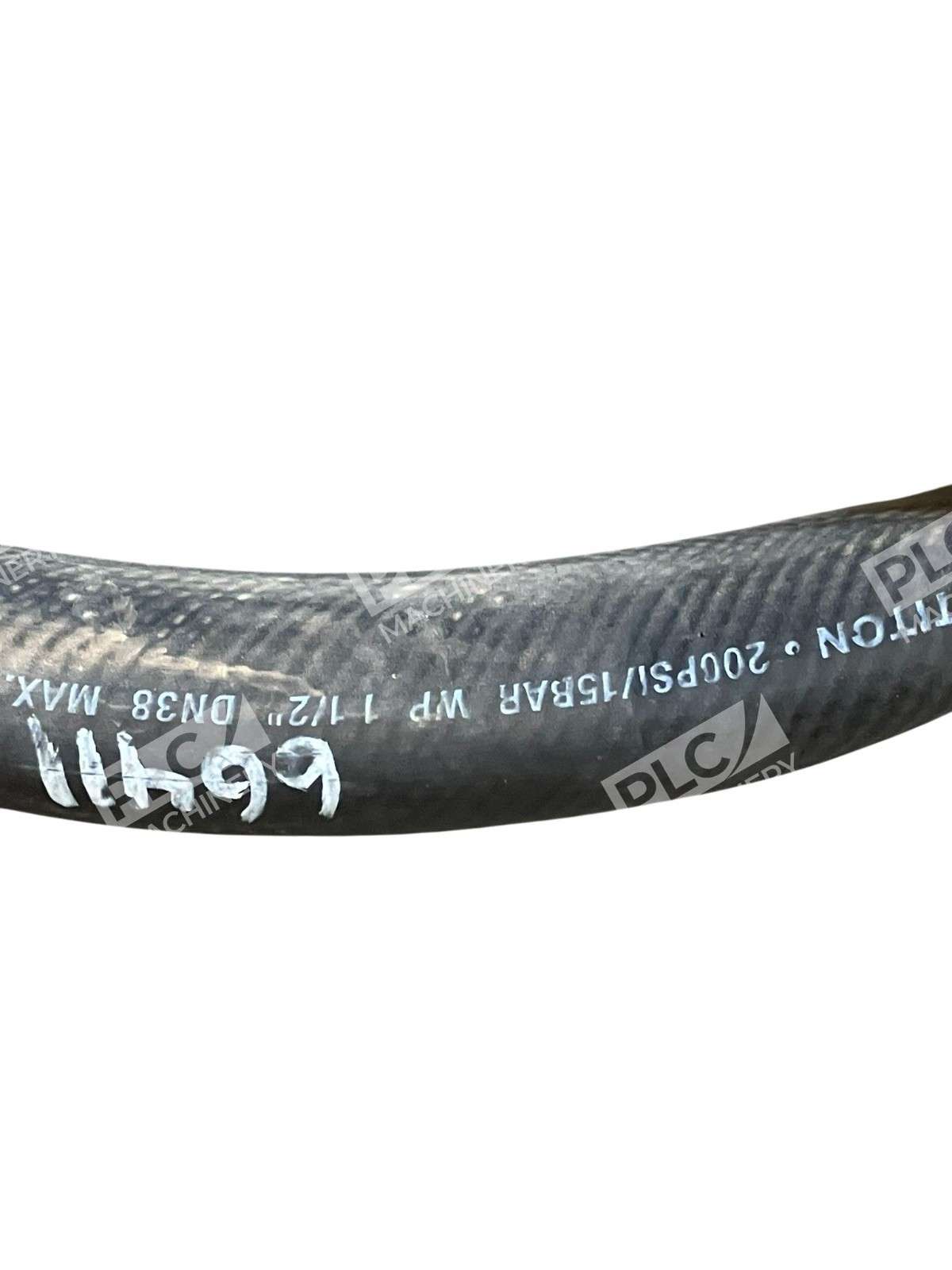

- Hose Size: 1-1/2″ ID
- Ferrule Inside Diameter: 2-4/64″
- Material: Plated Steel
- Attachment Method: Crimp
- Part Number: FPS150204
- Manufacturer: Campbell Fittings
- Ferrule Type: Short (standard length)
- Application: Hydraulic, pneumatic, general fluid power
Typical Applications
The Campbell FPS150204 ferrule is commonly used in:
- Industrial hydraulic hose assemblies and manifolds
- Pneumatic system connections
- Fluid power equipment requiring 1-1/2″ hose couplings
- Mobile and stationary industrial machinery
- OEM equipment service and replacement
- General machinery and automation fluid lines
Compatibility & Replacements
Compatible With
- Campbell Fittings hydraulic fittings and couplings (series compatible with FPS ferrules)
- 1-1/2″ ID industrial hoses (SAE, metric, and general specification)
- Standard crimp tooling (verify crimp die compatibility with your equipment)
- Fluid power systems rated for plated steel fittings
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 1-1/2″ hose ferrule assemblies
- Service replacement for Campbell hose systems utilizing FPS150204
- Compatible with Campbell coupling series designed for short-length plated steel ferrules
Works With
- Campbell Fittings coupling and male stem components
- Industrial crimp presses and hose assembly equipment
- SAE J518 and ISO 1402 hydraulic hose standards
- Standard fluid power assembly procedures (verify Campbell assembly specifications)
