Overview

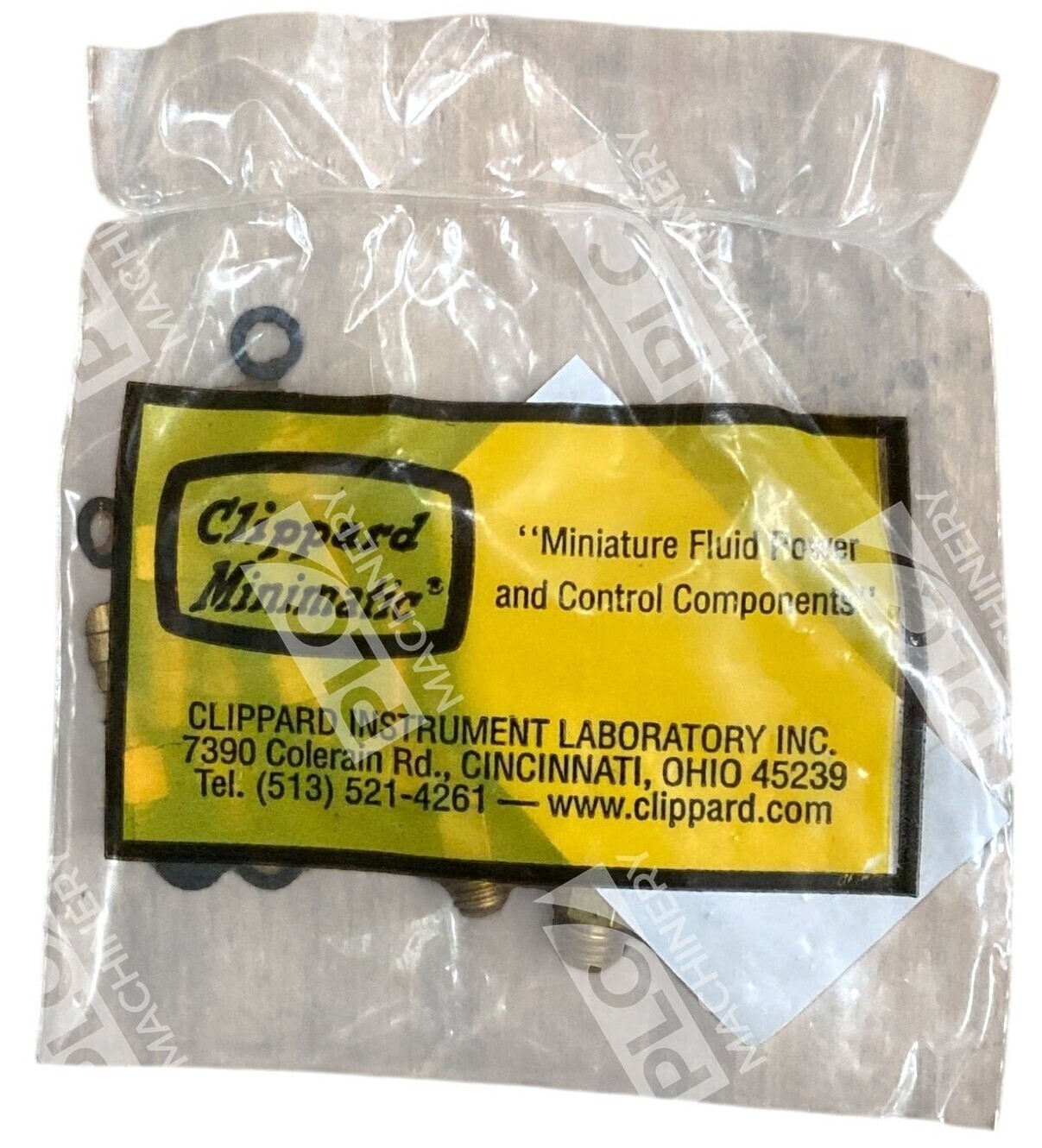

The Clippard Minimatic 11752-1 is a multi-barb hose fitting designed to connect #10-32 male threads to 1/8″ polyurethane hose in pneumatic, hydraulic, and fluid control systems. Each pack includes 10 individual fittings with nitrile gaskets pre-furnished. This straight-barb connector provides a flexible, low-profile alternative to ferrule and push-to-connect designs, eliminating the need for additional clamps while maintaining pressure-rated performance.
Key Features
- Straight barb connector design fits 1/8″ ID polyurethane hose
- Brass construction with 1/4″ hex head for wrench access
- Leak-free connection holds full hose burst pressure
- Pack of 10 units with nitrile gaskets included
- Miniature profile for compact system layouts
- No additional clamps required for proper installation
Technical Specifications
- Port Configuration: #10-32 Male Thread (top) to 1/8″ Hose Barb (bottom)
- Hose Barb Size: 1/8″ Inner Diameter
- Material: Brass
- Hex Size: 1/4″
- Gasket Material: Nitrile
- Unit Weight: 0.04 lbs per fitting
- Packaging: 10 fittings per pack
- Hose Compatibility: Clippard Polyurethane tubing, 1/8″ ID
Typical Applications
- Pneumatic control circuits and valve manifolds
- Hydraulic pilot lines and sensor connections
- Fluid metering and transfer systems
- Instrumentation and analytical equipment
- Medical device pneumatic assemblies
- Compact machinery requiring miniature fittings
Compatibility & Replacements
Compatible With
- Clippard polyurethane hose (1/8″ ID)
- Pneumatic and hydraulic systems using #10-32 male thread ports
- Industrial valves and manifolds with 10-32 thread
- Instrumentation requiring #10-32 hose connections
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or OEM before ordering for direct replacement applications
Works With
- Clippard pneumatic and modular valve systems
- Polyurethane tube assemblies
- Optional Clippard hose clamps (models 5000-1, 5000-1A, 5000-2)
- Standard #10-32 threaded ports
