Overview

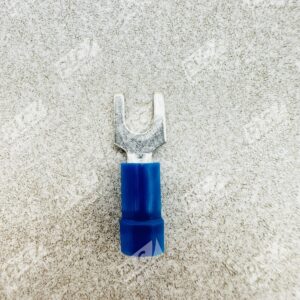

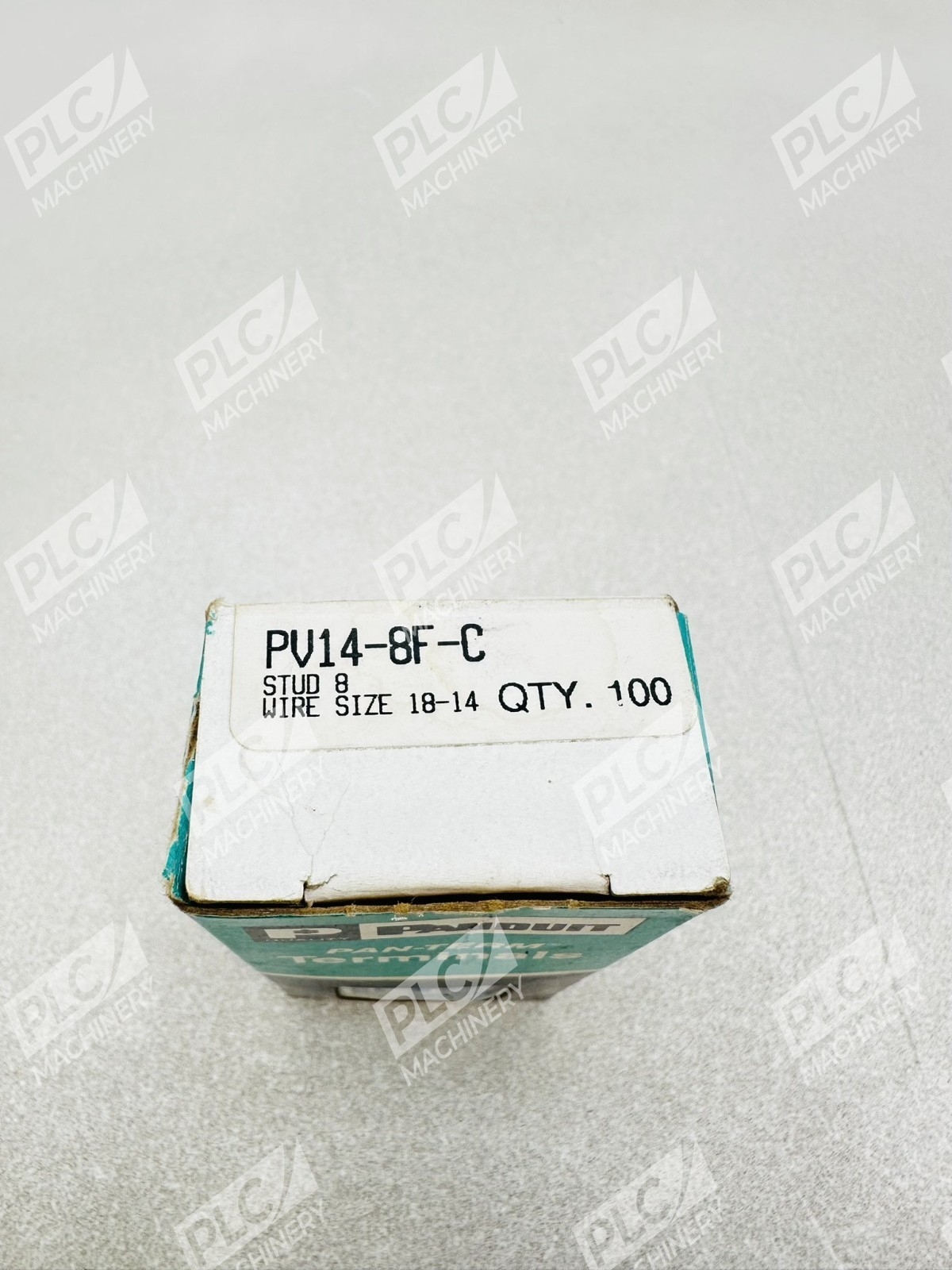

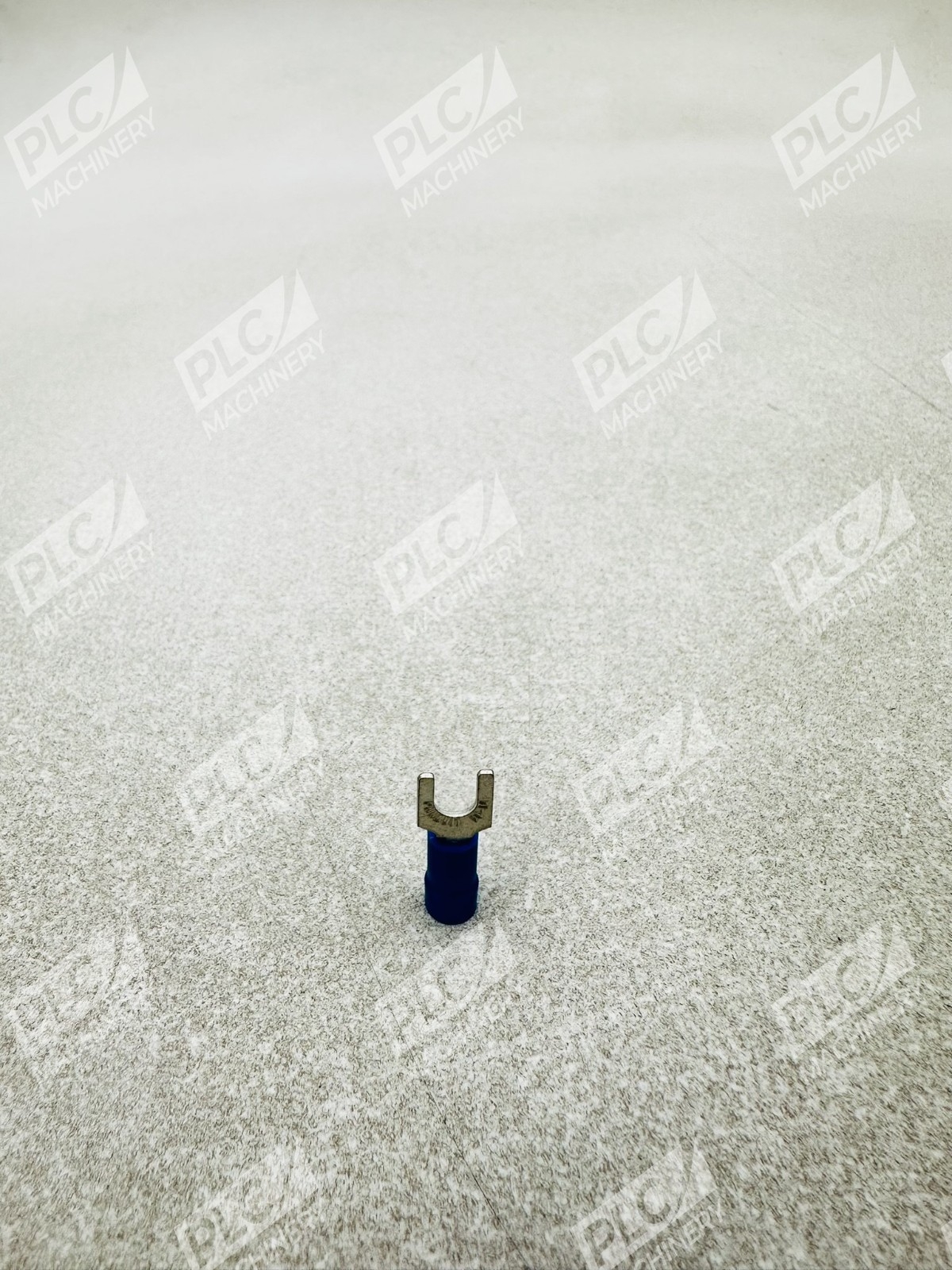

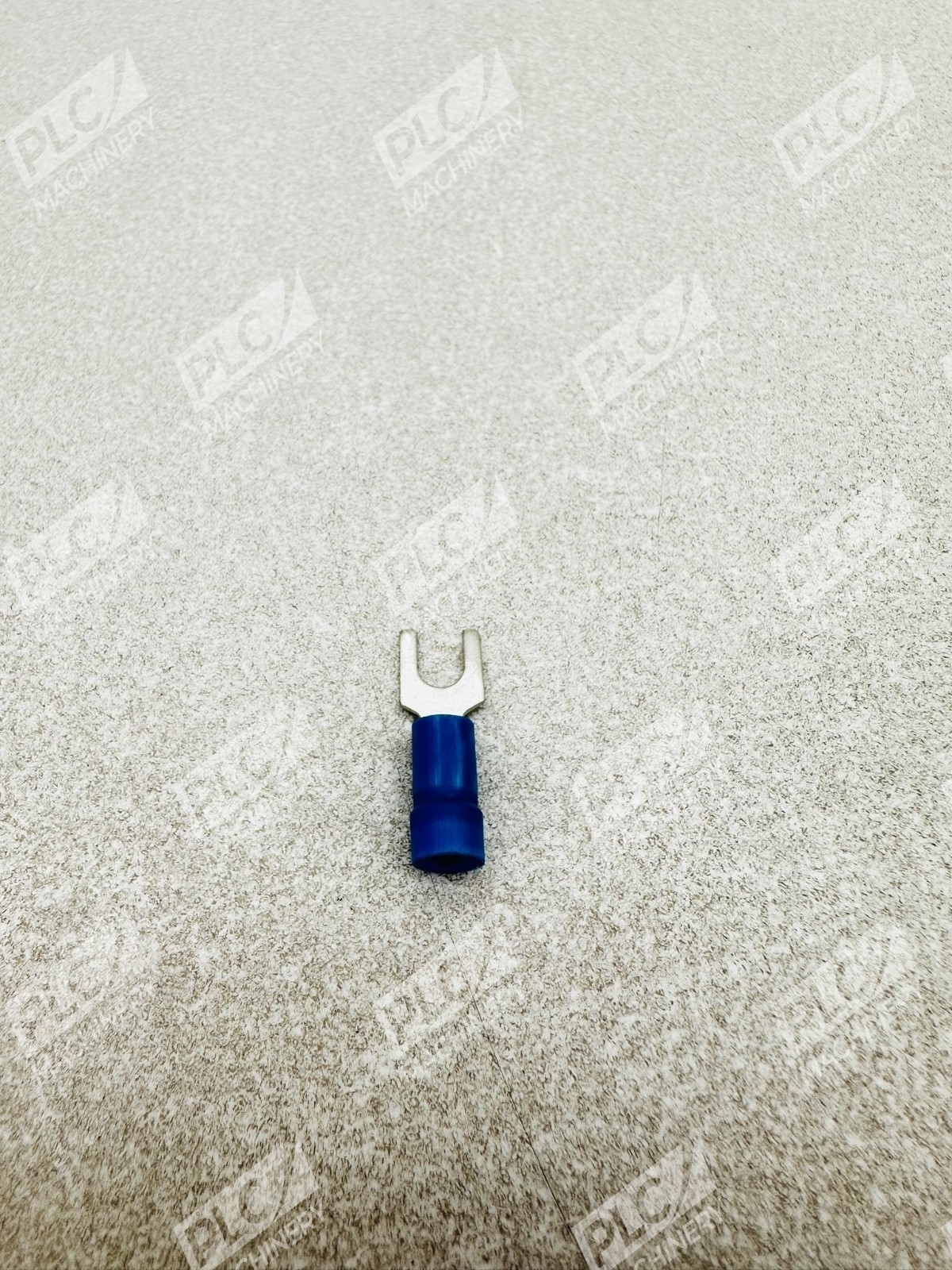

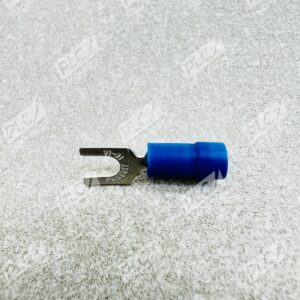

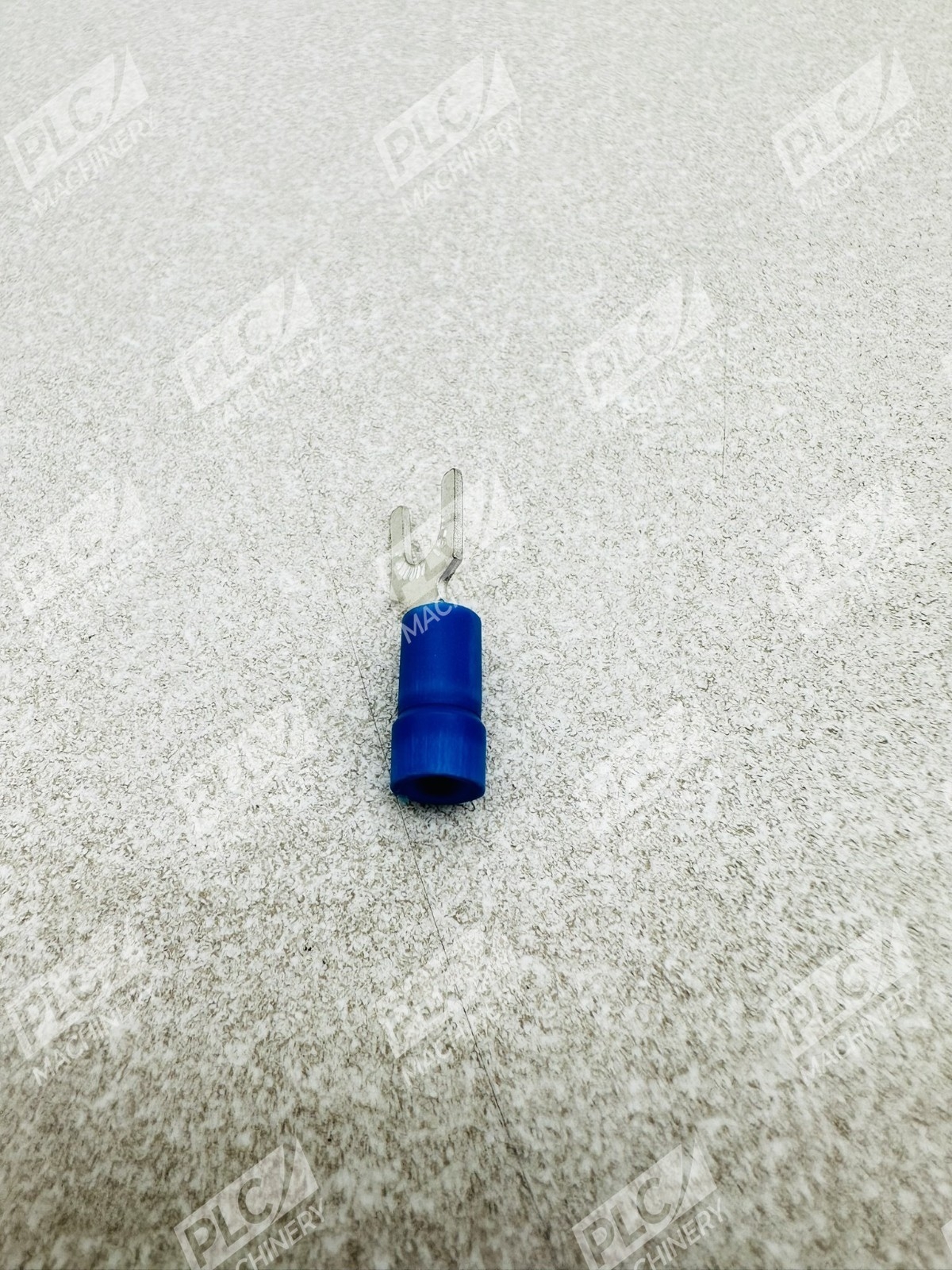

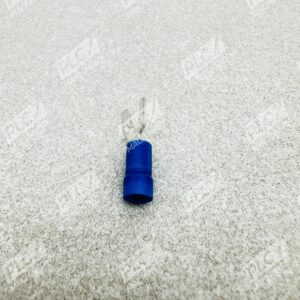

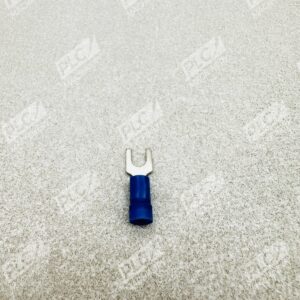

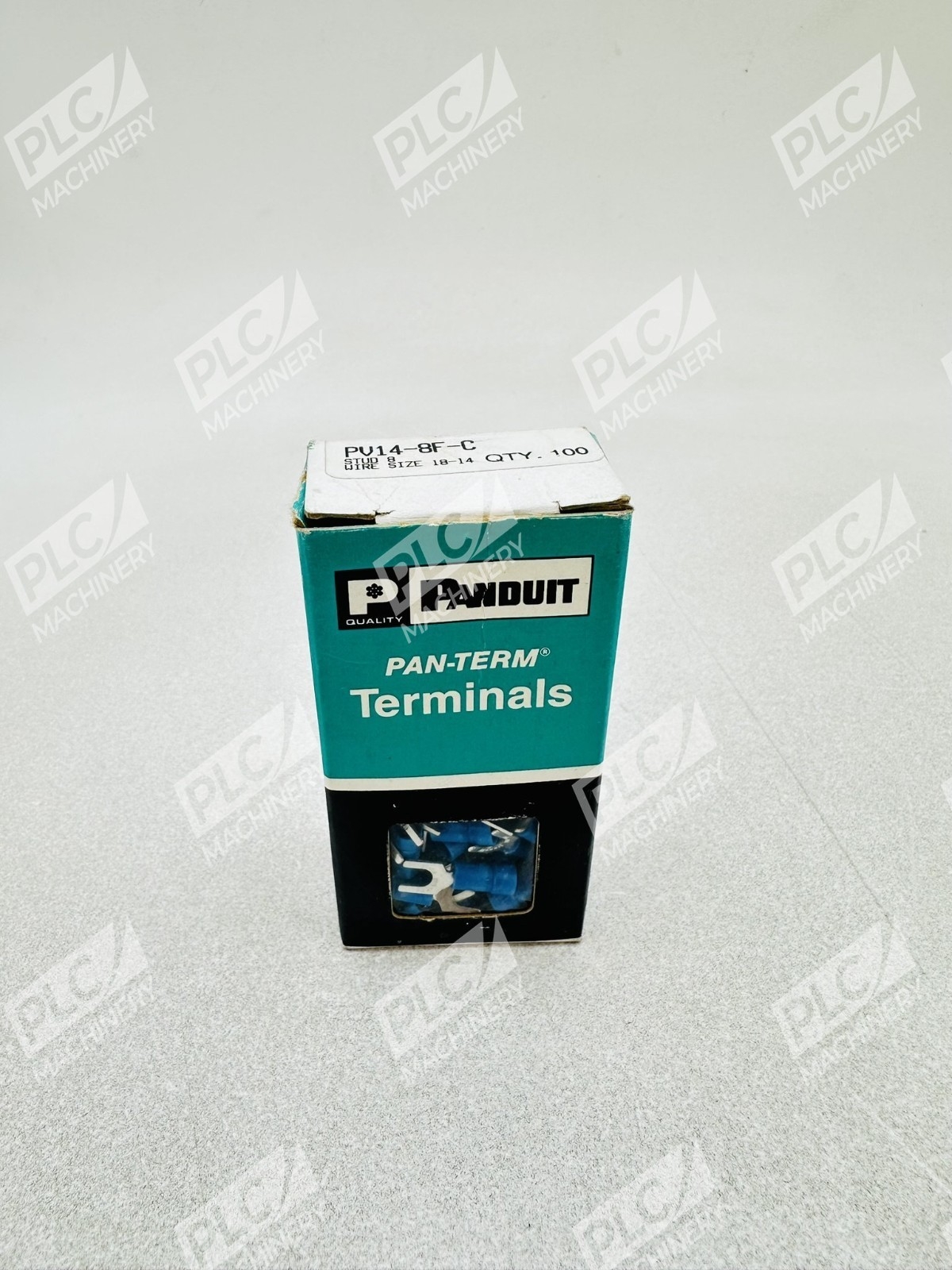

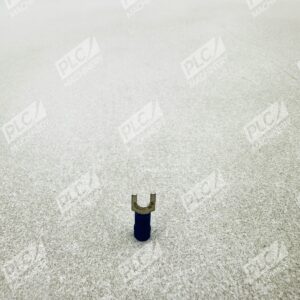

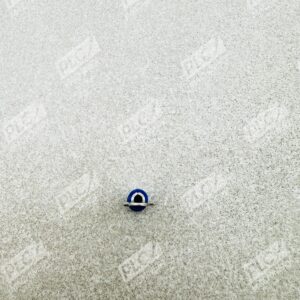

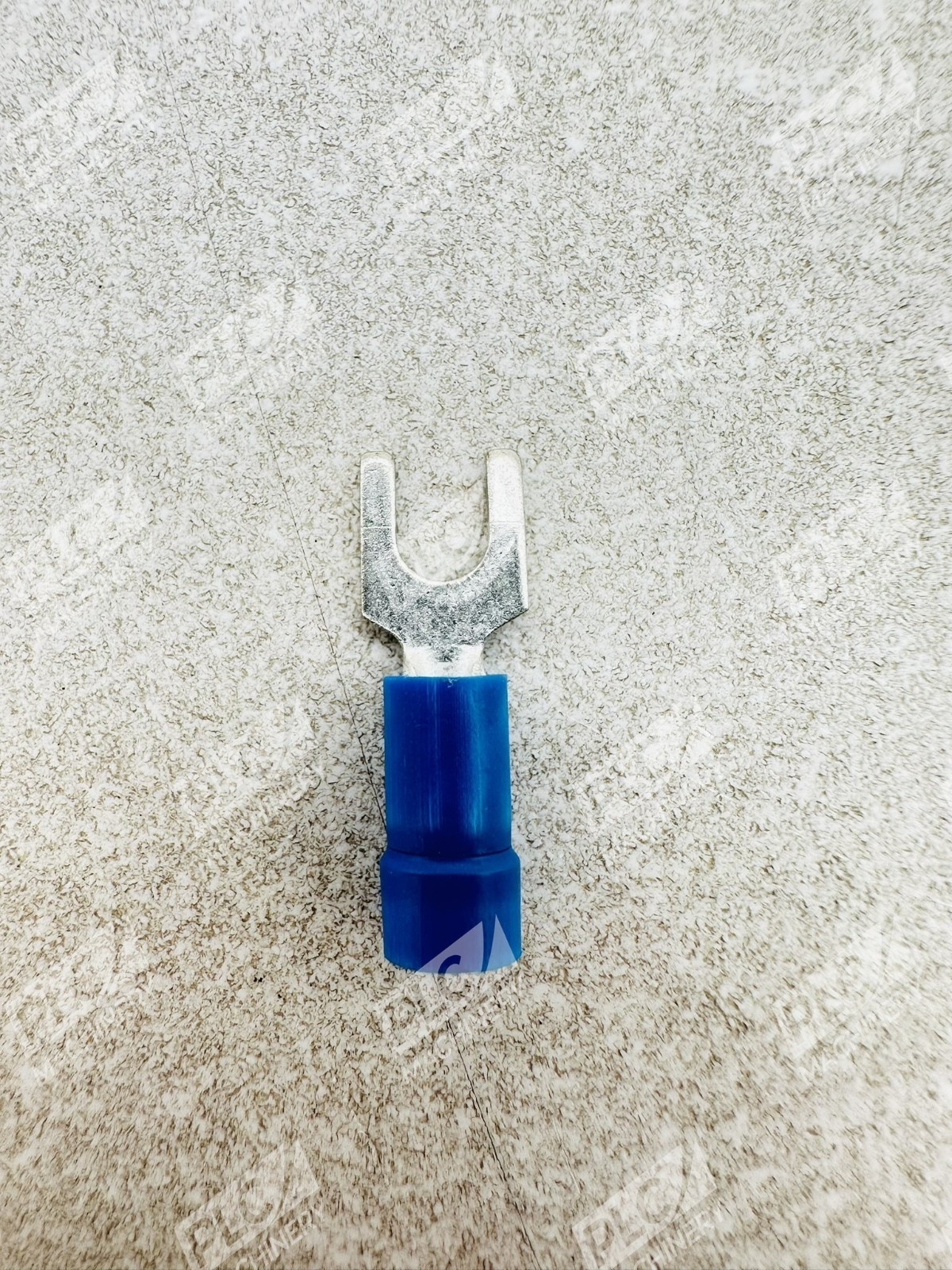

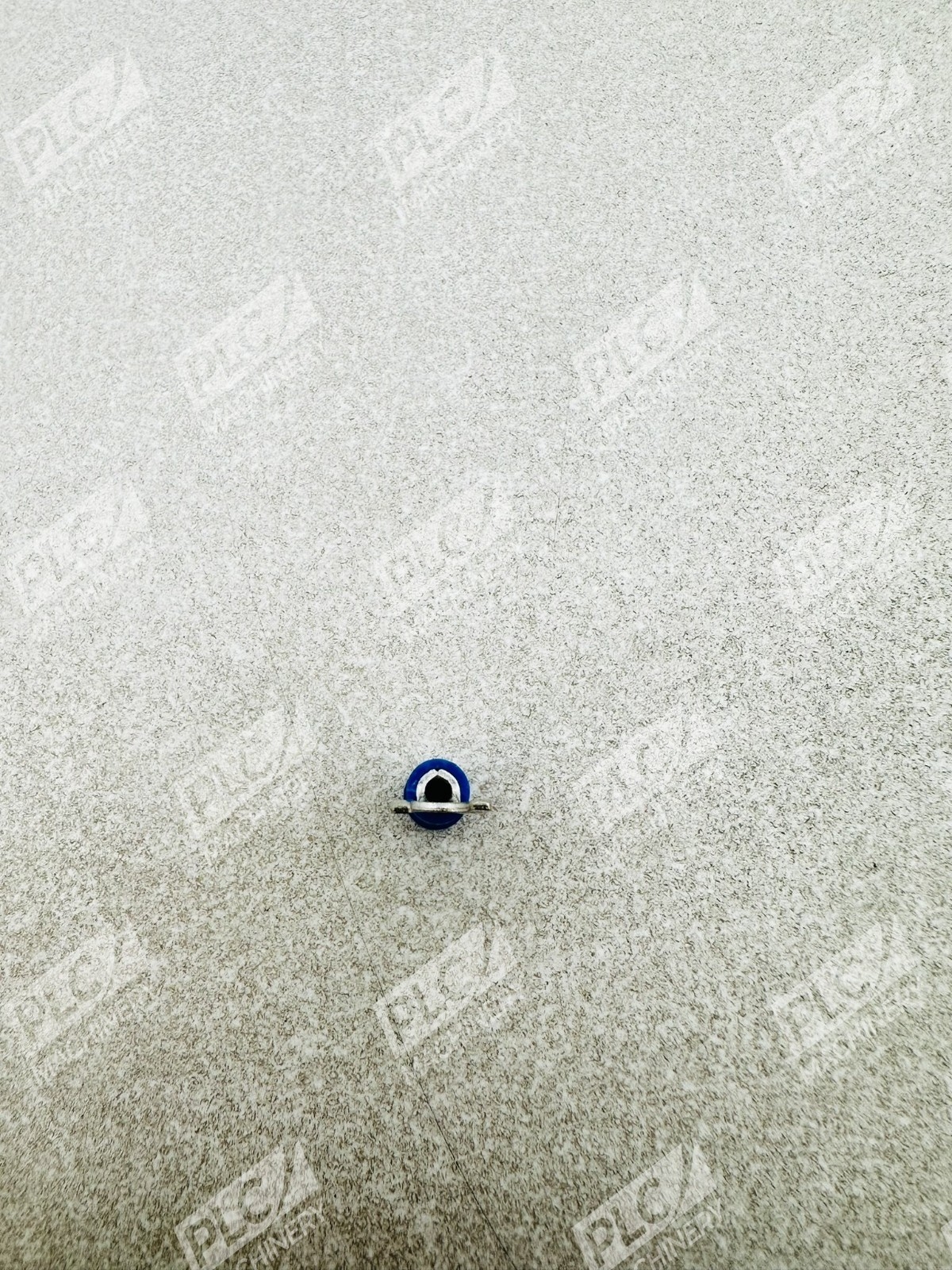

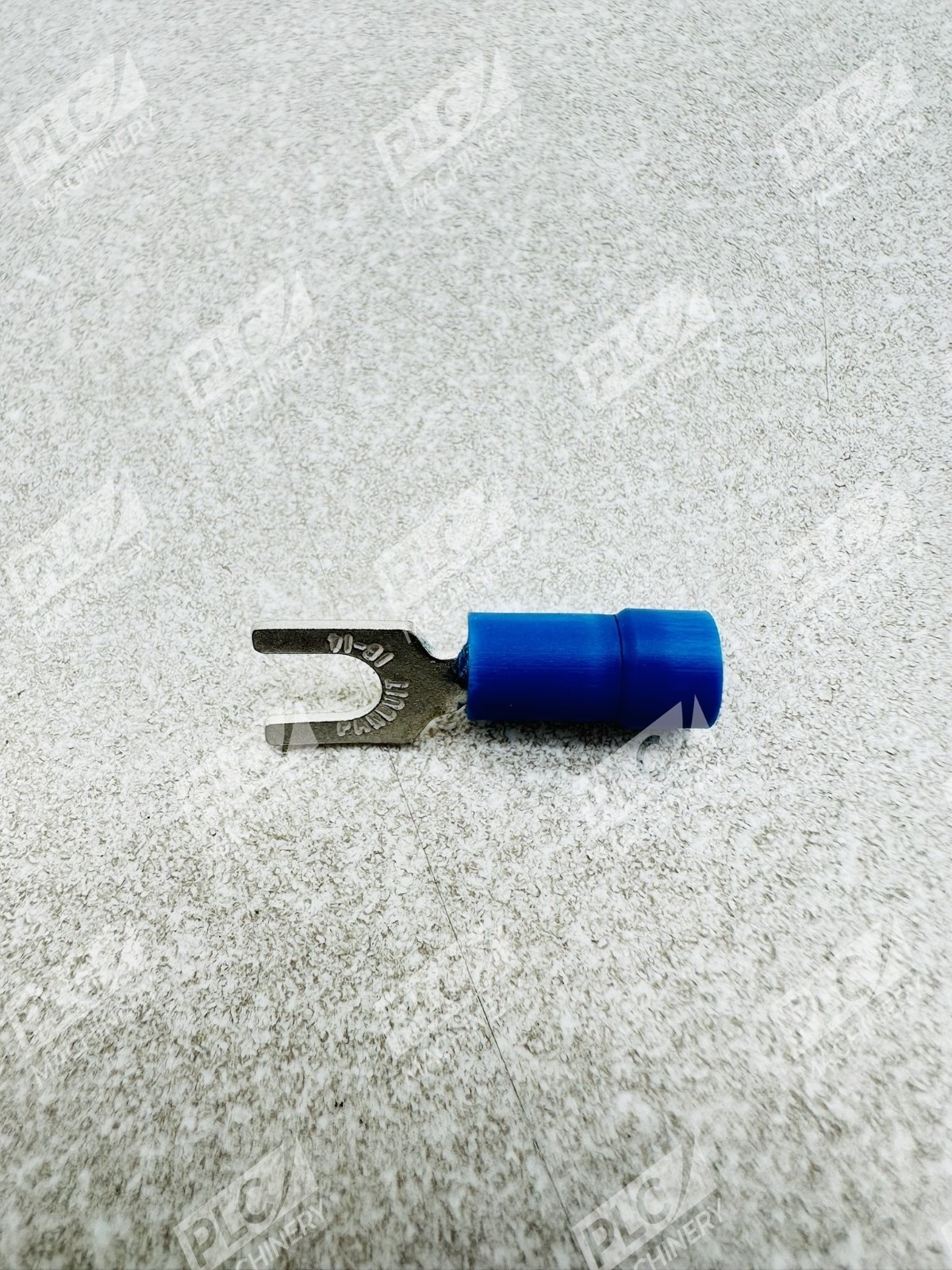

The Panduit PV14-8F-C Pan-Term® fork terminal is a vinyl-insulated wire connector designed for heavy-duty electrical terminations. The PV14-8F-C Pan-Term® Terminal is a vinyl insulated, fork terminal. Fork Terminal, vinyl insulated, funnel entry, 16- 14 AWG, #8 stud size, standard package. This box of 100 provides OEM-quality terminations ideal for power distribution, panel wiring, and industrial control applications where fast, secure connections are critical.
Key Features
- Brazed seam protects terminal barrel from splitting during the crimp process.
- Barrel serrations assure good wire contact and maximum tensile strength.
- Fork design provides for fast and easy installation, without the need to remove fastener.
- Insulation support helps to prevent wire damage in bending applications.
- Tin-plated copper construction for corrosion resistance.
- UL flammability UL 94V-0, CSA rated up to 600V per UL 486A/B, and 221°F (105°C) maximum insulation temperature.
Technical Specifications
Each PV14-8F-C terminal in the box of 100 meets the following electrical and physical parameters:
Typical Applications
- Electrical panel wiring and bus bar terminations
- Motor control and contactor connections
- Industrial power distribution systems
- Control circuit wiring for PLCs and drives
- High-vibration environments requiring secure terminations
- General-purpose industrial electrical assembly
Compatibility & Replacements
Compatible With
- Standard #8 stud termination points (bolts, lugs, terminal blocks)
- 16-14 AWG stranded or solid copper wire
- Industrial control panels and electrical enclosures
- Motor starters and contactors with #8 stud connections
- Power distribution equipment rated to 600V
Replaces / Drop-In Replacement For
The Panduit PV14-8F-C is a standard Pan-Term® vinyl fork terminal. Other equivalent 16-14 AWG #8 stud fork terminals from Panduit include the PV14-8F-M (blue vinyl variant). Verify part compatibility with your system documentation before ordering.
Works With
- Manual and pneumatic wire strippers
- Hand and hydraulic crimp tools rated for 16-14 AWG
- Panduit crimp dies and professional crimping equipment
- Standard electrical assembly tools and workbenches
