Overview

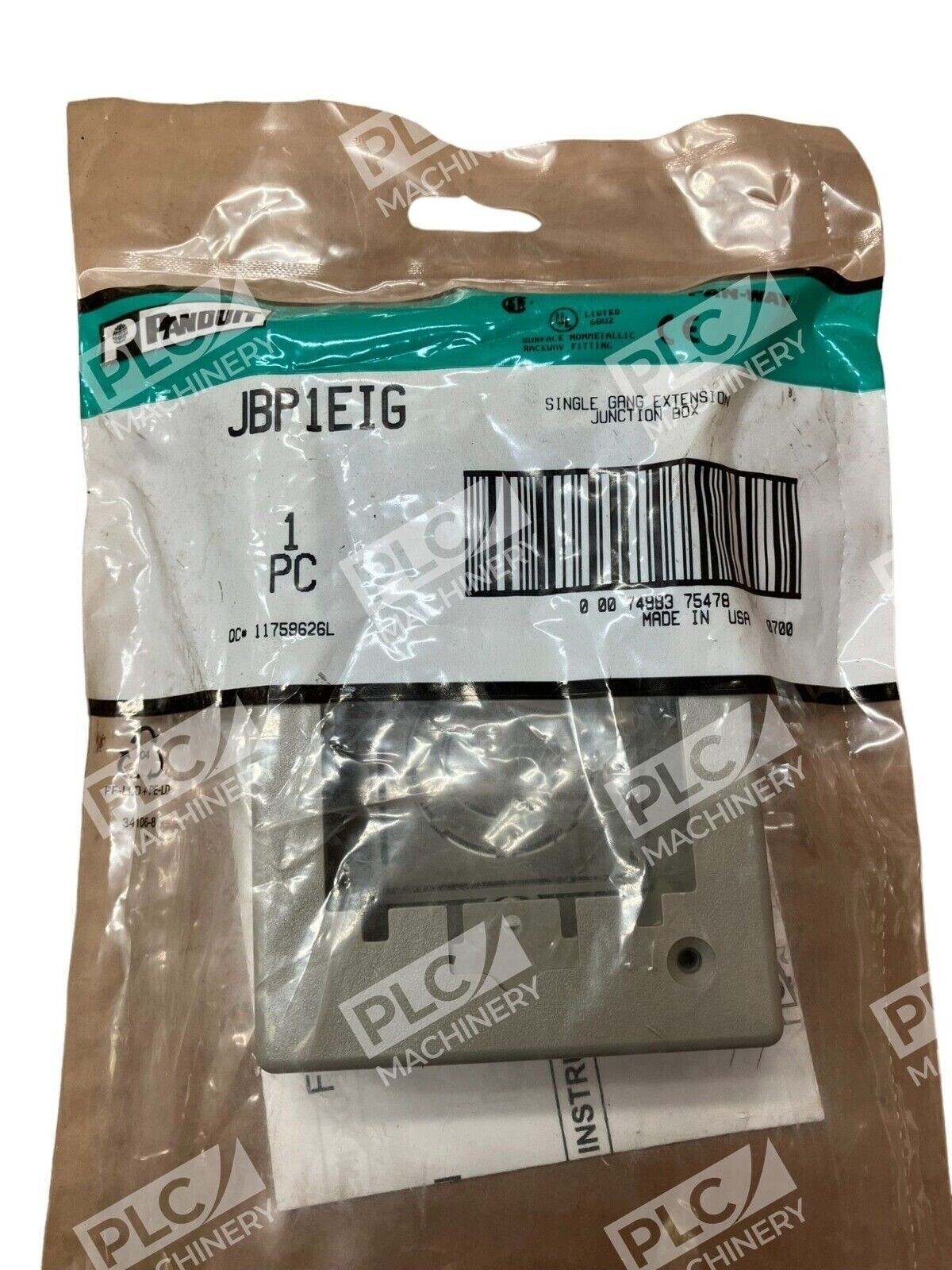

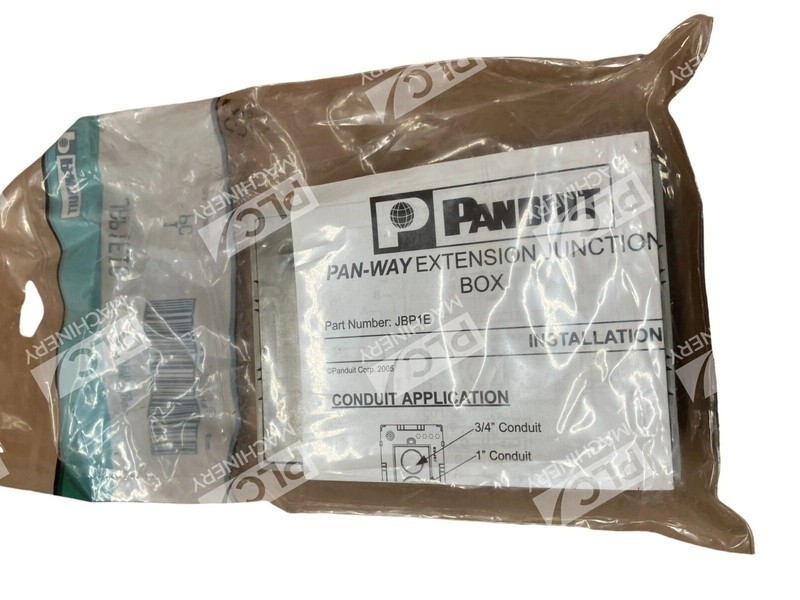

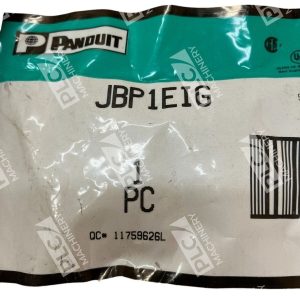

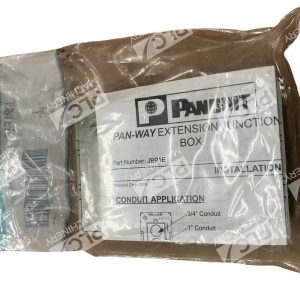

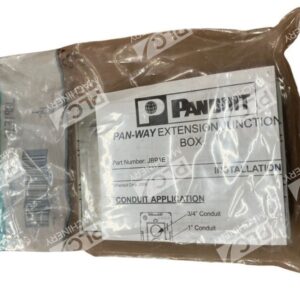

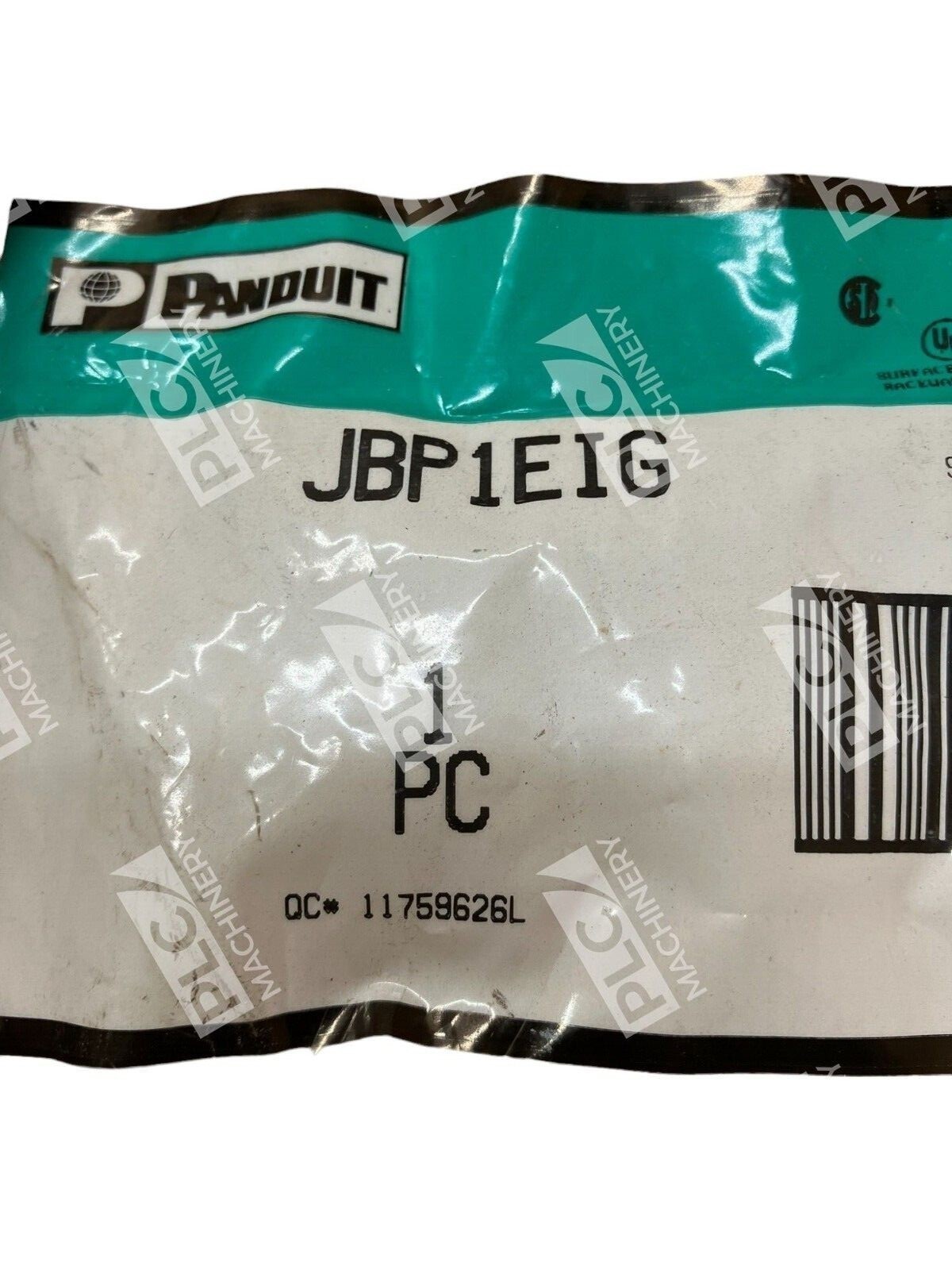

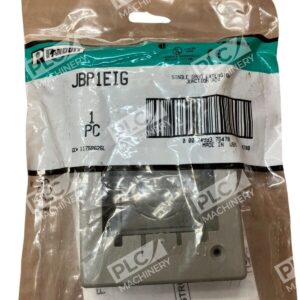

The Panduit JBP1EIG is a single gang power-rated extension outlet box engineered for use with Panduit Pan-Way LD profile raceway systems. This two-piece screw-together design delivers a compact, surface-mountable solution for extending electrical distribution in control systems, machine tool installations, and industrial wiring applications. The international gray finish complements modern control enclosures and panel layouts.
Key Features
- Power-rated design for reliable performance in active electrical circuits
- Two-piece screw-together construction ensures secure assembly
- Accepts standard NEMA single gang screw-on faceplates
- Integrated breakouts for 1/2", 3/4", and 1" diameter conduit
- International gray (IG) finish with durable ABS plastic construction
- Designed for Pan-Way LD profile raceway systems
Technical Specifications
- Model: JBP1EIG
- Manufacturer: Panduit
- Type: Single Gang Power-Rated Extension Junction Box
- Material: ABS Plastic
- Color: International Gray
- Configuration: Two-Piece Screw-Together
- Faceplate Compatibility: NEMA Standard Single Gang Screw-On
- Conduit Breakouts: 1/2", 3/4", 1" diameter
- Raceway System: Pan-Way LD Profile
- Quantity Per Box: 5 Units
Typical Applications
- Surface-mount outlet extensions for control panels and machine tool installations
- Industrial automation equipment wiring and distribution
- Factory floor control systems requiring accessible power outlets
- Office and industrial workspace electrical infrastructure
- Equipment integration requiring modular raceway extensions
Compatibility & Replacements
Compatible With
- Panduit Pan-Way LD profile surface raceway systems
- Standard NEMA single gang screw-on faceplates
- Industrial automation and control panel installations
- Surface-mount electrical distribution systems
Replaces / Drop-In Replacement For
The JBP1EIG serves as a direct replacement for previous versions within the Pan-Way single gang extension box family. Verify compatibility with your system integrator before ordering to ensure proper fit with existing raceway infrastructure.
Works With
- Panduit Pan-Way LD raceway profile and accessories
- Standard NEMA-approved electrical faceplate systems
- Industrial control enclosure installations
- Surface raceway conduit management systems
